Hayward Multiport 4-Way GM Valve Parts

1 1/4" MODEL GM-400 FLANGE MOUNT VALVE

Hayward Multiport 4-Way GM Valve Diagram

Click to zoom in

Diagram #	Part Title

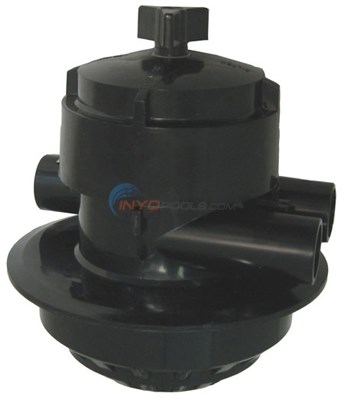

A	COMPLETE VALVE GM400 WG
1	No Longer Available COVER ASSY Replace With 4802-01
2	No Longer Available KNOB WITH STEM Replace With 4802-01
3	No Longer Available GASKET, VALVE SEAT Replace With 4802-01

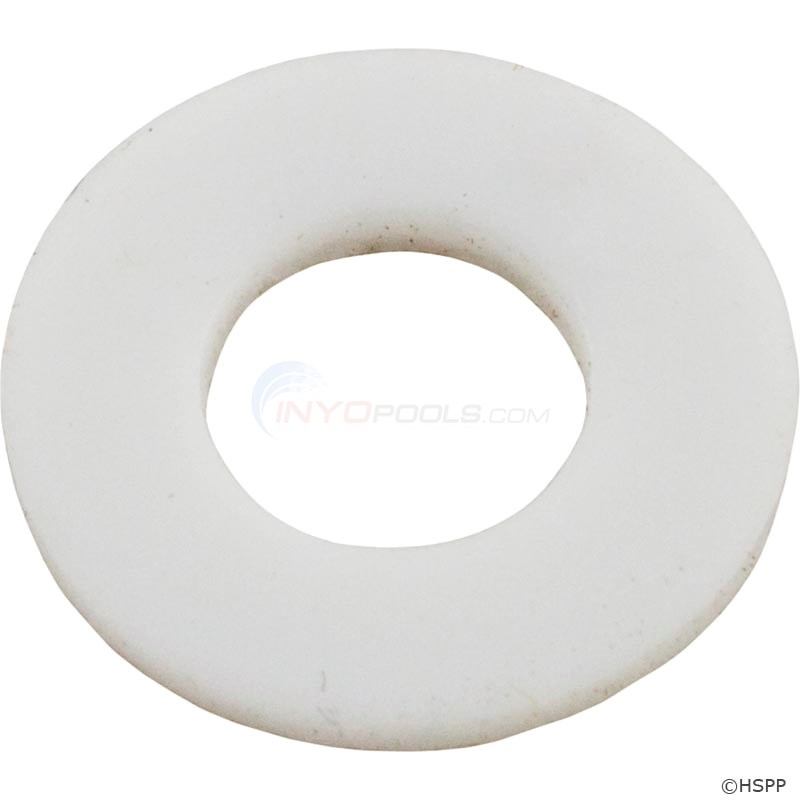

4	WASHER, FIBER BEARING

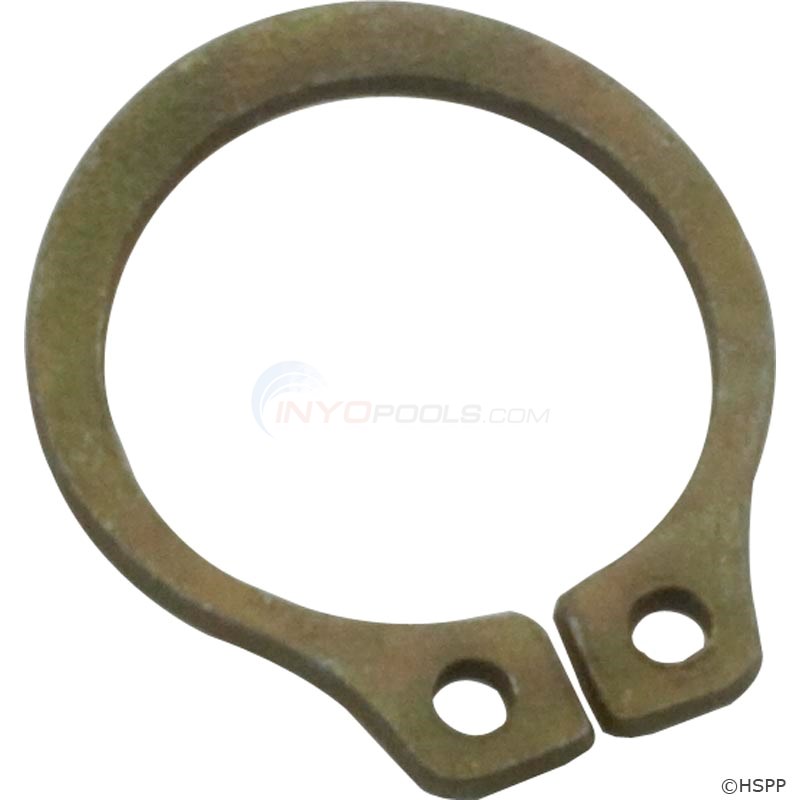

5	STEM LOCK RING

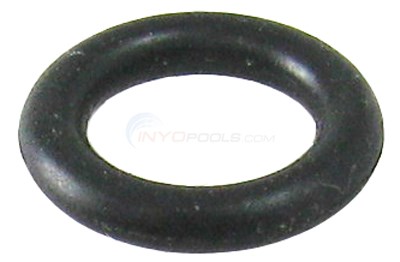

6	O-RING
7	No Longer Available BODY ASSY Replace With 4802-01

View Parts List

Diagram #	Part Title
A	COMPLETE VALVE GM400 WG
1	No Longer Available COVER ASSY Replace With 4802-01
2	No Longer Available KNOB WITH STEM Replace With 4802-01
3	No Longer Available GASKET, VALVE SEAT Replace With 4802-01
4	WASHER, FIBER BEARING
5	STEM LOCK RING
6	O-RING
7	No Longer Available BODY ASSY Replace With 4802-01
