Navigator 15' Round 54" Wall (Aluminum Top Rail, Aluminum Upright) Parts

MODEL PNAV-54AAAARJ1 (ALUMINUM TOP RAIL, ALUMINUM UPRIGHT)

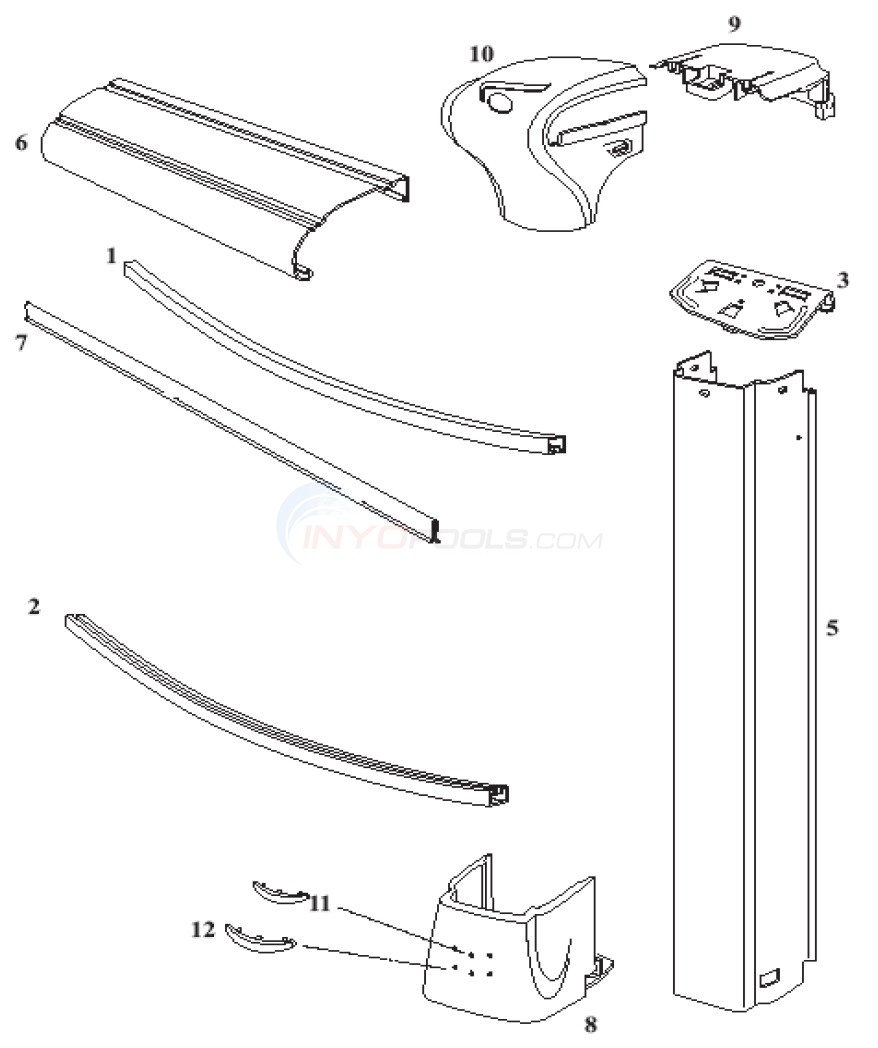

Navigator 15' Round 54" Wall (Aluminum Top Rail, Aluminum Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	15' Round 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer 53-1/4"(Single)
2	Bottom Rail Aluminum 49" (Single)
3	Top Plate 6.5" (Single)
5	Up Right 53 13/16” (Single)
6	Top Rail Aluminum 51-5/32" (Single)
7	Plastic Coping 48" (Single)
8	Bottom Boot 8" Resin Pumice (Single)
9	Top Cap Inner Half 8" (Single)
10	Top Cap Outer Half 8" (Single)
11	Accent Clip Pumice Resin Large (Single)
12	Accent Clip Pumice UR (Single)
*	Hardware SS 8'/12'/15'

View Parts List

Diagram #	Part Title
*Liner	15' Round 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer 53-1/4"(Single)
2	Bottom Rail Aluminum 49" (Single)
3	Top Plate 6.5" (Single)
5	Up Right 53 13/16” (Single)
6	Top Rail Aluminum 51-5/32" (Single)
7	Plastic Coping 48" (Single)
8	Bottom Boot 8" Resin Pumice (Single)
9	Top Cap Inner Half 8" (Single)
10	Top Cap Outer Half 8" (Single)
11	Accent Clip Pumice Resin Large (Single)
12	Accent Clip Pumice UR (Single)
*	Hardware SS 8'/12'/15'
