Navigator 28' Round 54" Wall (Aluminum Top Rail, Aluminum Upright) Parts

MODEL PNAV-54AAAARJ1 (ALUMINUM TOP RAIL, ALUMINUM UPRIGHT)

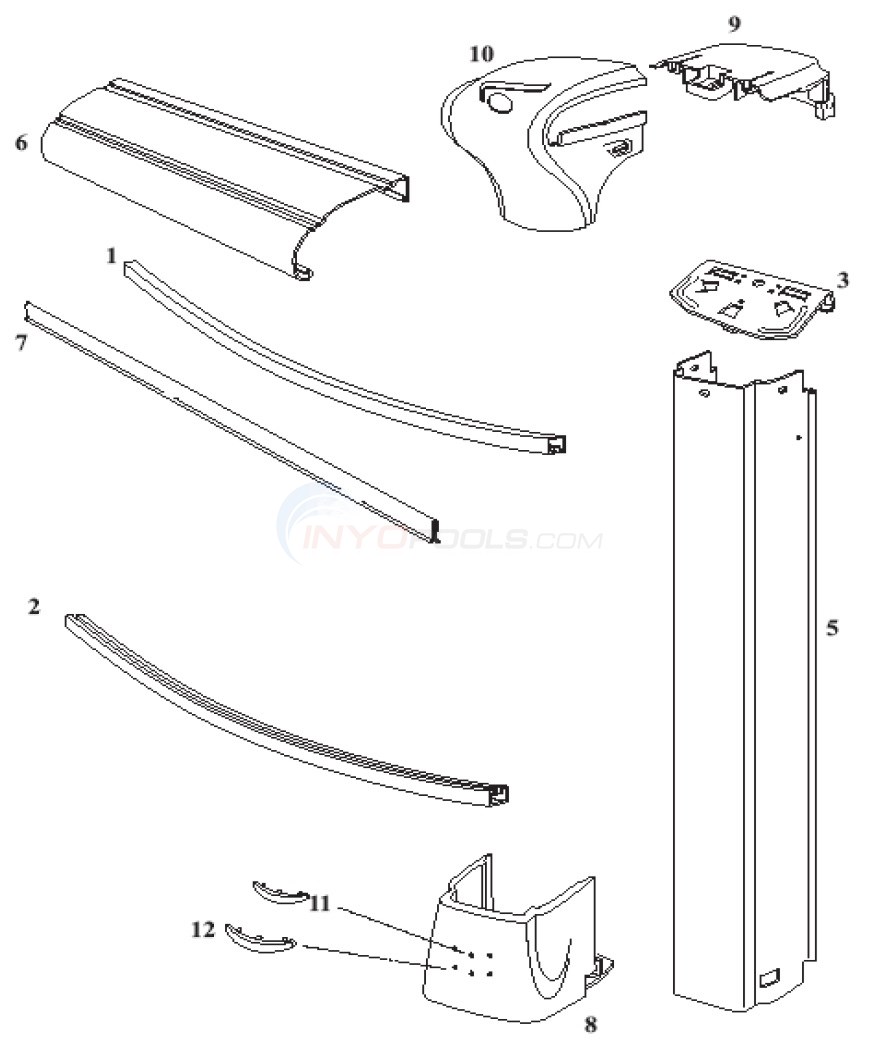

Navigator 28' Round 54" Wall (Aluminum Top Rail, Aluminum Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	28' Round 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer 52-1/8"
2	Bottom Rail 48"
3	Top Plate 6.5" (Single)
5	Up Right 53 13/16” (Single)
6	Top Rail 8” 49 7/8” (Single)
7	Plastic Coping 48" (Single)
8	Bottom Boot 8" Resin Pumice (Single)
9	Top Cap Inner Half 8" (Single)
10	Top Cap Outer Half 8" (Single)
11	Accent Clip Pumice Resin Large (Single)
12	Accent Clip Pumice UR (Single)
*	Hardware SS 28'

View Parts List

Diagram #	Part Title
*Liner	28' Round 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer 52-1/8"
2	Bottom Rail 48"
3	Top Plate 6.5" (Single)
5	Up Right 53 13/16” (Single)
6	Top Rail 8” 49 7/8” (Single)
7	Plastic Coping 48" (Single)
8	Bottom Boot 8" Resin Pumice (Single)
9	Top Cap Inner Half 8" (Single)
10	Top Cap Outer Half 8" (Single)
11	Accent Clip Pumice Resin Large (Single)
12	Accent Clip Pumice UR (Single)
*	Hardware SS 28'
