Pentair Intelliflo3 / IntelliPro3 Pool Pump Parts

Parts listed are for the 1.5HP and 3.0HP versions of the Pentair IntelliFlo3 and IntelliPro3 Pool Pumps.

Pentair Intelliflo3 / IntelliPro3 Pool Pump Diagram

Click to zoom in

Diagram #	Part Title
1	Drive Cover Assembly
2	Field Wiring Compartment Kit
3	Blank Controller Kit
4	Universal Touchscreen Add-On Kit
5	Touchscreen Lid
6	Pump I/O Relay Control Board Kit
7	Antenna
*	4-Pin Connector, RS-485
9	6-Position Relay Control Board Connector
10	Controller Screws, Set of 4
11	Drive Kit with Hardware for 1.5 HP Pump
12	Drive Hardware Kit
13	7/8" Drive Plug (Pack of 3)
14	1" Low Voltage Drive Plug Bushing
15	1.5 HP Motor Kit
16	Motor Bracket Kit
17	Motor Foot Kit
18	Motor Shroud Kit for 1.5HP Motor, Almond
19	1.5HP Motor Fan and Fan Cover Kit
20	Bonding Lug
21	Motor Foot Screw (Single)
22	Motor Bolts, Pack of 4
23	Seal Plate for 1.5HP Pump
24	1.5HP Pump Seal Plate O-Ring
25	Pump Shaft Seal, Heavy Duty PS-200-style
26	1.5HP Impeller
27	1.5HP Diffuser
28	Diffuser Screws, Pack of 3
29	Diffuser O-Ring
30	1.5HP Pump Strainer Basket
31	Lid Assembly
32	Strainer Lid O-Ring
33	1.5HP Strainer Pot Kit
34	Drain Plug O-ring
35	Drain Plug
36	Seal Plate to Strainer Pot Bolts (Pack of 8)
*	1.5HP Pump Seal Kit
*	1.5" Union Kit for 1.5HP Pump
*	1.5HP Union O-Ring
*	Pentair Thick Riser Plate Base Kit (C Base) for IntelliFlo3® VSF 1.5 HP Pump - 357831Z

View Parts List

Diagram #	Part Title
1	Drive Cover Assembly
2	Field Wiring Compartment Kit
3	Blank Controller Kit
4	Universal Touchscreen Add-On Kit
5	Touchscreen Lid
6	Pump I/O Relay Control Board Kit
7	Antenna
*	4-Pin Connector, RS-485
9	6-Position Relay Control Board Connector
10	Controller Screws, Set of 4
11	Drive Kit with Hardware for 1.5 HP Pump
12	Drive Hardware Kit
13	7/8" Drive Plug (Pack of 3)
14	1" Low Voltage Drive Plug Bushing
15	1.5 HP Motor Kit
16	Motor Bracket Kit
17	Motor Foot Kit
18	Motor Shroud Kit for 1.5HP Motor, Almond
19	1.5HP Motor Fan and Fan Cover Kit
20	Bonding Lug
21	Motor Foot Screw (Single)
22	Motor Bolts, Pack of 4
23	Seal Plate for 1.5HP Pump
24	1.5HP Pump Seal Plate O-Ring
25	Pump Shaft Seal, Heavy Duty PS-200-style
26	1.5HP Impeller
27	1.5HP Diffuser
28	Diffuser Screws, Pack of 3
29	Diffuser O-Ring
30	1.5HP Pump Strainer Basket
31	Lid Assembly
32	Strainer Lid O-Ring
33	1.5HP Strainer Pot Kit
34	Drain Plug O-ring
35	Drain Plug
36	Seal Plate to Strainer Pot Bolts (Pack of 8)
*	1.5HP Pump Seal Kit
*	1.5" Union Kit for 1.5HP Pump
*	1.5HP Union O-Ring
*	Pentair Thick Riser Plate Base Kit (C Base) for IntelliFlo3® VSF 1.5 HP Pump - 357831Z

Available Parts:

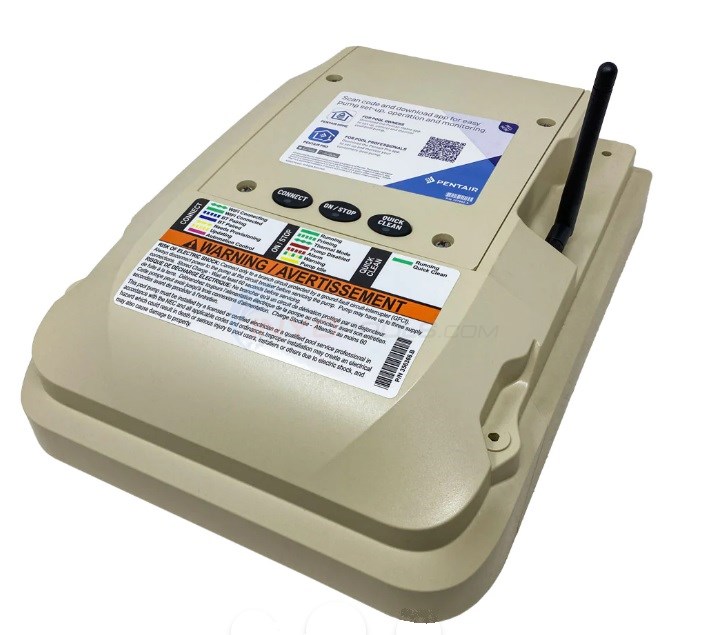

Drive Cover Assembly

Part # 356214Z Mfg # 356214Z

Drive Cover Assembly

$251.22 IN STOCK

HP 1.5 and 3.0

HP 1.5 and 3.0

Qty:

Field Wiring Compartment Kit

Part # 356096Z Mfg # 356096Z

Field Wiring Compartment Kit

$25.09

HP 1.5 and 3.0

HP 1.5 and 3.0

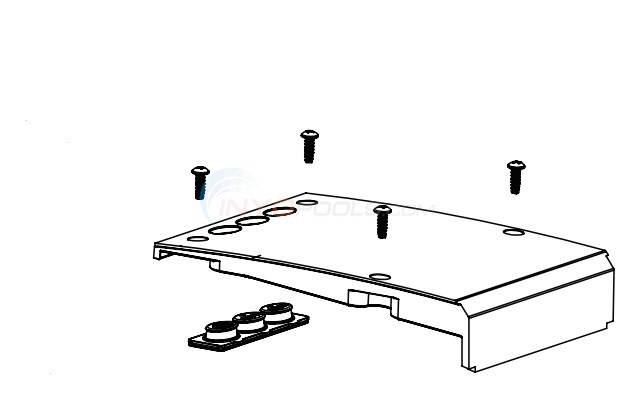

Blank Controller Kit

Part # 356101Z Mfg # 356101Z

Blank Controller Kit

$24.06

HP 1.5 and 3.0

HP 1.5 and 3.0

Universal Touchscreen Add-On Kit

Part # 356159Z Mfg # 356159Z

Universal Touchscreen Add-On Kit

$346.71 IN STOCK

HP 1.5 and 3.0

HP 1.5 and 3.0

Qty:

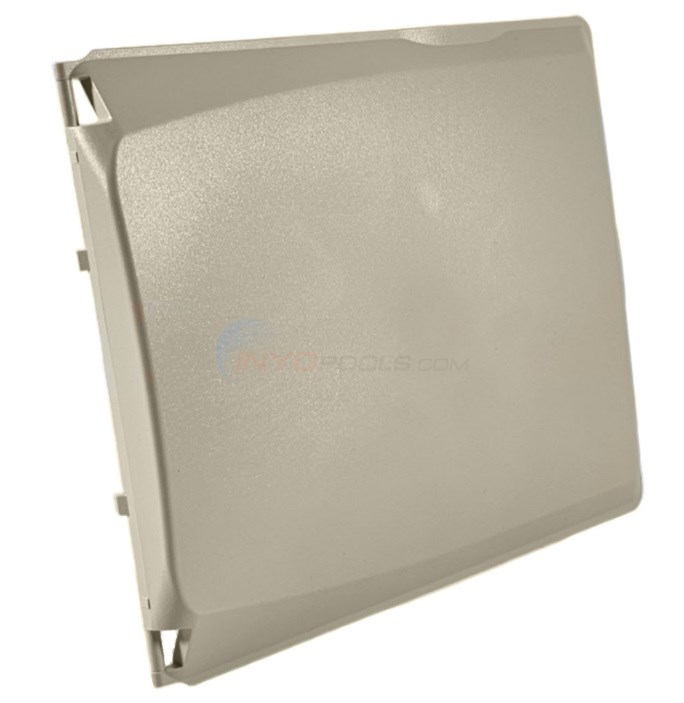

Touchscreen Lid

Part # 356099Z Mfg # 356099Z

Touchscreen Lid

NOT AVAILABLE

HP 1.5 and 3.0

HP 1.5 and 3.0

Pump I/O Relay Control Board Kit

Part # 356365Z Mfg # 356365Z

Pump I/O Relay Control Board Kit

$200.99 IN STOCK

HP 1.5 and 3.0

HP 1.5 and 3.0

Qty:

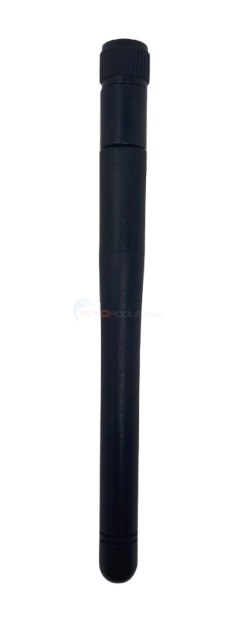

Antenna

Part # 356226Z Mfg # 356226Z

Antenna

$13.05

HP 1.5 and 3.0

HP 1.5 and 3.0

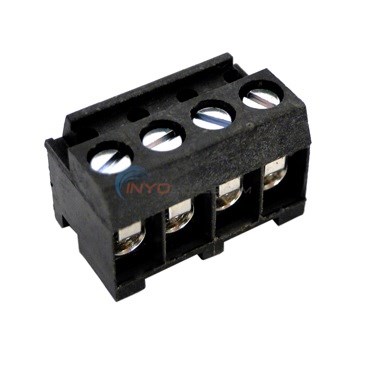

4-Pin Connector, RS-485

Part # 8023304 Mfg # 8023304

4-Pin Connector, RS-485

$17.07

HP 1.5 and 3.0

HP 1.5 and 3.0

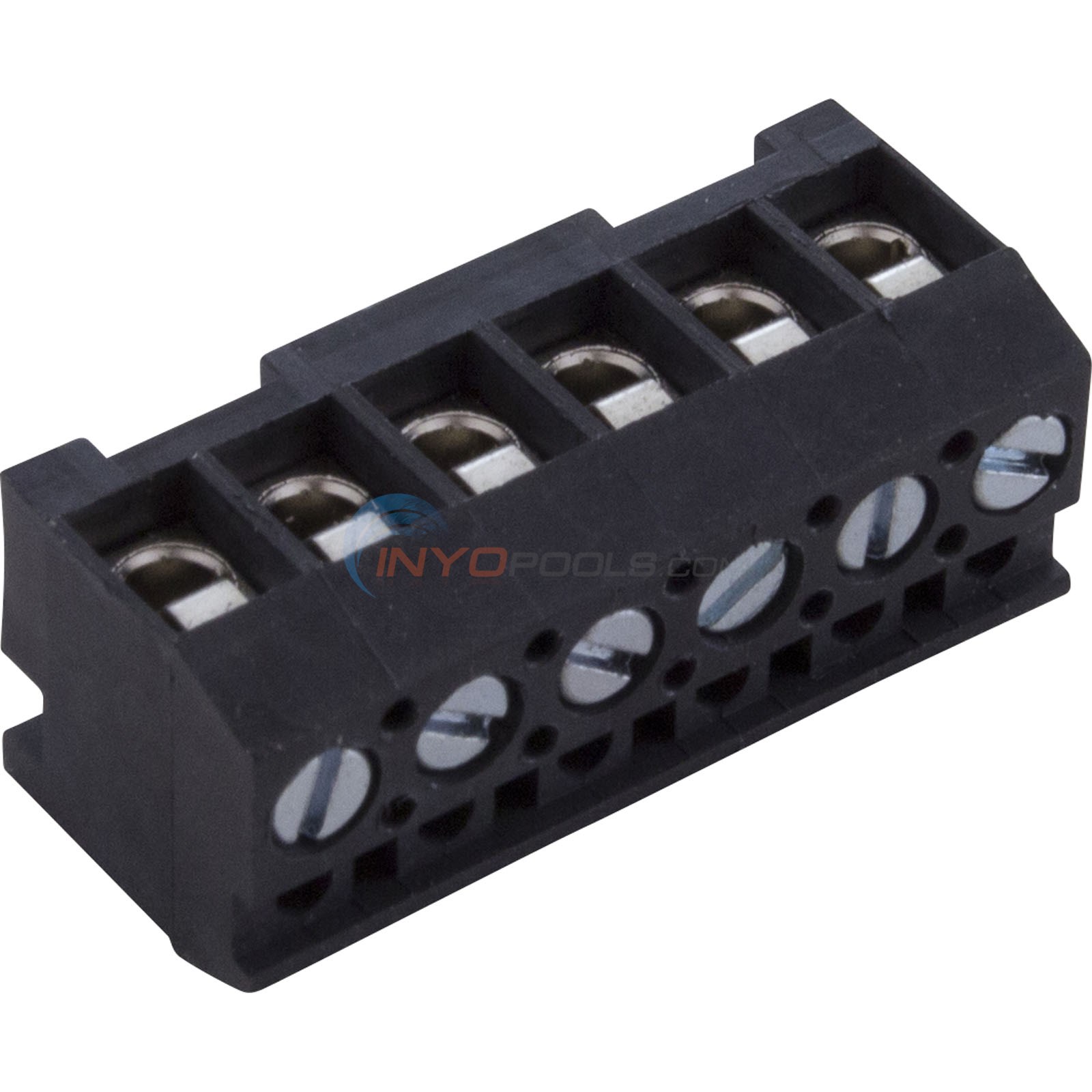

6-Position Relay Control Board Connector

Part # 8023306 Mfg # 8023306

6-Position Relay Control Board Connector

$17.07 IN STOCK

HP 1.5 and 3.0

HP 1.5 and 3.0

Qty:

Controller Screws, Set of 4

Part # 356215Z Mfg # 356215Z

Controller Screws, Set of 4

$6.02

HP 1.5 and 3.0

HP 1.5 and 3.0

Drive Kit with Hardware for 1.5 HP Pump

Part # 356162Z Mfg # 356162Z

Drive Kit with Hardware for 1.5 HP Pump

$964.77 IN STOCK

HP 1.5

HP 1.5

Qty:

Drive Kit with Hardware for IntelliFlo3® VSF 3.0 HP Pump

Part # 356163Z Mfg # 356163Z

Drive Kit with Hardware for IntelliFlo3® VSF 3.0 HP Pump

$1061.25 IN STOCK

HP 3.0

HP 3.0

Qty:

Drive Hardware Kit

Part # 357865 Mfg # 357865

Drive Hardware Kit

$11.63

HP 1.5 and 3.0

HP 1.5 and 3.0

7/8" Drive Plug (Pack of 3)

Part # 356219Z Mfg # 356219Z

7/8" Drive Plug (Pack of 3)

$7.00

HP 1.5 and 3.0

HP 1.5 and 3.0

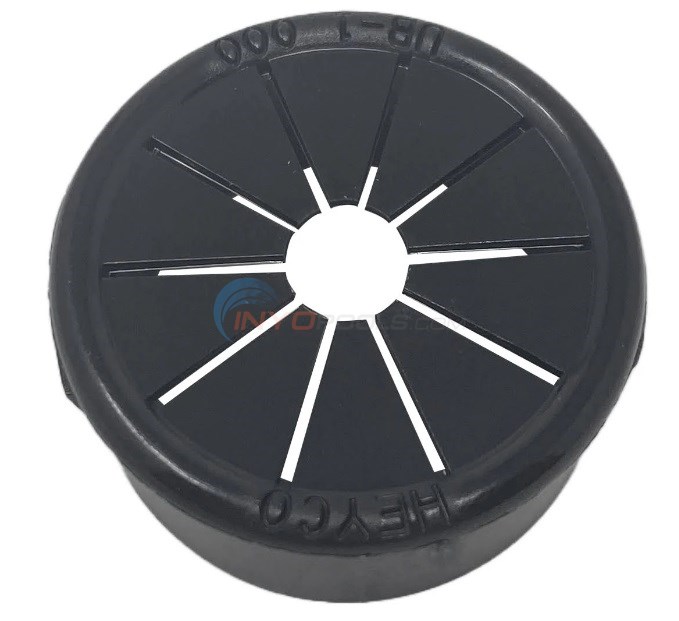

1" Low Voltage Drive Plug Bushing

Part # 356320Z Mfg # 356320Z

1" Low Voltage Drive Plug Bushing

$4.99

HP 1.5 and 3.0

HP 1.5 and 3.0

1.5 HP Motor Kit

Part # 356164S Mfg # 356164S

1.5 HP Motor Kit

$602.97

HP 1.5

HP 1.5

3.0 HP Motor Kit

Part # 356165S Mfg # 356165S

3.0 HP Motor Kit

$874.32

HP 3.0

HP 3.0

Motor Bracket Kit

Part # 356167Z Mfg # 356167Z

Motor Bracket Kit

$11.02

HP 1.5 and 3.0

HP 1.5 and 3.0

Motor Foot Kit

Part # 356149Z Mfg # 356149Z

Motor Foot Kit

$12.03

HP 1.5 and 3.0

HP 1.5 and 3.0

Motor Shroud Kit for 1.5HP Motor, Almond

Part # 357867 Mfg # 357867

Motor Shroud Kit for 1.5HP Motor, Almond

$68.31

HP 1.5

HP 1.5

Motor Shroud Kit for 3.0HP Motor, Almond

Part # 357869 Mfg # 357869

Motor Shroud Kit for 3.0HP Motor, Almond

$70.32

HP 3.0

HP 3.0

1.5HP Motor Fan and Fan Cover Kit

Part # 356232Z Mfg # 356232Z

1.5HP Motor Fan and Fan Cover Kit

$39.16

HP 1.5

HP 1.5

3.0HP Motor Fan and Fan Cover Kit

Part # 357866Z Mfg # 357866Z

3.0HP Motor Fan and Fan Cover Kit

$40.17

HP 3.0

HP 3.0

Bonding Lug

Part # 356166Z Mfg # 356166Z

Bonding Lug

$10.02

HP 1.5 and 3.0

HP 1.5 and 3.0

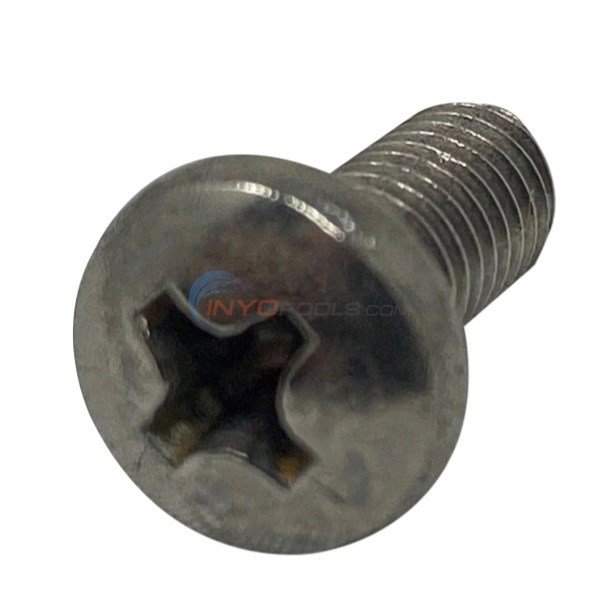

Motor Foot Screw (Single)

Part # 356221Z Mfg # 356221Z

Motor Foot Screw (Single)

$6.00

HP 1.5 and 3.0

HP 1.5 and 3.0

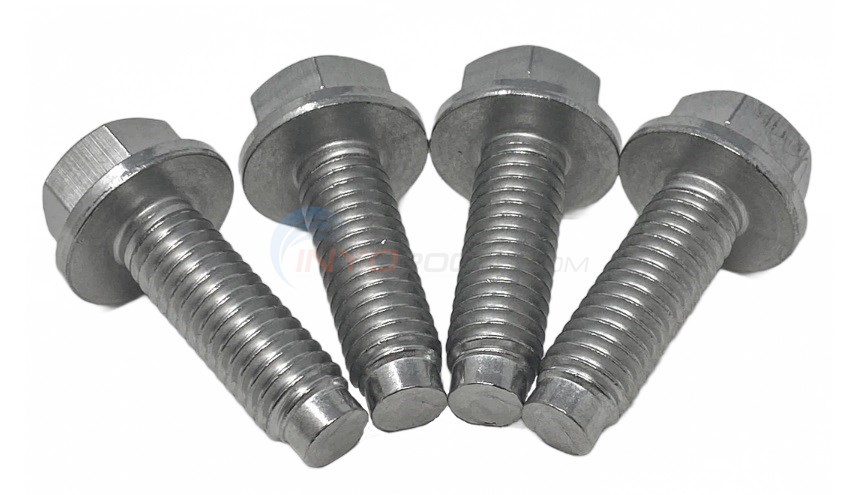

Motor Bolts, Pack of 4

Part # 074165Z Mfg # 074165Z

Motor Bolts, Pack of 4

$11.63 IN STOCK

HP 1.5 and 3.0

HP 1.5 and 3.0

Qty:

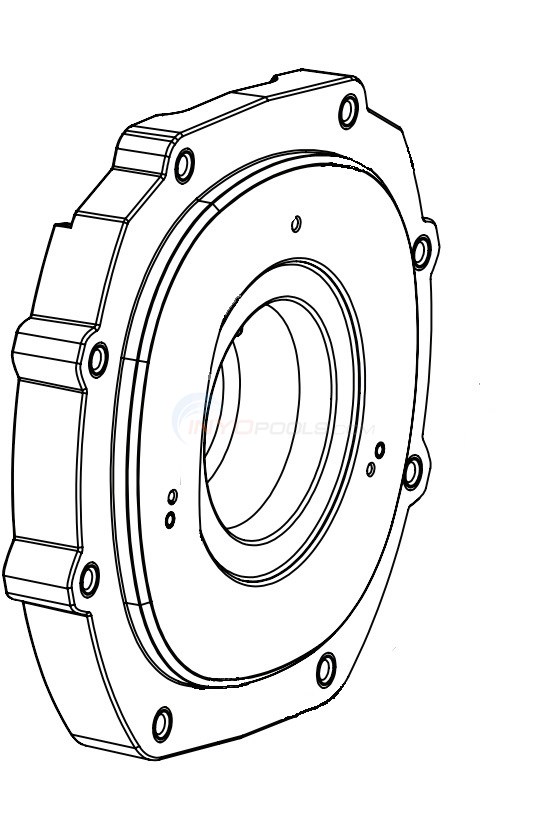

Seal Plate for 1.5HP Pump

Part # 356090Z Mfg # 356090Z

Seal Plate for 1.5HP Pump

$90.42 IN STOCK

HP 1.5

HP 1.5

Qty:

Seal Plate for 3.0HP Pump

Part # 356091Z Mfg # 356091Z

Seal Plate for 3.0HP Pump

$90.42 IN STOCK

HP 3.0

HP 3.0

Qty:

1.5HP Pump Seal Plate O-Ring

Part # 356148Z Mfg # 356148Z

1.5HP Pump Seal Plate O-Ring

$7.51 IN STOCK

HP 1.5

HP 1.5

Qty:

3.0HP Pump Seal Plate O-Ring

Part # 356173Z Mfg # 356173Z

3.0HP Pump Seal Plate O-Ring

$18.66 IN STOCK

HP 3.0

HP 3.0

Qty:

Pump Shaft Seal, Heavy Duty PS-200-style

Part # 5250-210 Mfg # PS-3867

Pump Shaft Seal, Heavy Duty PS-200-style

$17.07 IN STOCK

HP 1.5 and 3.0

HP 1.5 and 3.0

Qty:

1.5HP Impeller

Part # 356176Z Mfg # 356176Z

1.5HP Impeller

$58.26 IN STOCK

HP 1.5

HP 1.5

Qty:

3.0HP Impeller

Part # 356177Z Mfg # 356177Z

3.0HP Impeller

$63.28 IN STOCK

HP 3.0

HP 3.0

Qty:

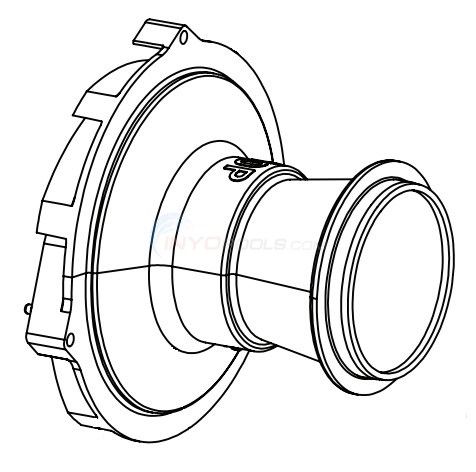

1.5HP Diffuser

Part # 356155Z Mfg # 356155Z

1.5HP Diffuser

$58.26 IN STOCK

HP 1.5

HP 1.5

Qty:

3.0HP Diffuser

Part # 356156Z Mfg # 356156Z

3.0HP Diffuser

$60.27 IN STOCK

HP 3.0

HP 3.0

Qty:

Diffuser Screws, Pack of 3

Part # 356213Z Mfg # 356213Z

Diffuser Screws, Pack of 3

$9.52

HP 1.5 and 3.0

HP 1.5 and 3.0

Diffuser O-Ring

Part # 356190Z Mfg # 356190Z

Diffuser O-Ring

$9.01 IN STOCK

HP 1.5 and 3.0

HP 1.5 and 3.0

Qty:

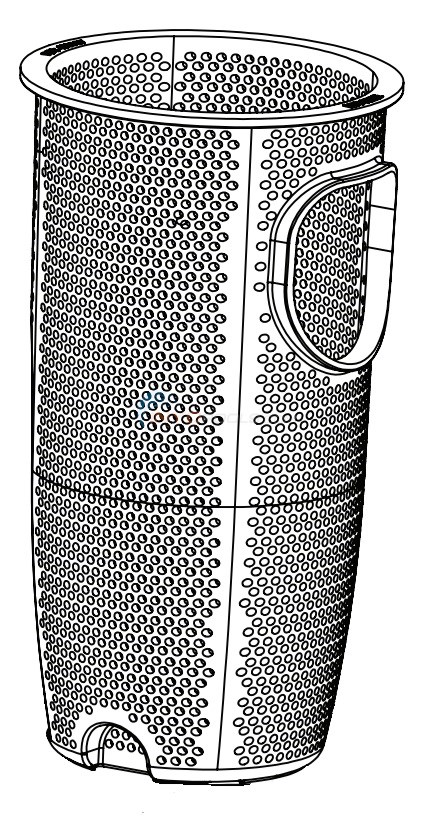

1.5HP Pump Strainer Basket

Part # 074162Z Mfg # 074162Z

1.5HP Pump Strainer Basket

$70.34 IN STOCK

HP 1.5

HP 1.5

Qty:

3.0HP Pump Strainer Basket

Part # 400007Z

3.0HP Pump Strainer Basket

$35.61 IN STOCK

HP 3.0

HP 3.0

Qty:

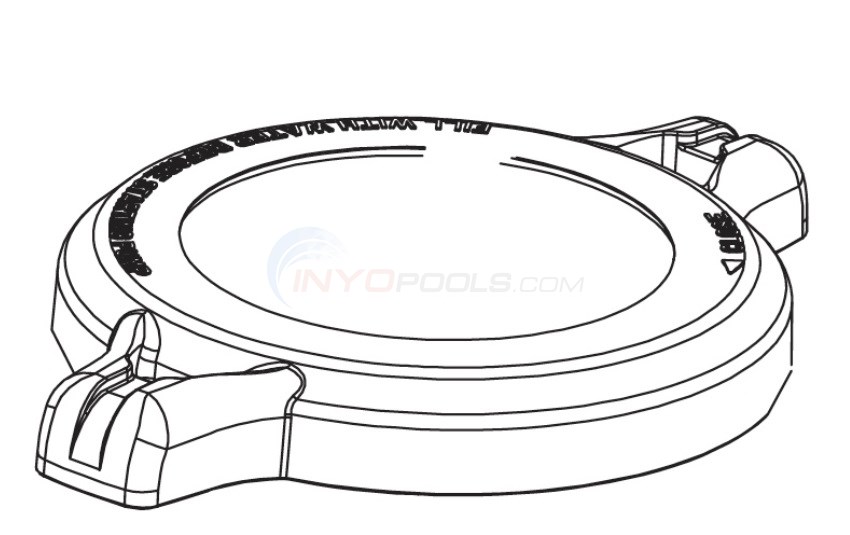

Lid Assembly

Part # 356172Z Mfg # 356172Z

Lid Assembly

$60.27 IN STOCK

HP 1.5 and 3.0

HP 1.5 and 3.0

Qty:

Strainer Lid O-Ring

Part # 356189Z Mfg # 356189Z

Strainer Lid O-Ring

$20.98 IN STOCK

HP 1.5 and 3.0

HP 1.5 and 3.0

Qty:

1.5HP Strainer Pot Kit

Part # 356174Z Mfg # 356174Z

1.5HP Strainer Pot Kit

$261.27 IN STOCK

HP 1.5

HP 1.5

Qty:

3.0HP Strainer Pot Kit

Part # 356175Z Mfg # 356175Z

3.0HP Strainer Pot Kit

$361.79 IN STOCK

HP 3.0

HP 3.0

Qty:

Drain Plug O-ring

Part # 35-110-1652 Mfg # 192115

Drain Plug O-ring

$13.80 IN STOCK

HP 1.5 and 3.0

HP 1.5 and 3.0

Qty:

Drain Plug

Part # 5074-24 Mfg # 071131

Drain Plug

$4.51 IN STOCK

HP 1.5 and 3.0

HP 1.5 and 3.0

Qty:

Seal Plate to Strainer Pot Bolts (Pack of 8)

Part # 074164Z Mfg # 074164Z

Seal Plate to Strainer Pot Bolts (Pack of 8)

$20.07 IN STOCK

HP 1.5 and 3.0

HP 1.5 and 3.0

Qty:

1.5HP Pump Seal Kit

Part # 357871 Mfg # 357871

1.5HP Pump Seal Kit

$40.17

HP 1.5

HP 1.5

3.0HP Pump Seal Kit

Part # 357872 Mfg # 357872

3.0HP Pump Seal Kit

$40.17 IN STOCK

HP 3.0

HP 3.0

Qty:

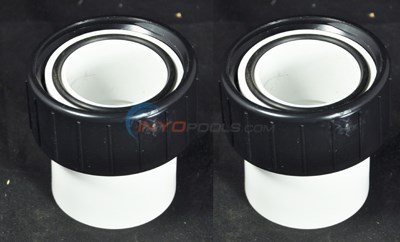

1.5" Union Kit for 1.5HP Pump

Part # 35-110-1182 Mfg # 351157

1.5" Union Kit for 1.5HP Pump

$79.87 IN STOCK

HP 1.5

HP 1.5

Qty:

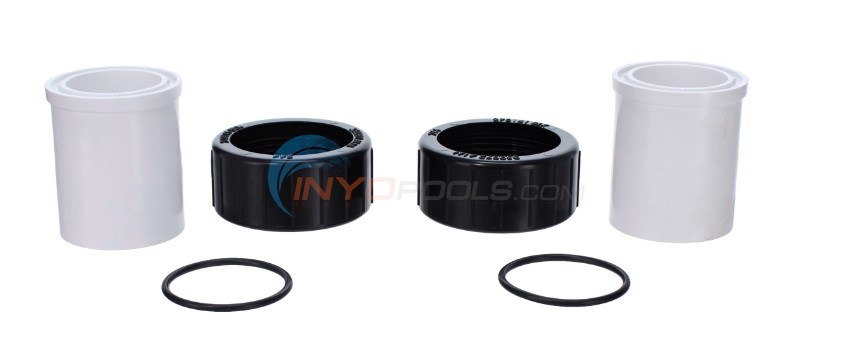

2"/2.5" Union Kit for 3.0HP Pump

Part # 410028-01 Mfg # 410028

2"/2.5" Union Kit for 3.0HP Pump

$84.89 IN STOCK

HP 3.0

HP 3.0

Qty:

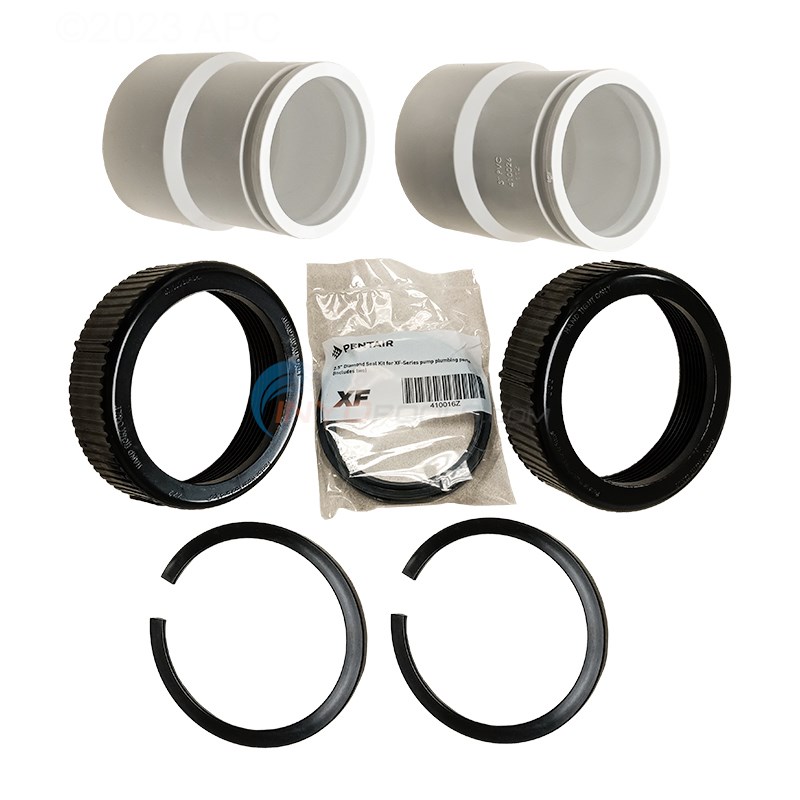

3" Union Kit for 3.0HP Pump

Part # 410029-01 Mfg # 410029

3" Union Kit for 3.0HP Pump

$89.92 IN STOCK

HP 3.0

HP 3.0

Qty:

1.5HP Union O-Ring

Part # 5056-11 Mfg # O-49

1.5HP Union O-Ring

$8.82 IN STOCK

HP 1.5

HP 1.5

Qty:

Diamond Seal O-Ring Kit for 2-1/2" Unions

Part # 410016Z Mfg # 410016Z

Diamond Seal O-Ring Kit for 2-1/2" Unions

$12.84 IN STOCK

HP 3.0

HP 3.0

Qty:

Pentair Thick Riser Plate Base Kit (C Base) for IntelliFlo3® VSF 1.5 HP Pump - 357831Z

Part # 357831Z Mfg # 357831Z

Pentair Thick Riser Plate Base Kit (C Base) for IntelliFlo3® VSF 1.5 HP Pump - 357831Z

$50.22

HP 1.5

HP 1.5

Pentair Riser Plate Kit for IntelliFlo3® VSF 1.5 HP Pump - 357832Z

Part # 357832Z Mfg # 357832Z

Pentair Riser Plate Kit for IntelliFlo3® VSF 1.5 HP Pump - 357832Z

$100.49

HP 1.5

HP 1.5

Pentair A/B Thin Base Riser Kit for IntelliFlo3 3HP Pool Pump - 357833Z

Part # 357833Z Mfg # 357833Z

Pentair A/B Thin Base Riser Kit for IntelliFlo3 3HP Pool Pump - 357833Z

$60.29 IN STOCK

HP 3.0

HP 3.0

Qty:
