Pentair Minimax Burner Trays Parts

ELECTRONIC AND MILLIVOLT HEATERS (1991-JAN 1997), ALSO ANTHONY CITADEL IV - ALSO SOLD AS PUREX BRAND

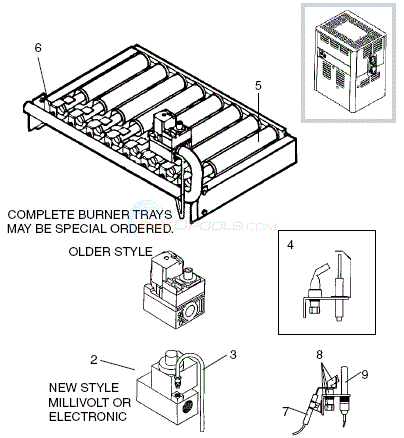

Pentair Minimax Burner Trays Diagram

Click to zoom in

Diagram #	Part Title
2*	GAS VALVE, 120-400 NAT.GAS IID
3*	PILOT TUBE, PILOT BENT 150 IID
4*	PILOT ASSY., IID NAT. 0-4K FT.
5***	BURNER, 50K BTU 150, 250, 400
6***	ORIFICE #30 MAIN BURNER NAT 0-4K FT
7**	ELECTRODE ASSEMBLY, MILLIVOLT
8**	PILOT MMX MV
9**	PILOT GENERATOR, Q313A With CLIP MILLIVOLT

View Parts List

Diagram #	Part Title
2*	GAS VALVE, 120-400 NAT.GAS IID
3*	PILOT TUBE, PILOT BENT 150 IID
4*	PILOT ASSY., IID NAT. 0-4K FT.
5***	BURNER, 50K BTU 150, 250, 400
6***	ORIFICE #30 MAIN BURNER NAT 0-4K FT
7**	ELECTRODE ASSEMBLY, MILLIVOLT
8**	PILOT MMX MV
9**	PILOT GENERATOR, Q313A With CLIP MILLIVOLT

Available Parts:

GAS VALVE, 120-400 NAT.GAS IID

Part # 6272-04 Mfg # 073998

GAS VALVE, 120-400 NAT.GAS IID

$342.24 IN STOCK

Qty:

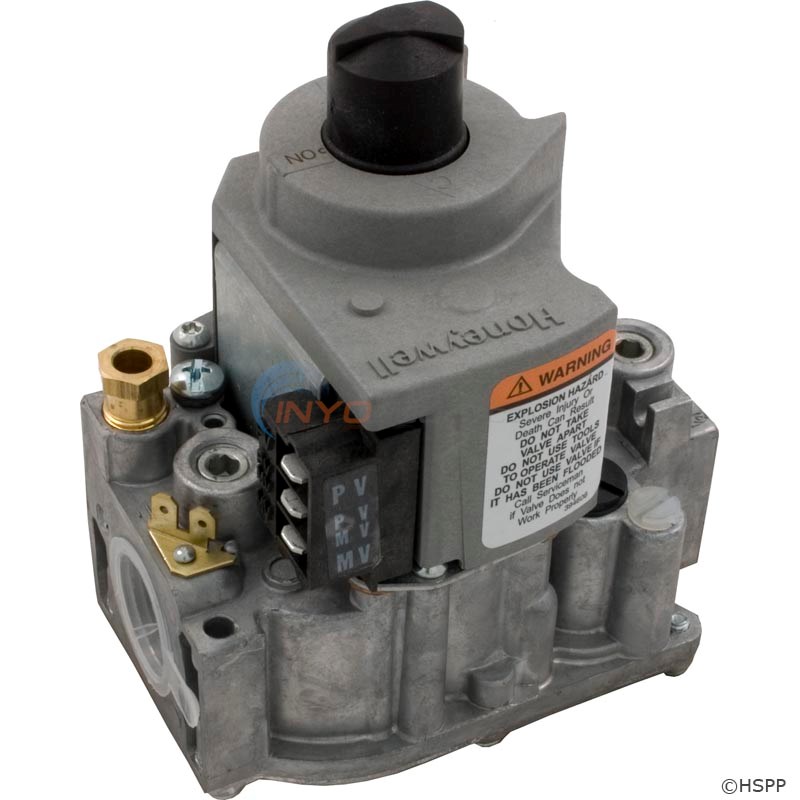

GAS VALVE, 120-400 LP IID

Part # 6272-04A Mfg # 073999

GAS VALVE, 120-400 LP IID

$309.19

GAS VALVE, 150-400 NAT MV

Part # 6272-04H Mfg # 075457

GAS VALVE, 150-400 NAT MV

$472.10 IN STOCK

Qty:

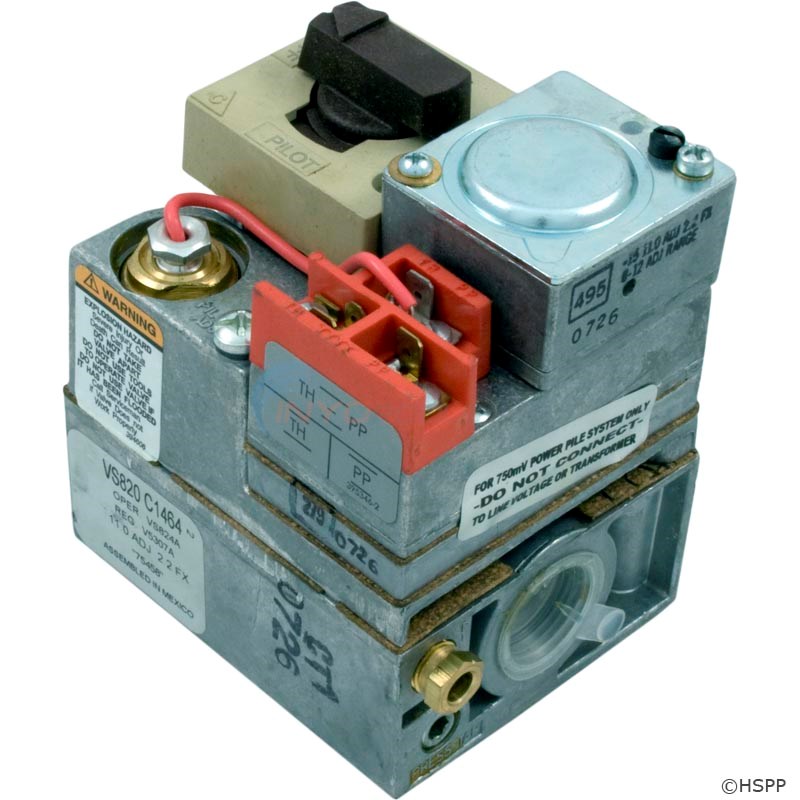

GAS VALVE, 150-400 LP MV

Part # 6272-04I Mfg # 075458

GAS VALVE, 150-400 LP MV

$409.41 IN STOCK

Qty:

GAS VALVE REP. KIT 150 NAT IID

Part # 6272-04B Mfg # 075175

GAS VALVE REP. KIT 150 NAT IID

$387.01 IN STOCK

Qty:

2*+

OBSOLETE 250/300 NATURAL

Mfg # 075197

OBSOLETE 250/300 NATURAL

NOT AVAILABLE

2*+

OBSOLETE 350/400 NATURAL

Mfg # 075198

OBSOLETE 350/400 NATURAL

NOT AVAILABLE

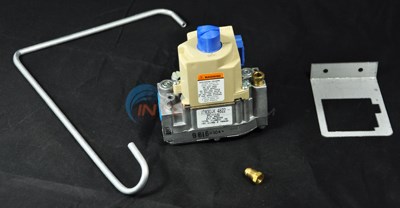

GAS VALVE REP. KIT 150 LP IID

Part # 6272-04E Mfg # 075176

GAS VALVE REP. KIT 150 LP IID

$401.95

2*+

OBSOLETE 250/300 PROPANE

Mfg # 075195

OBSOLETE 250/300 PROPANE

NOT AVAILABLE

2*+

OBSOLETE 350/400 PROPANE

Mfg # 075196

OBSOLETE 350/400 PROPANE

NOT AVAILABLE

2**+

OBSOLETE 150/200 NATURAL

Mfg # 076124

OBSOLETE 150/200 NATURAL

NOT AVAILABLE

2**+

OBSOLETE 250/200 NATURAL

Mfg # 076126

OBSOLETE 250/200 NATURAL

NOT AVAILABLE

2**+

OBSOLETE 350/400 NATURAL

Mfg # 076128

OBSOLETE 350/400 NATURAL

NOT AVAILABLE

2**+

OBSOLETE 150/200 PROPANE

Mfg # 076125

OBSOLETE 150/200 PROPANE

NOT AVAILABLE

2**+

OBSOLETE 250/300 PROPANE

Mfg # 076127

OBSOLETE 250/300 PROPANE

NOT AVAILABLE

2**+

OBSOLETE 250/400 PROPANE

Mfg # 076129

OBSOLETE 250/400 PROPANE

NOT AVAILABLE

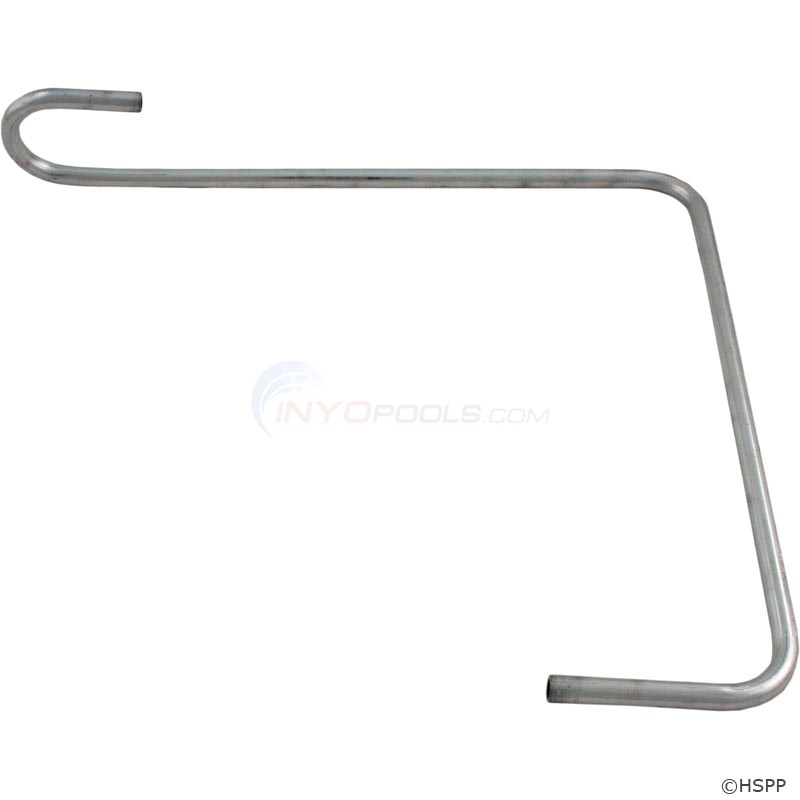

PILOT TUBE, PILOT BENT 150 IID

Part # 6272-05 Mfg # 075191

PILOT TUBE, PILOT BENT 150 IID

$104.47

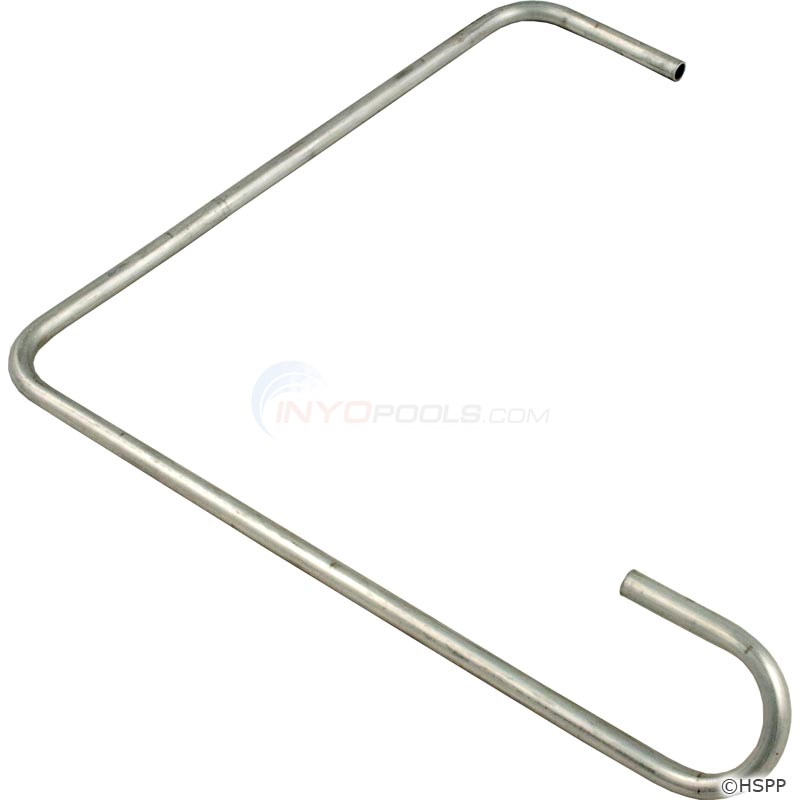

PILOT TUBE, PILOT BENT 250 IID

Part # 6272-05A Mfg # 075192

PILOT TUBE, PILOT BENT 250 IID

$91.68

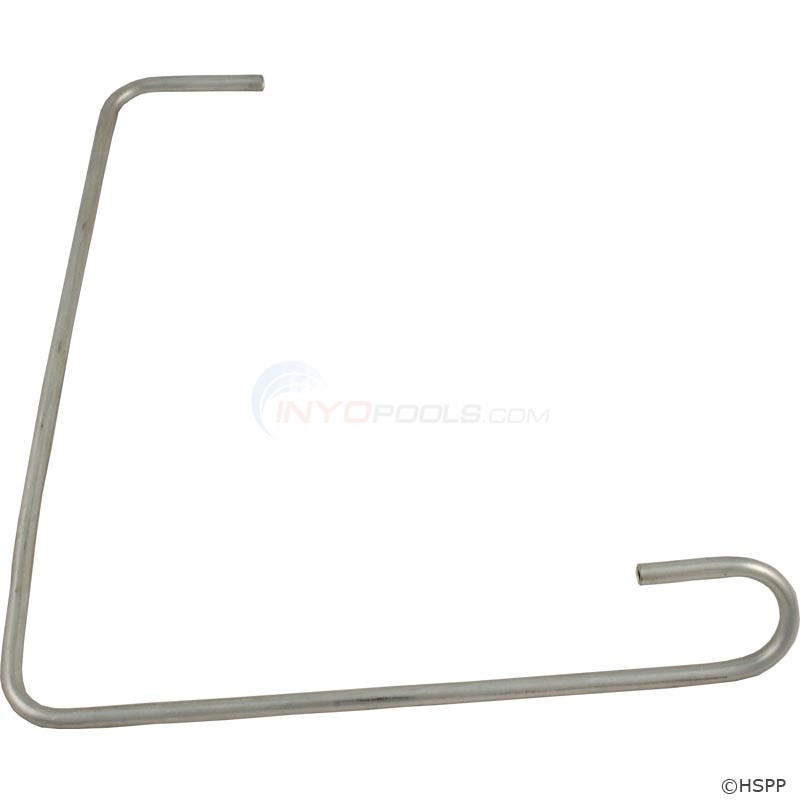

PILOT TUBE, PILOT BENT 400 IID

Part # 6272-05B Mfg # 075193

PILOT TUBE, PILOT BENT 400 IID

$104.47

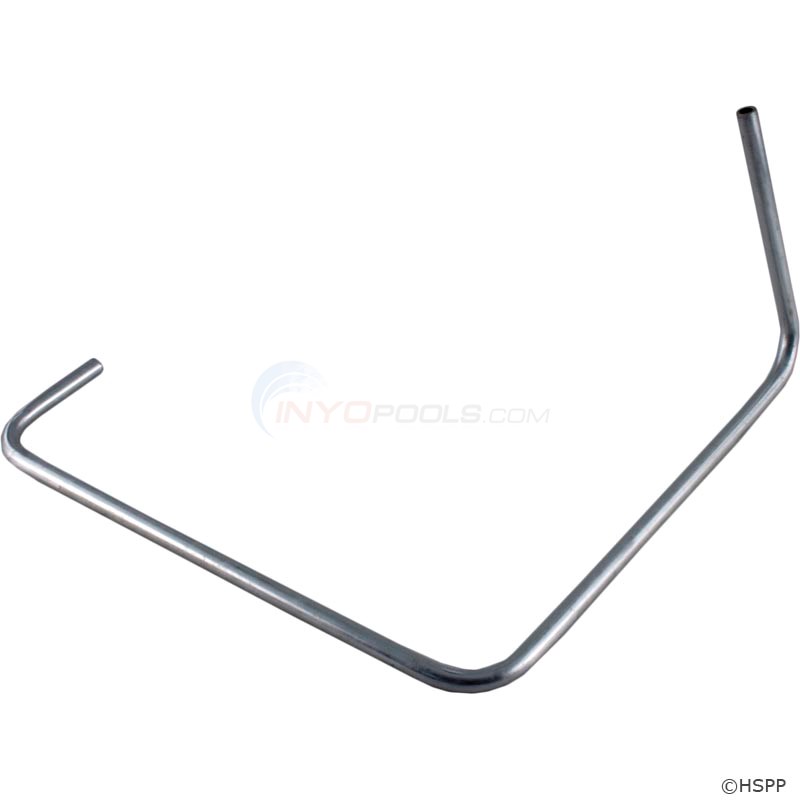

PILOT TUBE 150/200 MILLIVOLT

Part # 6272-11A Mfg # 076084

PILOT TUBE 150/200 MILLIVOLT

$107.67

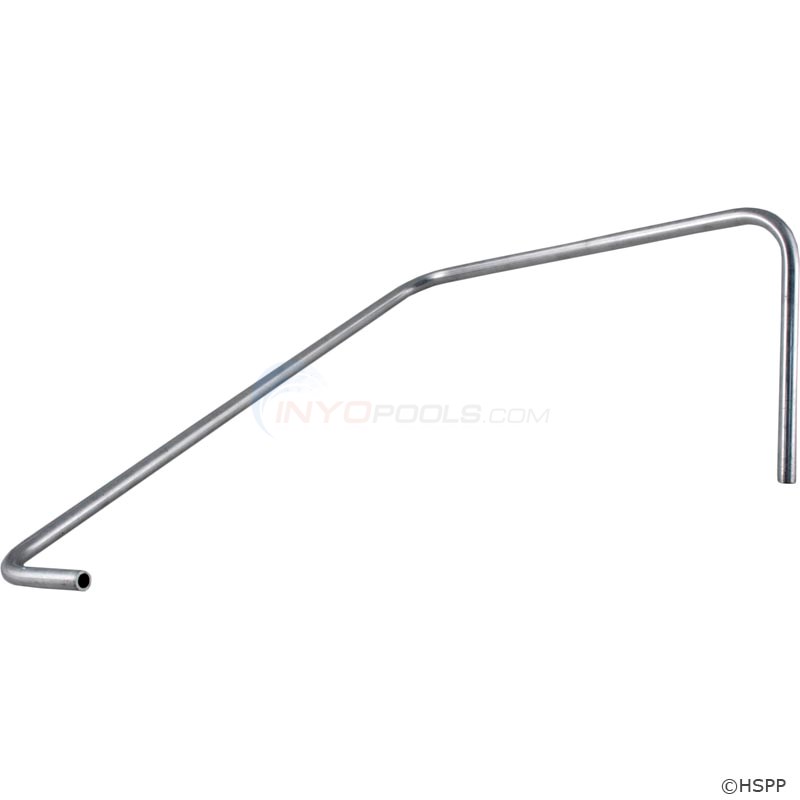

PILOT TUBE 250/300 MILLIVOLT

Part # 6272-11B Mfg # 076085

PILOT TUBE 250/300 MILLIVOLT

$93.81

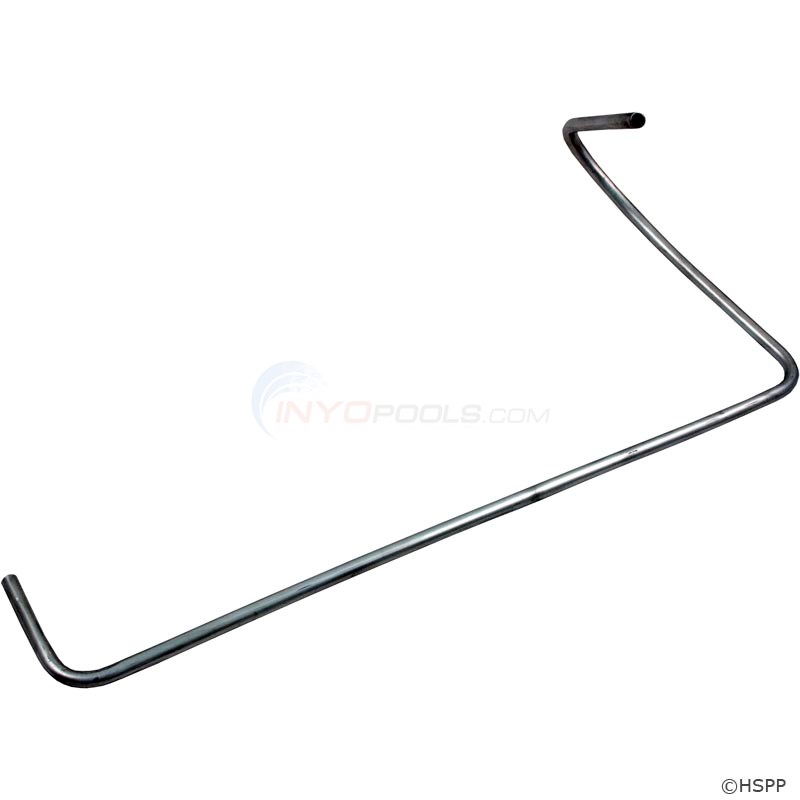

PILOT TUBE 350/400 MILLIVOLT

Part # 6272-11C Mfg # 076086

PILOT TUBE 350/400 MILLIVOLT

$43.70

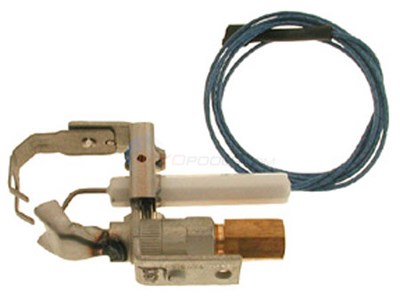

PILOT ASSY., IID NAT. 0-4K FT.

Part # 6272-08 Mfg # 471204

PILOT ASSY., IID NAT. 0-4K FT.

$162.05 IN STOCK

Qty:

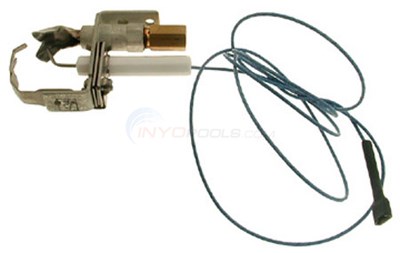

PILOT ASSY., IID LP 0-4K FT.

Part # 6272-08A Mfg # 471205

PILOT ASSY., IID LP 0-4K FT.

$125.80 IN STOCK

Qty:

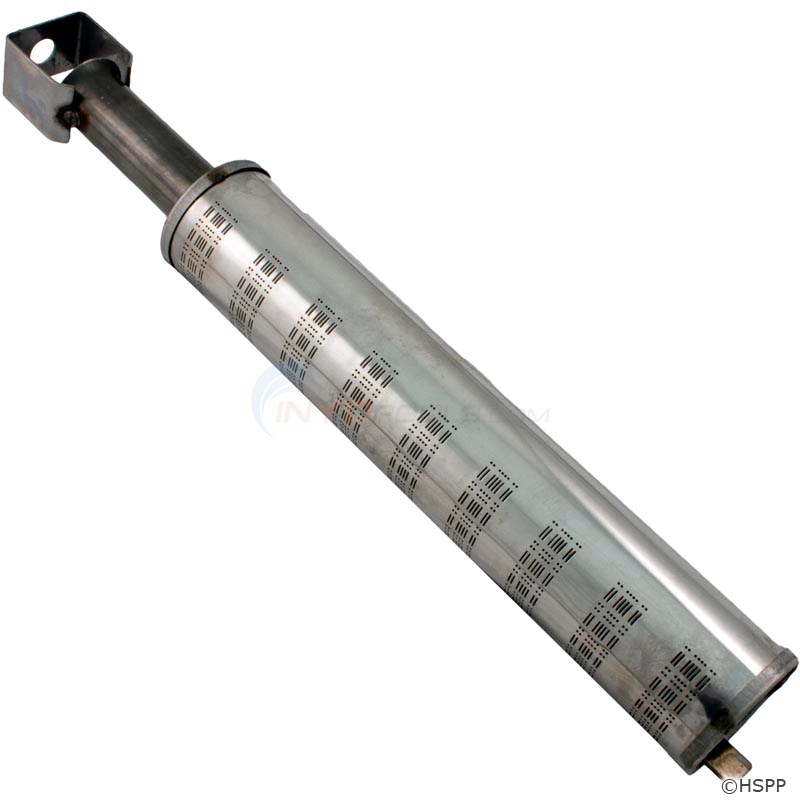

BURNER, 50K BTU 150, 250, 400

Part # 6272-07 Mfg # 070230

BURNER, 50K BTU 150, 250, 400

$159.92

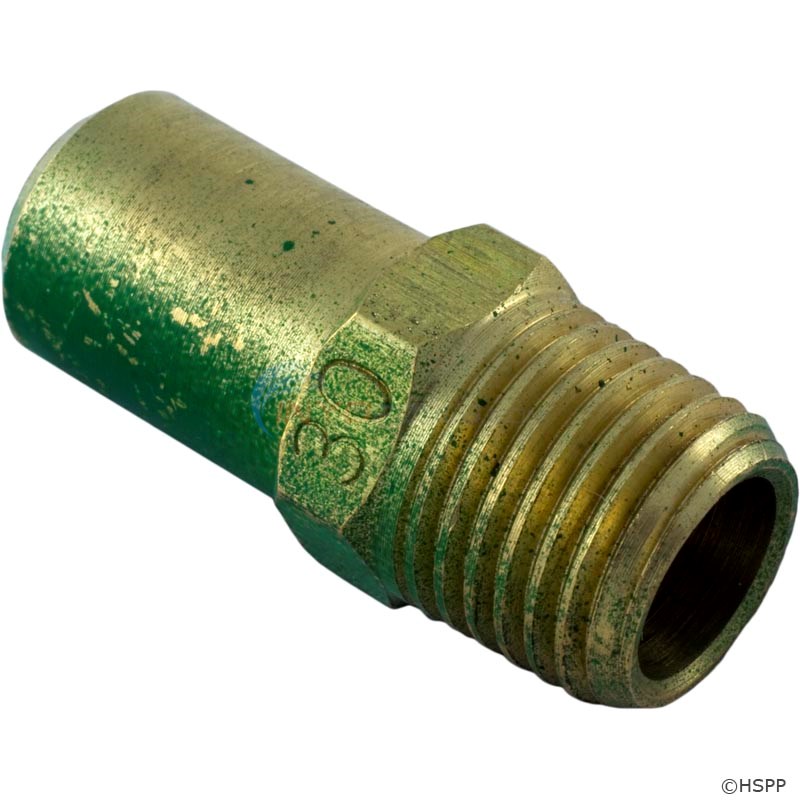

ORIFICE #30 MAIN BURNER NAT 0-4K FT

Part # 6272-09 Mfg # 073727

ORIFICE #30 MAIN BURNER NAT 0-4K FT

$22.37 IN STOCK

Qty:

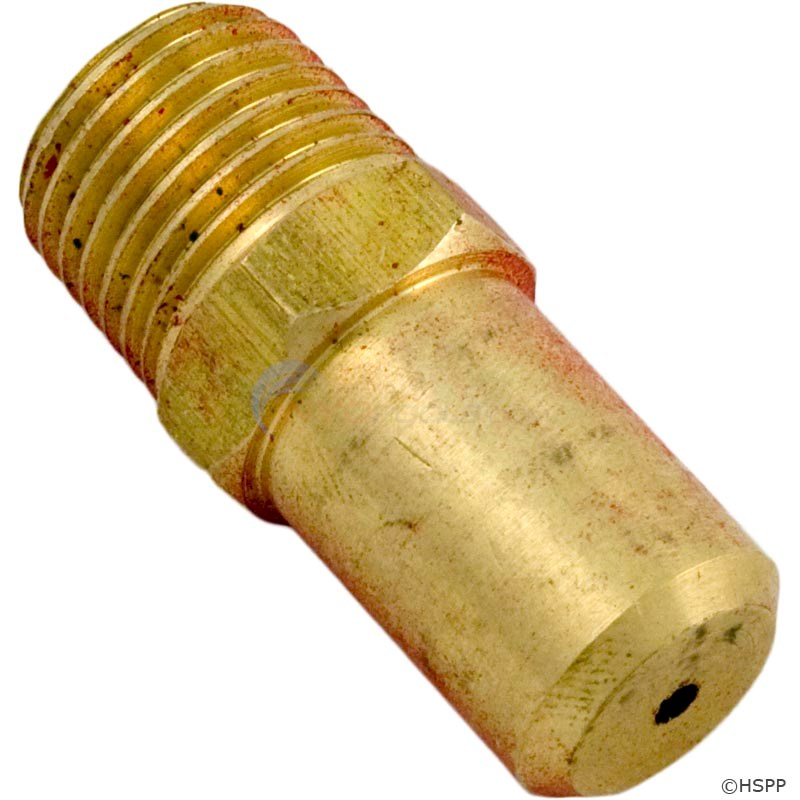

ORIFICE #45 MAIN BURNER LP 0-4K FT

Part # 6272-09A Mfg # 073728

ORIFICE #45 MAIN BURNER LP 0-4K FT

$24.50

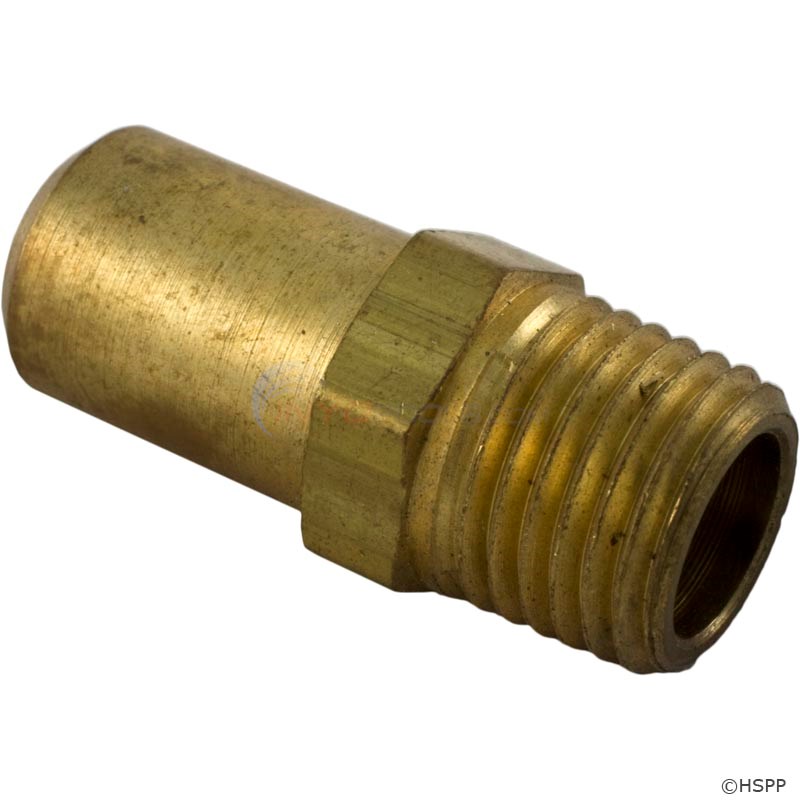

BURNER ORIFICE #31 NG. 2000-4000 FT.

Part # 6272-09D Mfg # 071466

BURNER ORIFICE #31 NG. 2000-4000 FT.

$28.77 IN STOCK

Qty:

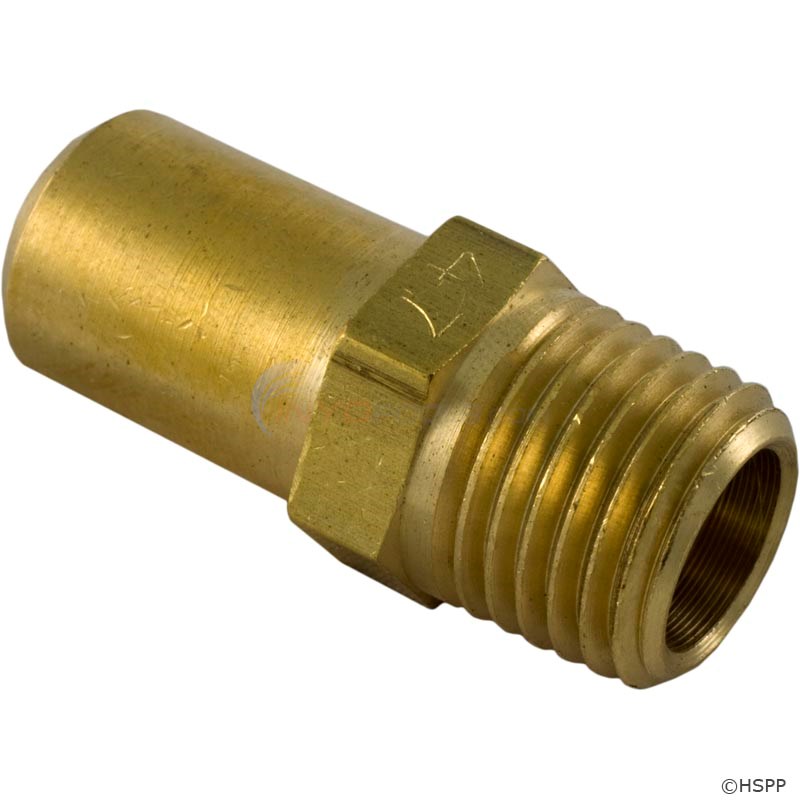

BURNER ORIFICE #47 LP 2000-4000 FT.

Part # 6272-09E Mfg # 071461

BURNER ORIFICE #47 LP 2000-4000 FT.

$28.77

BURNER ORIFICE #32 NG. 4-6000 FT.

Part # 6272-09F Mfg # 071467

BURNER ORIFICE #32 NG. 4-6000 FT.

$62.89

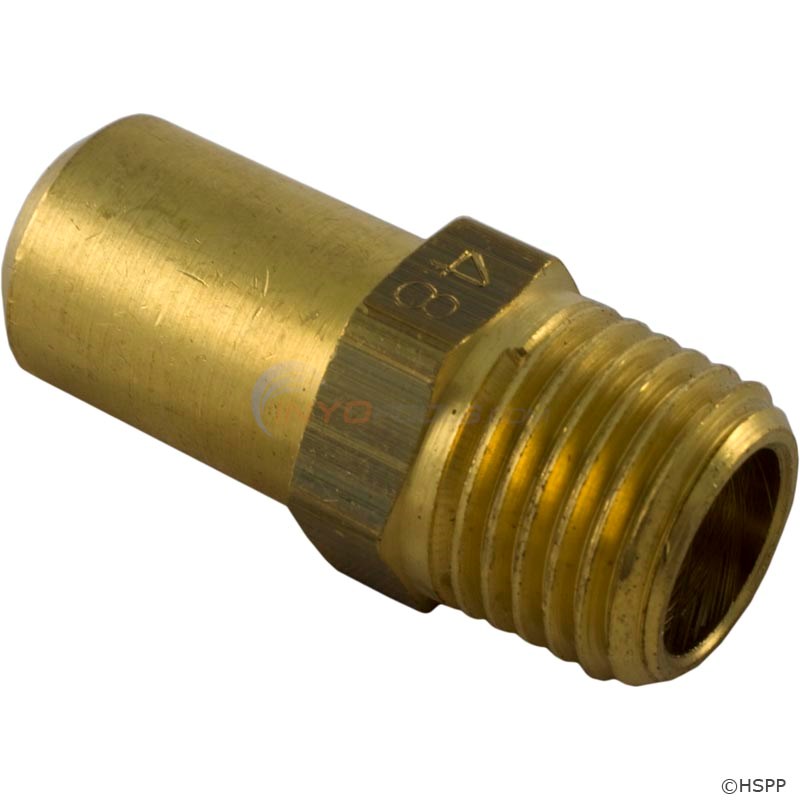

BURNER ORIFICE #48 LP 4-6000 FT.

Part # 6272-09G Mfg # 071462

BURNER ORIFICE #48 LP 4-6000 FT.

$28.77 IN STOCK

Qty:

ELECTRODE ASSEMBLY, MILLIVOLT

Part # 6272-10 Mfg # 075461

ELECTRODE ASSEMBLY, MILLIVOLT

$74.62

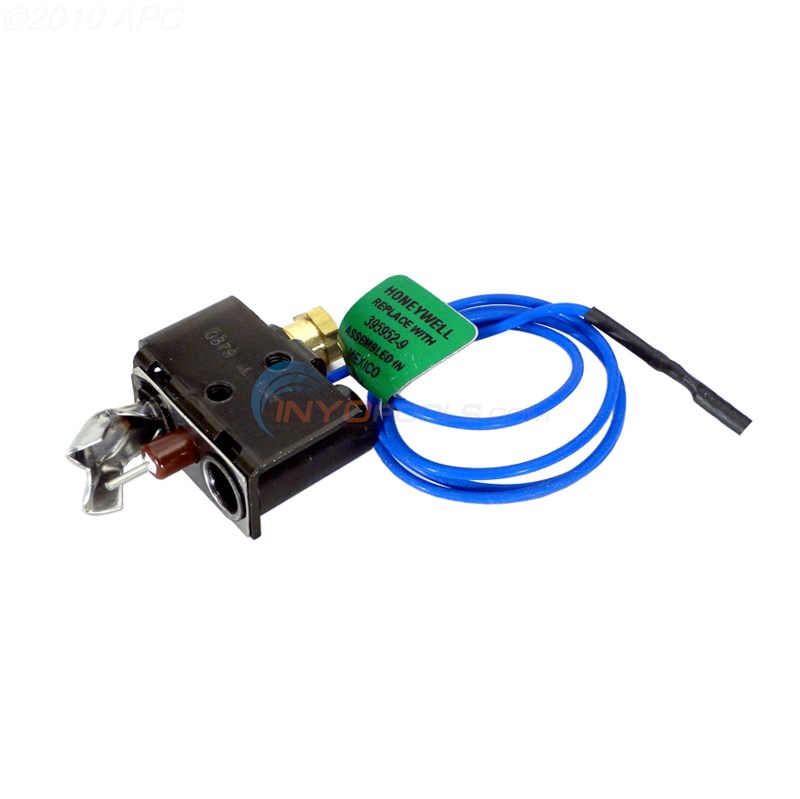

PILOT MMX MV

Part # 6272-11D Mfg # 471292

PILOT MMX MV

$72.59

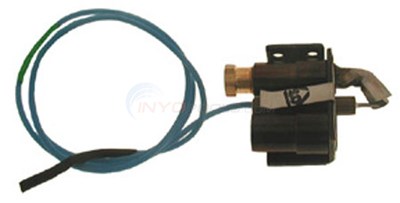

PILOT MMX MV P

Part # 6272-12C Mfg # 471291

PILOT MMX MV P

$111.91 IN STOCK

Qty:

PILOT GENERATOR, Q313A With CLIP MILLIVOLT

Part # 6270-27B Mfg # 071515

PILOT GENERATOR, Q313A With CLIP MILLIVOLT

$105.72 IN STOCK

Qty:

*ELECTRONIC ONLY
