Premier 455 Bronze Pump Parts

OLD SERIES SOLID BRONZE RESIDENTIAL & COMMERCIAL PUMPS

Premier 455 Bronze Pump Diagram

Click to zoom in

Diagram #	Part Title
1	VOLUTE With LARGE FLANGE (33-819)
2	IMPELLER, BRONZE 1/2 HP
3	SEAL, PUMP 1000 (PSR 1000)
4	O-RING
5	OBSOLETE ADAPTER-PLASTIC
6	O-RING OD 11/16"
7	SCREW, EXTENDED SHAFT (EACH)
8	EXTENSION SHAFT, BRONZE (150)
9	BASE, PLASTIC
10	GASKET, STRAINER TO VOLUTE (STC20-19)
11	H-Series 1/4" NPT Brass Plug
12	OBSOLETE POT, 5" SUCTION 1 1/2"
13	O-RING, LID 5IN
14	COVER, POT 5" BRASS (31-482)
15	No Longer Available HANDLE, LOCK Replace With 5050-17
16	BASKET, PUMP STRAINER 5IN, GENERIC (5121-18)
17	SCREW, HEX CAP 3/8IN 16 X 5/8IN
18	SCREW, CAP 5/16-18 X 3/4IN
19	MOTOR 56C KEYED FULL .5 HP
*	Protective Pool Motor Cover

View Parts List

Diagram #	Part Title
1	VOLUTE With LARGE FLANGE (33-819)
2	IMPELLER, BRONZE 1/2 HP
3	SEAL, PUMP 1000 (PSR 1000)
4	O-RING
5	OBSOLETE ADAPTER-PLASTIC
6	O-RING OD 11/16"
7	SCREW, EXTENDED SHAFT (EACH)
8	EXTENSION SHAFT, BRONZE (150)
9	BASE, PLASTIC
10	GASKET, STRAINER TO VOLUTE (STC20-19)
11	H-Series 1/4" NPT Brass Plug
12	OBSOLETE POT, 5" SUCTION 1 1/2"
13	O-RING, LID 5IN
14	COVER, POT 5" BRASS (31-482)
15	No Longer Available HANDLE, LOCK Replace With 5050-17
16	BASKET, PUMP STRAINER 5IN, GENERIC (5121-18)
17	SCREW, HEX CAP 3/8IN 16 X 5/8IN
18	SCREW, CAP 5/16-18 X 3/4IN
19	MOTOR 56C KEYED FULL .5 HP
*	Protective Pool Motor Cover

Available Parts:

VOLUTE With LARGE FLANGE (33-819)

Part # 5080-01 Mfg # V31-458

VOLUTE With LARGE FLANGE (33-819)

$352.97

IMPELLER, BRONZE 1/2 HP

Part # 5050-06B Mfg # V40-453

IMPELLER, BRONZE 1/2 HP

$161.47

IMPELLER, BRONZE 3/4 HP

Part # 5050-06C Mfg # V40-454

IMPELLER, BRONZE 3/4 HP

$158.36 IN STOCK

Qty:

IMPELLER, BRONZE 1 HP

Part # 5050-06D Mfg # V40-455

IMPELLER, BRONZE 1 HP

$157.33 IN STOCK

Qty:

IMPELLER, BRONZE 1 1/2 HP

Part # 5050-06E Mfg # V40-456

IMPELLER, BRONZE 1 1/2 HP

$154.66 IN STOCK

Qty:

IMPELLER, BRONZE 2 HP

Part # 5050-06F Mfg # V40-457

IMPELLER, BRONZE 2 HP

$163.54 IN STOCK

Qty:

SEAL, PUMP 1000 (PSR 1000)

Part # 5250-106 Mfg # PS-1000

SEAL, PUMP 1000 (PSR 1000)

$7.76 IN STOCK

Qty:

O-RING

Part # 4654-19 Mfg # 159

O-RING

$12.41 IN STOCK

Qty:

GASKET, VOLUTE TO MOTOR

Part # 5050-23 Mfg # G-44

GASKET, VOLUTE TO MOTOR

$14.43 IN STOCK

Qty:

5

OBSOLETE ADAPTER-PLASTIC

Mfg # 31-211

OBSOLETE ADAPTER-PLASTIC

NOT AVAILABLE

5

No Longer Available ADAPTER-BRONZE Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352013364.htm">5126-03</a>

Mfg # 31-096

No Longer Available ADAPTER-BRONZE Replace With 5126-03

NOT AVAILABLE

O-RING OD 11/16"

Part # 3262-08 Mfg # 112

O-RING OD 11/16"

$3.09 IN STOCK

Qty:

SCREW, EXTENDED SHAFT (EACH)

Part # 5050-03 Mfg # 99730000

SCREW, EXTENDED SHAFT (EACH)

$8.68 IN STOCK

Qty:

EXTENSION SHAFT, BRONZE (150)

Part # 5050-04 Mfg # 151

EXTENSION SHAFT, BRONZE (150)

$154.65 IN STOCK

Qty:

BASE, PLASTIC

Part # 5080-09A Mfg # V40-467

BASE, PLASTIC

$116.96 IN STOCK

Qty:

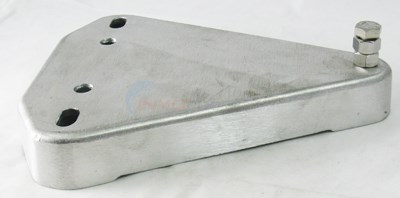

BASE, PUMP (31-250)

Part # 5080-09B Mfg # V40-485

BASE, PUMP (31-250)

$171.82

GASKET, STRAINER TO VOLUTE (STC20-19)

Part # 5050-21 Mfg # G-18

GASKET, STRAINER TO VOLUTE (STC20-19)

$14.43 IN STOCK

Qty:

H-Series 1/4" NPT Brass Plug

Part # 6740-0 Mfg # 06121-04

H-Series 1/4" NPT Brass Plug

$17.58 IN STOCK

Qty:

12

OBSOLETE POT, 5" SUCTION 1 1/2"

Mfg # 33-723

OBSOLETE POT, 5" SUCTION 1 1/2"

NOT AVAILABLE

POT, 5IN- SUCTION 2IN (33-724)

Part # 5080-12B Mfg # V40-464

POT, 5IN- SUCTION 2IN (33-724)

$528.94

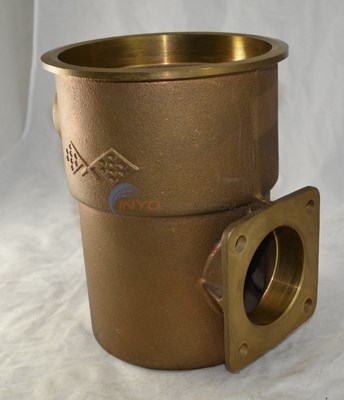

POT, 6IN- SUCTION 2IN (33-729)

Part # 5080-12C Mfg # V40-462

POT, 6IN- SUCTION 2IN (33-729)

$686.81

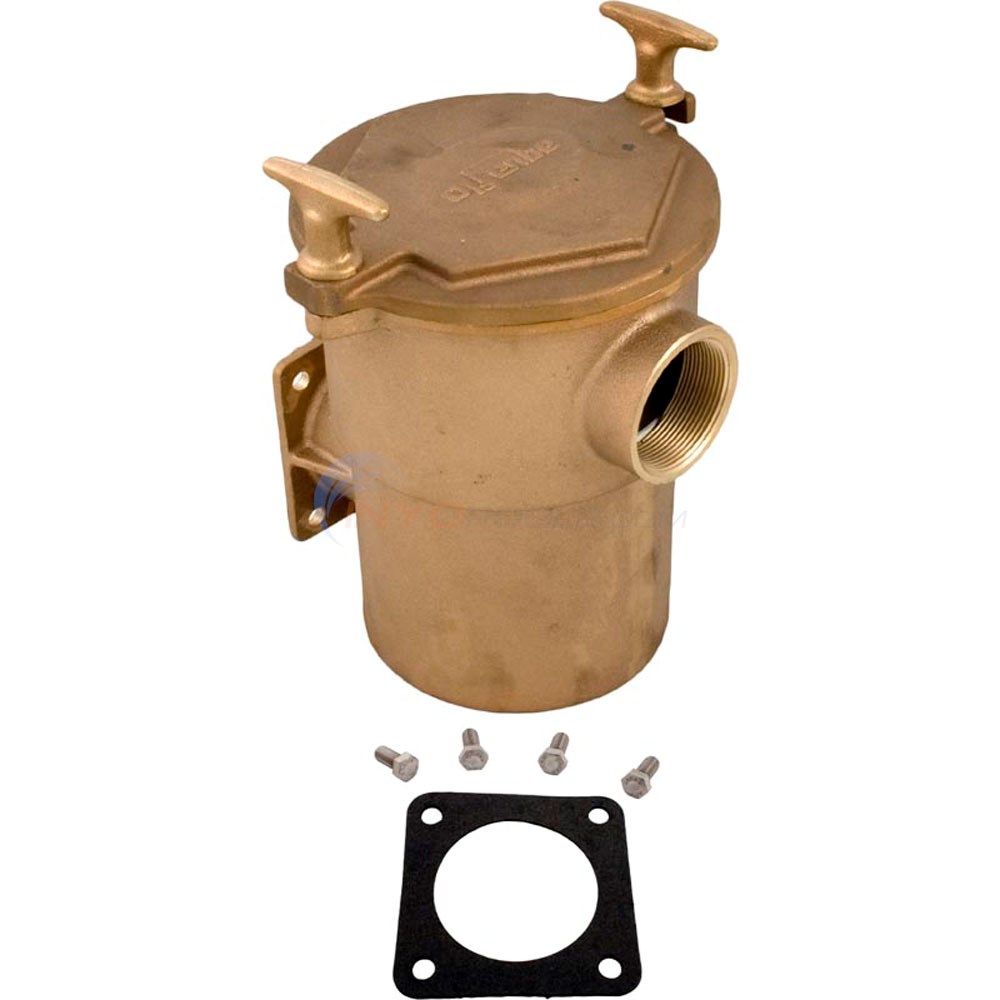

Trap Body Assembly, 6" x 2" Suction - 91040030

Part # 5126-27 Mfg # 91040030

Trap Body Assembly, 6" x 2" Suction - 91040030

$835.44

O-RING, LID 5IN

Part # 5080-13A Mfg # 429

O-RING, LID 5IN

$12.65 IN STOCK

Qty:

O-RING, LID 6IN

Part # 5050-14A Mfg # 437

O-RING, LID 6IN

$11.10 IN STOCK

Qty:

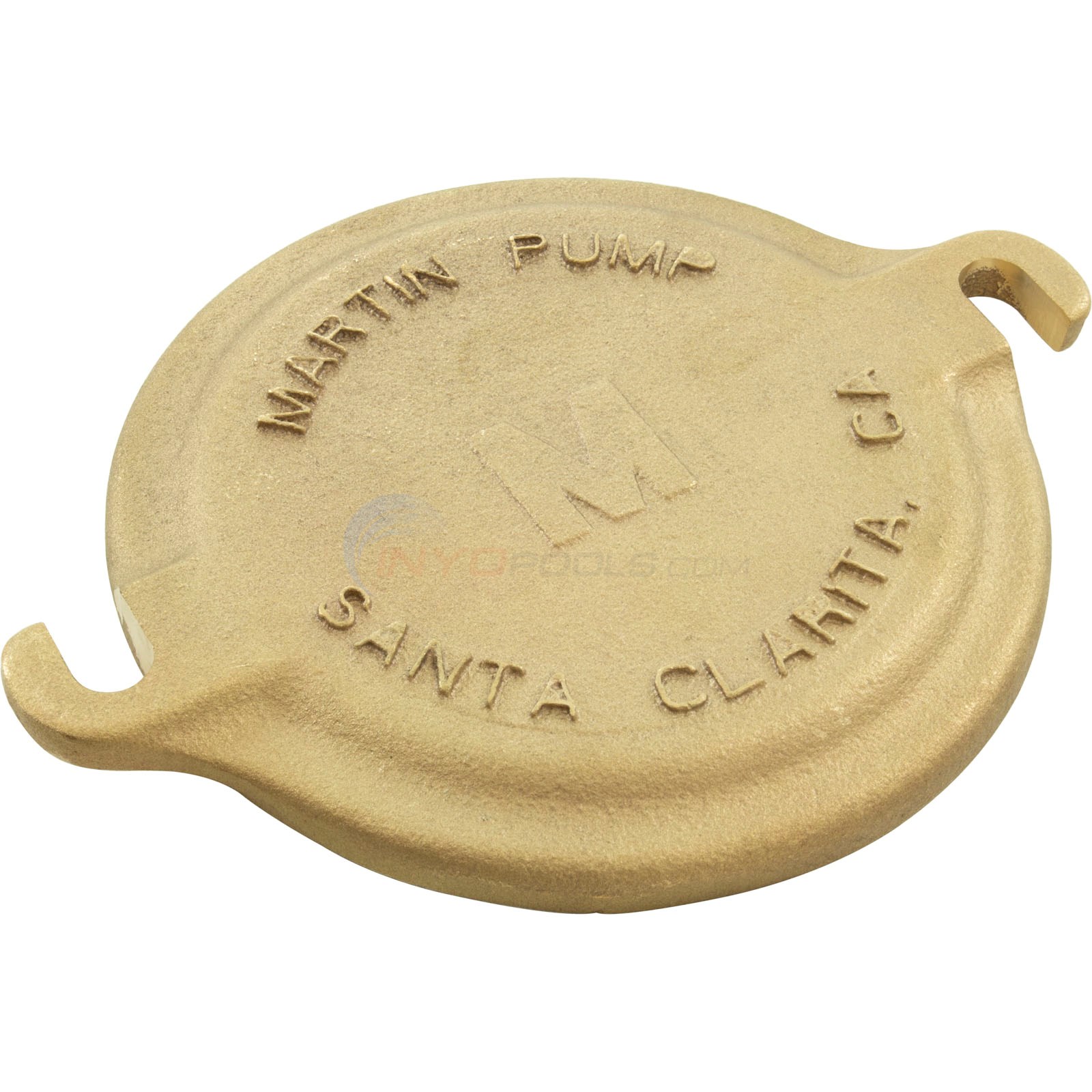

COVER, POT 5" BRASS (31-482)

Part # 5080-14A Mfg # V40-463

COVER, POT 5" BRASS (31-482)

$155.26 IN STOCK

Qty:

14

No Longer Available COVER, POT-6" Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352020786.htm">5050-15A</a>

Mfg # 33-483

No Longer Available COVER, POT-6" Replace With 5050-15A

NOT AVAILABLE

LID, FOR C.I. POT 6IN

Part # 5050-15A Mfg # C3-30

LID, FOR C.I. POT 6IN

$116.96 IN STOCK

Qty:

15

No Longer Available HANDLE, LOCK Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352018688.htm">5050-17</a>

Mfg # 31-622

No Longer Available HANDLE, LOCK Replace With 5050-17

NOT AVAILABLE

HANDLE, LOCK

Part # 5050-17 Mfg # V40-468

HANDLE, LOCK

$56.31 IN STOCK

Qty:

BASKET, PUMP STRAINER 5IN, GENERIC (5121-18)

Part # 5400-B033 Mfg # B-33

BASKET, PUMP STRAINER 5IN, GENERIC (5121-18)

$18.62 IN STOCK

Qty:

BASKET, PUMP STRAINER 6IN, GENERIC (AB-11)

Part # 5400-B034 Mfg # B-34

BASKET, PUMP STRAINER 6IN, GENERIC (AB-11)

$21.72 IN STOCK

Qty:

SCREW, HEX CAP 3/8IN 16 X 5/8IN

Part # 6917-0 Mfg # 99050050

SCREW, HEX CAP 3/8IN 16 X 5/8IN

$18.62

SCREW, CAP 5/16-18 X 3/4IN

Part # 6914-0 Mfg # 073725

SCREW, CAP 5/16-18 X 3/4IN

$9.30 IN STOCK

Qty:

MOTOR 56C KEYED FULL .5 HP

Part # 5201X Mfg # B120

MOTOR 56C KEYED FULL .5 HP

$268.97

MOTOR, 56C KEYED FULL .75 HP

Part # 5202X Mfg # B121

MOTOR, 56C KEYED FULL .75 HP

$269.00 IN STOCK

Qty:

Motor 56c Keyed Full 1 Hp

Part # B122 Mfg # B122

Motor 56c Keyed Full 1 Hp

$285.00 IN STOCK

Qty:

MOTOR 56C KEYED FULL 1.5 HP

Part # 5204X Mfg # B123

MOTOR 56C KEYED FULL 1.5 HP

$429.00 IN STOCK

Qty:

MOTOR 56C KEYED FULL 2 HP

Part # 5205X Mfg # B124

MOTOR 56C KEYED FULL 2 HP

$436.14 IN STOCK

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$36.97 IN STOCK

Qty:

* NOT SHOWN
