Premier Renegade Pump, Model 756 Parts

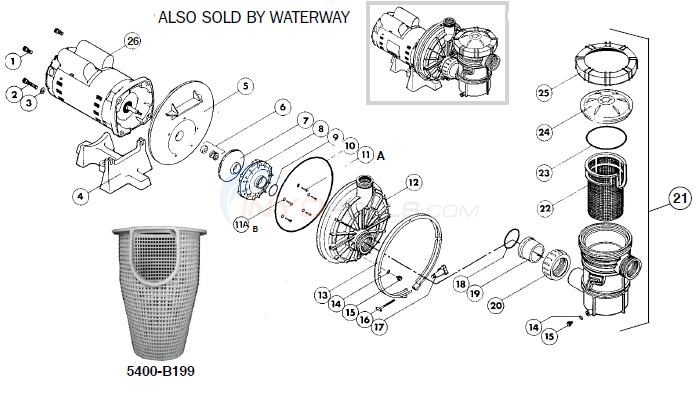

Premier Renegade Pump, Model 756 Diagram

Click to zoom in

Diagram #	Part Title
*	Tune Up Kit Premier 756 Series
1	SCREW HEX HEAD (HEX HEAD SCREW)
2	OBSOLETE BOLT, HEX HEAD
3	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
4	OBSOLETE BASE, 700 SERIES
5	OBSOLETE VOLUTE, BACK HALF
6	SEAL, PUMP 201 (PSR201) (PS201)
7	OBSOLETE IMPELLER, 3/4HP
8	OBSOLETE DIFFUSER ASSY
9	O-RING (226)
10	OBSOLETE O-RING, VOLUTE
11A	SCREW, CAP (SAMPLE S-3) (U30542SS)
12	OBSOLETE VOLUTE, 2”
13	No Longer Available CLAMP ASSY Replace With 5056-12A
14	O-RING OD 11/16"
15	PLUG,DRAIN (33-717)
16	OBSOLETE BOLT, TEE
17	OBSOLETE KNOB, HAND
18	O-RING (229) (355330)
19	TAILPIECE, UNION 2IN
20	NUT, UNION COMPRESSION 2IN
21	No Longer Available TRAP Replace With 5081-20A*
22	Pump Basket
23	O-RING, LID 6IN
24	COVER, POT 6" LEXAN (33-488)
25	OBSOLETE RING, TRAP THREADED
26	A.O. Smith 3/4 HP Square Flange Full Rate Motor
26	Pool Motor Square Flange 3/4 HP 115V Full Rate Dual Speed w/ Digital Controller
*	Protective Pool Motor Cover

View Parts List

Diagram #	Part Title
*	Tune Up Kit Premier 756 Series
1	SCREW HEX HEAD (HEX HEAD SCREW)
2	OBSOLETE BOLT, HEX HEAD
3	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
4	OBSOLETE BASE, 700 SERIES
5	OBSOLETE VOLUTE, BACK HALF
6	SEAL, PUMP 201 (PSR201) (PS201)
7	OBSOLETE IMPELLER, 3/4HP
8	OBSOLETE DIFFUSER ASSY
9	O-RING (226)
10	OBSOLETE O-RING, VOLUTE
11A	SCREW, CAP (SAMPLE S-3) (U30542SS)
12	OBSOLETE VOLUTE, 2”
13	No Longer Available CLAMP ASSY Replace With 5056-12A
14	O-RING OD 11/16"
15	PLUG,DRAIN (33-717)
16	OBSOLETE BOLT, TEE
17	OBSOLETE KNOB, HAND
18	O-RING (229) (355330)
19	TAILPIECE, UNION 2IN
20	NUT, UNION COMPRESSION 2IN
21	No Longer Available TRAP Replace With 5081-20A*
22	Pump Basket
23	O-RING, LID 6IN
24	COVER, POT 6" LEXAN (33-488)
25	OBSOLETE RING, TRAP THREADED
26	A.O. Smith 3/4 HP Square Flange Full Rate Motor
26	Pool Motor Square Flange 3/4 HP 115V Full Rate Dual Speed w/ Digital Controller
*	Protective Pool Motor Cover

Available Parts:

Part # GOKIT49

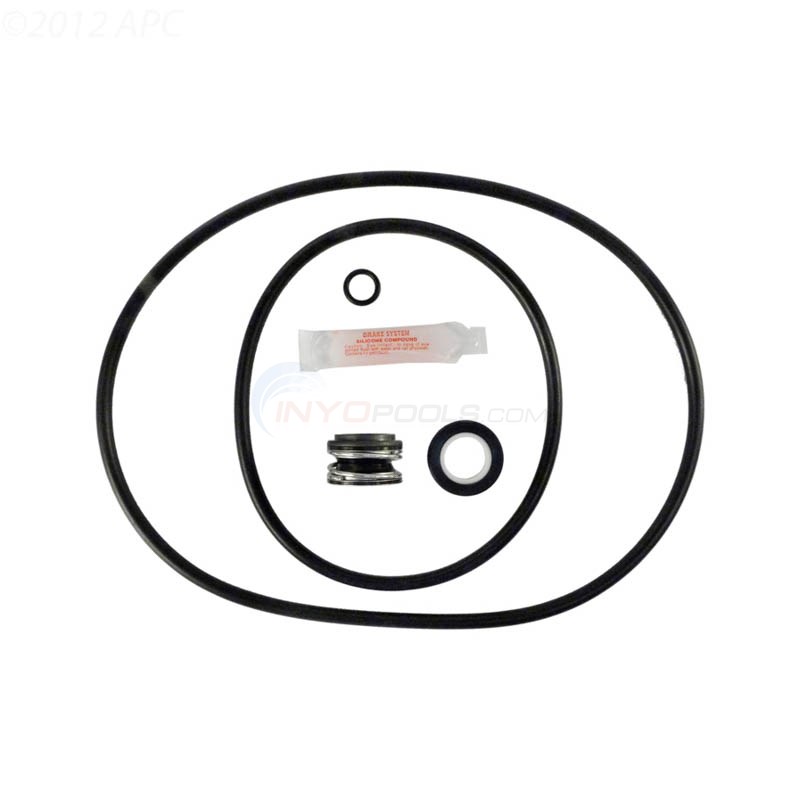

Tune Up Kit Premier 756 Series

$36.99 IN STOCK

Qty:

Premier Renegade Pump, Model 756 Parts

View Parts List

Available Parts:

OBSOLETE BOLT, HEX HEAD

OBSOLETE BASE, 700 SERIES

OBSOLETE VOLUTE, BACK HALF

OBSOLETE IMPELLER, 3/4HP

OBSOLETE IMPELLER, 1HP

OBSOLETE IMPELLER, 1 1/2HP

OBSOLETE IMPELLER, 2HP

OBSOLETE DIFFUSER ASSY

OBSOLETE O-RING, VOLUTE

OBSOLETE VOLUTE, 2”

OBSOLETE VOLUTE, 1 1/2”

No Longer Available CLAMP ASSY Replace With 5056-12A

OBSOLETE BOLT, TEE

OBSOLETE KNOB, HAND

No Longer Available TRAP Replace With 5081-20A*

OBSOLETE RING, TRAP THREADED
