Pentair / Purex SM/SMBW 2000 Series Molded D.E. Parts

MODELS SMBW 2024, 2036, 2048, 2060, 2072, & 1018, 1027, 1036, 1045, 1054
PLEASE NOTE: THE “1000” SERIES FILTERS USE 6 GRIDS THE “2000” USE 8 GRIDS

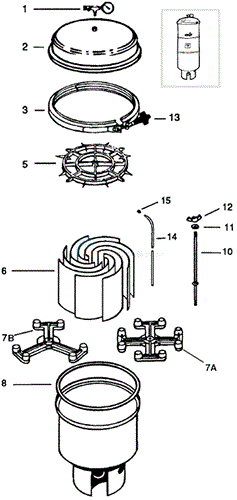

Pentair / Purex SM/SMBW 2000 Series Molded D.E. Diagram

Click to zoom in

Diagram #	Part Title
1	ACCESSORY BAG
*	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
*	TEE, 1/4" BRASS FPT
*	NIPPLE, 1/4" NPT (2100-08)
*	OPENER LID
*	DRAIN COCK, 1/4" NPT (09432-04)

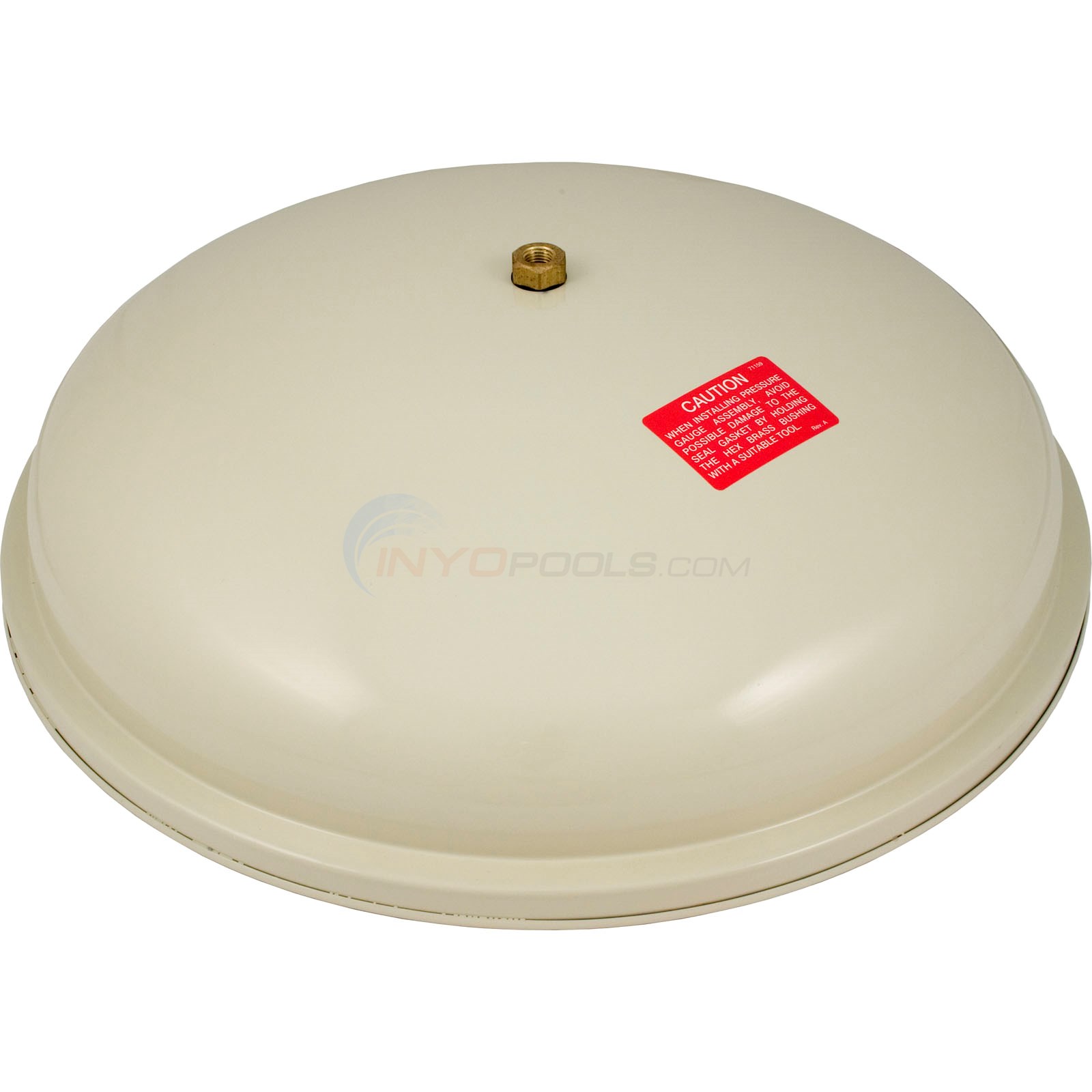

2	No Longer Available LID Replace With 4677-121
*	BUSHING, 3/4 HEX X 7/8
*	GASKET, LID AIR RELIEF
*	NUT, HEX
3	CLAMP RING
5	HOLDING WHEEL, 2000/4000

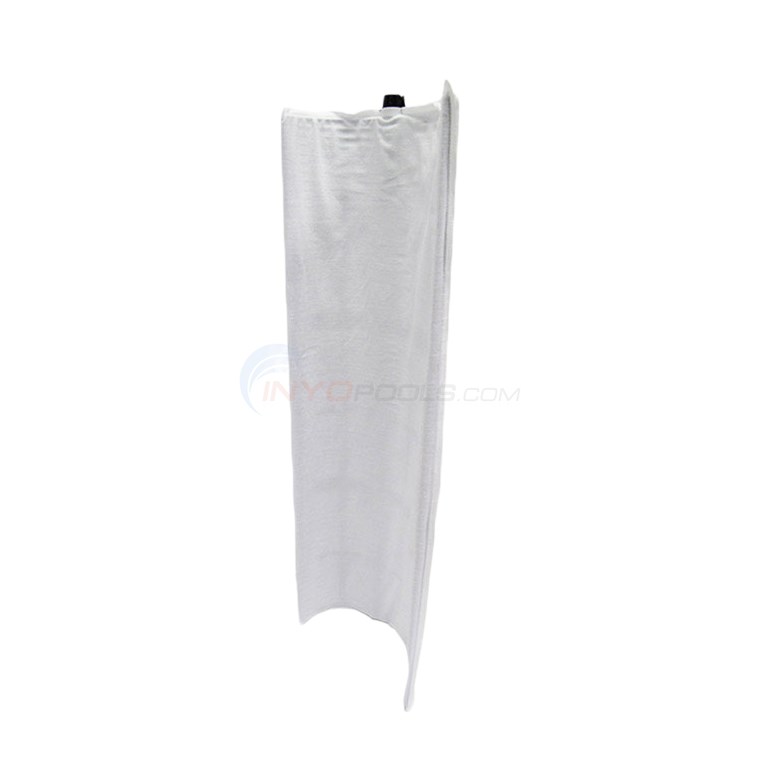

6	ELEMENT, 2024/1018 12IN
7A	MANIFOLD, 2000 SERIES -8 HOLE
8	O-RING, FILTER TANK (PUX-P24225)

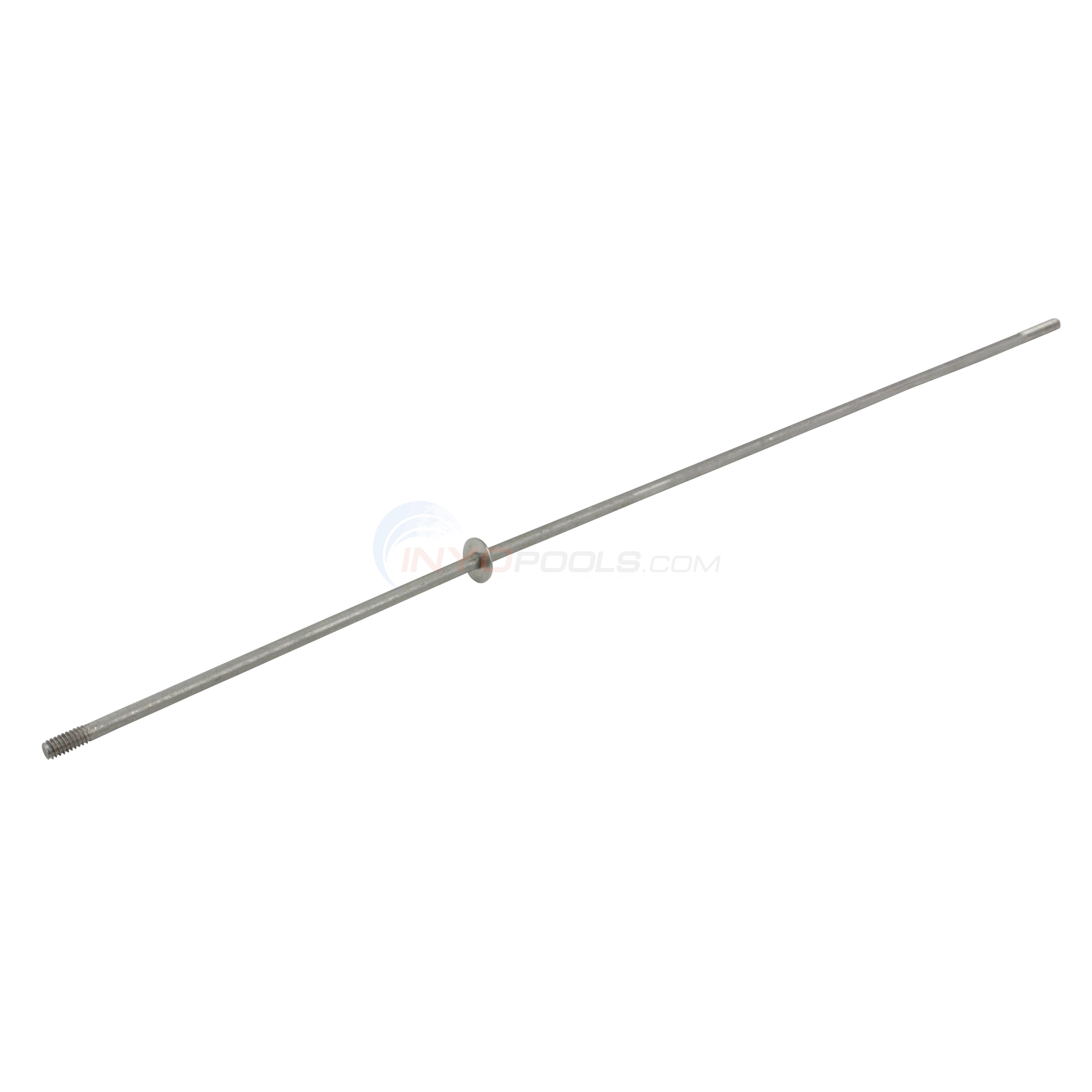

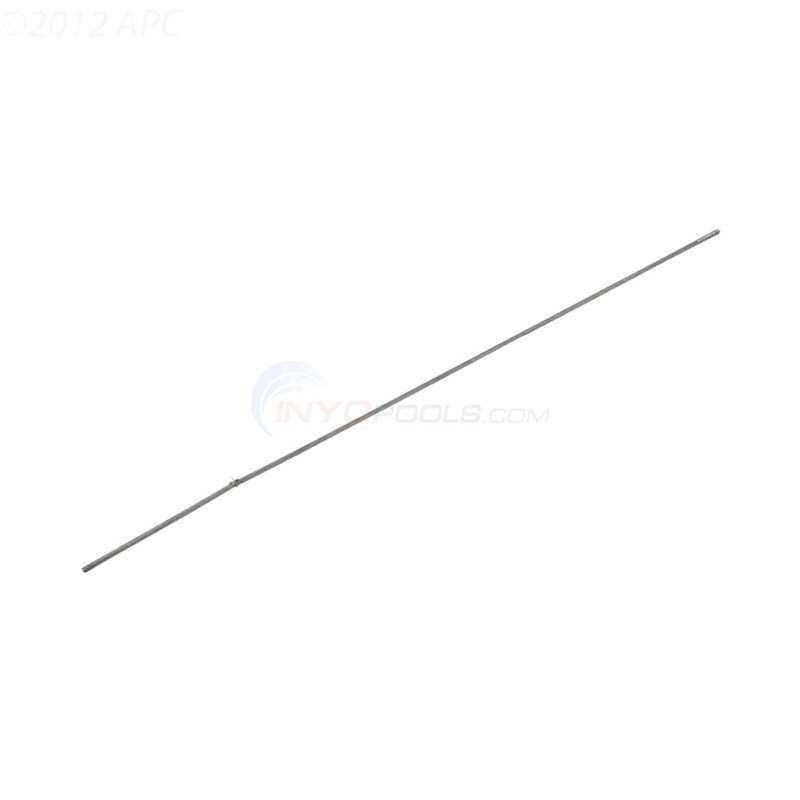

10	CENTER ROD CHD 24 FOOT FILTER
11	WASHER
12	NUT, WING 1/4-20 S.S.
13	KNOB, CLAMPING BAND
14	TUBE, VENT 46IN
15	CAP, VENT TUBE SCREEN

View Parts List

Diagram #	Part Title
1	ACCESSORY BAG
*	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
*	TEE, 1/4" BRASS FPT
*	NIPPLE, 1/4" NPT (2100-08)
*	OPENER LID
*	DRAIN COCK, 1/4" NPT (09432-04)
2	No Longer Available LID Replace With 4677-121
*	BUSHING, 3/4 HEX X 7/8
*	GASKET, LID AIR RELIEF
*	NUT, HEX
3	CLAMP RING
5	HOLDING WHEEL, 2000/4000
6	ELEMENT, 2024/1018 12IN
7A	MANIFOLD, 2000 SERIES -8 HOLE
8	O-RING, FILTER TANK (PUX-P24225)
10	CENTER ROD CHD 24 FOOT FILTER
11	WASHER
12	NUT, WING 1/4-20 S.S.
13	KNOB, CLAMPING BAND
14	TUBE, VENT 46IN
15	CAP, VENT TUBE SCREEN

Available Parts:

Part # 4672-01 Mfg # 073029

ACCESSORY BAG

$160.43

VIEW DETAILS

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$10.34 IN STOCK

Qty:

Pentair / Purex SM/SMBW 2000 Series Molded D.E. Parts

View Parts List

Available Parts:

No Longer Available LID Replace With 4677-121

OBSOLETE MANIFOLD, 1000 SERIES
