Simbio 12x23' Oval 52" (Resin Top Rail, Steel Upright, Steel Stabilizer) Parts

PZEN-YE52RSPSPSB10

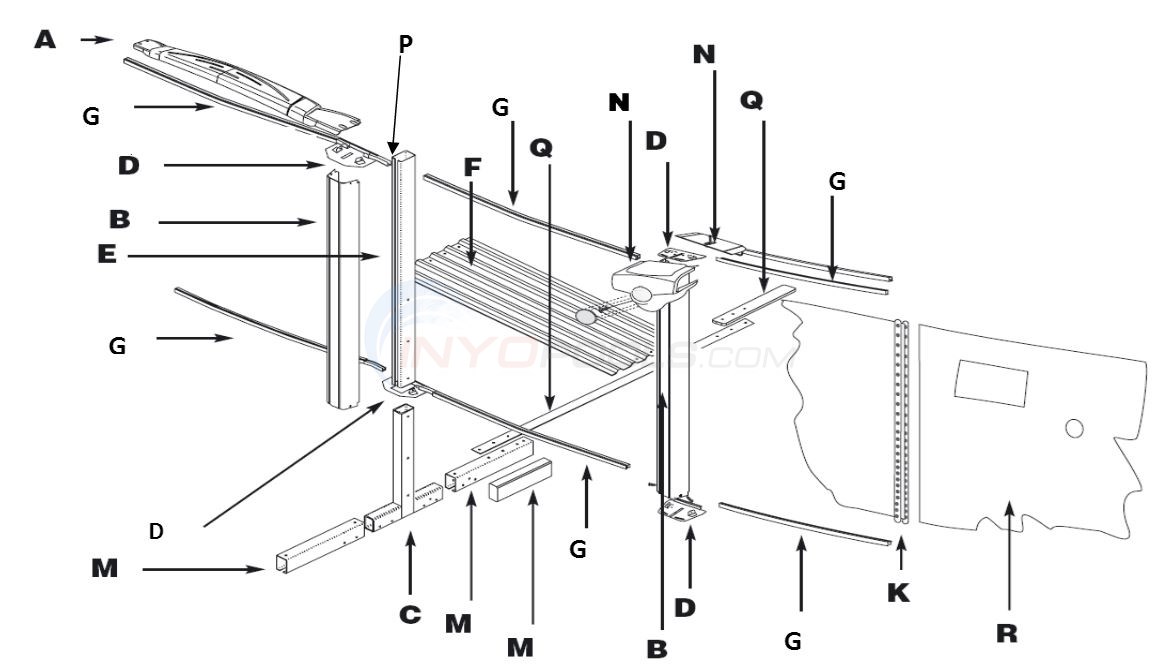

Simbio 12x23' Oval 52" (Resin Top Rail, Steel Upright, Steel Stabilizer) Parts Diagram

Click to zoom in

Diagram #	Part Title
A	Resin Top Ledge - Simbio 7" (Single
B	Upright - Zenith 51-3/4" (Single)
C	Top Plate 5.5" Enc/Ven 2009 Xylon (Single)
D	Bottom Plate Straight Section (Single)
F	Brace Plate Braceless Galvanized 47" (Single)
G	Wall Channel Omega Textured 27'D 38" (Single)
K	Wall Joiner Bar
M	Horizontal Sleeve Galvanized With Pen Nuts 17" (Single)
N	Ledge Cover (Single)
P	Wall Channel Intersecting Galv (Single)
Q	Steel Strap Galvanized Braceless 59-3/4" (Single)

View Parts List

Diagram #	Part Title
A	Resin Top Ledge - Simbio 7" (Single
B	Upright - Zenith 51-3/4" (Single)
C	Top Plate 5.5" Enc/Ven 2009 Xylon (Single)
D	Bottom Plate Straight Section (Single)
F	Brace Plate Braceless Galvanized 47" (Single)
G	Wall Channel Omega Textured 27'D 38" (Single)
K	Wall Joiner Bar
M	Horizontal Sleeve Galvanized With Pen Nuts 17" (Single)
N	Ledge Cover (Single)
P	Wall Channel Intersecting Galv (Single)
Q	Steel Strap Galvanized Braceless 59-3/4" (Single)

Available Parts:

Resin Top Ledge - Simbio 7" (Single

Part # AR744-001-R

Resin Top Ledge - Simbio 7" (Single

$144.91 IN STOCK

Qty Per Pool 8

Qty Per Pool 8

Qty:

Top Ledge Straight Section Simbio 45" (Single)

Part # AR744-001-45

Top Ledge Straight Section Simbio 45" (Single)

$88.03

Qty Per Pool 6

Qty Per Pool 6

Upright - Zenith 51-3/4" (Single)

Part # ART711-R12954M Mfg # ART711-R12954M

Upright - Zenith 51-3/4" (Single)

$87.97

Qty Per Pool 14

Qty Per Pool 14

Top Plate 5.5" Enc/Ven 2009 Xylon (Single)

Part # 20801

Top Plate 5.5" Enc/Ven 2009 Xylon (Single)

$19.17

Qty Per Pool 8

Qty Per Pool 8

Bottom Plate Straight Section (Single)

Part # 21124

Bottom Plate Straight Section (Single)

$8.66 IN STOCK

Qty Per Pool 8

Qty Per Pool 8

Qty:

Top Plate Straight Sections (Single)

Part # 21134

Top Plate Straight Sections (Single)

$11.07

Qty Per Pool 8

Qty Per Pool 8

Top plate (Single)

Part # 21120A

Top plate (Single)

$22.52

Qty Per Pool 12

Qty Per Pool 12

Brace Plate Braceless Galvanized 47" (Single)

Part # 20809

Brace Plate Braceless Galvanized 47" (Single)

$143.46

Qty Per Pool 6

Qty Per Pool 6

Wall Channel Omega Textured 27'D 38" (Single)

Part # LA1254138

Wall Channel Omega Textured 27'D 38" (Single)

$29.33 IN STOCK

Qty Per Pool 12

Qty Per Pool 12

Qty:

Wall Channel Woodlawn 12'D 54-1/4" (Single)

Part # LA1255412

Wall Channel Woodlawn 12'D 54-1/4" (Single)

$45.64

Qty Per Pool 8

Qty Per Pool 8

Wall Channel Omega Textured 55-3/4" (Single)

Part # LA1255612

Wall Channel Omega Textured 55-3/4" (Single)

$35.85

Qty Per Pool 8

Qty Per Pool 8

Wall Channel Omega Textured 27'D 38" (4-PACK)

Part # LA1254138-PACK4

Wall Channel Omega Textured 27'D 38" (4-PACK)

$109.10

Qty Per Pool 4-PACK

Qty Per Pool 4-PACK

Wall Channel Omega Textured 27'D 38" (8-PACK)

Part # LA1254138-PACK8

Wall Channel Omega Textured 27'D 38" (8-PACK)

$191.23

Qty Per Pool 8-PACK

Qty Per Pool 8-PACK

Wall Joiner Bar

Part # 11823

Wall Joiner Bar

$34.77

Qty Per Pool 2

Qty Per Pool 2

Horizontal Sleeve Galvanized With Pen Nuts 17" (Single)

Part # 20810

Horizontal Sleeve Galvanized With Pen Nuts 17" (Single)

$72.81

Qty Per Pool 8

Qty Per Pool 8

Extruded Polystyrene Piece (Single)

Part # 1000100

Extruded Polystyrene Piece (Single)

$7.60 IN STOCK

Qty Per Pool 8

Qty Per Pool 8

Qty:

Ledge Cover (Single)

Part # AR211-23120ABC

Ledge Cover (Single)

$48.64 IN STOCK

Qty Per Pool 14

Qty Per Pool 14

Qty:

Wall Channel Intersecting Galv (Single)

Part # 12539

Wall Channel Intersecting Galv (Single)

$34.77

Qty Per Pool 32

Qty Per Pool 32

Steel Strap Galvanized Braceless 59-3/4" (Single)

Part # 20560

Steel Strap Galvanized Braceless 59-3/4" (Single)

$60.85

Qty Per Pool 8

Qty Per Pool 8

Steel Strap Galvanized Braceless 26" (Single)

Part # 20526

Steel Strap Galvanized Braceless 26" (Single)

$60.85

Qty Per Pool 4

Qty Per Pool 4

*NOT SHOWN
