Sta-Rite CC/C Series Parts

BRONZE & CAST IRON COMMERCIAL PUMP
SPECIAL NOTE:
A “3” IN THE MODEL # INDICATES A
3 PHASE MOTOR
A “2” INDICATES A 200 VOLT MOTOR

Sta-Rite CC/C Series Diagram

Click to zoom in

Diagram #	Part Title
1	MOTOR, 3HP, 1 PHASE, MED.HEAD
*	Protective Pool Motor Cover
2	SLINGER, WATER
3	KEY, SQUARE
4	O-RING SHAFT
5	ADAPTOR, "C" SERIES (C281D)
6	WASHER, FLAT
7	SCREW, MOTOR CAP (3/8-16X 7/8 SS)
8	GASKET, ADAPTER
9	STA-RITE SHAFT SEAL OEM
9	Seal Assembly - PS-185 (ps-185)
10	SLEEVE
11	GASKET, SEAL
12	IMPELLER, 3 HP, MED HD
13	GASKET
14	WASHER
15	GASKET
16	SCREW, CAP 3/8-16 X 3-4" (SAMPLE S-5)
17	RING, WEAR
18	VOLUTE With WEAR RING, "C" SERIES
19	SCREW, CAP 5/16-18 X 7/8IN
20	H-Series 1/4" NPT Brass Plug
21	STUD, 3-8- 16 X 1 1/4
22	NUT, 3/8IN (SAMPLE N-2)
23	H-Series 1/4" NPT Brass Plug

View Parts List

Diagram #	Part Title
1	MOTOR, 3HP, 1 PHASE, MED.HEAD
*	Protective Pool Motor Cover
2	SLINGER, WATER
3	KEY, SQUARE
4	O-RING SHAFT
5	ADAPTOR, "C" SERIES (C281D)
6	WASHER, FLAT
7	SCREW, MOTOR CAP (3/8-16X 7/8 SS)
8	GASKET, ADAPTER
9	STA-RITE SHAFT SEAL OEM
9	Seal Assembly - PS-185 (ps-185)
10	SLEEVE
11	GASKET, SEAL
12	IMPELLER, 3 HP, MED HD
13	GASKET
14	WASHER
15	GASKET
16	SCREW, CAP 3/8-16 X 3-4" (SAMPLE S-5)
17	RING, WEAR
18	VOLUTE With WEAR RING, "C" SERIES
19	SCREW, CAP 5/16-18 X 7/8IN
20	H-Series 1/4" NPT Brass Plug
21	STUD, 3-8- 16 X 1 1/4
22	NUT, 3/8IN (SAMPLE N-2)
23	H-Series 1/4" NPT Brass Plug

Available Parts:

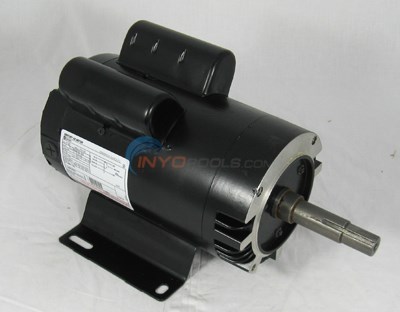

MOTOR, 3HP, 1 PHASE, MED.HEAD

Part # 5058-01A Mfg # P130

MOTOR, 3HP, 1 PHASE, MED.HEAD

$708.51

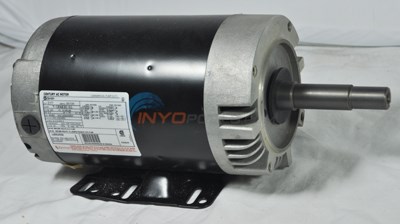

MOTOR, 3HP, 3 PHASE, MED.HEAD

Part # 5058-01C Mfg # E177

MOTOR, 3HP, 3 PHASE, MED.HEAD

$392.94

MOTOR, 3 H.P., 200V, 1 PHASE

Part # 5058-29 Mfg # C218-191

MOTOR, 3 H.P., 200V, 1 PHASE

$1061.27

MOTOR, 3 H.P., 200V, 3 PHASE (C218178)

Part # 5058-30 Mfg # C218-178

MOTOR, 3 H.P., 200V, 3 PHASE (C218178)

$711.00

MOTOR, 5HP, 1 PHASE, MED.HEAD (P231)

Part # 5058-01B Mfg # C218-180

MOTOR, 5HP, 1 PHASE, MED.HEAD (P231)

$1335.99 IN STOCK

Qty:

"MOTOR, 5HP, 3 PHASE, MED. HD"

Part # 5058-01D Mfg # E296

"MOTOR, 5HP, 3 PHASE, MED. HD"

$447.21

MOTOR, 5 H.P., 200V, 3 PHASE (C218181)

Part # 5058-31 Mfg # C218-181

MOTOR, 5 H.P., 200V, 3 PHASE (C218181)

$611.03

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$38.08 IN STOCK

Qty:

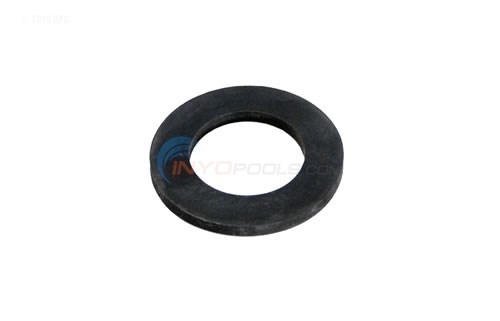

SLINGER, WATER

Part # 5058-04 Mfg # C69-15

SLINGER, WATER

$17.60 IN STOCK

Qty:

SLINGER, WATER FOR 3 HP MOTOR

Part # 5054-02A Mfg # C69-16

SLINGER, WATER FOR 3 HP MOTOR

$29.84

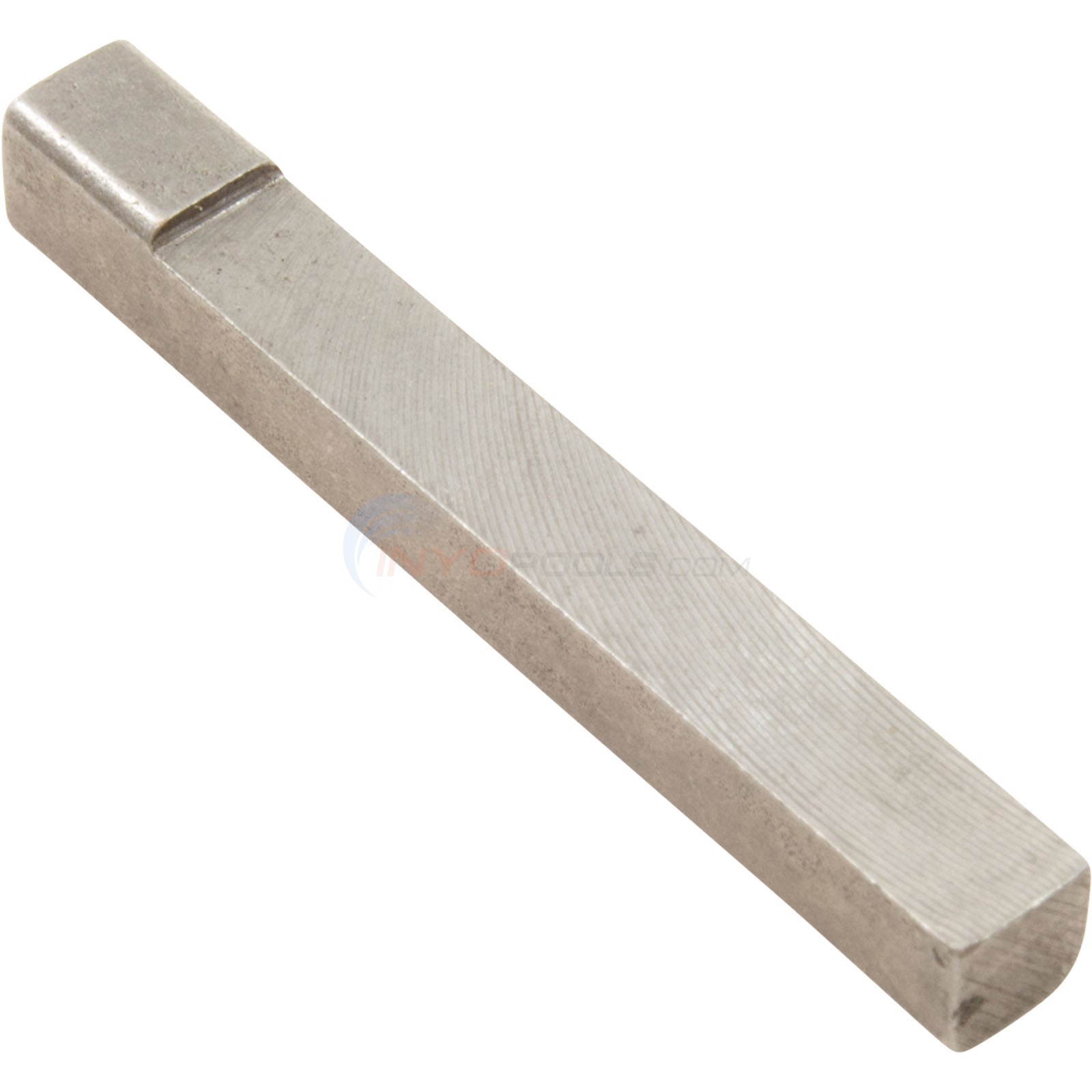

KEY, SQUARE

Part # 5058-03 Mfg # U65-42A

KEY, SQUARE

$31.97 IN STOCK

Qty:

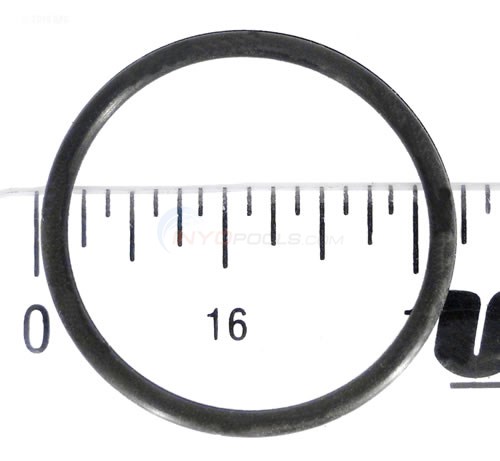

O-RING SHAFT

Part # 5058-02A Mfg # 021

O-RING SHAFT

$13.42 IN STOCK

Qty:

ADAPTOR, "C" SERIES (C281D)

Part # 5054-21 Mfg # C2-81D

ADAPTOR, "C" SERIES (C281D)

$758.04

ADAPTER "CC" SERIES

Part # 5054-03A Mfg # C2-81

ADAPTER "CC" SERIES

$247.34

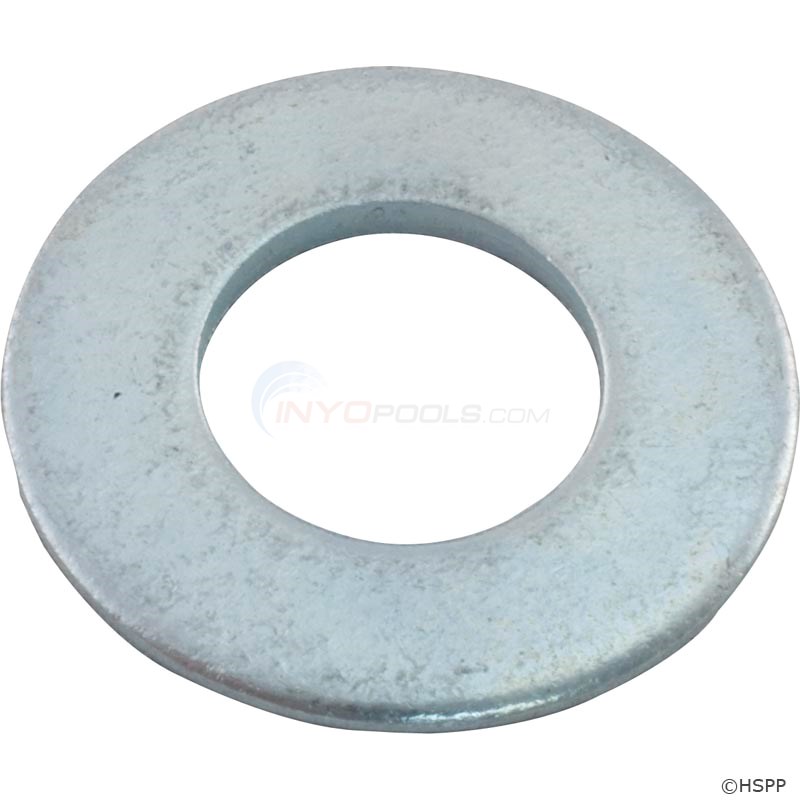

WASHER, FLAT

Part # 4680-05 Mfg # U43-129ZP

WASHER, FLAT

$19.18

SCREW, MOTOR CAP (3/8-16X 7/8 SS)

Part # 5110-16 Mfg # SAMPLE S-22

SCREW, MOTOR CAP (3/8-16X 7/8 SS)

$7.42 IN STOCK

Qty:

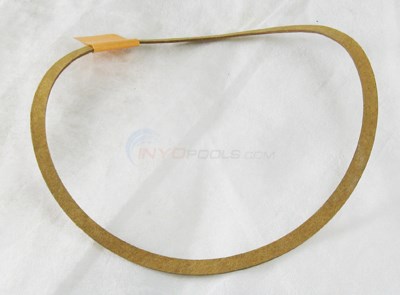

GASKET, ADAPTER

Part # 5054-14 Mfg # STC20-77

GASKET, ADAPTER

$11.71 IN STOCK

Qty:

STA-RITE SHAFT SEAL OEM

Part # 5058-10 Mfg # U109-433SS

STA-RITE SHAFT SEAL OEM

$153.85 IN STOCK

Qty:

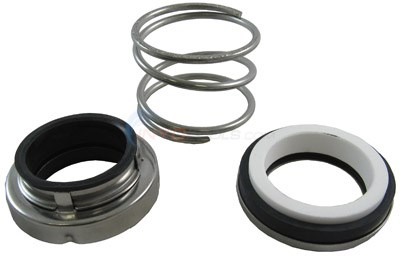

Seal Assembly - PS-185 (ps-185)

Part # 5250-185 Mfg # AS-185

Seal Assembly - PS-185 (ps-185)

$81.02 IN STOCK

Qty:

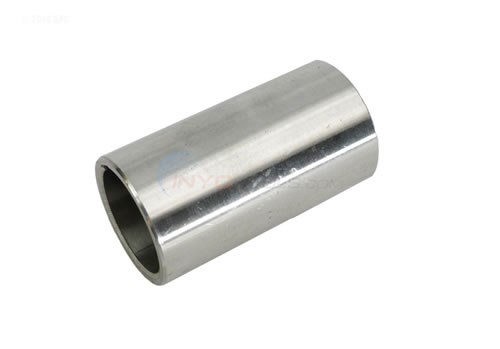

SLEEVE

Part # 5058-02 Mfg # C23-58

SLEEVE

$170.05 IN STOCK

Qty:

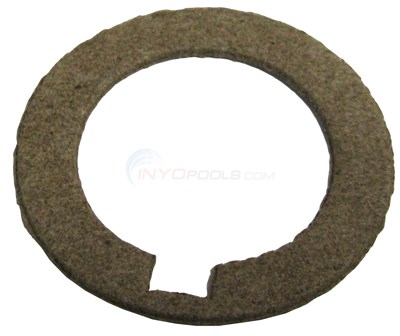

GASKET, SEAL

Part # 5058-11 Mfg # C20-101

GASKET, SEAL

$14.54 IN STOCK

Qty:

IMPELLER, 3 HP, MED HD

Part # 5054-15D Mfg # C105-224DG

IMPELLER, 3 HP, MED HD

$589.71

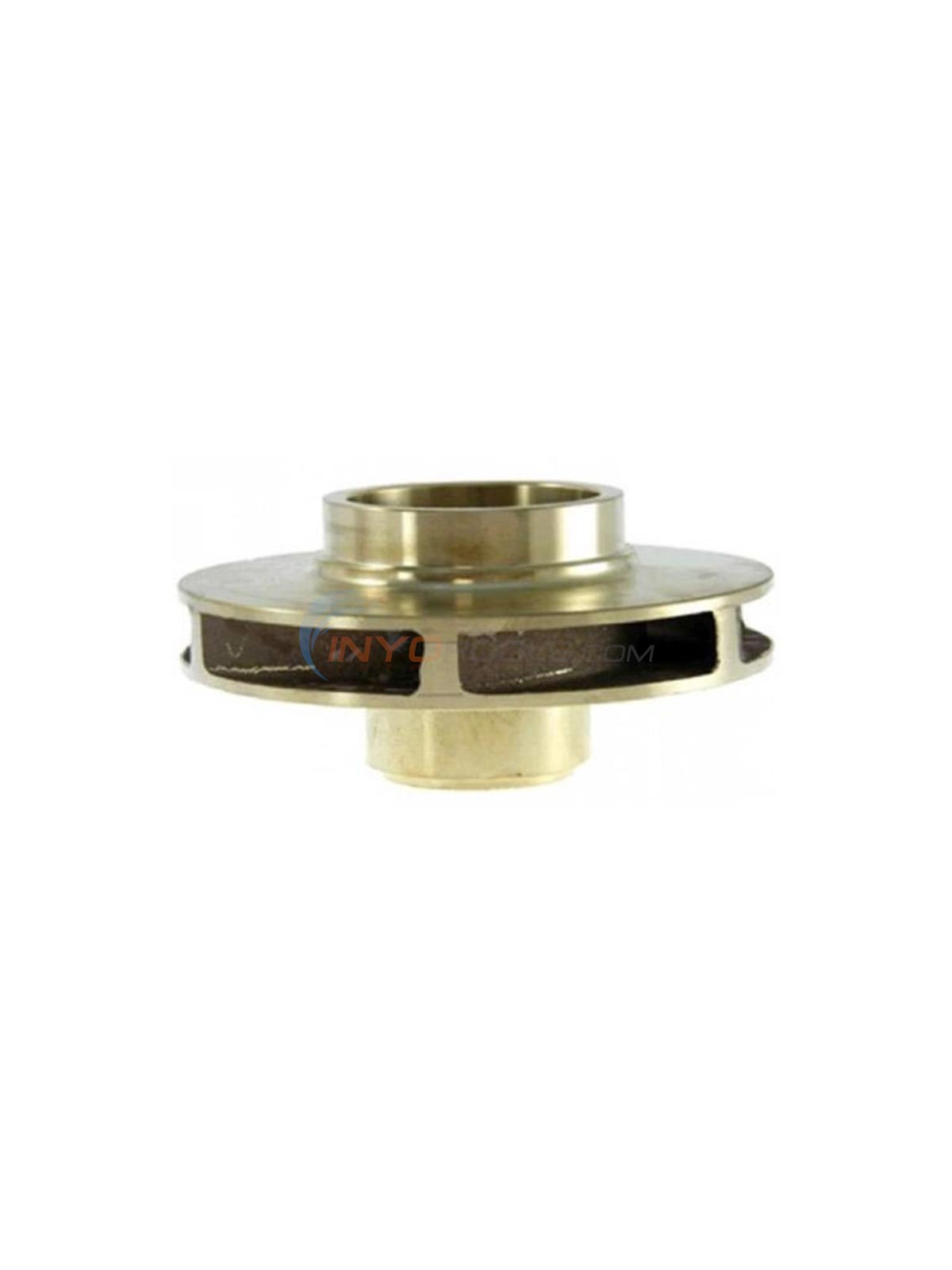

IMPELLER, 3 H.P., MEDIUM, SILICION BRASS

Part # 5054-22 Mfg # C105-224DG

IMPELLER, 3 H.P., MEDIUM, SILICION BRASS

$628.39

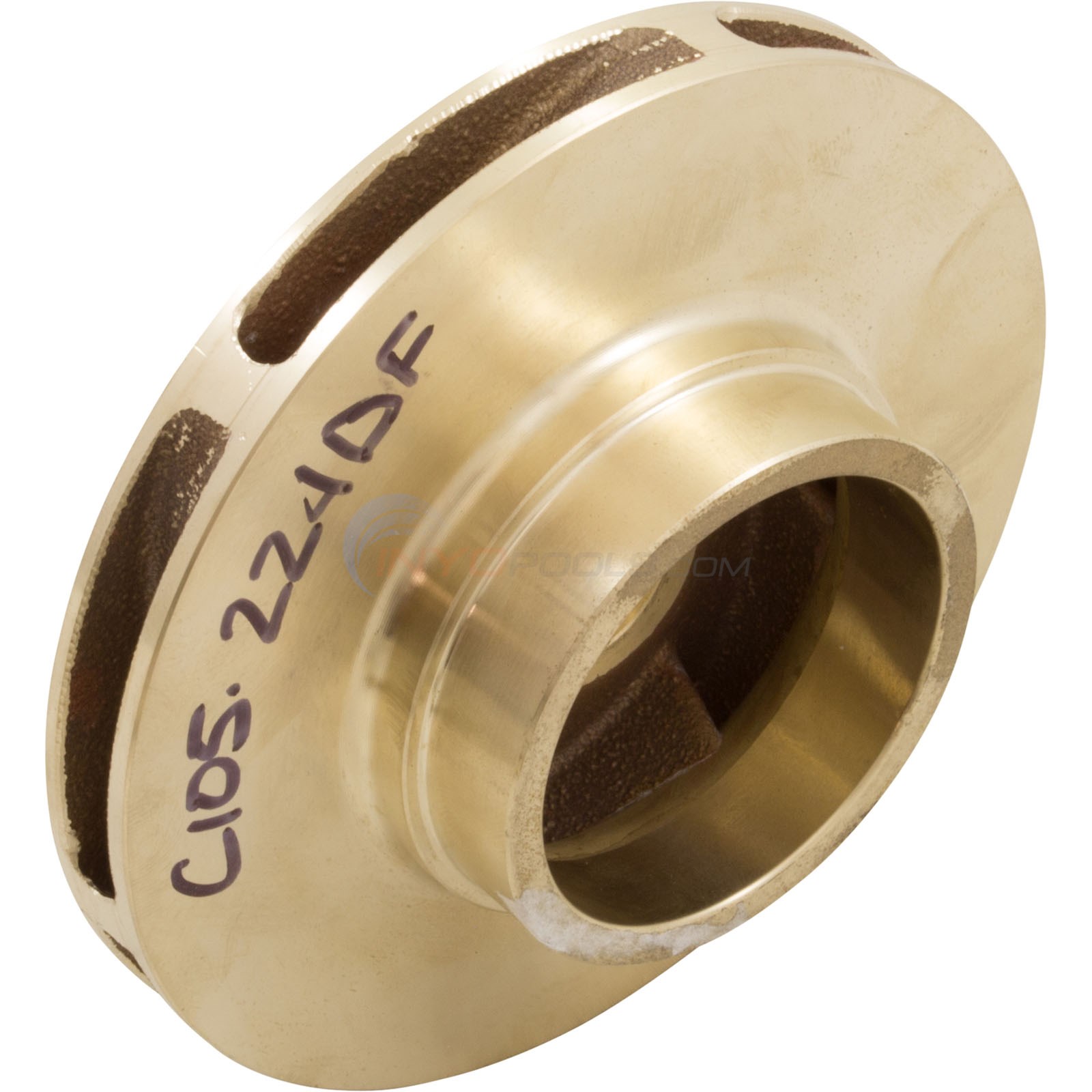

IMPELLER, 3 H.P. HIGH, SILICION BRASS (C105224DF)

Part # 5054-24 Mfg # C105-224DF

IMPELLER, 3 H.P. HIGH, SILICION BRASS (C105224DF)

$592.84

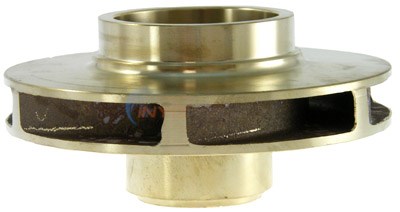

IMPELLER, 5 H.P. HIGH, SILICON BRASS

Part # 5054-23 Mfg # C105-224DE

IMPELLER, 5 H.P. HIGH, SILICON BRASS

$602.26

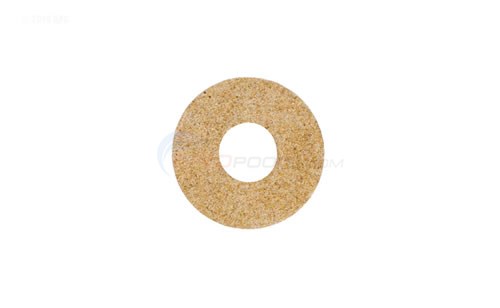

GASKET

Part # 5058-15 Mfg # C20-100

GASKET

$16.68 IN STOCK

Qty:

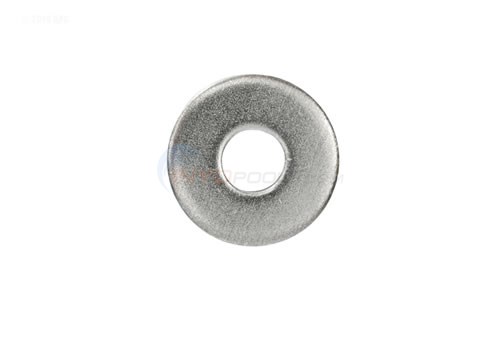

WASHER

Part # 5058-16 Mfg # C43-45SS

WASHER

$14.09 IN STOCK

Qty:

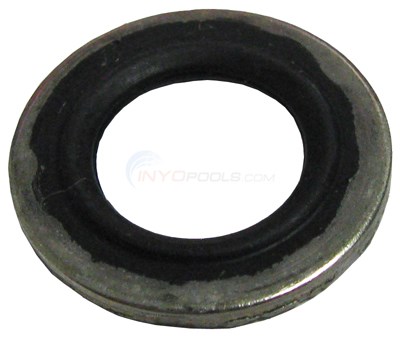

GASKET

Part # 5058-17 Mfg # C43-46

GASKET

$23.39 IN STOCK

Qty:

SCREW, CAP 3/8-16 X 3-4" (SAMPLE S-5)

Part # 6916-0 Mfg # U3072SS

SCREW, CAP 3/8-16 X 3-4" (SAMPLE S-5)

$10.65 IN STOCK

Qty:

RING, WEAR

Part # 5054-07 Mfg # C23-40

RING, WEAR

$148.19

VOLUTE With WEAR RING, "C" SERIES

Part # 5054-26 Mfg # C101-167D

VOLUTE With WEAR RING, "C" SERIES

$1145.97

VOLUTE WITH WEAR RING, NO STUDS

Part # 5054-06 Mfg # C101-167

VOLUTE WITH WEAR RING, NO STUDS

$509.63

SCREW, CAP 5/16-18 X 7/8IN

Part # 6904-0 Mfg # U30-61ZP

SCREW, CAP 5/16-18 X 7/8IN

$24.50

H-Series 1/4" NPT Brass Plug

Part # 6740-0 Mfg # 06121-04

H-Series 1/4" NPT Brass Plug

$18.11 IN STOCK

Qty:

DRAIN COCK, 1/4" NPT (09432-04)

Part # 5054-10 Mfg # U212-68T

DRAIN COCK, 1/4" NPT (09432-04)

$10.65 IN STOCK

Qty:

STUD, 3-8- 16 X 1 1/4

Part # 5052-11A Mfg # U30-22SS

STUD, 3-8- 16 X 1 1/4

$24.50

NUT, 3/8IN (SAMPLE N-2)

Part # 6932-0 Mfg # 071403

NUT, 3/8IN (SAMPLE N-2)

$8.52 IN STOCK

Qty:

H-Series 1/4" NPT Brass Plug

Part # 6740-0 Mfg # 06121-04

H-Series 1/4" NPT Brass Plug

$18.11 IN STOCK

Qty:

* NOT SHOWN
