Sta-Rite DS3 Series Parts

Sta-Rite DS3 Series:,
DS3HE-01, DS3HE3-01, DS3HE3-01, DS3HF3-01, DS3HG-01, DS3HG3-01, DS3HHG-01, DS3HHG3-01

Click to zoom in

Diagram #	Part Title
2	Water Slinger
3	Seal Plate
4	Seal Plate Gasket
5	Pump Shaft Seal 5/8" OEM - Replace With U109-93SS
6	Impeller, 1 HP - 1 Phase
6A	Impeller Screw, 1 & 3 Phase
7	Diffuser, 1 HP/1.5 HP
7A	Diffuser Screw 10-24x1"
8	Diffuser Ring, 1 HP/1.5 HP
9	Pump Body Assembly
10	Plug 1/4" NPT Hex Head
11	Base
12	Lower Capscrew 3/8-16x1-1/4"
13	Upper Capscrew 3/8-16x1"
14	Motor Pad
15	Capscrew 3/8-16x3/4" Lg
*	Lock Washer

View Parts List

Diagram #	Part Title
2	Water Slinger
3	Seal Plate
4	Seal Plate Gasket
5	Pump Shaft Seal 5/8" OEM - Replace With U109-93SS
6	Impeller, 1 HP - 1 Phase
6A	Impeller Screw, 1 & 3 Phase
7	Diffuser, 1 HP/1.5 HP
7A	Diffuser Screw 10-24x1"
8	Diffuser Ring, 1 HP/1.5 HP
9	Pump Body Assembly
10	Plug 1/4" NPT Hex Head
11	Base
12	Lower Capscrew 3/8-16x1-1/4"
13	Upper Capscrew 3/8-16x1"
14	Motor Pad
15	Capscrew 3/8-16x3/4" Lg
*	Lock Washer

Available Parts:

Part # 5057-04 Mfg # 17351-0009

Water Slinger

$14.75 IN STOCK

Qty:

ADD TO CART

Part # C3-155 Mfg # C3-155

Seal Plate

NOT AVAILABLE

Models DS3HE-01,DS3HE3-01,DS3HE3-01,DS3HF3-01

Part # C3-117 Mfg # C3-117

Seal Plate

NOT AVAILABLE

Models DS3HG-01,DS3HG3-01,DS3HHG-01, DS3HHG3-01

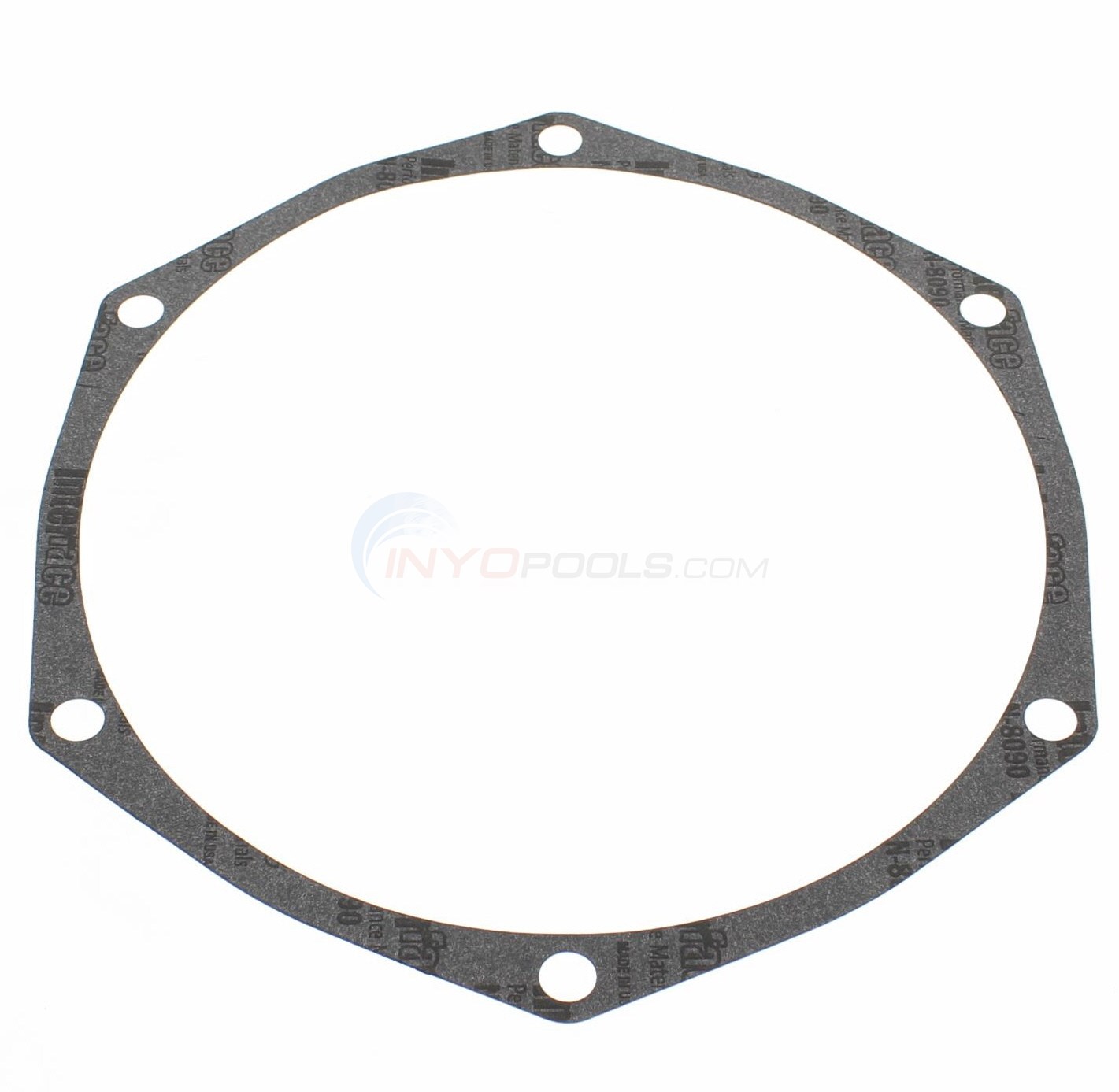

Part # C20-86

Seal Plate Gasket

$30.49 IN STOCK

Models DS3HE-01,DS3HE3-01,DS3HE3-01,DS3HF3-01

Qty:

ADD TO CART

Part # C20-87 Mfg # C20-87

Seal Plate Gasket

NOT AVAILABLE

Models DS3HG-01,DS3HG3-01,DS3HHG-01,DS3HHG3-01

Pump Shaft Seal 5/8" OEM - Replace With <a class="productlink" href="http://www.inyopools.com/Products/00100028009968.htm">U109-93SS</a>

Mfg # U109-6A

Pump Shaft Seal 5/8" OEM - Replace With U109-93SS

NOT AVAILABLE

Part # 5250-100 Mfg # PSR-100

Pump Shaft Seal 5/8" Generic

$7.53 IN STOCK

Qty:

ADD TO CART

Part # 5250-200 Mfg # PS-3866

Pump Shaft Seal 5/8" Heavy Duty

$28.48 IN STOCK

Qty:

ADD TO CART

Part # C105-92PKB Mfg # C105-92PKB

Impeller, 1 HP - 1 Phase

NOT AVAILABLE

Models DS3HE-01

Part # C105-92PKBA Mfg # C105-92PKBA

Impeller, 1 HP - 3 Phase

NOT AVAILABLE

Models DS3HE3-01

Part # C105-92PC Mfg # C105-92PC

Impeller, 1.5 HP - 1 Phase

NOT AVAILABLE

Models DS3HF-01

Part # C105-92PCA Mfg # C105-92PCA

Impeller, 1.5 HP - 3 Phase

NOT AVAILABLE

Models DS3HF3-01

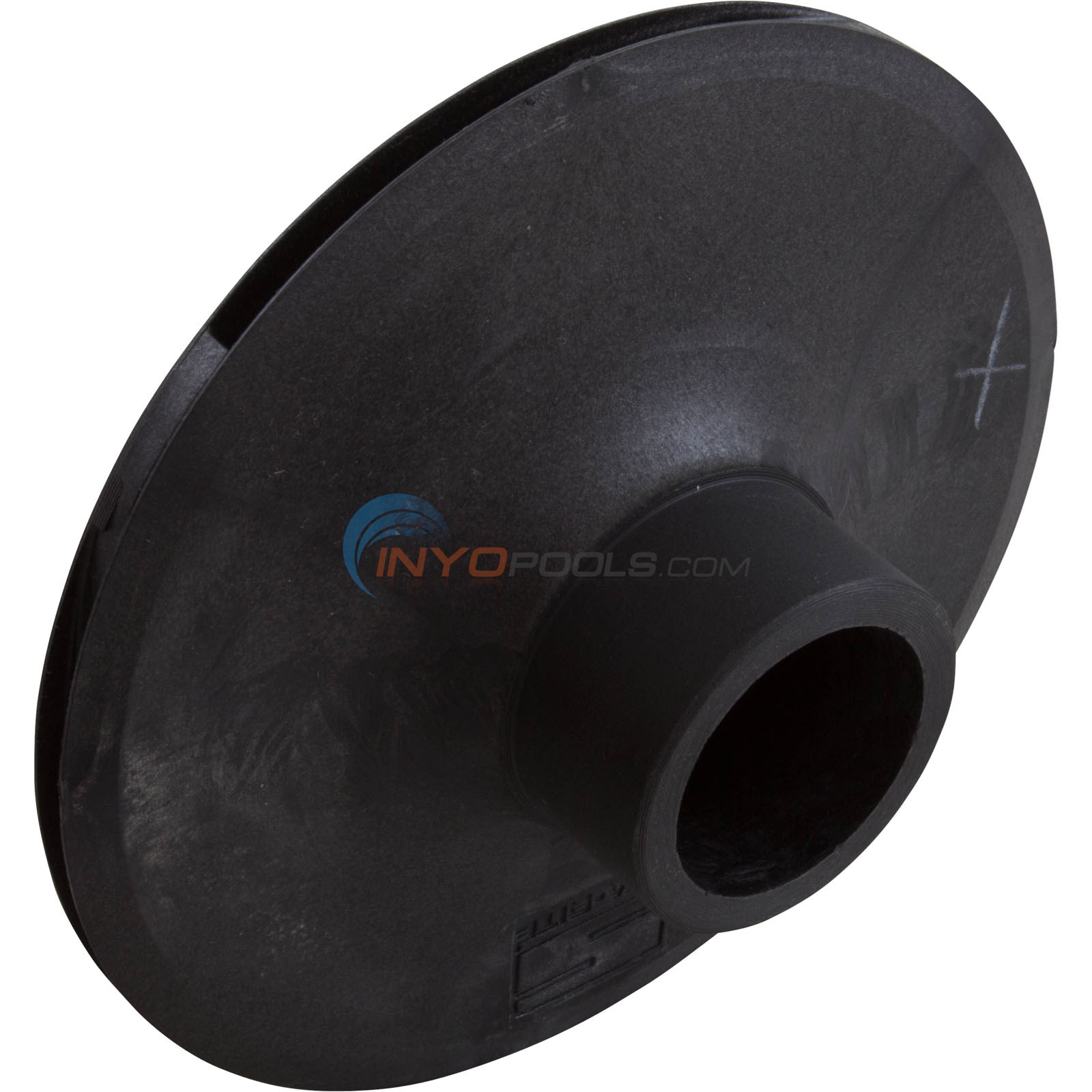

Part # 5056-92

Impeller, 2 HP - 1 & 3 Phase

$126.62 IN STOCK

Models DS3HG3-01, DS3HHG-01

Qty:

ADD TO CART

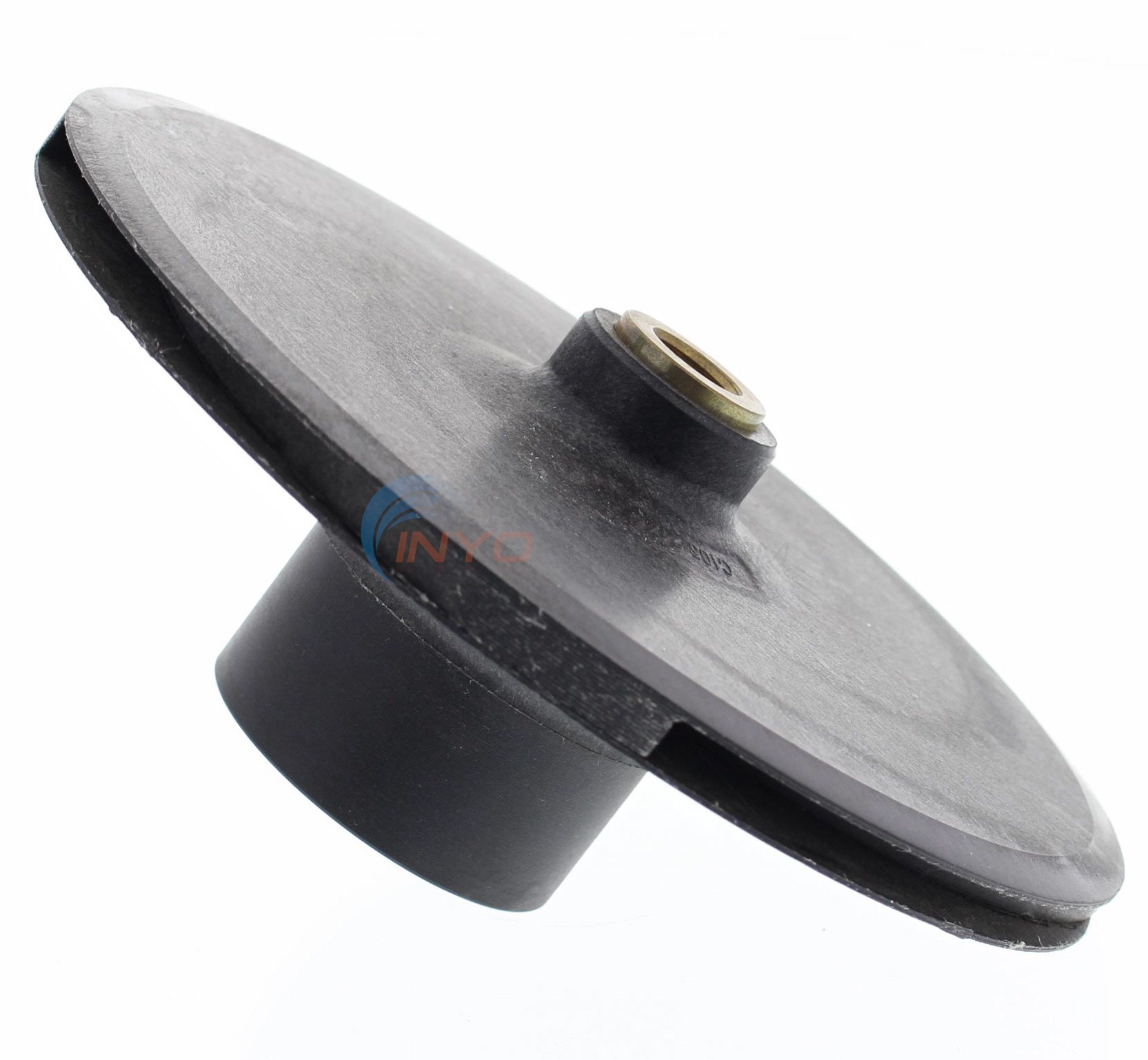

Part # 5056-58 Mfg # C105-214PA

Impeller, 2.5 HP - 1 & 3 Phase

$126.62 IN STOCK

Models DS3HHG-01, DS3HHG3-01

Qty:

ADD TO CART

Part # 5056-82 Mfg # C30-14SS

Impeller Screw, 1 & 3 Phase

$25.11 IN STOCK

Models DS3HG3-01, DS3HHG-01, DS3HE3-01, DS3HF3-01, DS3HHG-01, DS3HHG3-01

Qty:

ADD TO CART

Part # C101-276P Mfg # C101-276P

Diffuser, 1 HP/1.5 HP

NOT AVAILABLE

Models DS3HE-01,DS3HE3-01,DS3HE3-01,DS3HF3-01

Part # C101-182 Mfg # C101-182

Diffuser, 2 HP/2.5 HP

NOT AVAILABLE

Models DS3HG-01,DS3HG3-01,DS3HHG-01, DS3HHG3-01

Part # U30-696SS Mfg # U30-696SS

Diffuser Screw 10-24x1"

NOT AVAILABLE

Models DS3HE-01,DS3HE3-01,DS3HE3-01,DS3HF3-01

Part # U30-53SS Mfg # U30-53SS

Diffuser Screw 8-32x7/8"

NOT AVAILABLE

Models DS3HG-01,DS3HG3-01,DS3HHG-01, DS3HHG3-01

Part # 5001-12 Mfg # C21-10

Diffuser Ring, 1 HP/1.5 HP

$13.71 IN STOCK

Models DS3HE-01,DS3HE3-01,DS3HE3-01,DS3HF3-01

Qty:

ADD TO CART

Part # 5058-19 Mfg # C21-2

Diffuser Ring, 2 HP/2.5 HP

$22.85 IN STOCK

Models DS3HG-01,DS3HG3-01,DS3HHG-01, DS3HHG3-01

Qty:

ADD TO CART

Part # C76-67 Mfg # C76-67

Pump Body Assembly

NOT AVAILABLE

Models DS3HE-01,DS3HE3-01,DS3HE3-01,DS3HF3-01

Part # C76-68 Mfg # C76-68

Pump Body Assembly

NOT AVAILABLE

Models DS3HG-01,DS3HG3-01,DS3HHG-01, DS3HHG3-01

Part # 6740-0 Mfg # 06121-04

Plug 1/4" NPT Hex Head

$17.07 IN STOCK

Qty:

ADD TO CART

Part # C4-82 Mfg # C4-82

Base

NOT AVAILABLE

Models

Part # C4-82A Mfg # C4-82A

Base

NOT AVAILABLE

Models DSHHG3-01

Part # U30-75ZP Mfg # U30-75ZP

Lower Capscrew 3/8-16x1-1/4"

NOT AVAILABLE

Part # U30-74ZP Mfg # U30-74ZP

Upper Capscrew 3/8-16x1"

NOT AVAILABLE

Models

Part # U30-99SS Mfg # U30-99SS

Upper Capscrew 3/8-16x1

NOT AVAILABLE

Models DS3HHG-01, DS3HHG3-01

Part # 5054-20 Mfg # C35-5

Motor Pad

$42.20 IN STOCK

Qty:

ADD TO CART

Part # U30-72ZP Mfg # U30-72ZP

Capscrew 3/8-16x3/4" Lg

NOT AVAILABLE

Models DS3HE-01,DS3HE3-01,DS3HE3-01,DS3HF3-01

Part # U30-60ZP Mfg # U30-60ZP

Capscrew 5/16-18x3/4" Lg

NOT AVAILABLE

Models DS3HG-01,DS3HG3-01,DS3HHG-01, DS3HHG3-01

Part # 5058-08 Mfg # U43-12ZP

Lock Washer

$11.04

VIEW DETAILS

Part # U36-37ZP Mfg # U36-37ZP

Hex Head Nut 3-16"-18

NOT AVAILABLE

* Not Shown
