Pentair - Pac Fab Top Mount 1 1/2" 26-1124, 26-1130, 26-2506 Parts

HI-FLOW MODELS 26-1124, 26-1130, 26-2506, 272523

Primarily used on PAC-FAB (PUREX/TRITON SYSTEMS) TAGELUS FILTERS

NOTES:
The original clamp on valve used self taping screws. The current version uses bolts & nuts to attach the cover.(Keys 10B, 19, & 20)

The current cover, key cover assembly, and body will not work with the older style valve. A new valve must be ordered to replace any of these items.

1. Clamp-on valve bodies mfg. before March 1, 1993 utilize a smaller air bleeder(Key#12B) that fits an opening that measures approximately 1/2" in diameter. Valves Mfg. after March 1, 1993 utilize a larger air bleeder (Key#12) that fits an opening that
measures approximately 3/4" in diameter.

2. Threaded body Valves Mfg. before March 1, 1993 do not contain an air bleeder.

3. All valves Mfg. before March 1, 1993 do not contain a sight glass.

4. Item 8A used on Valves Mfg. after May 1, 1992 and replaces both

Pentair - Pac Fab Top Mount 1 1/2" 26-1124, 26-1130, 26-2506 Diagram
 Click to zoom in

Available Parts:

Part # 4600-2506 Mfg # 262506

VALVE, 1 1/2" TOP MT. FLANGED EQFV WG

$191.49 IN STOCK
Part # 4600-1130 Mfg # 261130

VALVE, TA-BUTTRESS THD. 1 1/2IN WG (261130) AFTER 12-1-91

$201.84 IN STOCK

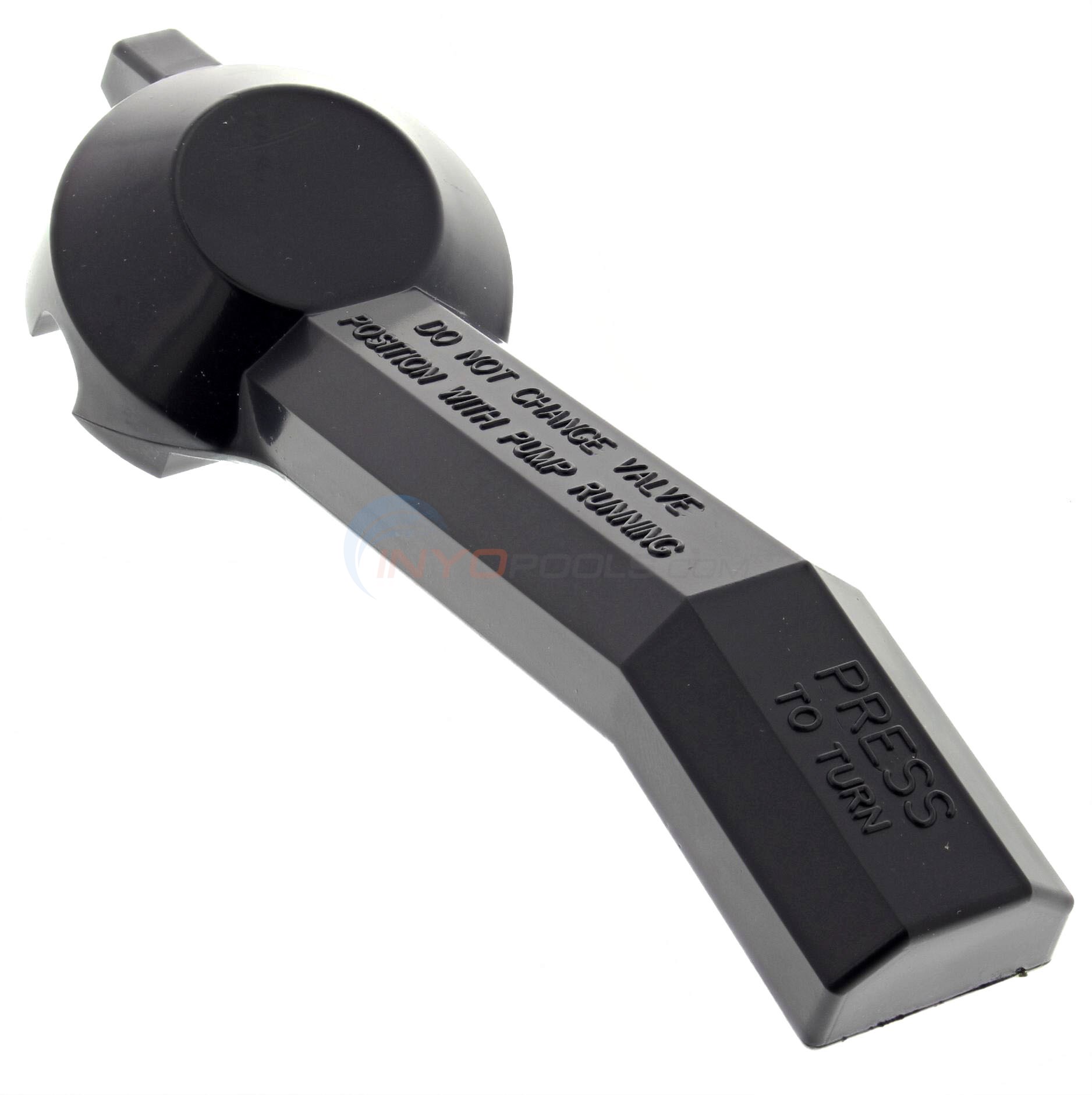

Part # 4623-01 Mfg # 272520

HANDLE, VALVE

$27.93 IN STOCK
Part # 4600-2505 Mfg # 27500-154-080

WASHER, PLASTIC 2 REQ. (272505)

$4.34 IN STOCK

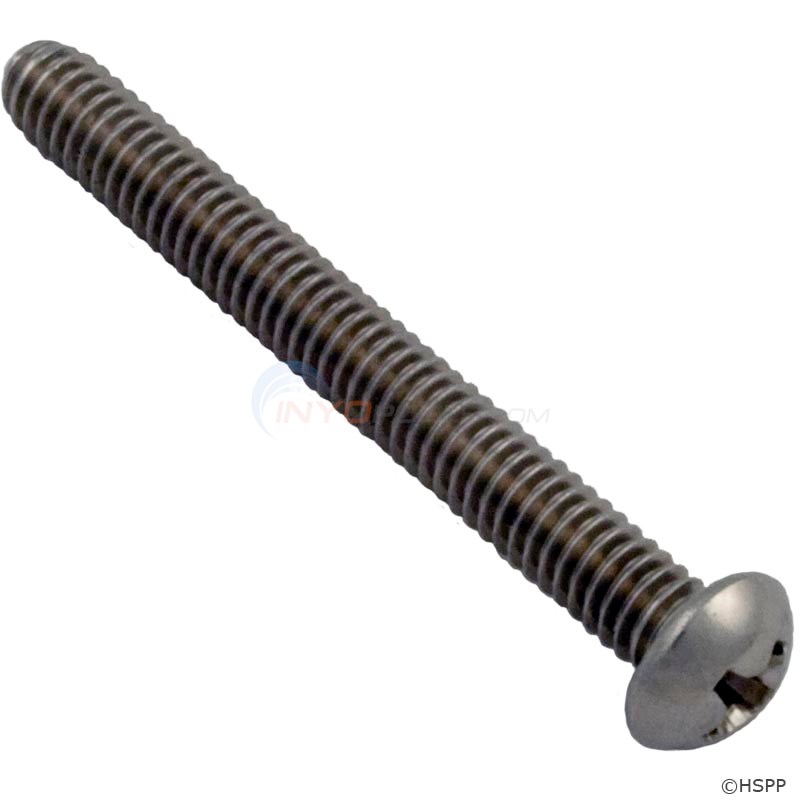

Part # 4623-02 Mfg # 272405

SCREW, HANDLE S.S.

$4.59 IN STOCK

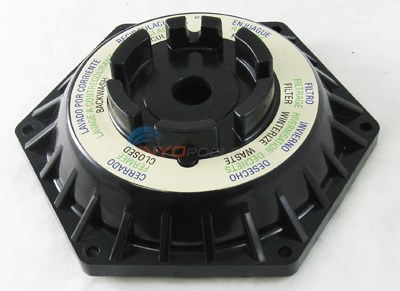

Part # 4600-2527 Mfg # 270085

TOP, VALVE-BLACK (272527)

$91.08
Part # 4662-04A Mfg # 210

Star-Clear Oring 1/2IN

$3.09 IN STOCK
Part # 5000-4053 Mfg # 358

O-RING

$14.02 IN STOCK
Part # 4623-06 Mfg # 272401

WASHER, S.S.

$6.66 IN STOCK
Part # 4600-2535 Mfg # 272535

Spring, 1 3/8" O.d.

$21.62 IN STOCK
Part # 4623-07 Mfg # 272400

Spring

$13.44 IN STOCK
Part # 4601-4598 Mfg # 634598

SCREW, 12 X 1 SELF TAPPING

$11.37

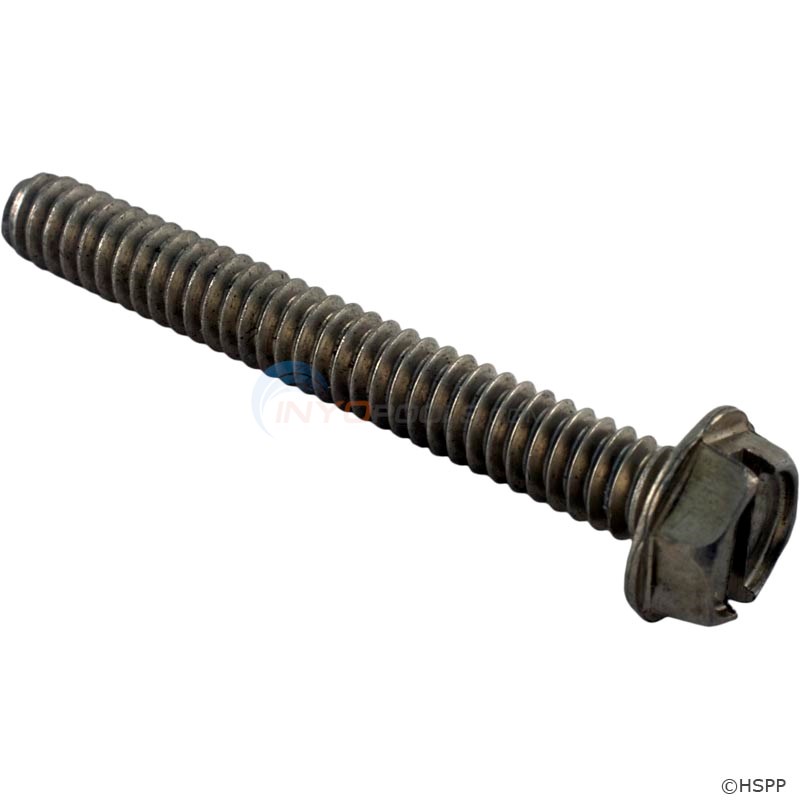

Part # 5004-08 Mfg # 354541

SCREW, SLOTTED

$7.23 IN STOCK

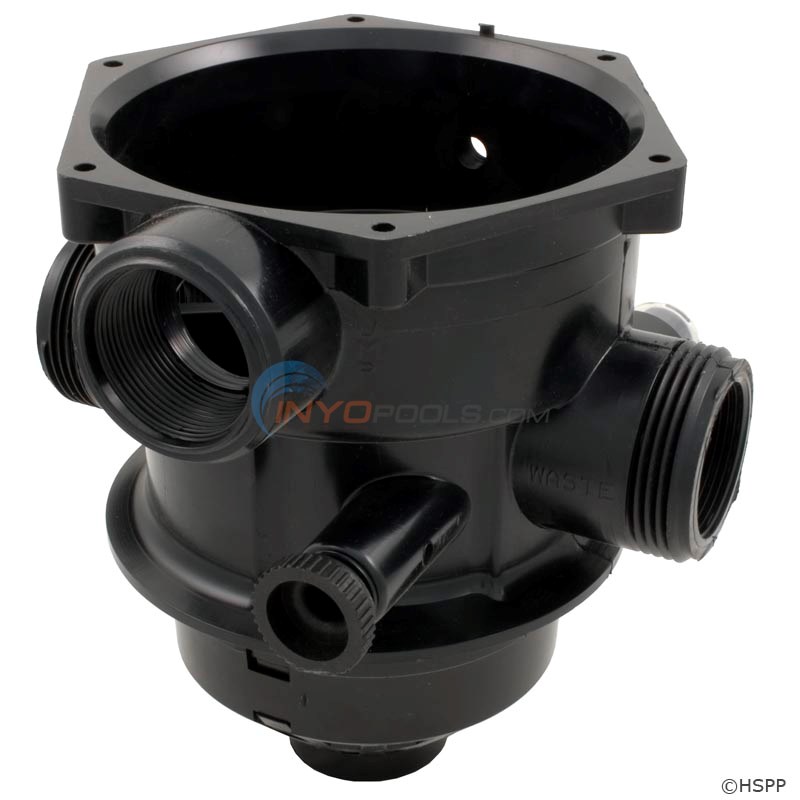

Part # 4600-2530 Mfg # 272530

BODY, VALVE With DIFFUSER-BLACK

$155.26 IN STOCK

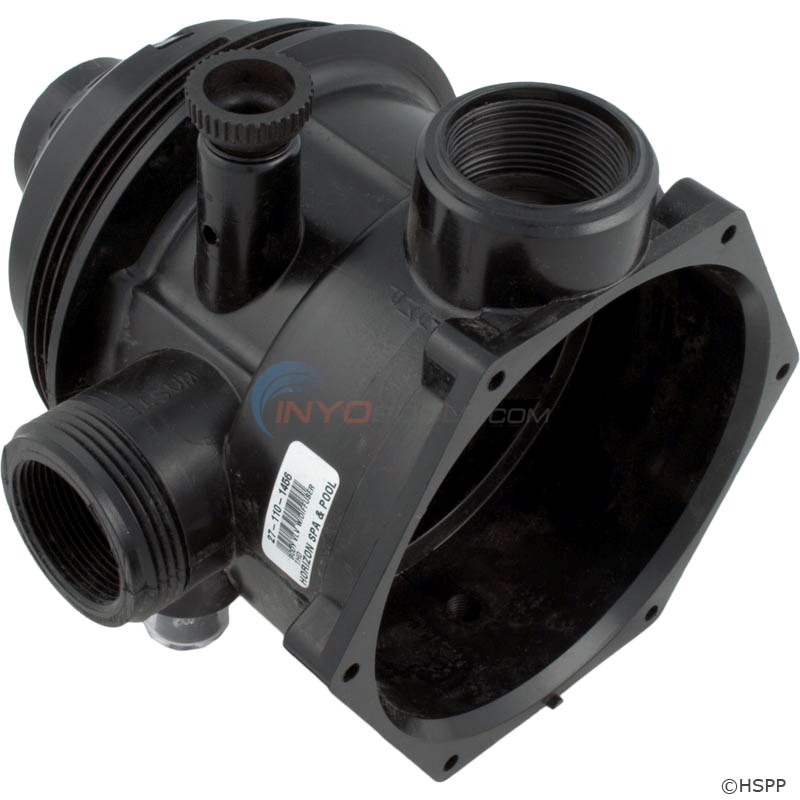

Part # 4600-2538 Mfg # 272538

VALVE BODY, With DIFFUSER -THD

$109.72
Part # 4600-3512 Mfg # 273512

AIR BLEEDER With O-RING

$17.74 IN STOCK
Part # 4600-3513 Mfg # 273513

O-RING, BLEEDER

$12.65 IN STOCK
Part # 4600-2515 Mfg # 272515

BLEEDER, AIR WITH O-RING

$12.77 IN STOCK
Part # 4600-4693 Mfg # 201 N70

O-RING, KNOB BLEEDER TEE

$15.10 IN STOCK
Part # 4600-2541 Mfg # 272541

O-RING, VALVE BODY TA30D,35D,40D,50D,60D (350)

$12.15 IN STOCK
14 No Longer Available CLAMP Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352028090.htm">4600-2162</a>
Mfg # 155526

No Longer Available CLAMP Replace With 4600-2162

NOT AVAILABLE
Part # 4727-1 Mfg # 190059

GAUGE PRESS With INDICATOR REAR MOUNT

$55.92 IN STOCK
Part # 4600-1107 Mfg # E-17-S1

SIGHT GLASS

$15.10 IN STOCK
Part # 4600-1106 Mfg # E-16-S1

GASKET, SIGHT GLASS (E-16-S1 F1 1/2&2")

$4.58 IN STOCK
Part # 4600-4495 Mfg # 154493

O-RING CLOSURE

$5.94 IN STOCK

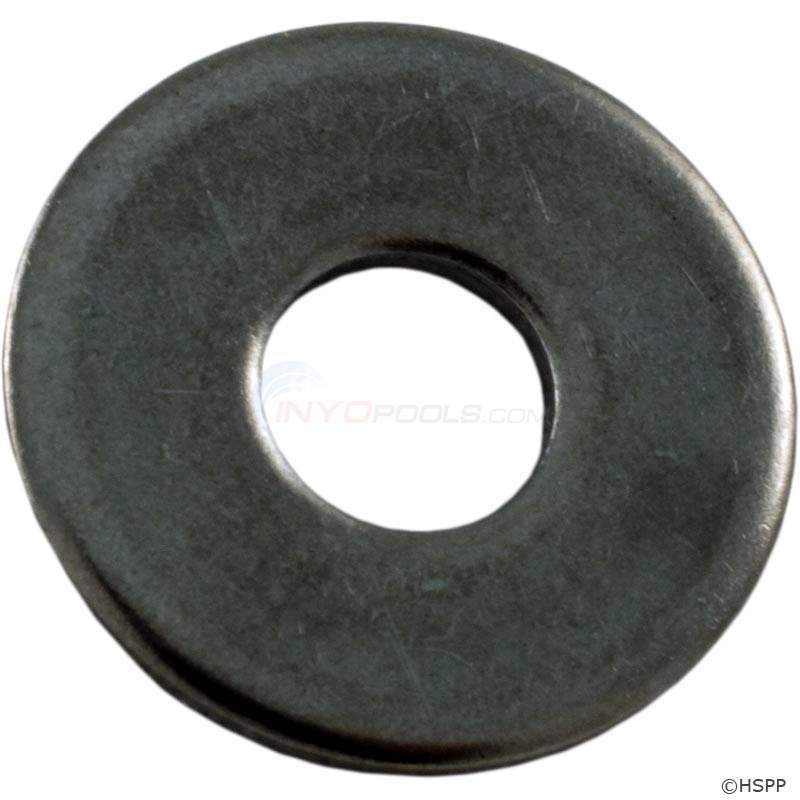

Part # 4600-2555 Mfg # 272555

WASHER, 9/16 SS

$11.37 IN STOCK
Part # 4600-2554 Mfg # 272554

NUT, #10-24 SERRATED FLG SS

$12.41 IN STOCK
21 No Longer Available NUT Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352022577.htm">4600-2256</a>
Mfg # 352206

No Longer Available NUT Replace With 4600-2256

NOT AVAILABLE
Part # 5004-19 Mfg # 352257

ADAPTER, 1 1/2" QUICK CONNECT

$16.19 IN STOCK
Part # 5004-21 Mfg # 354571

O-RING, ADAPTER (5056-11--)

$12.65 IN STOCK
Part # 4600-2599 Mfg # 272599

LABEL FOR 26-1130 AND 26-2506 VALVES

$6.34 IN STOCK
* OBSOLETE TIE
Mfg # 152163

OBSOLETE TIE

NOT AVAILABLE
* NOT SHOWN ** SOME RE-PLUMBING REQUIRED
