W Cooper Ranger Top Mount Sand, RS_16, 18, 21, 25 Parts

MODELS RS-16, RS-18, RS-21, RS-25

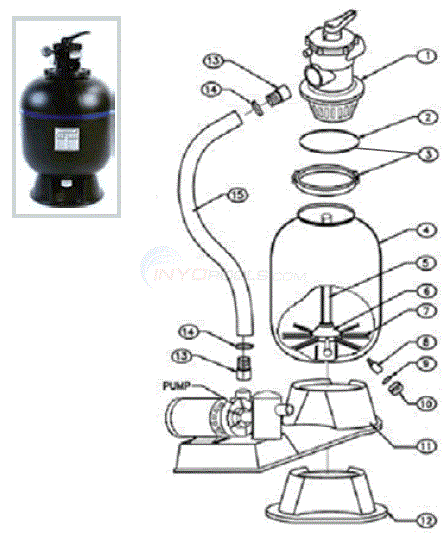

W Cooper Ranger Top Mount Sand, RS_16, 18, 21, 25 Diagram

Click to zoom in

Diagram #	Part Title
1	VALVE ASSEMBLY, 6-WAY PRAHER
2	O-RING, VALVE FLANGE (U9-369)
3	CLAMP SET, COMPLETE
5	HUB AND STANDPIPE ASSY., 16IN
6	HUB, MANIFOLD (2043)
7	LATERAL FOR 16 AND 20" -8 REQ. (2045A)
8	DRAIN FITTING
9	DRAIN CAP WASHER 16" & 18"
10	DRAIN CAP, 16”, 18” FILTERS
11	PLATFORM BASE WITH HARDWARE
12	BASE
13	BARBED HOSE ADAPTOR
14	STAINLESS STEEL HOSE CLAMP
15	PUMP TO FILTER HOSE, RS-1615

View Parts List

Diagram #	Part Title
1	VALVE ASSEMBLY, 6-WAY PRAHER
2	O-RING, VALVE FLANGE (U9-369)
3	CLAMP SET, COMPLETE
5	HUB AND STANDPIPE ASSY., 16IN
6	HUB, MANIFOLD (2043)
7	LATERAL FOR 16 AND 20" -8 REQ. (2045A)
8	DRAIN FITTING
9	DRAIN CAP WASHER 16" & 18"
10	DRAIN CAP, 16”, 18” FILTERS
11	PLATFORM BASE WITH HARDWARE
12	BASE
13	BARBED HOSE ADAPTOR
14	STAINLESS STEEL HOSE CLAMP
15	PUMP TO FILTER HOSE, RS-1615

Available Parts:

VALVE ASSEMBLY, 6-WAY PRAHER

Part # 4770-01 Mfg # TM-12-L

VALVE ASSEMBLY, 6-WAY PRAHER

$110.75 IN STOCK

Qty:

O-RING, VALVE FLANGE (U9-369)

Part # 4684-11 Mfg # O-236

O-RING, VALVE FLANGE (U9-369)

$14.71 IN STOCK

Qty:

CLAMP SET, COMPLETE

Part # 4770-14 Mfg # 12L-CLP

CLAMP SET, COMPLETE

$39.99 IN STOCK

Qty:

HUB AND STANDPIPE ASSY., 16IN

Part # 4770-04 Mfg # 2016A

HUB AND STANDPIPE ASSY., 16IN

$113.55 IN STOCK

Qty:

HUB WITH STANDPIPE, RS-1815

Part # 4770-20 Mfg # 2018A

HUB WITH STANDPIPE, RS-1815

$126.62 IN STOCK

Qty:

LTD QTY (SA) HUB AND STANDPIPE ASSEMBLY

Part # 4770-04C

LTD QTY (SA) HUB AND STANDPIPE ASSEMBLY

$126.62 IN STOCK

Qty:

HUB AND STANDPIPE ASSY., 25IN (2150A)

Part # 4770-04B

HUB AND STANDPIPE ASSY., 25IN (2150A)

$221.09

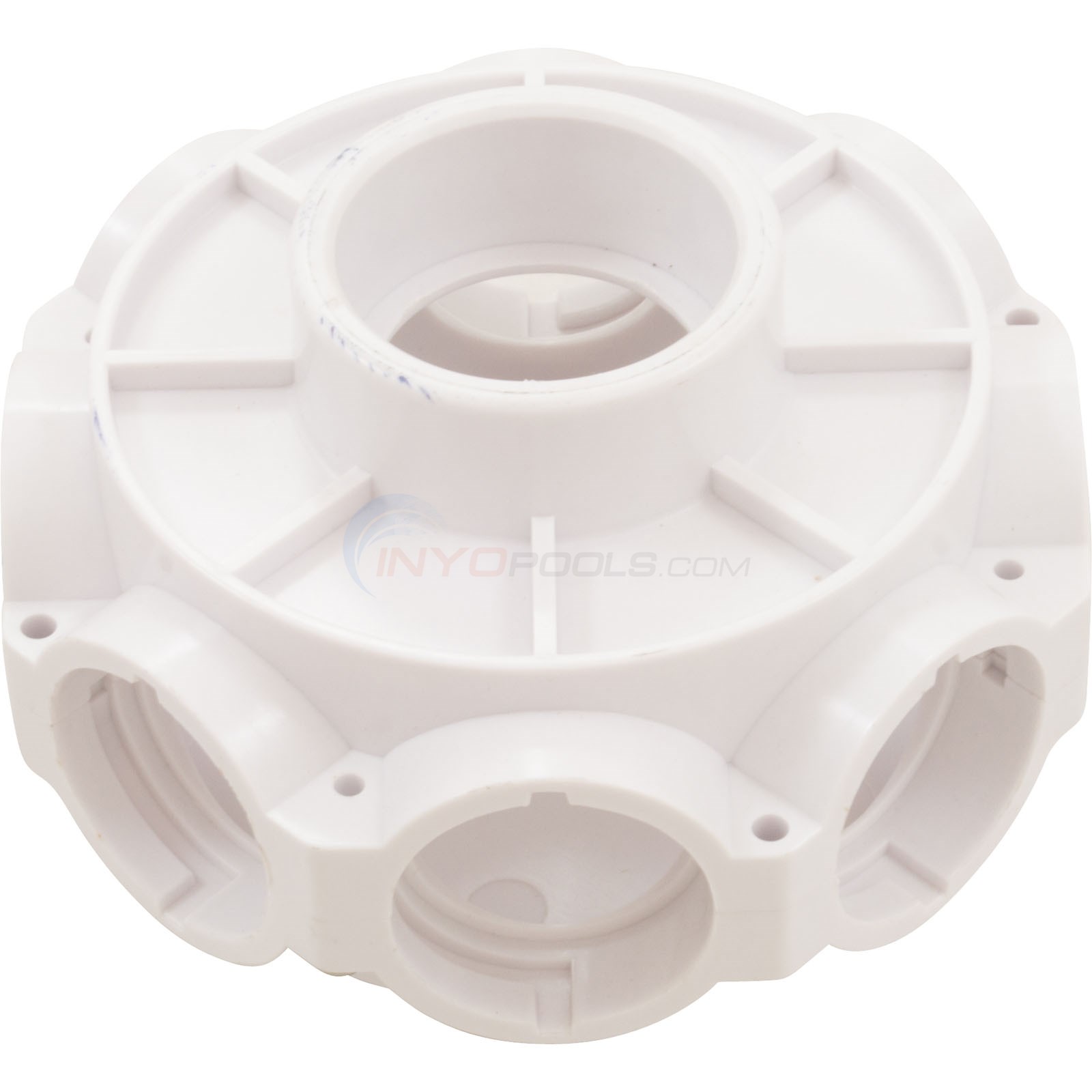

HUB, MANIFOLD (2043)

Part # 4770-10

HUB, MANIFOLD (2043)

$42.20

LATERAL FOR 16 AND 20" -8 REQ. (2045A)

Part # 4770-05A

LATERAL FOR 16 AND 20" -8 REQ. (2045A)

$19.08

LATERAL FOR 25" -8 REQ. (2145A)

Part # 4770-05B

LATERAL FOR 25" -8 REQ. (2145A)

$21.09

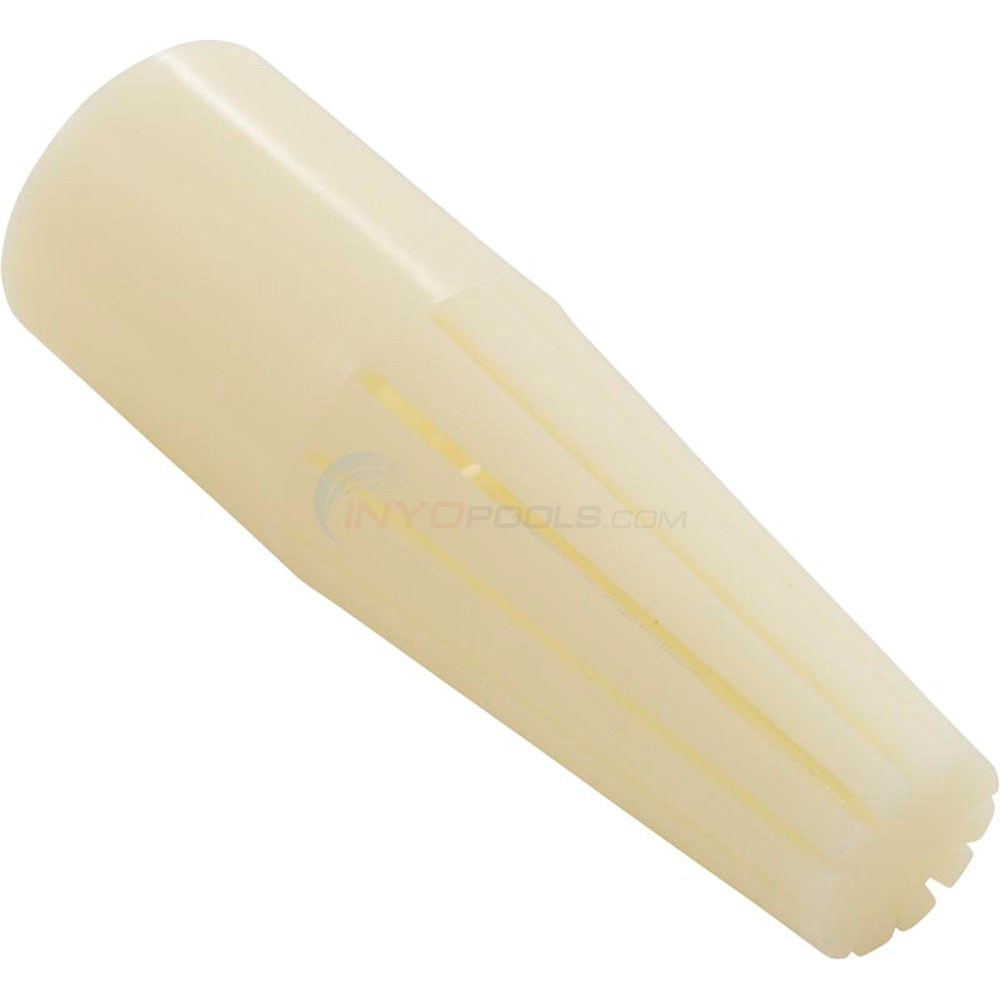

DRAIN FITTING

Part # 4770-46 Mfg # 2023W CPR

DRAIN FITTING

$20.09 IN STOCK

Qty:

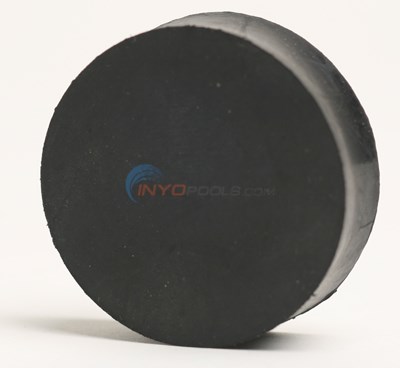

DRAIN CAP WASHER 16" & 18"

Part # 4770-07

DRAIN CAP WASHER 16" & 18"

$11.04

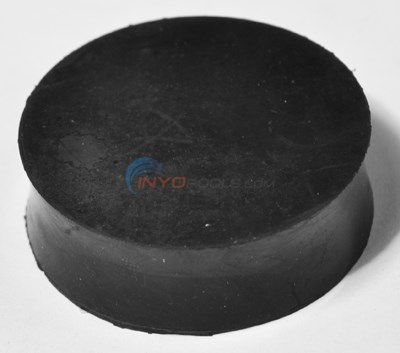

DRAIN CAP WASHER - 21" & 25"

Part # 4770-07A

DRAIN CAP WASHER - 21" & 25"

$15.06

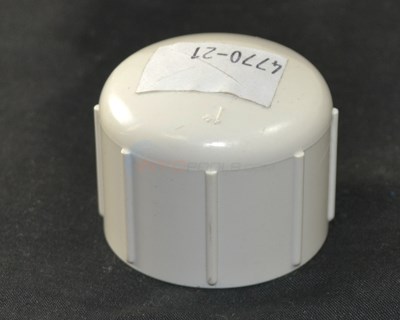

DRAIN CAP, 16”, 18” FILTERS

Part # 4770-21 Mfg # 4770-21

DRAIN CAP, 16”, 18” FILTERS

$12.05 IN STOCK

Qty:

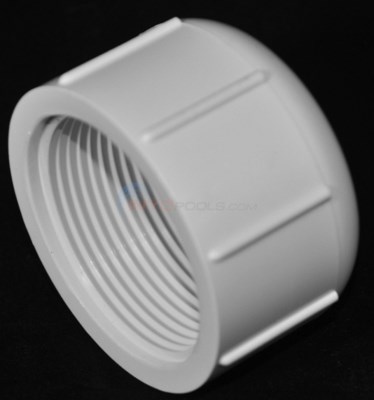

DRAIN CAP, 21”, 25” FILTERS

Part # 4770-22 Mfg # 2022 CPR

DRAIN CAP, 21”, 25” FILTERS

$14.66 IN STOCK

Qty:

PLATFORM BASE WITH HARDWARE

Part # 4770-23 Mfg # 2110 CPR

PLATFORM BASE WITH HARDWARE

$185.91

BASE

Part # 4770-09 Mfg # 2100

BASE

$112.55

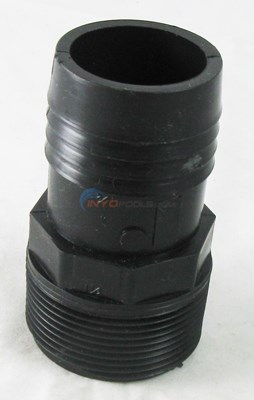

BARBED HOSE ADAPTOR

Part # 4770-24 Mfg # 1503

BARBED HOSE ADAPTOR

$15.06

STAINLESS STEEL HOSE CLAMP

Part # 4770-25 Mfg # 1505 CPR

STAINLESS STEEL HOSE CLAMP

$36.17

PUMP TO FILTER HOSE, RS-1615

Part # 4770-30 Mfg # 1502-23

PUMP TO FILTER HOSE, RS-1615

$66.32

PUMP TO FILTER HOSE, RS-1815

Part # 4770-31 Mfg # 1502-25

PUMP TO FILTER HOSE, RS-1815

$65.31

PUMP TO FILTER HOSE, RS-2115

Part # 4770-32 Mfg # 1502-26

PUMP TO FILTER HOSE, RS-2115

$67.32

PUMP TO FILTER HOSE, RS-2515

Part # 4770-33 Mfg # 1502-30

PUMP TO FILTER HOSE, RS-2515

$67.32
