Water Ace RSP Series Pump Parts

MODELS RSP7, RSP10, & RSP15 (These Pump Models Have Been Discontinued)

Water Ace RSP Series Pump Diagram

Click to zoom in

Diagram #	Part Title
1	Pureline 3/4 HP Pool Motor Square Flange 48Y
1	Pool Motor Square Flange 3/4 HP 115V Full Rate Dual Speed w/ Digital Controller
**	Protective Pool Motor Cover
2	SLINGER, WATER (G-71)
3	GENERIC SHAFT SEAL
3A	SEAL CUP (25198A000) Discontinued Order PS-3845
4	CAP SCREW 3/8" x 1"
5	IMPELLER RSP7 3/4 HP
6	SEAL PLATE
7	DIFFUSER HOUSING
8	O-RING, LID 6IN
9	STRAINER BASKET
10	LID
11	STRAINER HOUSING
12	DRAIN PLUG
13	O-RING, SEAL PLATE
14	CLAMP, WATER ACE
15	CAP SCREW 3/8" x 1 1/2"
16	FOOT MTG
17	HAND KNOB, F CLAMP W CAPT BOLT
18	WASHER SS 5/16"ID X 3/4"OD (SAMPLE W-2)
*	SEAL REPAIR KIT INCLUDES SEAL, SEAL CUP, AND ALL O-RINGS

View Parts List

Diagram #	Part Title
1	Pureline 3/4 HP Pool Motor Square Flange 48Y
1	Pool Motor Square Flange 3/4 HP 115V Full Rate Dual Speed w/ Digital Controller
**	Protective Pool Motor Cover
2	SLINGER, WATER (G-71)
3	GENERIC SHAFT SEAL
3A	SEAL CUP (25198A000) Discontinued Order PS-3845
4	CAP SCREW 3/8" x 1"
5	IMPELLER RSP7 3/4 HP
6	SEAL PLATE
7	DIFFUSER HOUSING
8	O-RING, LID 6IN
9	STRAINER BASKET
10	LID
11	STRAINER HOUSING
12	DRAIN PLUG
13	O-RING, SEAL PLATE
14	CLAMP, WATER ACE
15	CAP SCREW 3/8" x 1 1/2"
16	FOOT MTG
17	HAND KNOB, F CLAMP W CAPT BOLT
18	WASHER SS 5/16"ID X 3/4"OD (SAMPLE W-2)
*	SEAL REPAIR KIT INCLUDES SEAL, SEAL CUP, AND ALL O-RINGS

Available Parts:

Pureline 3/4 HP Pool Motor Square Flange 48Y

Part # PL2073

Pureline 3/4 HP Pool Motor Square Flange 48Y

$170.84 IN STOCK

Qty:

Pureline 1 HP Pool Motor Square Flange 48Y - PL2103

Part # PL2103

Pureline 1 HP Pool Motor Square Flange 48Y - PL2103

$195.96 IN STOCK

Qty:

Century (A.O. Smith) 1.5 HP Up Rate Motor, Square Flange 48Y Frame, Single Speed - Model USQ1152

Part # USQ1152 Mfg # USQ1152

Century (A.O. Smith) 1.5 HP Up Rate Motor, Square Flange 48Y Frame, Single Speed - Model USQ1152

$270.35 IN STOCK

Qty:

Pool Motor Square Flange 3/4 HP 115V Full Rate Dual Speed w/ Digital Controller

Part # B2981T Mfg # B2981T

Pool Motor Square Flange 3/4 HP 115V Full Rate Dual Speed w/ Digital Controller

$334.65

Service Factor 1.67 Voltage 115 Max Amps 12.4/2.2 Frame 56Y

Service Factor 1.67 Voltage 115 Max Amps 12.4/2.2 Frame 56Y

Pool Motor Square Flange 3/4 HP 230V Full Rate Dual Speed w/ Digital Controller

Part # B2980T Mfg # B2980T

Pool Motor Square Flange 3/4 HP 230V Full Rate Dual Speed w/ Digital Controller

$412.04

Service Factor 1.67 Voltage 230 Max Amps 6.0/1.0 Frame 56Y

Service Factor 1.67 Voltage 230 Max Amps 6.0/1.0 Frame 56Y

Pool Motor Square Flange 1 HP Full Rate Dual Speed w/ Digital Controller

Part # B2982T Mfg # B2982T

Pool Motor Square Flange 1 HP Full Rate Dual Speed w/ Digital Controller

$369.83

Service Factor 1.65 Voltage 230 Max Amps 7.4/1.4 Frame 56Y

Service Factor 1.65 Voltage 230 Max Amps 7.4/1.4 Frame 56Y

Pool Motor Square Flange 1.5 HP Full Rate Dual Speed w/ Digital Controller

Part # B2983T Mfg # B2983T

Pool Motor Square Flange 1.5 HP Full Rate Dual Speed w/ Digital Controller

$453.24

Service Factor 1.47 Voltage 230 Max Amps 10.0/1.6 Frame 56Y

Service Factor 1.47 Voltage 230 Max Amps 10.0/1.6 Frame 56Y

Pool Motor Square Flange 2 HP Full Rate Dual Speed w/ Digital Controller

Part # B2984T Mfg # B2984T

Pool Motor Square Flange 2 HP Full Rate Dual Speed w/ Digital Controller

$458.27

Service Factor 1.3 Voltage 230 Max Amps 11.0/1.8 Frame 56Y

Service Factor 1.3 Voltage 230 Max Amps 11.0/1.8 Frame 56Y

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$35.89 IN STOCK

Qty:

SLINGER, WATER (G-71)

Part # 5110-20 Mfg # SPX0125F

SLINGER, WATER (G-71)

$10.27 IN STOCK

Qty:

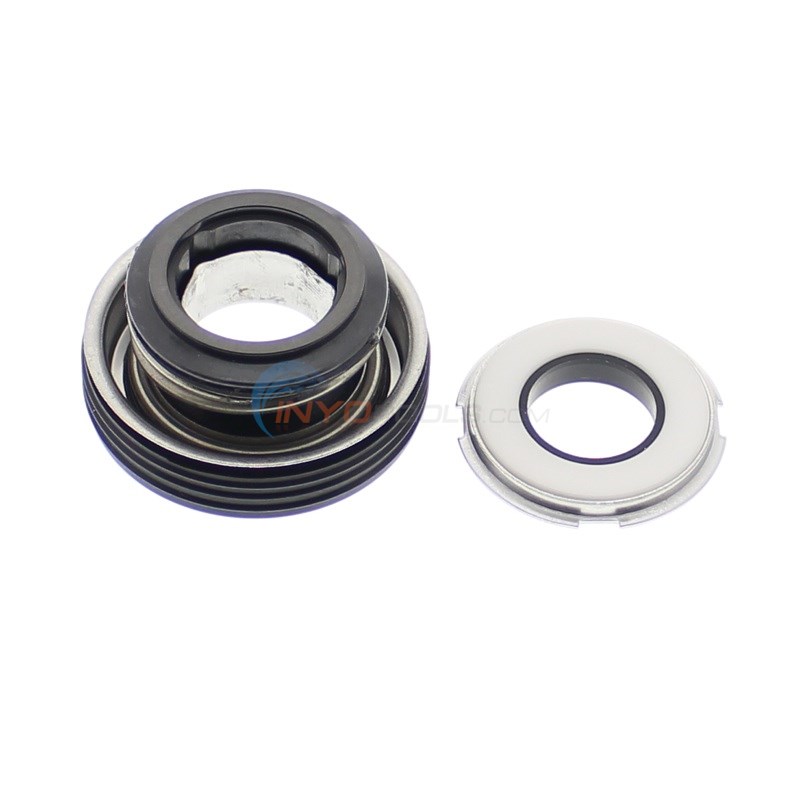

GENERIC SHAFT SEAL

Part # 5075-018 Mfg # PS-3845

GENERIC SHAFT SEAL

$47.65 IN STOCK

Qty:

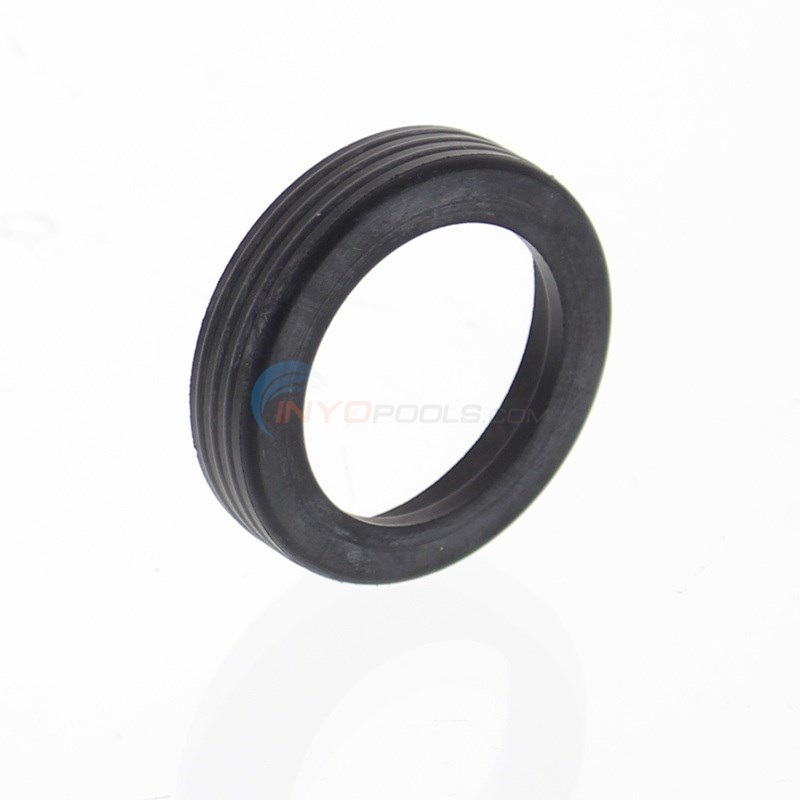

SEAL CUP (25198A000) Discontinued Order PS-3845

Part # 5075-21 Mfg # 25198A000

SEAL CUP (25198A000) Discontinued Order PS-3845

$30.14

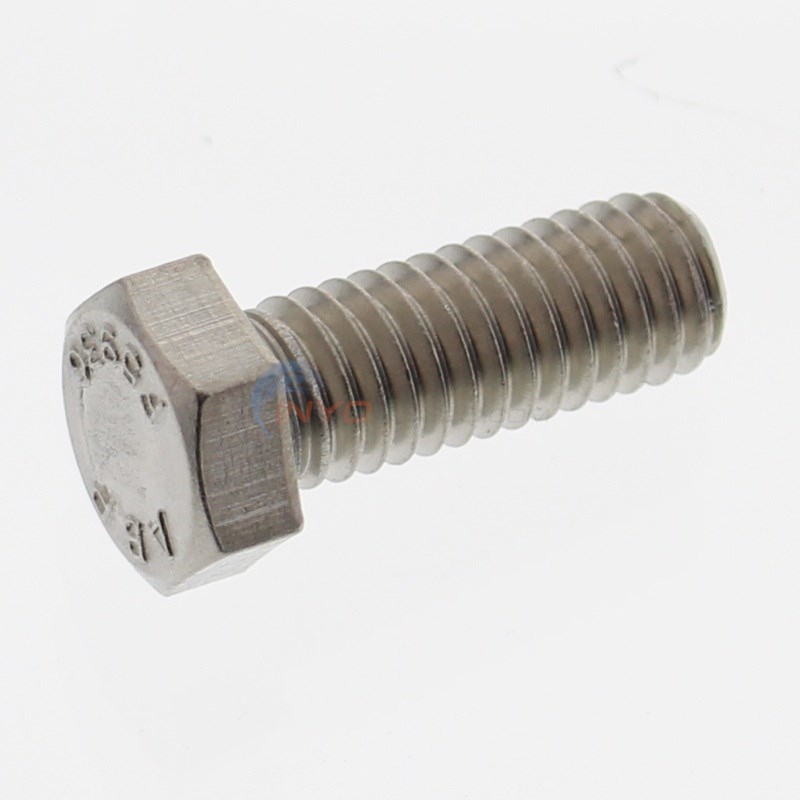

CAP SCREW 3/8" x 1"

Part # 5075-003 Mfg # 19101A010

CAP SCREW 3/8" x 1"

$15.06

IMPELLER RSP7 3/4 HP

Part # 5075-004 Mfg # 25054B001

IMPELLER RSP7 3/4 HP

$104.51

IMPELLER RSP10 1 HP

Part # 5075-005 Mfg # 25054B002

IMPELLER RSP10 1 HP

$125.61 IN STOCK

Qty:

IMPELLER RSP15 1 1/2 HP

Part # 5075-006 Mfg # 25054B003

IMPELLER RSP15 1 1/2 HP

$142.48

SEAL PLATE

Part # 5075-007 Mfg # 25059D000

SEAL PLATE

$188.93

DIFFUSER HOUSING

Part # 5075-008 Mfg # 25060D000

DIFFUSER HOUSING

$223.10

O-RING, LID 6IN

Part # 5050-14A Mfg # 437

O-RING, LID 6IN

$10.78 IN STOCK

Qty:

STRAINER BASKET

Part # 5075-010 Mfg # 25061C000

STRAINER BASKET

$35.70 IN STOCK

Qty:

LID

Part # 5075-011 Mfg # 25062D000

LID

$76.46 IN STOCK

Qty:

STRAINER HOUSING

Part # 5075-012 Mfg # 25063D000

STRAINER HOUSING

$222.09

DRAIN PLUG

Part # 5075-013 Mfg # 25064A000

DRAIN PLUG

$23.10 IN STOCK

Qty:

O-RING, SEAL PLATE

Part # 5056-06 Mfg # 449

O-RING, SEAL PLATE

$9.03 IN STOCK

Qty:

CLAMP, WATER ACE

Part # 5075-015 Mfg # 25058C000

CLAMP, WATER ACE

$129.15 IN STOCK

Qty:

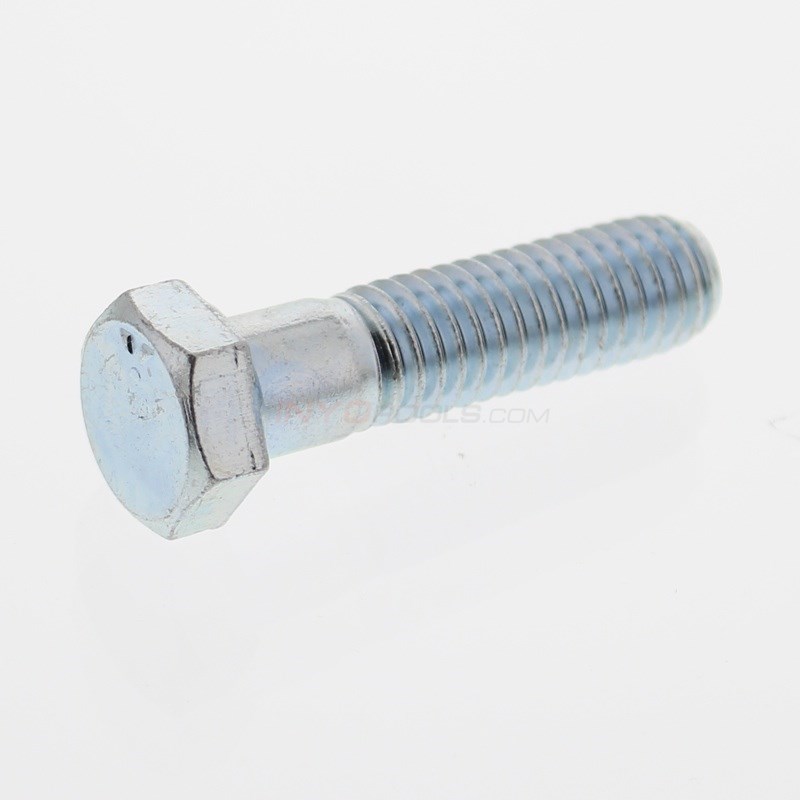

CAP SCREW 3/8" x 1 1/2"

Part # 5075-016 Mfg # 19101A021

CAP SCREW 3/8" x 1 1/2"

$13.05

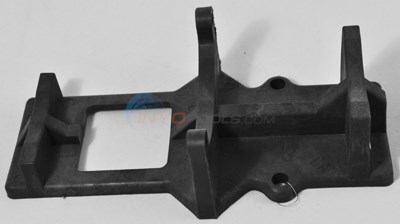

FOOT MTG

Part # 5075-017 Mfg # 25065C000

FOOT MTG

$85.41

HAND KNOB, F CLAMP W CAPT BOLT

Part # 5002-20A Mfg # 175025

HAND KNOB, F CLAMP W CAPT BOLT

$51.44 IN STOCK

Qty:

WASHER SS 5/16"ID X 3/4"OD (SAMPLE W-2)

Part # 6981-0

WASHER SS 5/16"ID X 3/4"OD (SAMPLE W-2)

$14.06 IN STOCK

Qty:

SEAL REPAIR KIT INCLUDES SEAL, SEAL CUP, AND ALL O-RINGS

Part # 5075-062 Mfg # RPK-SP

SEAL REPAIR KIT INCLUDES SEAL, SEAL CUP, AND ALL O-RINGS

$107.52 IN STOCK

Qty:

* NOT SHOWN
** NOT SHOWN
