Waterway Top Mount Valve Clearwater Parts

CLEARWATER FILTER VALVE - MODEL WVS0002

THESE VALVES ARE SIMILAR BUT WILL NOT INTERCHANGE. FLANGE ON ORIGINAL IS BEVELED &
MEASURES 1/8" AT THE EDGE. CURRENT VALVE FLANGE IS NOT BEVELED. IT MEASURES 1/4" AT
THE EDGE. Also sold under the Namco Proline, Rec Warehouse and Premium Blue name.

Waterway Top Mount Valve Clearwater Diagram

Click to zoom in

Diagram #	Part Title
A	COMPLETE REPLACEMENT VALVE, NEW STYLE, AFTER 2001

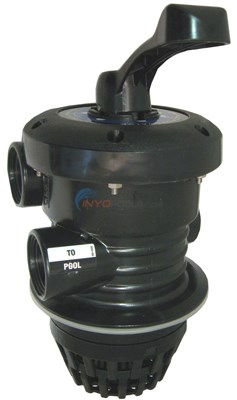

B	COMPLETE REPLACEMENT VALVE, CLAMP STYLE, 2001 AND PREVIOUS (WVS2002)

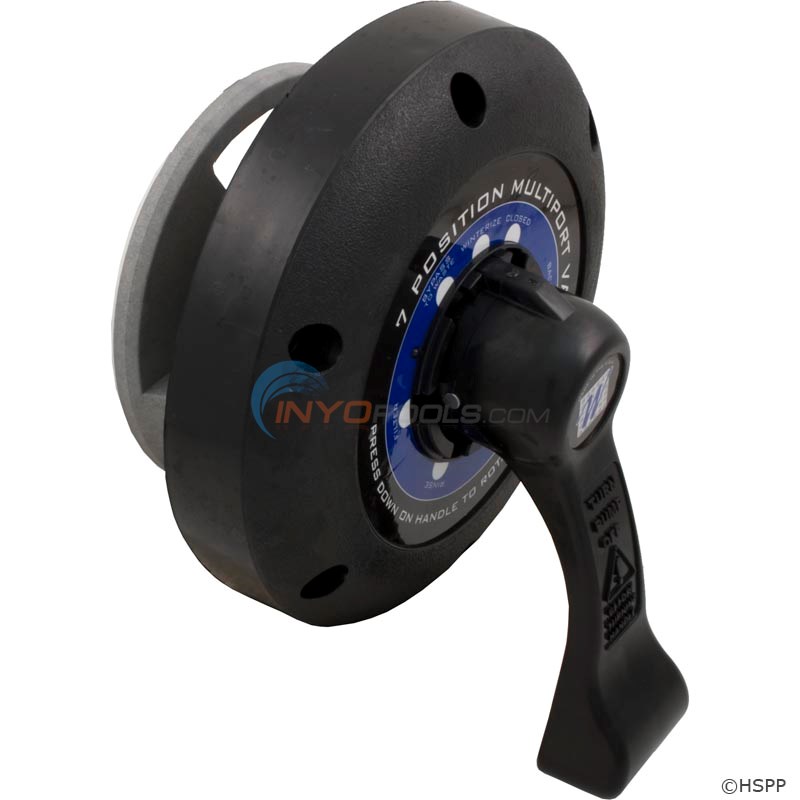

1	VALVE LID ASSEMBLY
*	Multi-Port Valve Position Label
2	VALVE DIVERTER WITH GASKET
3	O-RING, LID

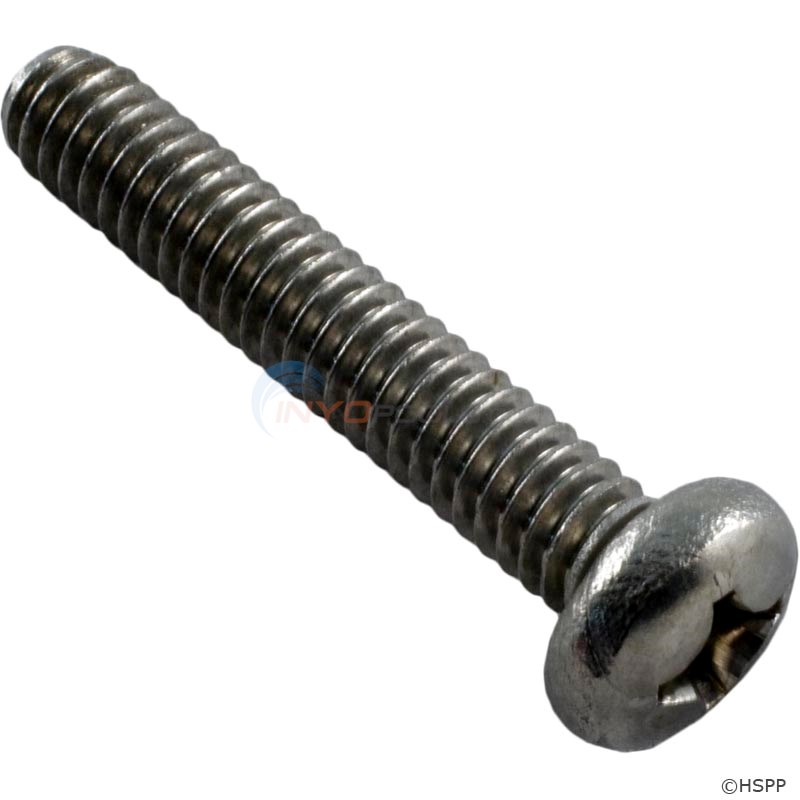

4	LID SCREW
5	NLA VALVE BODY REP W/4742-01

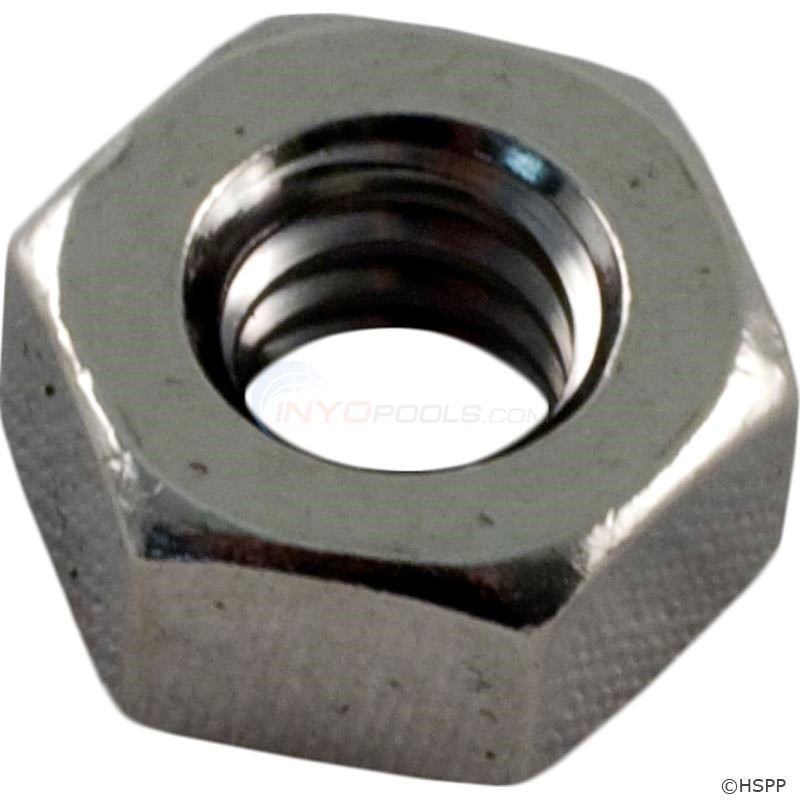

6	LID HEX NUT
7	HANDLE, WATERWAY MPV

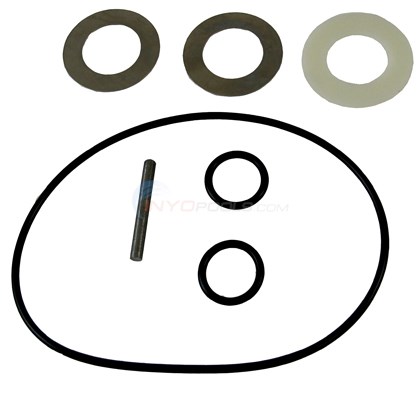

*	O-ring Kit W/ Pin & Washer (800-0150)

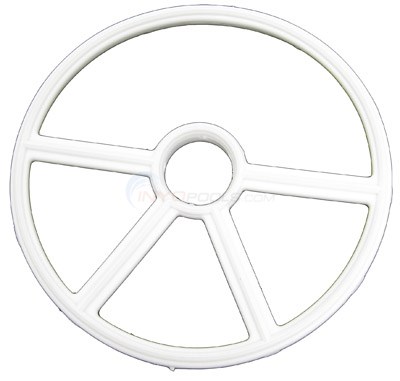

8	SPIDER GASKET

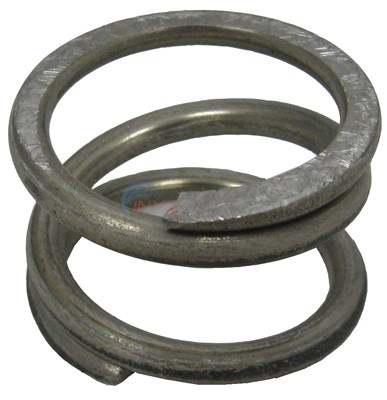

9	Spring, Waterway Mpv (800-0002)

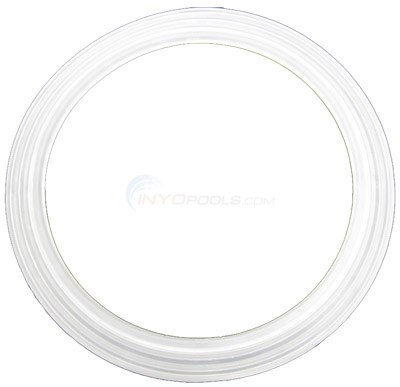

10	Gasket, Valve To Filter
11	2 PIECE CLAMP
12	Split Nut, Clearwater Sand Filter

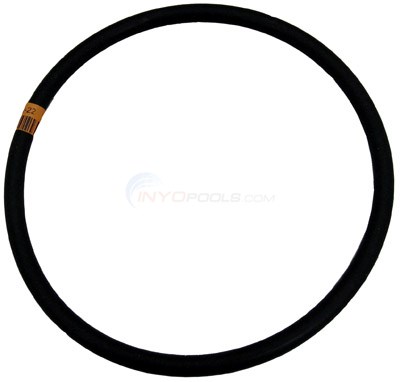

13	O-ring, Multiport (split-nut Style)
*	Split Nut, Bolt & Nut Waterway Mpv

View Parts List

Diagram #	Part Title
A	COMPLETE REPLACEMENT VALVE, NEW STYLE, AFTER 2001
B	COMPLETE REPLACEMENT VALVE, CLAMP STYLE, 2001 AND PREVIOUS (WVS2002)
1	VALVE LID ASSEMBLY
*	Multi-Port Valve Position Label
2	VALVE DIVERTER WITH GASKET
3	O-RING, LID
4	LID SCREW
5	NLA VALVE BODY REP W/4742-01
6	LID HEX NUT
7	HANDLE, WATERWAY MPV
*	O-ring Kit W/ Pin & Washer (800-0150)
8	SPIDER GASKET
9	Spring, Waterway Mpv (800-0002)
10	Gasket, Valve To Filter
11	2 PIECE CLAMP
12	Split Nut, Clearwater Sand Filter
13	O-ring, Multiport (split-nut Style)
*	Split Nut, Bolt & Nut Waterway Mpv

Available Parts:

Part # 4742-010 Mfg # WVS003

COMPLETE REPLACEMENT VALVE, NEW STYLE, AFTER 2001

$147.99 IN STOCK

Qty:

Waterway Top Mount Valve Clearwater Parts

View Parts List

Available Parts:

NLA VALVE BODY REP W/4742-01
