Waterway Vinyl Liner Return Fittings Parts

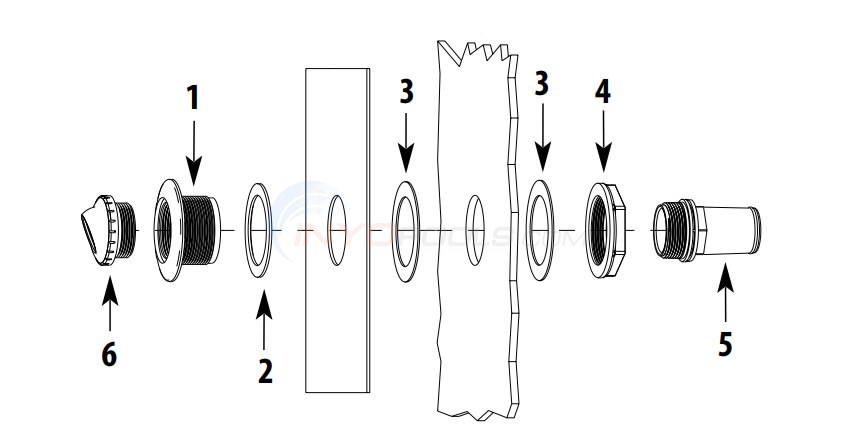

Waterway Vinyl Liner Return Fittings Diagram

Click to zoom in

Diagram #	Part Title
*	Deluxe Return Assy 1" Eyeball (White)
1	Wallfitting - 1-1/2" FPT Thru x 2" NPSM (White)
2	Gasket - Rubber
3	Gasket - Paper
4	Nut, Wall Fitting
5	1-1/2" MPT x 1-1/2" Hose - Male Smooth Adapter
6	Eyeball Fitting - 1" Eyeball (White)

View Parts List

Diagram #	Part Title
*	Deluxe Return Assy 1" Eyeball (White)
1	Wallfitting - 1-1/2" FPT Thru x 2" NPSM (White)
2	Gasket - Rubber
3	Gasket - Paper
4	Nut, Wall Fitting
5	1-1/2" MPT x 1-1/2" Hose - Male Smooth Adapter
6	Eyeball Fitting - 1" Eyeball (White)

Available Parts:

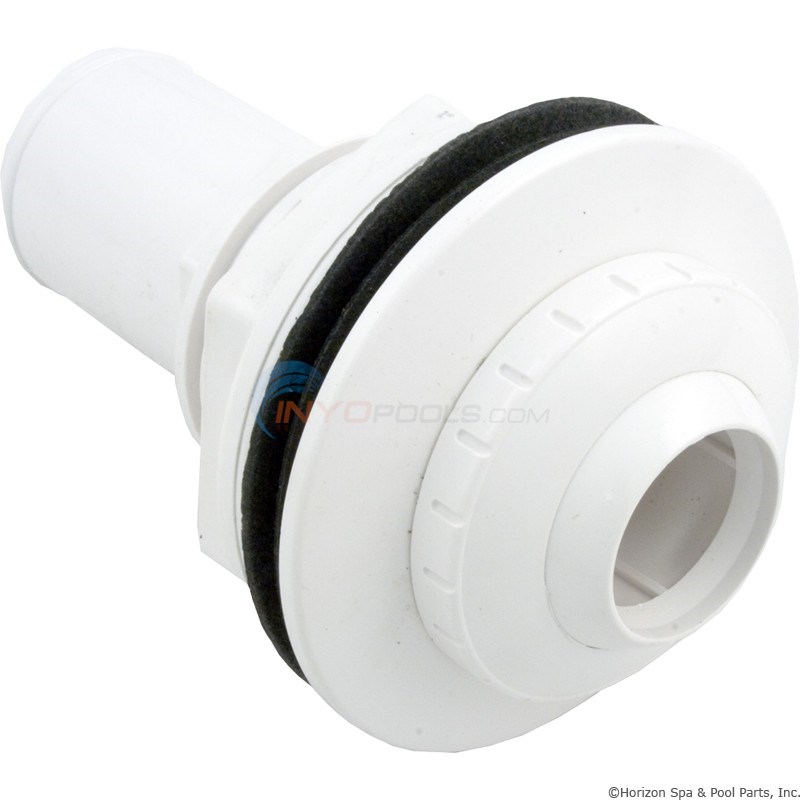

Deluxe Return Assy 1" Eyeball (White)

Part # 3735-0 Mfg # 550-9340

Deluxe Return Assy 1" Eyeball (White)

$36.77 IN STOCK

Qty:

Deluxe Return Assy 1" Eyeball (Gray)

Part # 55-270-3162 Mfg # 550-9347

Deluxe Return Assy 1" Eyeball (Gray)

$35.16 IN STOCK

Qty:

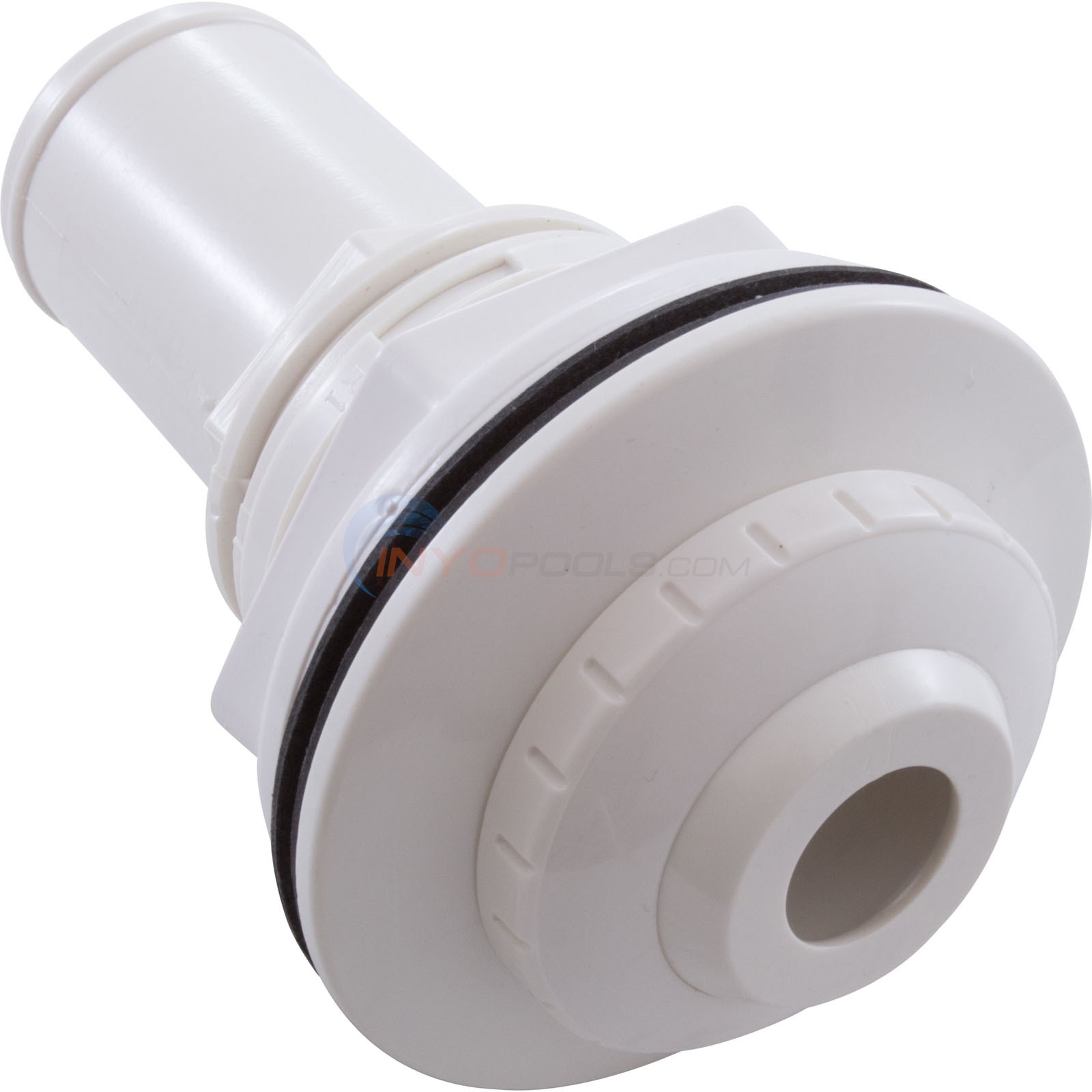

Deluxe Return Assy 3/4" Eyeball (White)

Part # 55-270-3170 Mfg # 550-9330

Deluxe Return Assy 3/4" Eyeball (White)

$35.16 IN STOCK

Qty:

Deluxe Return Assy 3/4" Eyeball (Gray)

Part # 55-270-3172 Mfg # 550-9337

Deluxe Return Assy 3/4" Eyeball (Gray)

$38.38 IN STOCK

Qty:

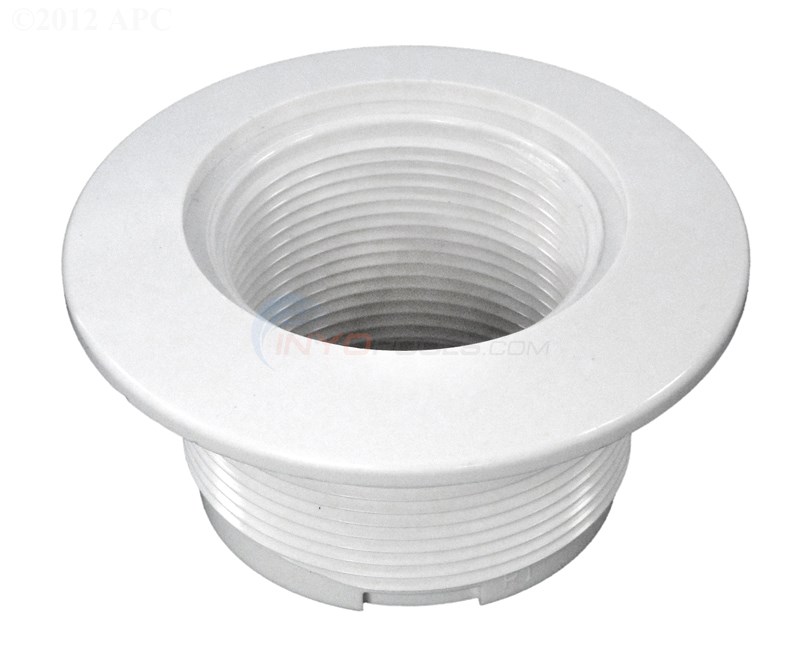

Wallfitting - 1-1/2" FPT Thru x 2" NPSM (White)

Part # 215-9170 Mfg # 215-9170B

Wallfitting - 1-1/2" FPT Thru x 2" NPSM (White)

$15.98 IN STOCK

Qty:

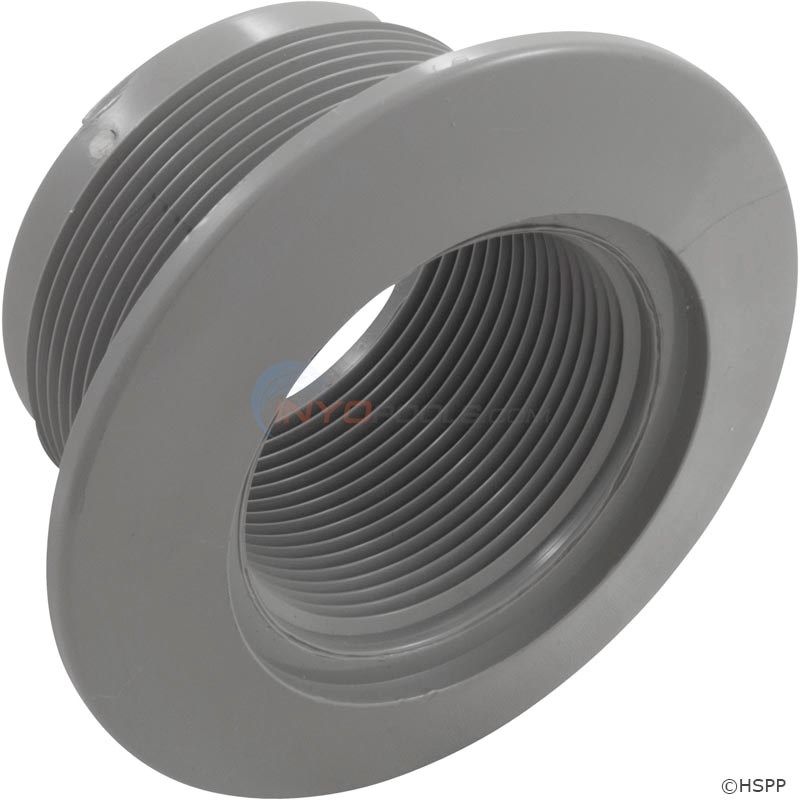

Wallfitting - 1-1/2" FPT Thru x 2" NPSM (Gray)

Part # 215-9177 Mfg # 215-9177B

Wallfitting - 1-1/2" FPT Thru x 2" NPSM (Gray)

$19.18

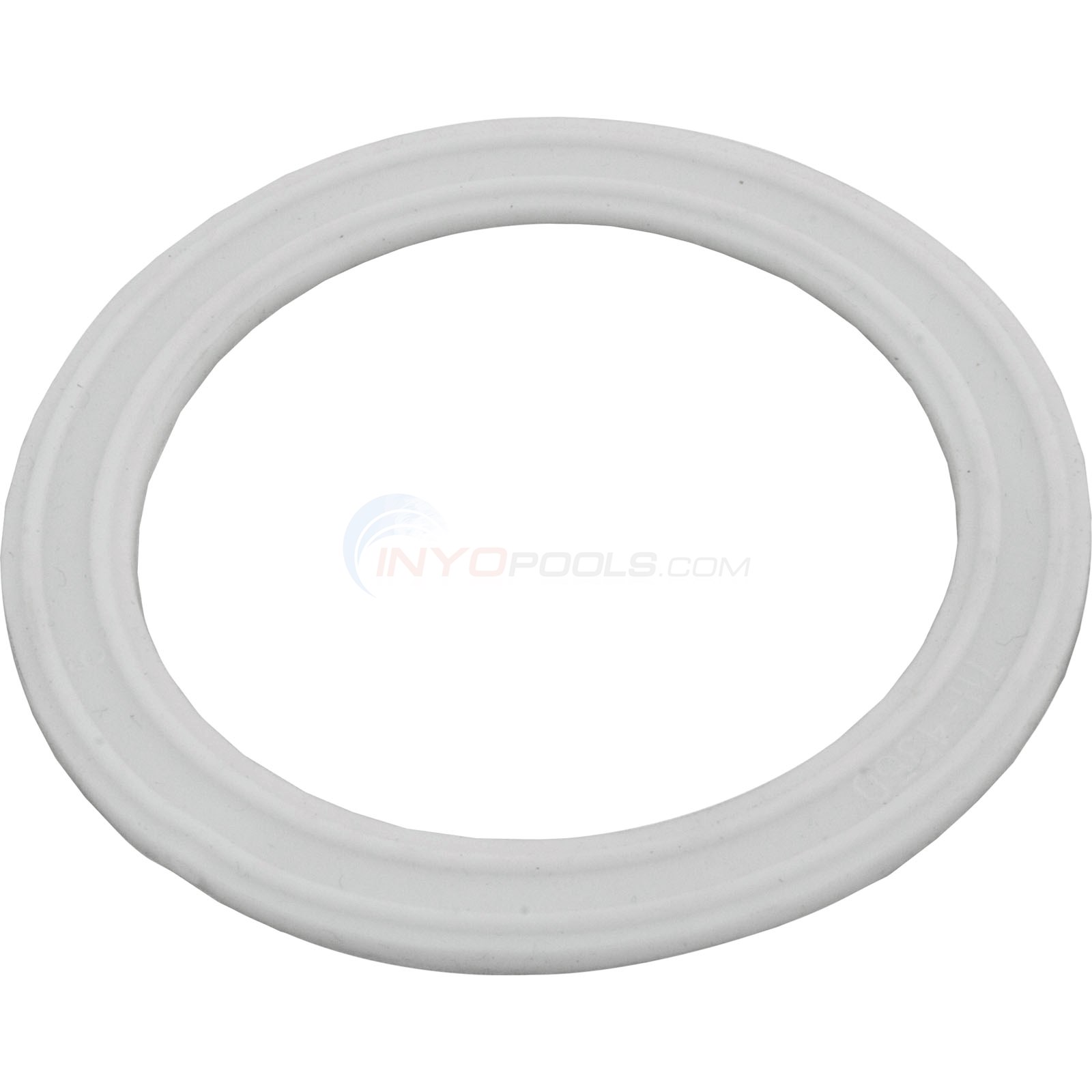

Gasket - Rubber

Part # 57-270-1008 Mfg # 711-4350

Gasket - Rubber

$11.43 IN STOCK

QTY Req. 1

QTY Req. 1

Qty:

Gasket - Paper

Part # 806-1050 Mfg # 806-1050

Gasket - Paper

$13.03 IN STOCK

QTY Req. 2

QTY Req. 2

Qty:

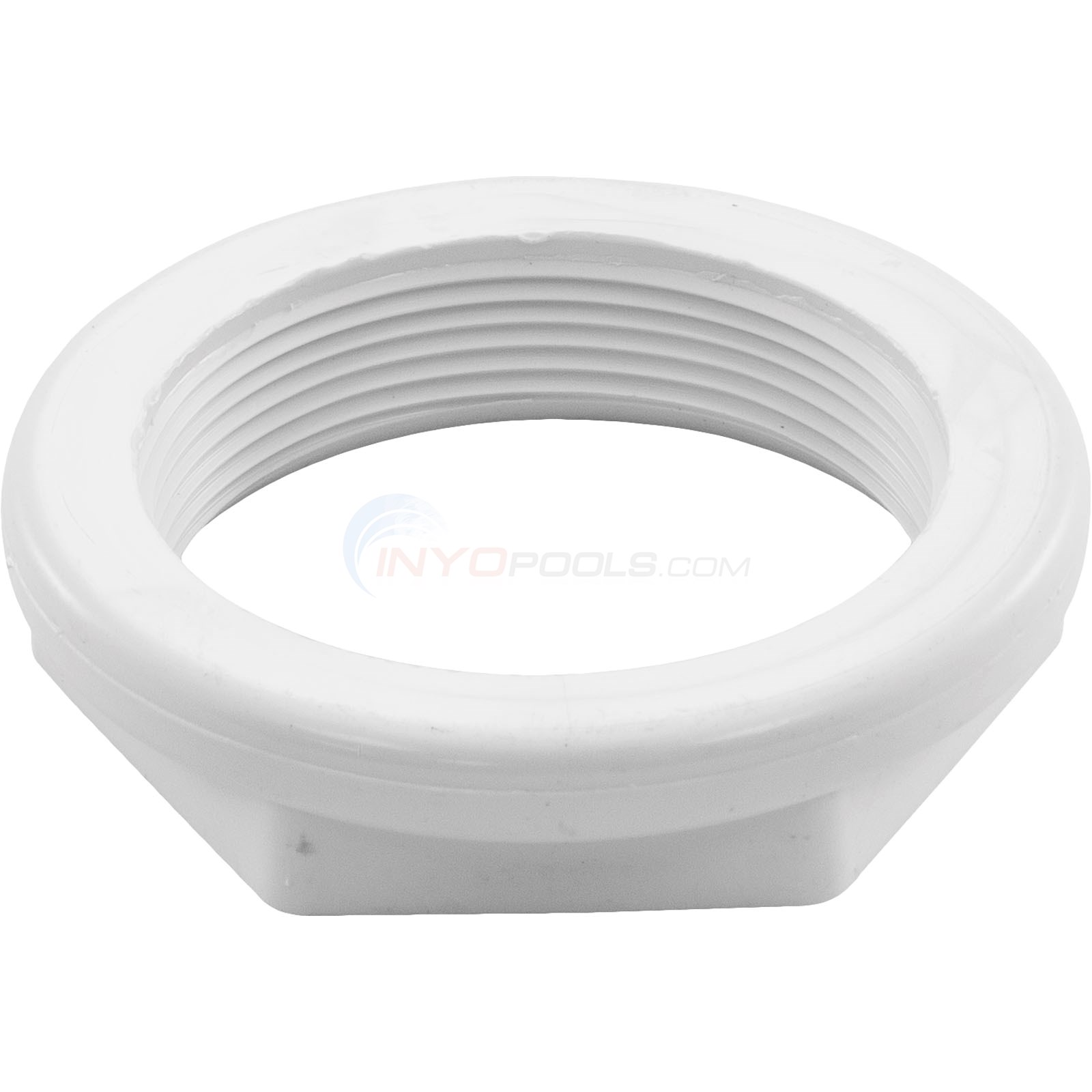

Nut, Wall Fitting

Part # 55-270-2860 Mfg # 718-3150

Nut, Wall Fitting

$12.78 IN STOCK

Qty:

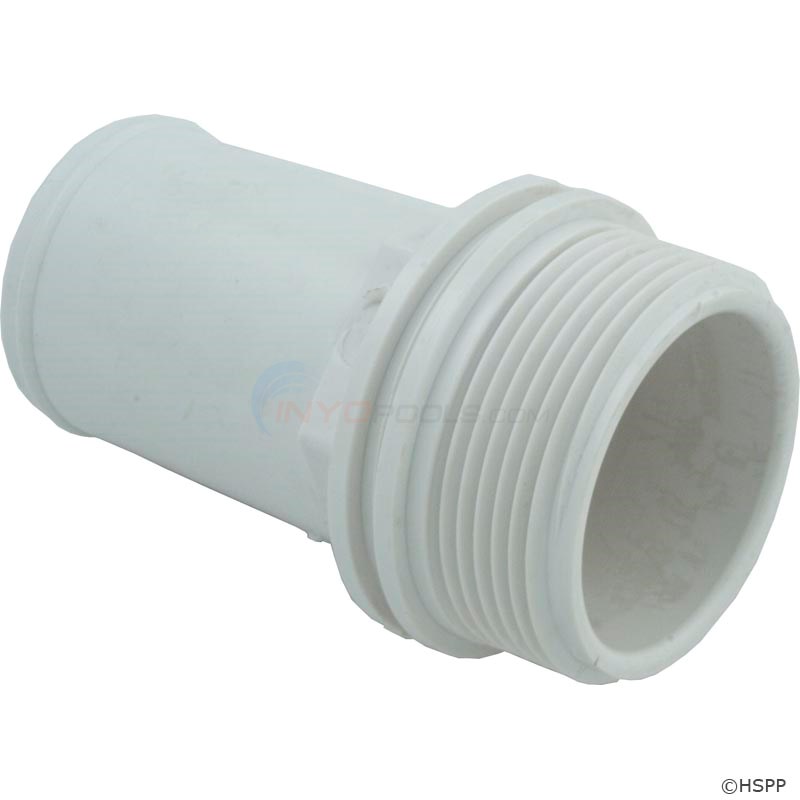

1-1/2" MPT x 1-1/2" Hose - Male Smooth Adapter

Part # 417-6140 Mfg # 417-6140

1-1/2" MPT x 1-1/2" Hose - Male Smooth Adapter

$5.01 IN STOCK

Qty:

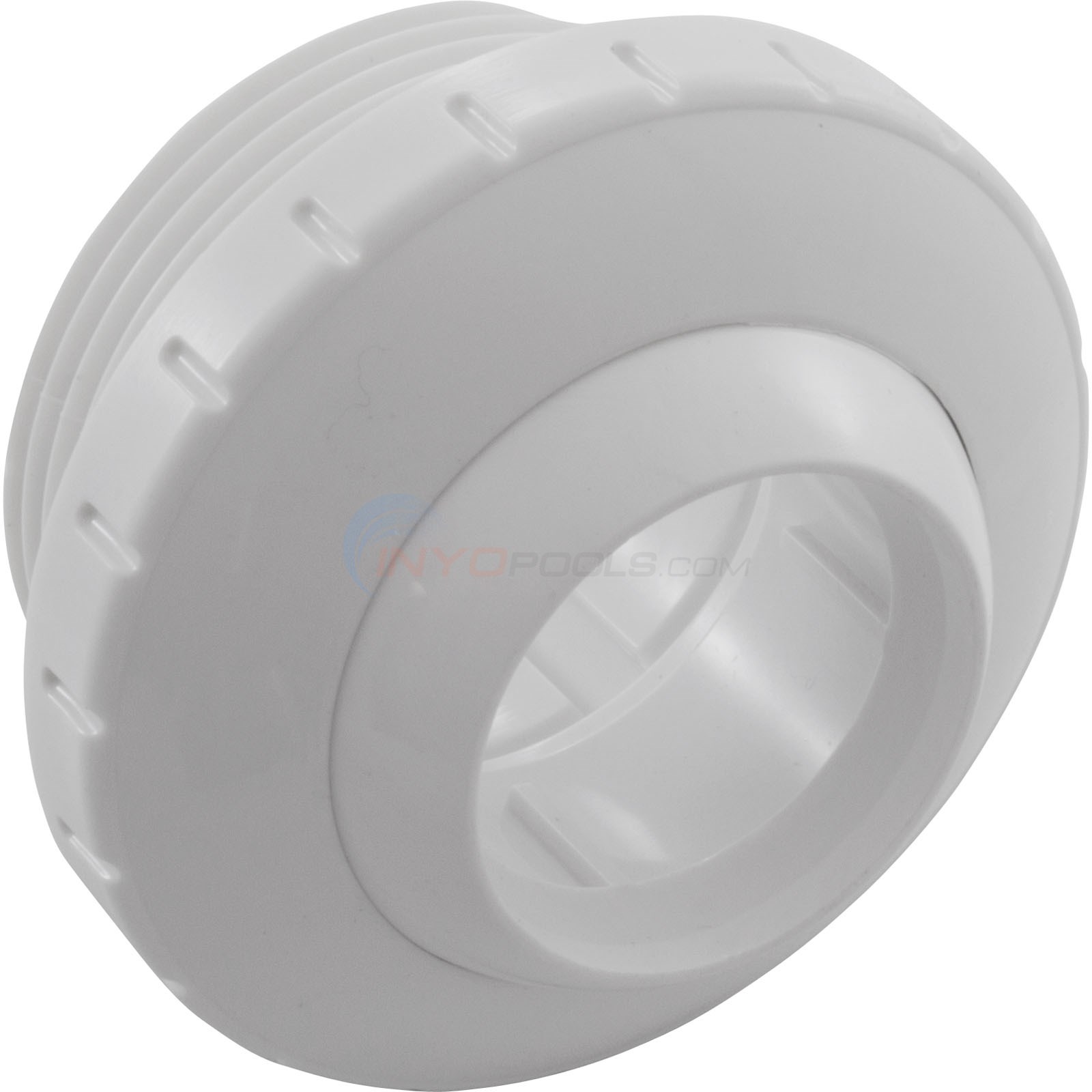

Eyeball Fitting - 1" Eyeball (White)

Part # 55-270-3363 Mfg # 400-1410EB

Eyeball Fitting - 1" Eyeball (White)

$15.66 IN STOCK

Qty:

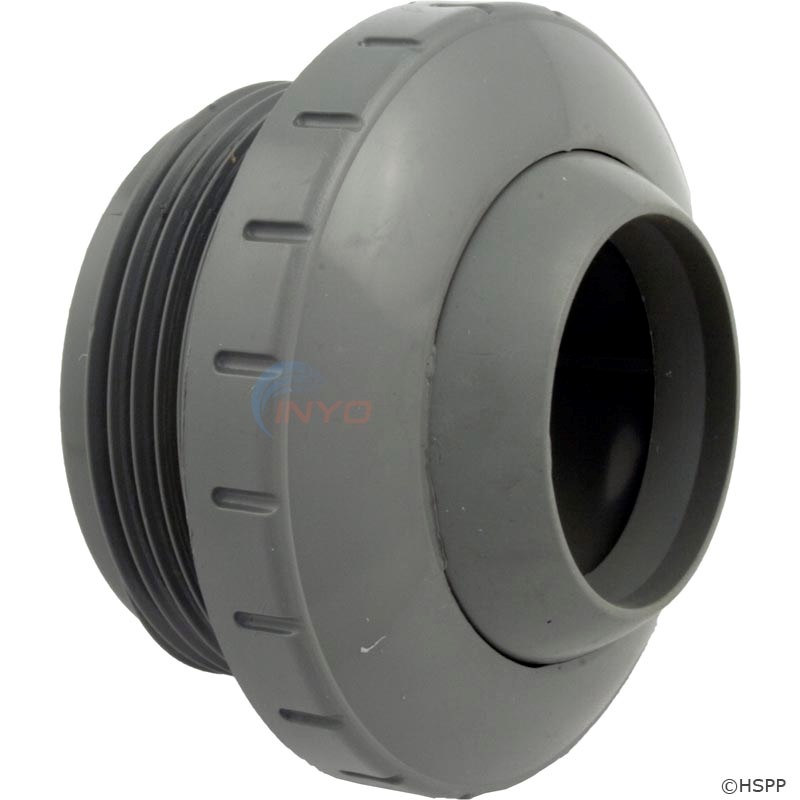

Eyeball Fitting - 1" Eyeball (Gray)

Part # 55-270-3365 Mfg # 400-1417EB

Eyeball Fitting - 1" Eyeball (Gray)

$15.98 IN STOCK

Qty:

* Not Shown / Complete Return Assy
