Admiral 12' Round 52" Wall (Steel Top Rail, Steel Upright) Parts

PADM-52SSPSS12

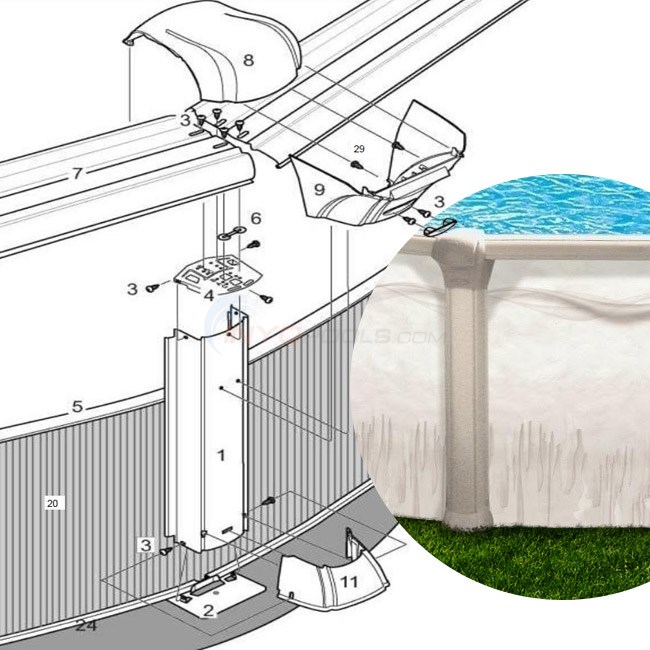

Admiral 12' Round 52" Wall (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	12' Round 48"-52" Depth All Swirl Overlap Standard Gauge
1	Upright
2	Bottom Plate (Single)
4	Top Plate 7" (Single)
5	Inner Stabilizer Steel 42-5/8" (Single)
7	Top Rail Curved 45-9/16" Steel (Single)
8	Ledge Cover - Upper (Single)
9	Top Connector Support (Single)
11	Foot Cover (Key #6) (Single)
24	Bottom Rail Steel 44-5/8" (Single)
*	Plastic Coping 48" (Single)

View Parts List

Diagram #	Part Title
*Liner	12' Round 48"-52" Depth All Swirl Overlap Standard Gauge
1	Upright
2	Bottom Plate (Single)
4	Top Plate 7" (Single)
5	Inner Stabilizer Steel 42-5/8" (Single)
7	Top Rail Curved 45-9/16" Steel (Single)
8	Ledge Cover - Upper (Single)
9	Top Connector Support (Single)
11	Foot Cover (Key #6) (Single)
24	Bottom Rail Steel 44-5/8" (Single)
*	Plastic Coping 48" (Single)
