Admiral 15' Round 52" Wall (Steel Top Rail, Steel Upright) Parts

PADM-52SSPSS12

Admiral 15' Round 52" Wall (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	15' Round 48"-54" Depth All Swirl Overlap Standard Gauge
1	Upright
2	Bottom Plate (Single)
4	Top Plate 7" (Single)
5	Inner Stabilizer Steel 53.25" (Single)

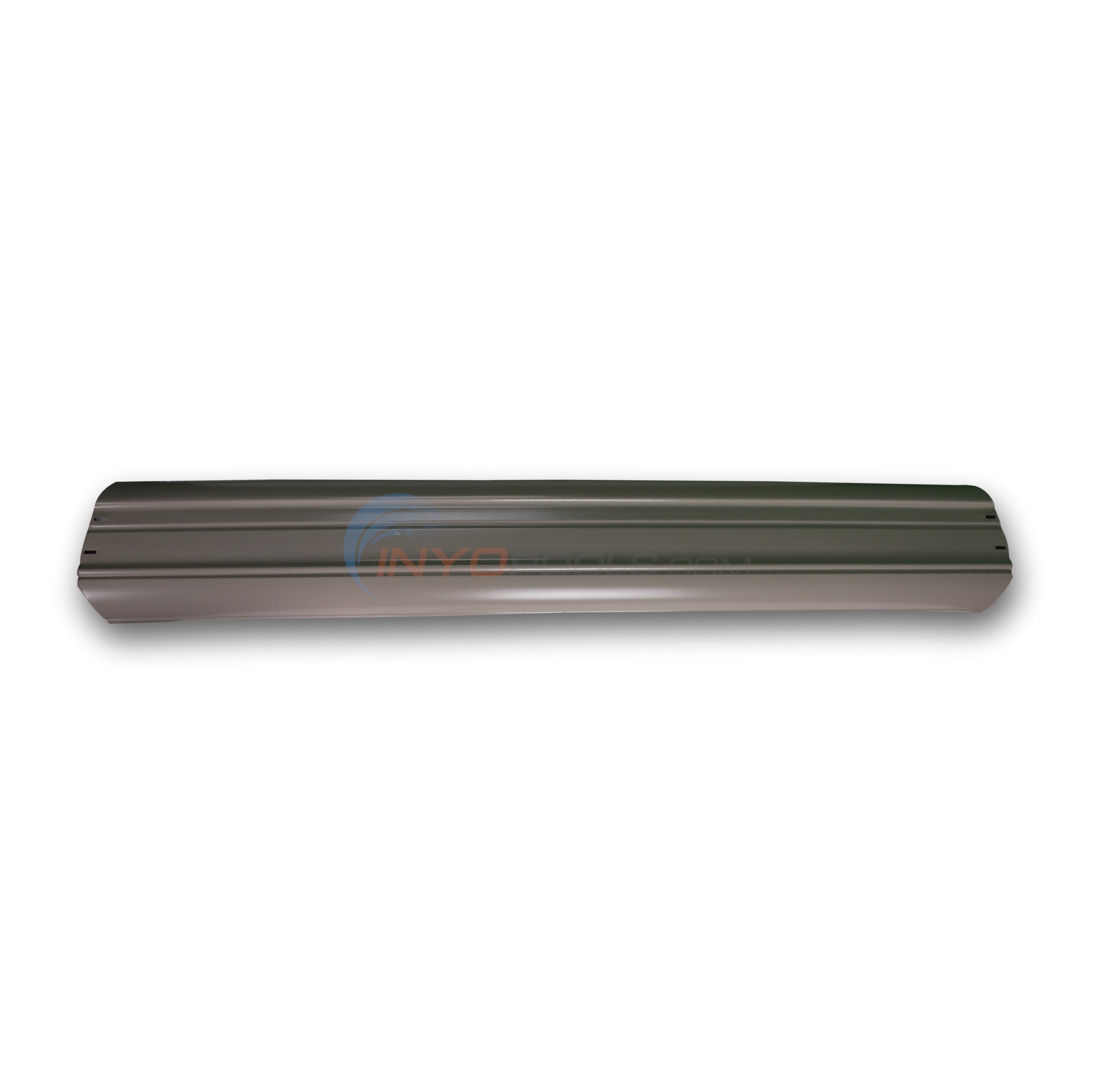

7	Top Ledge Curved Side (Single)
8	Ledge Cover - Upper (single)
9	Top Connector Support (Single)
11	Foot Cover (Includes key #6) (Single)
24	Bottom Rail Steel 55-7/8" (Single)
*	Plastic Coping 48" (Single)

View Parts List

Diagram #	Part Title
*Liner	15' Round 48"-54" Depth All Swirl Overlap Standard Gauge
1	Upright
2	Bottom Plate (Single)
4	Top Plate 7" (Single)
5	Inner Stabilizer Steel 53.25" (Single)
7	Top Ledge Curved Side (Single)
8	Ledge Cover - Upper (single)
9	Top Connector Support (Single)
11	Foot Cover (Includes key #6) (Single)
24	Bottom Rail Steel 55-7/8" (Single)
*	Plastic Coping 48" (Single)
