Atmosphere 18' Round 52" Wall (Steel Top Rail, Steel Upright) Parts

PATM-52SSAARW1

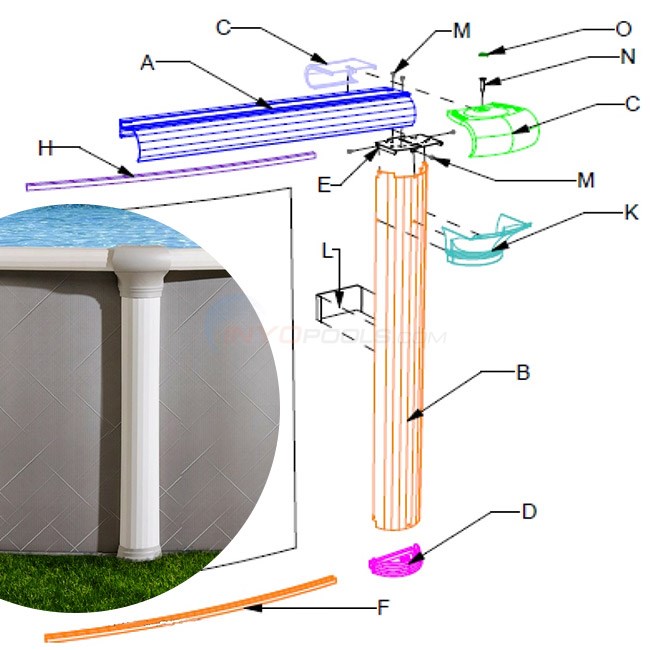

Atmosphere 18' Round 52" Wall (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	18' Round 48"-54" Depth Caribbean Tile Overlap Liner Standard Gauge
A	Top Rail 51-1/5" Steel (Single)
B	Upright 51-7/8" Steel (Single)
C	Top Cap Outer (Single)
C	Top Cap Inner (Single)
D	Top Cap Boot (Single)
E	Top Plate 6" (Single)
F	Bottom Rail Aluminum 50-3/8" (Single)
H	Inner Stabilizer 54-1/8"( Single)
K	Top Cap Curved (Single)
O	Screw Cover (Single)
*	Plastic Coping 48" (Single)

View Parts List
