Cayman 12'x24' Oval (Steel Top Rail, Steel Upright) Parts

PCAY-YM52SSRSRD2, PCAY-YM52SSPSSD3 & PCAY-YM52SSPSSD2

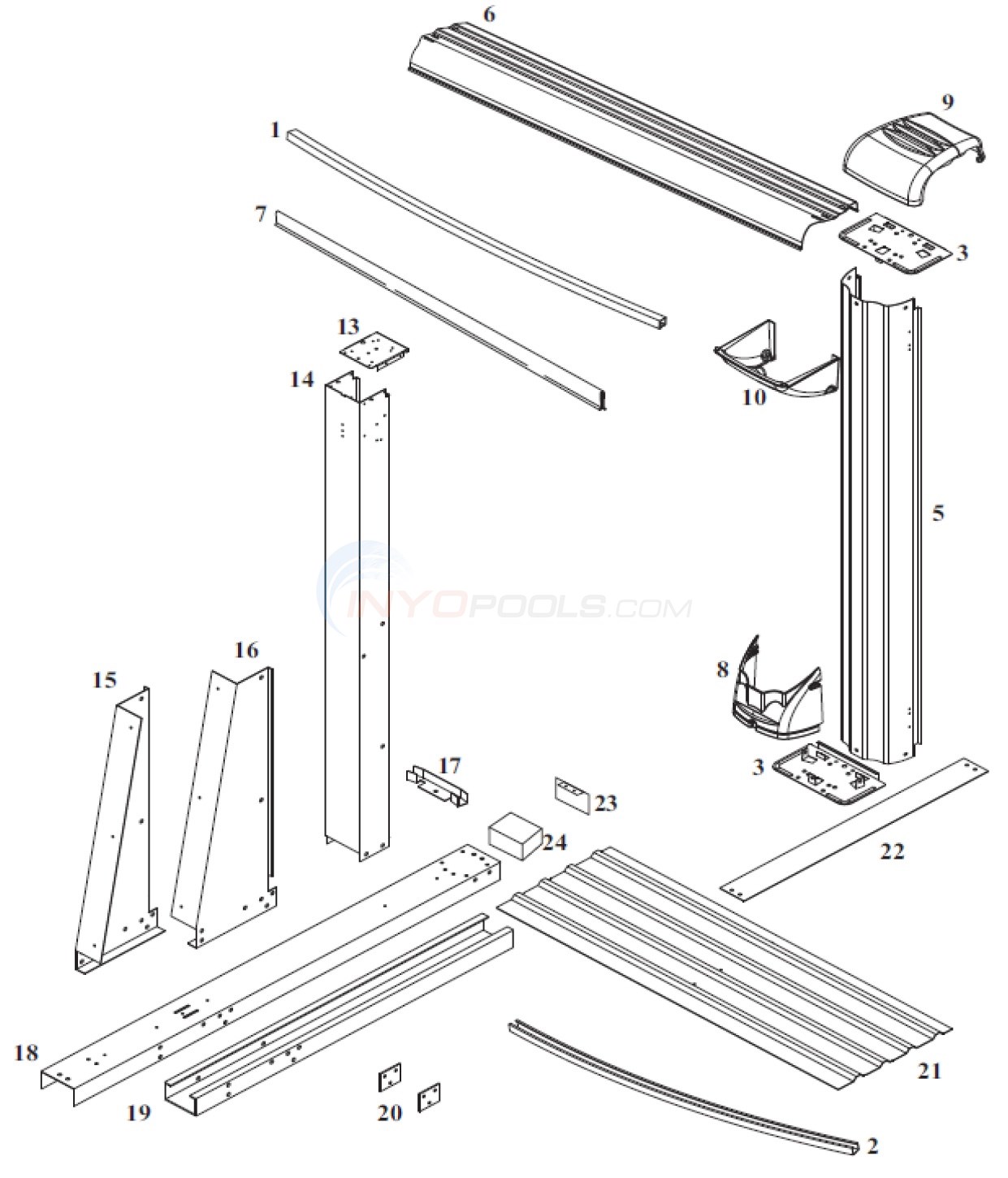

Cayman 12'x24' Oval (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	12' x 24' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 42-5/8" (Single)
2	Bottom Rail Steel 38"
3	Top/Bottom Plate 8" for Round & Curved Side (Single)
5	Steel Upright - Cayman 51.8125" (Single)
6	Top Rail Curved (Single) Cayman
7	Plastic Coping 48" (Single)
9	Top Cap Curved Side Support Champagne (Single)
10	Top Cap 8" Champagne (Single)
13	Top Plate Oval 4" (Single)
14	Wrap Upright 51-13/16" (Single)
15	Yardmore Gusset Left Steel (Single)
16	Yardmore Gusset Right Steel (Single)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
21	Pressure Plate 44" (Single)
22	Strap Section 41-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

View Parts List

Diagram #	Part Title
*Liner	12' x 24' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 42-5/8" (Single)
2	Bottom Rail Steel 38"
3	Top/Bottom Plate 8" for Round & Curved Side (Single)
5	Steel Upright - Cayman 51.8125" (Single)
6	Top Rail Curved (Single) Cayman
7	Plastic Coping 48" (Single)
9	Top Cap Curved Side Support Champagne (Single)
10	Top Cap 8" Champagne (Single)
13	Top Plate Oval 4" (Single)
14	Wrap Upright 51-13/16" (Single)
15	Yardmore Gusset Left Steel (Single)
16	Yardmore Gusset Right Steel (Single)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
21	Pressure Plate 44" (Single)
22	Strap Section 41-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

Available Parts:

12' x 24' 48"-54" Depth All Swirl Overlap Standard Gauge

Part # LI1224ASO

12' x 24' 48"-54" Depth All Swirl Overlap Standard Gauge

$324.99 IN STOCK

Qty:

12' x 24' 48"-54" Depth Country Stone Overlap

Part # FC1224OVOL

12' x 24' 48"-54" Depth Country Stone Overlap

$347.99

Inner Stabilizer Steel 42-5/8" (Single)

Part # 38501

Inner Stabilizer Steel 42-5/8" (Single)

$43.82 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Rim 8" Steel (Single)

Part # 38513

Rim 8" Steel (Single)

$9.71 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Rim 37 " (Single) Xylon Black

Part # 38511

Rim 37 " (Single) Xylon Black

$40.92 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Rim 33" Steel (Single) Xylon Black

Part # 38512

Rim 33" Steel (Single) Xylon Black

$27.28 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

38501 Resin Stabilizer Upgrade Kit for 12' x 24' Oval Pool

Part # 38501-1224-RESKIT

38501 Resin Stabilizer Upgrade Kit for 12' x 24' Oval Pool

$1088.28 IN STOCK

Quantity Per Pool 1

Quantity Per Pool 1

Qty:

Bottom Rail Steel 38"

Part # 15642

Bottom Rail Steel 38"

$45.14 IN STOCK

Quantity Per Pool 10 Material Steel

Quantity Per Pool 10 Material Steel

Qty:

Bottom Rail Steel Corner 39"

Part # 16714

Bottom Rail Steel Corner 39"

$40.03

Quantity Per Pool 4 Material Steel

Quantity Per Pool 4 Material Steel

Bottom Rail Steel Straight Side 37.5"

Part # 16713

Bottom Rail Steel Straight Side 37.5"

$40.03 IN STOCK

Quantity Per Pool 4 Material Steel

Quantity Per Pool 4 Material Steel

Qty:

Bottom Rail 38" Aluminum (Single)

Part # 10289 Mfg # 10289

Bottom Rail 38" Aluminum (Single)

$39.05 IN STOCK

Quantity Per Pool 10 Material Aluminum

Quantity Per Pool 10 Material Aluminum

Qty:

Bottom Rail Corner Aluminum 39-1/4" (Single)

Part # 16544

Bottom Rail Corner Aluminum 39-1/4" (Single)

$40.03 IN STOCK

Quantity Per Pool 4 Material Aluminum

Quantity Per Pool 4 Material Aluminum

Qty:

Bottom Rail Str Side Aluminum 37-1/2" (Single)

Part # 16543

Bottom Rail Str Side Aluminum 37-1/2" (Single)

$31.49 IN STOCK

Quantity Per Pool 4 Material Aluminum

Quantity Per Pool 4 Material Aluminum

Qty:

Bottom Rail Corner Aluminum 39-1/4" (4-PACK)

Part # 16544-PACK4

Bottom Rail Corner Aluminum 39-1/4" (4-PACK)

$107.13 IN STOCK

Quantity Per Pool 4-PACK Material Aluminum

Quantity Per Pool 4-PACK Material Aluminum

Qty:

Bottom Rail Corner Aluminum 39-1/4" (8-PACK)

Part # 16544-PACK8

Bottom Rail Corner Aluminum 39-1/4" (8-PACK)

$207.82

Quantity Per Pool 8-PACK Material Aluminum

Quantity Per Pool 8-PACK Material Aluminum

Bottom Rail Corner Aluminum 39-1/4" (4-PACK)

Part # 16544-PACK4

Bottom Rail Corner Aluminum 39-1/4" (4-PACK)

$107.13 IN STOCK

Quantity Per Pool 4-PACK Material Aluminum

Quantity Per Pool 4-PACK Material Aluminum

Qty:

Bottom Rail Corner Aluminum 39-1/4" (8-PACK)

Part # 16544-PACK8

Bottom Rail Corner Aluminum 39-1/4" (8-PACK)

$207.82

Quantity Per Pool 8-PACK Material Aluminum

Quantity Per Pool 8-PACK Material Aluminum

Bottom Rail Steel Straight Side 37-3/4" (4-PACK)

Part # 16713-PACK4

Bottom Rail Steel Straight Side 37-3/4" (4-PACK)

$108.18 IN STOCK

Quantity Per Pool 4-PACK Material

Quantity Per Pool 4-PACK Material

Qty:

Bottom Rail Steel Straight Side 37-3/4" (8-PACK)

Part # 16713-PACK8

Bottom Rail Steel Straight Side 37-3/4" (8-PACK)

$320.24

Quantity Per Pool 8-PACK Material

Quantity Per Pool 8-PACK Material

Bottom Rail Steel Corner 39-1/4" (4-PACK)

Part # 16714-PACK4

Bottom Rail Steel Corner 39-1/4" (4-PACK)

$108.18

Quantity Per Pool 4-PACK Material

Quantity Per Pool 4-PACK Material

Bottom Rail Steel Corner 39-1/4" (8-PACK)

Part # 16714-PACK8

Bottom Rail Steel Corner 39-1/4" (8-PACK)

$149.04

Quantity Per Pool 8-PACK Material

Quantity Per Pool 8-PACK Material

Top/Bottom Plate 8" for Round & Curved Side (Single)

Part # 19164

Top/Bottom Plate 8" for Round & Curved Side (Single)

$16.99 IN STOCK

Quantity Per Pool 24 Bottom Rail Material Steel

Quantity Per Pool 24 Bottom Rail Material Steel

Qty:

Bottom Plate 8" Resin (Single)

Part # 19092

Bottom Plate 8" Resin (Single)

$15.99 IN STOCK

Quantity Per Pool 12 Bottom Rail Material Aluminum

Quantity Per Pool 12 Bottom Rail Material Aluminum

Qty:

Top Plate (Single)

Part # 19164

Top Plate (Single)

$16.99 IN STOCK

Quantity Per Pool 12 Bottom Rail Material Aluminum

Quantity Per Pool 12 Bottom Rail Material Aluminum

Qty:

19164 Bottom Plate 8" Resin Upgrade Kit for 12' x 24' Oval Pool Pool

Part # 19164-1224-RESKIT

19164 Bottom Plate 8" Resin Upgrade Kit for 12' x 24' Oval Pool Pool

$163.08

Quantity Per Pool 1 Bottom Rail Material

Quantity Per Pool 1 Bottom Rail Material

Steel Upright - Cayman 51.8125" (Single)

Part # 19611

Steel Upright - Cayman 51.8125" (Single)

$65.21

Quantity Per Pool 12

Quantity Per Pool 12

Top Rail Curved (Single) Cayman

Part # 27622

Top Rail Curved (Single) Cayman

$40.95 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Top Rail Straight Side (Single) Cayman

Part # 27627

Top Rail Straight Side (Single) Cayman

$40.95

Quantity Per Pool 8

Quantity Per Pool 8

Plastic Coping 48" (Single)

Part # 10296

Plastic Coping 48" (Single)

$11.54 IN STOCK

Quantity Per Pool 16

Quantity Per Pool 16

Qty:

Top Cap Curved Side Support Champagne (Single)

Part # 27392

Top Cap Curved Side Support Champagne (Single)

$17.84 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Top Cap Support - Straight Side (Single) Cayman

Part # 21177

Top Cap Support - Straight Side (Single) Cayman

$21.51 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Top Cap 8" Champagne (Single)

Part # 27393

Top Cap 8" Champagne (Single)

$23.99 IN STOCK

Quantity Per Pool 18

Quantity Per Pool 18

Qty:

Top Plate Oval 4" (Single)

Part # 10136

Top Plate Oval 4" (Single)

$11.71 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Wrap Upright 51-13/16" (Single)

Part # 14572

Wrap Upright 51-13/16" (Single)

$75.59

Quantity Per Pool 6

Quantity Per Pool 6

Yardmore Gusset Left Steel (Single)

Part # 19619

Yardmore Gusset Left Steel (Single)

$86.09

Quantity Per Pool 6

Quantity Per Pool 6

Yardmore Gusset Right Steel (Single)

Part # 19620

Yardmore Gusset Right Steel (Single)

$85.04

Quantity Per Pool 6

Quantity Per Pool 6

Connector Btm Rail Str Side Aluminum (Single)

Part # 16542

Connector Btm Rail Str Side Aluminum (Single)

$35.87 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)

Part # 16539

Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)

$111.29

Quantity Per Pool 6

Quantity Per Pool 6

Under Channel Yardmore 49-9/16" (single)

Part # 15933

Under Channel Yardmore 49-9/16" (single)

$104.99 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Pressure Plate 44" (Single)

Part # 16549

Pressure Plate 44" (Single)

$79.99 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Strap Section 41-11/16" (Single)

Part # 16724

Strap Section 41-11/16" (Single)

$7.32

Quantity Per Pool 6

Quantity Per Pool 6

Oval Top Channel End Cap (Single)

Part # 22726 Mfg # 22726

Oval Top Channel End Cap (Single)

$10.73 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

Part # 29917

Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

$4.19 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

* NOT ALL CAYMAN MODELS REQUIRE BOOT (KEY 8)
