Cayman 18'x33' Oval (Steel Top Rail, Steel Upright) Parts

PCAY-YM52SSRSRD2, PCAY-YM52SSPSSD3 & PCAY-YM52SSPSSD2

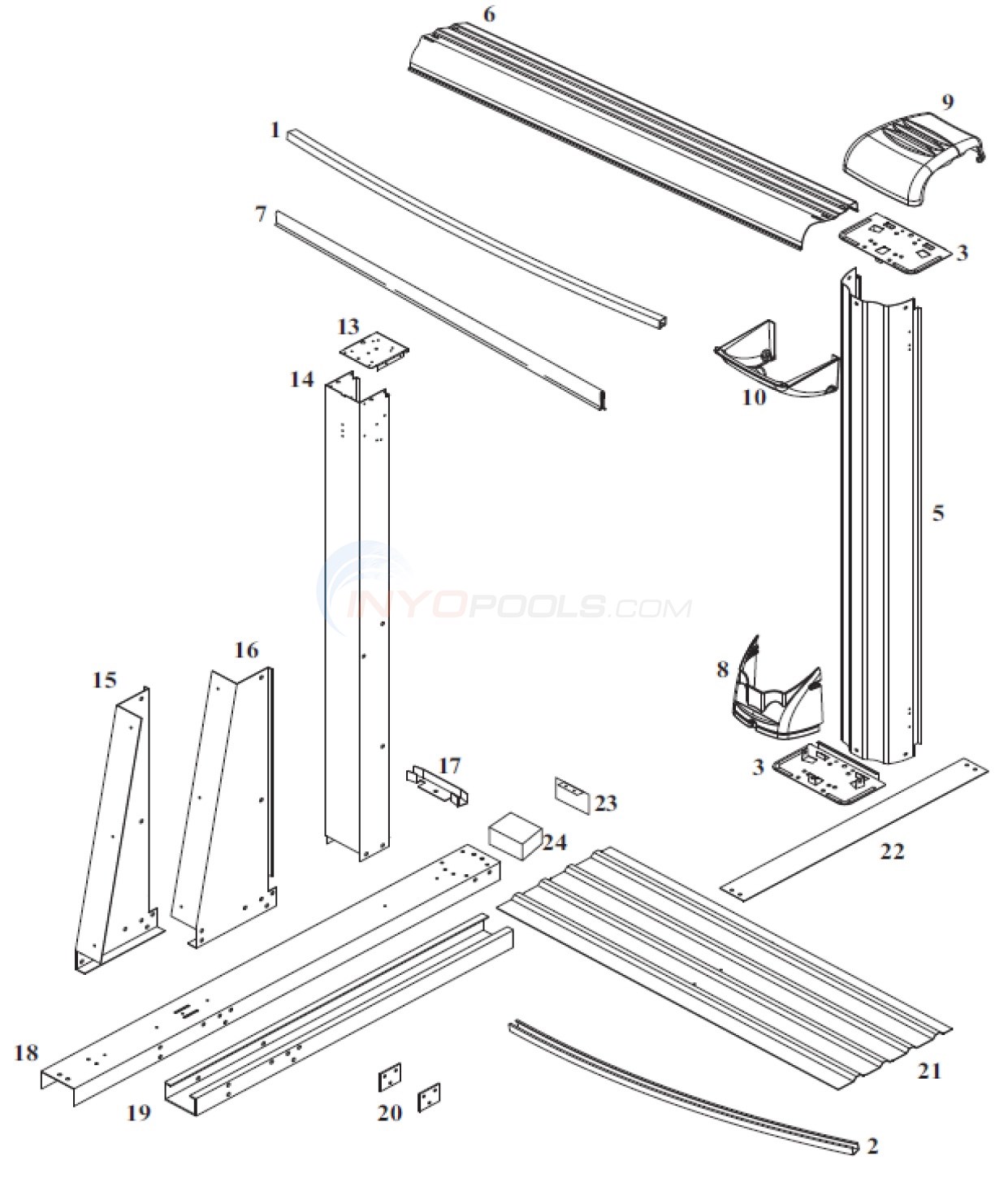

Cayman 18'x33' Oval (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	18' x 33' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 54-1/8" (Single)
2	Bottom Rail Steel 50" (Ponderosa, Eclipse, Reprieve, Cameo, Voyager, Concord) Single
2	Bottom Rail Steel Straight Side 37-3/4" (4-PACK)
3	Top/Bottom Plate 8" for Round & Curved Side (Single)
5	Steel Upright - Cayman 51.8125" (Single)
6	Top Rail Curved Side 52-3/32" (Single) Cayman
7	Plastic Coping 48" (Single)
8*	Boot - Cayman (Single)
9	Top Cap Curved Side Support Champagne (Single)
10	Top Cap 8" Champagne (Single)
13	Top Plate Oval 4" (Single)
14	Wrap Upright 51-13/16" (Single)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
22	Strap Section 52-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

View Parts List

Diagram #	Part Title
*Liner	18' x 33' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 54-1/8" (Single)
2	Bottom Rail Steel 50" (Ponderosa, Eclipse, Reprieve, Cameo, Voyager, Concord) Single
2	Bottom Rail Steel Straight Side 37-3/4" (4-PACK)
3	Top/Bottom Plate 8" for Round & Curved Side (Single)
5	Steel Upright - Cayman 51.8125" (Single)
6	Top Rail Curved Side 52-3/32" (Single) Cayman
7	Plastic Coping 48" (Single)
8*	Boot - Cayman (Single)
9	Top Cap Curved Side Support Champagne (Single)
10	Top Cap 8" Champagne (Single)
13	Top Plate Oval 4" (Single)
14	Wrap Upright 51-13/16" (Single)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
22	Strap Section 52-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

Available Parts:

18' x 33' 48"-54" Depth All Swirl Overlap Standard Gauge

Part # LI1833ASO

18' x 33' 48"-54" Depth All Swirl Overlap Standard Gauge

$561.99 IN STOCK

Qty:

Findlay Vinyl 18' x 33' 48"-54" Depth Country Stone Overlap

Part # FC1833OVOL

Findlay Vinyl 18' x 33' 48"-54" Depth Country Stone Overlap

$571.99

Inner Stabilizer Steel 54-1/8" (Single)

Part # 38503

Inner Stabilizer Steel 54-1/8" (Single)

$42.81 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Rim 8" Steel (Single)

Part # 38513

Rim 8" Steel (Single)

$9.71 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Rim 37 " (Single) Xylon Black

Part # 38511

Rim 37 " (Single) Xylon Black

$40.92 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Rim 33" Steel (Single) Xylon Black

Part # 38512

Rim 33" Steel (Single) Xylon Black

$27.28 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

38503 Resin Stabilizer Upgrade Kit for 18' x 33" Oval Pool

Part # 38503-1833-RESKIT

38503 Resin Stabilizer Upgrade Kit for 18' x 33" Oval Pool

$1407.56

Quantity Per Pool 1

Quantity Per Pool 1

Bottom Rail Steel 50" (Ponderosa, Eclipse, Reprieve, Cameo, Voyager, Concord) Single

Part # 14949

Bottom Rail Steel 50" (Ponderosa, Eclipse, Reprieve, Cameo, Voyager, Concord) Single

$43.79 IN STOCK

Quantity Per Pool 12 Material Steel

Quantity Per Pool 12 Material Steel

Qty:

Bottom Rail Steel Corner 39"

Part # 16714

Bottom Rail Steel Corner 39"

$40.03

Quantity Per Pool 4 Material Steel

Quantity Per Pool 4 Material Steel

Bottom Rail Steel Straight Side 37.5"

Part # 16713

Bottom Rail Steel Straight Side 37.5"

$40.03 IN STOCK

Quantity Per Pool 6 Material Steel

Quantity Per Pool 6 Material Steel

Qty:

Bottom Rail Resin 50-1/4"

Part # 12331

Bottom Rail Resin 50-1/4"

$46.20 IN STOCK

Quantity Per Pool 12 Material Resin

Quantity Per Pool 12 Material Resin

Qty:

Bottom Rail Resin 39"

Part # 12328

Bottom Rail Resin 39"

$65.37 IN STOCK

Quantity Per Pool 4 Material Resin

Quantity Per Pool 4 Material Resin

Qty:

Bottom Rail Resin 37-1/2"

Part # 12327

Bottom Rail Resin 37-1/2"

$57.95 IN STOCK

Quantity Per Pool 6 Material Resin

Quantity Per Pool 6 Material Resin

Qty:

Bottom Rail Steel Straight Side 37-3/4" (4-PACK)

Part # 16713-PACK4

Bottom Rail Steel Straight Side 37-3/4" (4-PACK)

$108.18 IN STOCK

Qty:

Bottom Rail Steel Straight Side 37-3/4" (8-PACK)

Part # 16713-PACK8

Bottom Rail Steel Straight Side 37-3/4" (8-PACK)

$320.24

Bottom Rail Steel Corner 39-1/4" (4-PACK)

Part # 16714-PACK4

Bottom Rail Steel Corner 39-1/4" (4-PACK)

$108.18

Bottom Rail Steel Corner 39-1/4" (8-PACK)

Part # 16714-PACK8

Bottom Rail Steel Corner 39-1/4" (8-PACK)

$149.04

Top/Bottom Plate 8" for Round & Curved Side (Single)

Part # 19164

Top/Bottom Plate 8" for Round & Curved Side (Single)

$16.99 IN STOCK

Quantity Per Pool 28 Bottom Rail Material Steel

Quantity Per Pool 28 Bottom Rail Material Steel

Qty:

Bottom Plate 8" Resin (Single)

Part # 19092

Bottom Plate 8" Resin (Single)

$15.99 IN STOCK

Quantity Per Pool 14 Bottom Rail Material Resin

Quantity Per Pool 14 Bottom Rail Material Resin

Qty:

Top Plate 8" (Single)

Part # 19164

Top Plate 8" (Single)

$16.99 IN STOCK

Quantity Per Pool 14 Bottom Rail Material Resin

Quantity Per Pool 14 Bottom Rail Material Resin

Qty:

19164 Bottom Plate 8" Resin Upgrade Kit for 18' x 33' Oval Pool Pool

Part # 19164-1833-RESKIT

19164 Bottom Plate 8" Resin Upgrade Kit for 18' x 33' Oval Pool Pool

$190.26

Quantity Per Pool 1 Bottom Rail Material

Quantity Per Pool 1 Bottom Rail Material

Steel Upright - Cayman 51.8125" (Single)

Part # 19611

Steel Upright - Cayman 51.8125" (Single)

$65.21

Quantity Per Pool 14

Quantity Per Pool 14

Top Rail Curved Side 52-3/32" (Single) Cayman

Part # 38361

Top Rail Curved Side 52-3/32" (Single) Cayman

$66.99 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Top Rail Straight Side 41 13/32" (Single) Cayman

Part # 27627

Top Rail Straight Side 41 13/32" (Single) Cayman

$40.95

Quantity Per Pool 10

Quantity Per Pool 10

Plastic Coping 48" (Single)

Part # 10296

Plastic Coping 48" (Single)

$11.54 IN STOCK

Quantity Per Pool 21

Quantity Per Pool 21

Qty:

Boot - Cayman (Single)

Part # 33059

Boot - Cayman (Single)

$13.91

Quantity Per Pool 22

Quantity Per Pool 22

Top Cap Curved Side Support Champagne (Single)

Part # 27392

Top Cap Curved Side Support Champagne (Single)

$17.84 IN STOCK

Quantity Per Pool 14

Quantity Per Pool 14

Qty:

Top Cap Support - Straight Side (Single) Cayman

Part # 21177

Top Cap Support - Straight Side (Single) Cayman

$21.51 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Top Cap 8" Champagne (Single)

Part # 27393

Top Cap 8" Champagne (Single)

$23.99 IN STOCK

Quantity Per Pool 22

Quantity Per Pool 22

Qty:

Top Plate Oval 4" (Single)

Part # 10136

Top Plate Oval 4" (Single)

$11.71 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Wrap Upright 51-13/16" (Single)

Part # 14572

Wrap Upright 51-13/16" (Single)

$75.59

Quantity Per Pool 8

Quantity Per Pool 8

Connector Btm Rail Str Side Aluminum (Single)

Part # 16542

Connector Btm Rail Str Side Aluminum (Single)

$35.87 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)

Part # 16539

Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)

$111.29

Quantity Per Pool 8

Quantity Per Pool 8

Strap Section 52-11/16" (Single)

Part # 16726

Strap Section 52-11/16" (Single)

$43.04 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Oval Top Channel End Cap (Single)

Part # 22726 Mfg # 22726

Oval Top Channel End Cap (Single)

$10.73 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

Part # 29917

Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

$4.19 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

* NOT ALL CAYMAN MODELS REQUIRE BOOT (KEY 8)
