Escalade & Tahitian 30' Round 54" Wall (Resin Top Rail, Wall Printed Steel Upright) Parts

Model PESC-54RWAAAR1 (Resin Top Rail, Wall Printed Steel Upright)

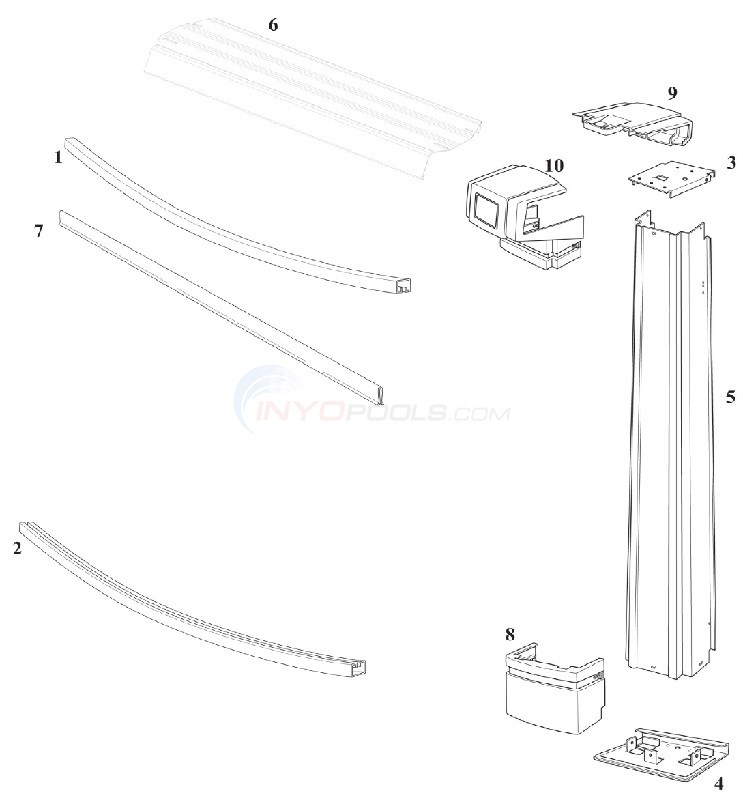

Escalade & Tahitian 30' Round 54" Wall (Resin Top Rail, Wall Printed Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	30' Round 48"-54" Depth All Swirl Overlap Round Standard Gauge
1	Inner Stabilizer 51-1/4" (Single)
2	Bottom Rail Aluminum 54-1/4" (Single)
3	Bottom Plate 6" Tapered
4	Bottom Plate 8" Aluminum
5	Up Right 8" 55 13/16" (Single)
6	Top Rail 8" Resin 55 13/16" (ESC) Single
7	Plastic Coping 48" (Single)
8	Top Cap 8" Curved Only
9	Top Cap 8" 1/2 Inner CVD/STR
10	Top Cover Cap CVD 8"
*	Wall Saver Panel WM 54"T X 51.6"W Sand Single Bolt Pattern (Single)

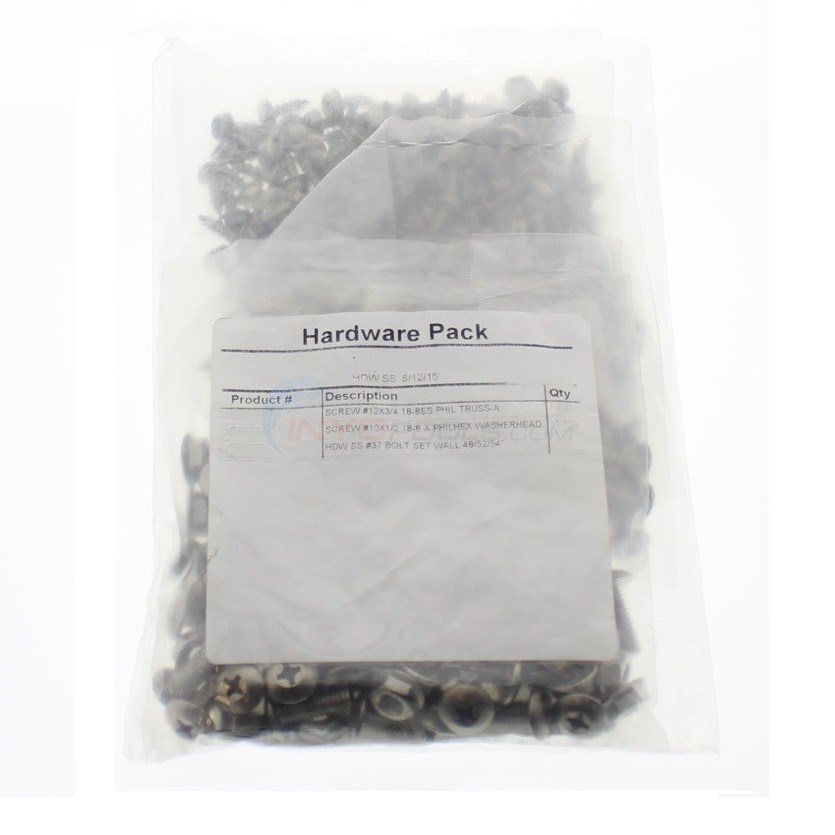

*	Hardware SS 30'
*	Envelope Safety Stickers
*	Sharkline Consumer DVD
