Escalade & Tahitian 36' Round 54" Wall (Resin Top Rail, Wall Printed Steel Upright) Parts

Model PESC-54RWAAAR1 (Resin Top Rail, Wall Printed Steel Upright)

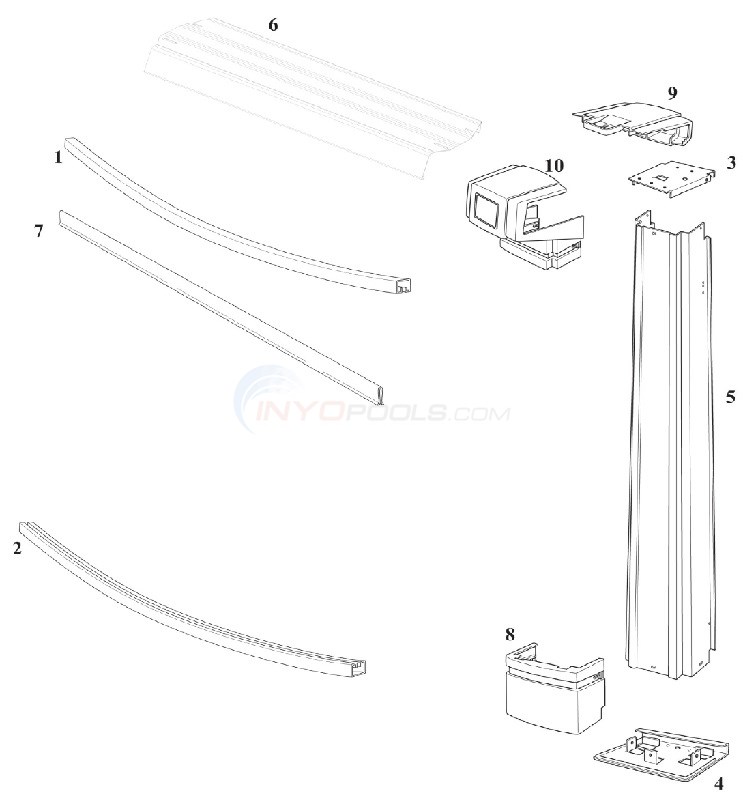

Escalade & Tahitian 36' Round 54" Wall (Resin Top Rail, Wall Printed Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
1	Inner Stabilizer Aluminum 53-3/8"
2	Bottom Rail Aluminum 54-1/4" (Single)
3	Bottom Plate 6" Tapered
4	Bottom Plate 8" Aluminum
5	Up Right 8" 55 13/16" (Single)
6	Top Rail 8" Resin 55 13/16" (ESC) Single
7	Plastic Coping 48" (Single)
8	Top Cap 8" Curved Only
9	Top Cap 8" 1/2 Inner CVD/STR
10	Top Cover Cap CVD 8"
*	Wall Saver Panel WM 54"T X 51.6"W Sand Single Bolt Pattern (Single)
*	Hardware SS 36'
*	Envelope Safety Stickers
*	Sharkline Consumer DVD

View Parts List

Diagram #	Part Title
1	Inner Stabilizer Aluminum 53-3/8"
2	Bottom Rail Aluminum 54-1/4" (Single)
3	Bottom Plate 6" Tapered
4	Bottom Plate 8" Aluminum
5	Up Right 8" 55 13/16" (Single)
6	Top Rail 8" Resin 55 13/16" (ESC) Single
7	Plastic Coping 48" (Single)
8	Top Cap 8" Curved Only
9	Top Cap 8" 1/2 Inner CVD/STR
10	Top Cover Cap CVD 8"
*	Wall Saver Panel WM 54"T X 51.6"W Sand Single Bolt Pattern (Single)
*	Hardware SS 36'
*	Envelope Safety Stickers
*	Sharkline Consumer DVD

Available Parts:

Inner Stabilizer Aluminum 53-3/8"

Part # 12269

Inner Stabilizer Aluminum 53-3/8"

$39.05 IN STOCK

Quantity Per Pool 27

Quantity Per Pool 27

Qty:

Inner Stabilizer Aluminum 53-3/8" (4-PACK) 33' Round

Part # 12269-PACK4

Inner Stabilizer Aluminum 53-3/8" (4-PACK) 33' Round

$101.96 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

Inner Stabilizer Aluminum 53-3/8" (8-PACK) 33' Round

Part # 12269-PACK8

Inner Stabilizer Aluminum 53-3/8" (8-PACK) 33' Round

$207.82

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Bottom Rail Aluminum 54-1/4" (Single)

Part # 22268

Bottom Rail Aluminum 54-1/4" (Single)

$46.85 IN STOCK

Quantity Per Pool 24

Quantity Per Pool 24

Qty:

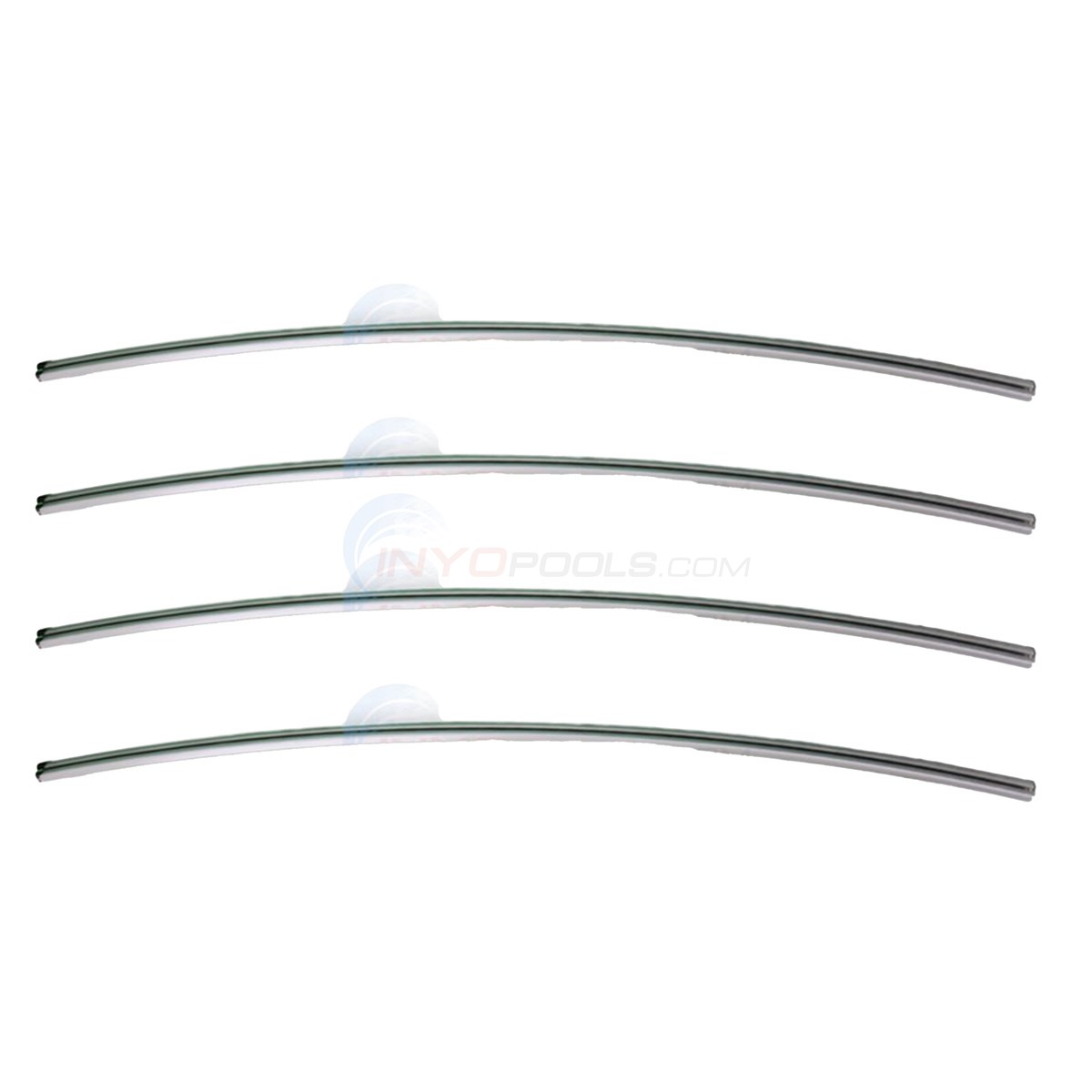

Bottom Rail Aluminum 54-1/4" (4 pack)

Part # 22268-PACK4

Bottom Rail Aluminum 54-1/4" (4 pack)

$109.10 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Bottom Plate 6" Tapered

Part # 14439

Bottom Plate 6" Tapered

$18.30 IN STOCK

Quantity Per Pool 24

Quantity Per Pool 24

Qty:

Bottom Plate 8" Aluminum

Part # 14438

Bottom Plate 8" Aluminum

$16.79 IN STOCK

Quantity Per Pool 24

Quantity Per Pool 24

Qty:

Up Right 8" 55 13/16" (Single)

Part # 21444

Up Right 8" 55 13/16" (Single)

$93.44 IN STOCK

Quantity Per Pool 24

Quantity Per Pool 24

Qty:

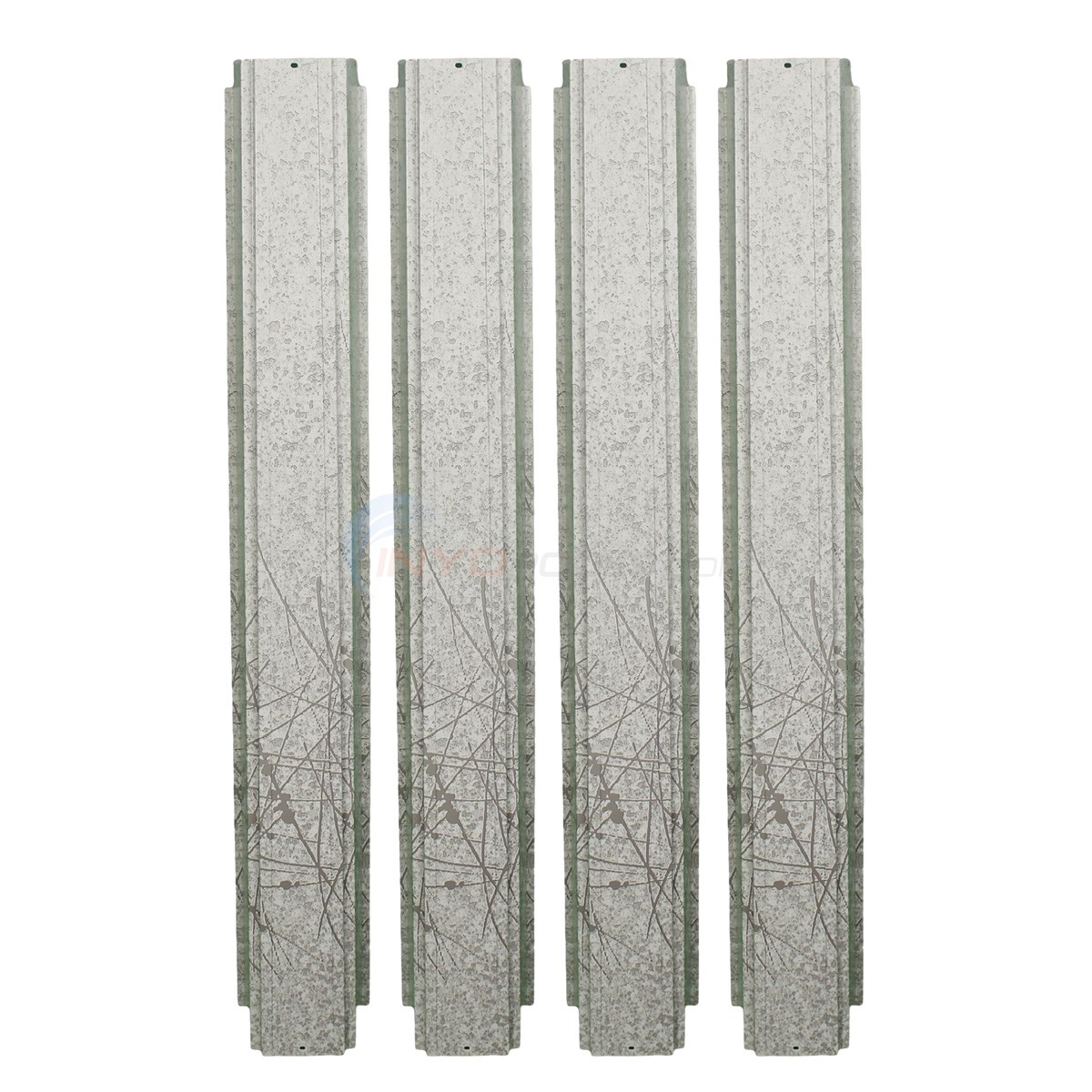

Upright 8" Windrift 53 13/16" (4 pack)

Part # 21444-PACK4

Upright 8" Windrift 53 13/16" (4 pack)

$314.96 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Top Rail 8" Resin 55 13/16" (ESC) Single

Part # 20977

Top Rail 8" Resin 55 13/16" (ESC) Single

$115.49 IN STOCK

Quantity Per Pool 24

Quantity Per Pool 24

Qty:

Plastic Coping 48" (Single)

Part # 10296

Plastic Coping 48" (Single)

$11.54 IN STOCK

Quantity Per Pool 28

Quantity Per Pool 28

Qty:

Top Cap 8" Curved Only

Part # 14443

Top Cap 8" Curved Only

$15.52 IN STOCK

Quantity Per Pool 24

Quantity Per Pool 24

Qty:

Top Cap 8" 1/2 Inner CVD/STR

Part # 14442

Top Cap 8" 1/2 Inner CVD/STR

$20.99 IN STOCK

Quantity Per Pool 24

Quantity Per Pool 24

Qty:

Top Cover Cap CVD 8"

Part # 14440

Top Cover Cap CVD 8"

$17.85 IN STOCK

Quantity Per Pool 24

Quantity Per Pool 24

Qty:

Wall Saver Panel WM 54"T X 51.6"W Sand Single Bolt Pattern (Single)

Part # 10019

Wall Saver Panel WM 54"T X 51.6"W Sand Single Bolt Pattern (Single)

$129.14

Quantity Per Pool 1

Quantity Per Pool 1

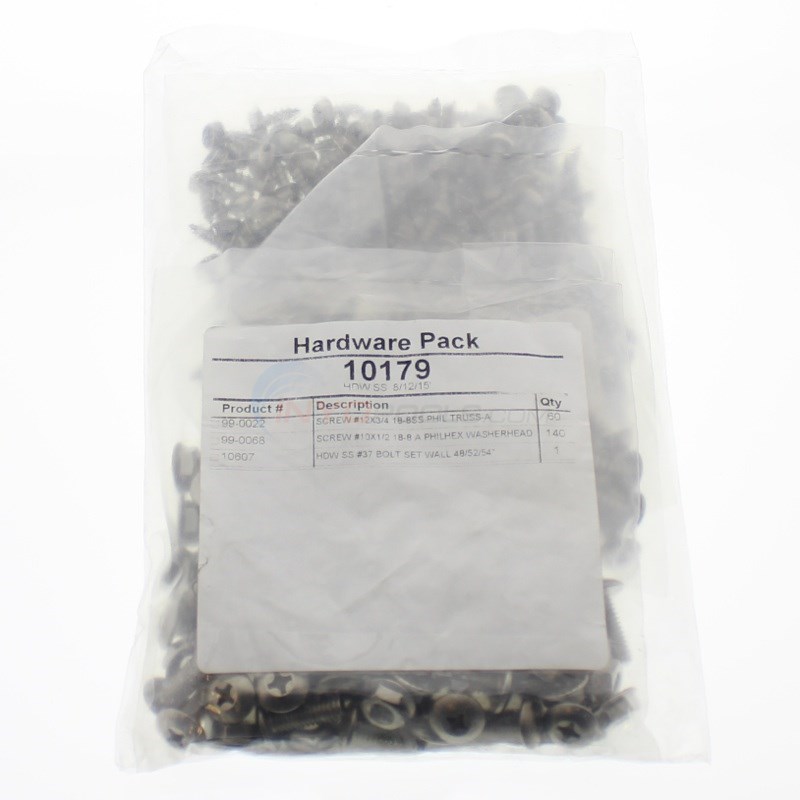

Hardware SS 36'

Part # 10179

Hardware SS 36'

$131.24 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

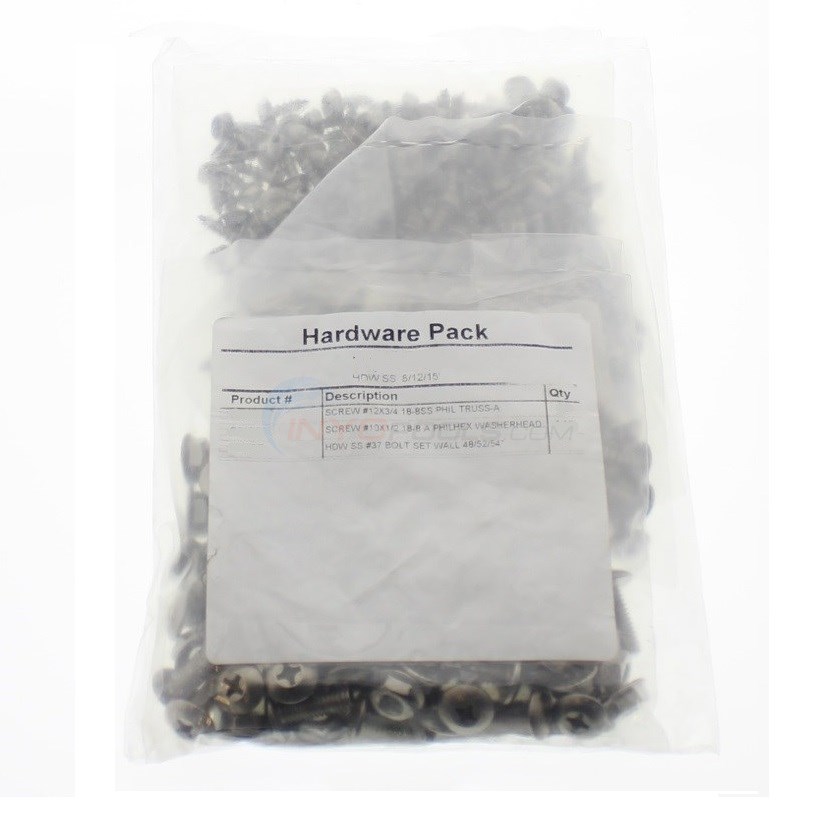

Hardware S/S TR Resin 12'/15'

Part # 19080

Hardware S/S TR Resin 12'/15'

$74.54

Quantity Per Pool 2

Quantity Per Pool 2

Envelope Safety Stickers

Part # 95-0007

Envelope Safety Stickers

$15.74

Quantity Per Pool 1

Quantity Per Pool 1

Sharkline Consumer DVD

Part # 36879

Sharkline Consumer DVD

$20.99

Quantity Per Pool 1

Quantity Per Pool 1
