Estate & Aegean 12'x24' Oval 52" Before 2010 Parts

THIS POOL HAS BEEN SOLD UNDER THE ESTATE NAME AS WELL AS THE AEGEAN BY BLUE WAVE.

**Note: The prices below are for each item. The "Quantity per Pool" is the quantity found on the entire pool.

We Do Not Accept Returns On Above Ground Pool Parts

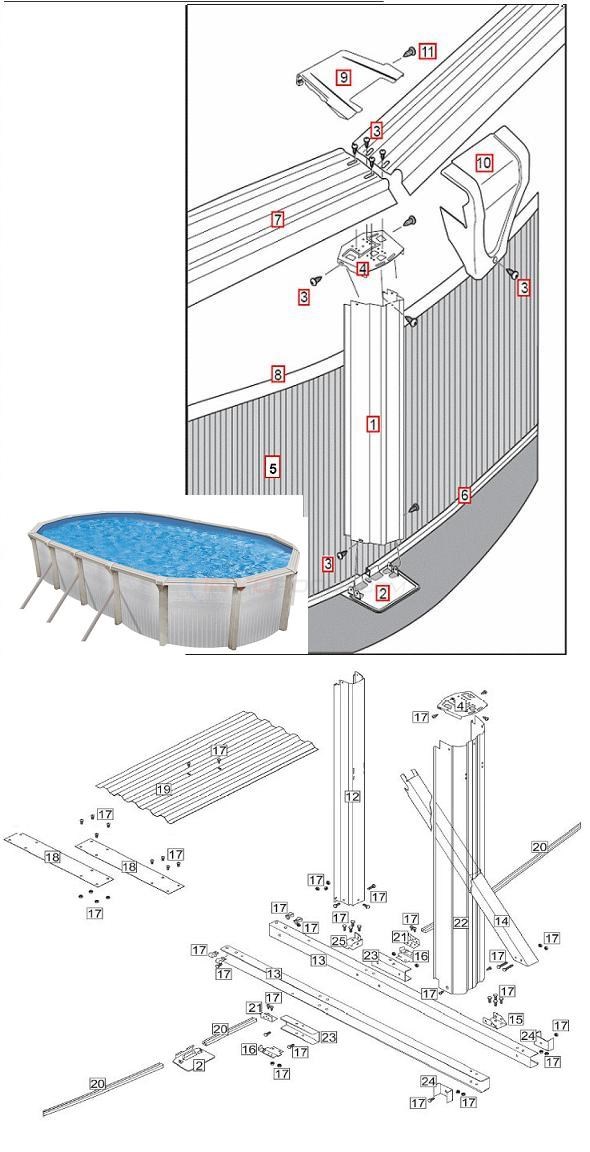

Estate & Aegean 12'x24' Oval 52" Before 2010 Diagram

Click to zoom in

Diagram #	Part Title
1	51.5" AEGEAN UPRIGHT
2	BASE PLATE FOR AEGEAN & ST. CROIX UPRIGHTS
3	Hardware Pack
4	TOP PLATE FOR ARUBA AND AEGEAN UPRIGHTS
5	52” Steel Wall / Atlantis Pattern
6	12' BOTTOM RAIL 44-5/8" FOR AEGEAN & ST CROIX
7	TOP RAIL 45-19/32" FOR THE AEGEAN
8	12' SLOTTED TUBE FOR ATLANTIC POOLS
9	INNER CONNECTOR FOR THE AEGEAN
10	OUTER CONNECTOR FOR THE AEGEAN
11	CONNECTOR HARDWARE FOR THE AEGEAN AND ARUBA
12	BUTTRESS UPRIGHT FOR THE AEGEAN
13	BASE CHANNEL FOR THE AEGEAN
14	DIAGONAL FOR THE AEGEAN
15	DIAGONAL BRACKET FOR THE AEGEAN AND ATLANTIS
16	LT/RT VERTICAL SUPRT BRACKET FOR THE AEGEAN
17	OVAL HARDWARE PACK FOR THE AEGEAN
18	STRAP 2-7/8X61-1/8 12' FOR THE AEGEAN
19	HOLD DOWN PLATE FOR THE AEGEAN
20	Bottom Rail 56-1/4" - steel Belize, J2000 (single)
21	VERTICAL BRACKET 1320169 FOR AEGEAN, ARUBA, AND ST CROIX
22	NOTCHED VERTICAL UPRIGHT FOR THE AEGEAN
23	REINFORCING BRACKET FOR THE AEGEAN
24	SUPPORT BRACKET FOR THE AEGEN
25	OVAL BASE PLATE FOR ATLANTIS OVAL POOL
x	52" WALL JOINER HARDWARE FOR AEGEAN, ATLANTIS AND ST CROIX
x	Liner Coping Strips (24 inch) 10 pack
