J5000 Mist 12' Round 52" Wall (Steel Top Rail, Steel Upright) Parts

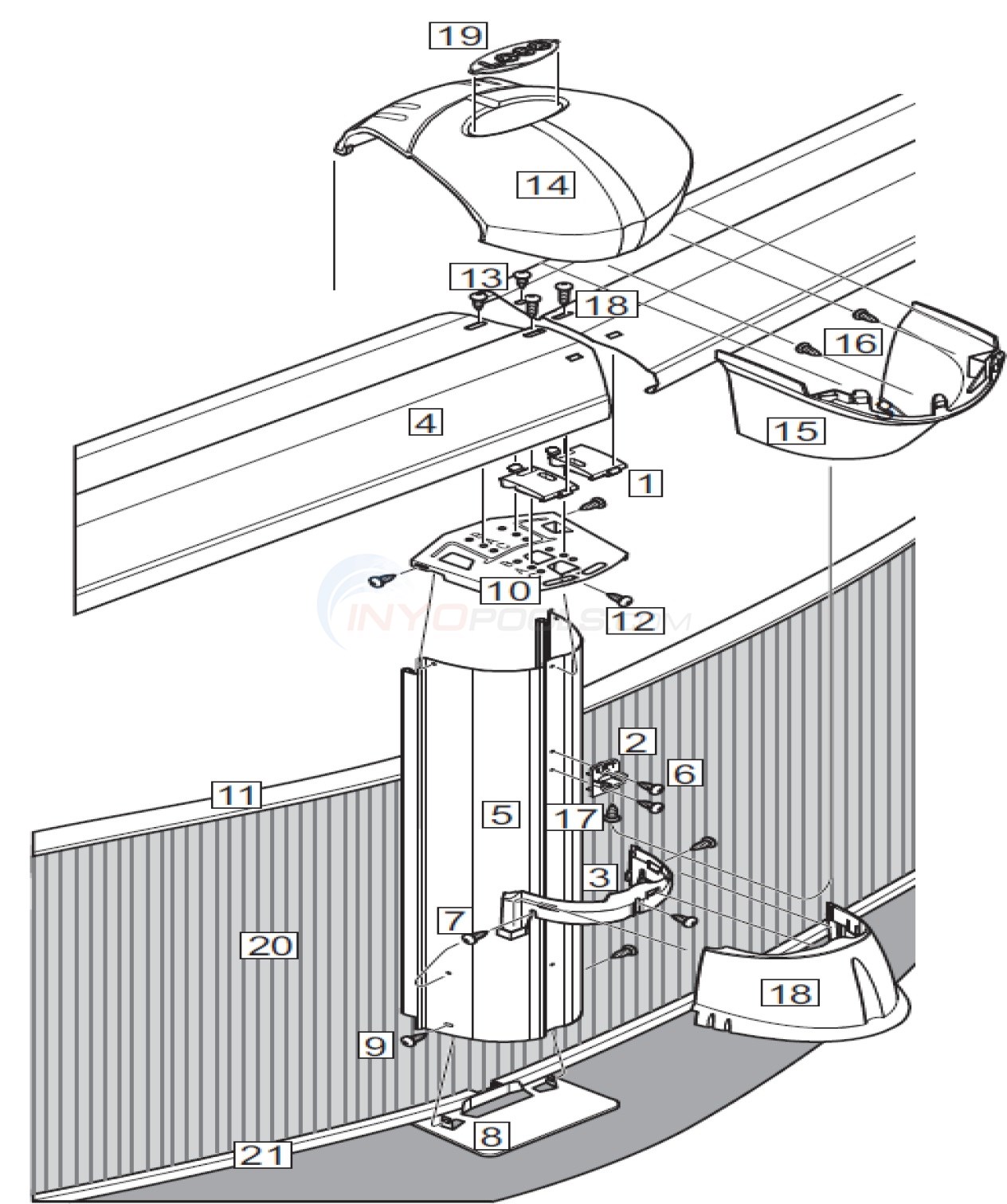

J5000 Mist 12' Round 52" Wall (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	12' Round 48"-52" Depth All Swirl Overlap Standard Gauge
1	Clip Pack (Single)
3	Clip Pack for Foot Cover (Single)
4	Top Rail Round Section Steel (Single)
5	Upright 51-1/2" J5000 - Steel (single)
8	Bottom Plate - Steel
10	Top Plate J5000 (Single)
11	12' Slotted Tube (Single) For Atlantic Pools
13	Hardware Pack for Top Ledge (Single)
14	Ledge Cover - Upper (Single)
15	Atlantic Lower Cap- (Single)
16	Hardware Pack for Ledge Cover (Single)
18	Foot Cover (Single)
19	Logo Insert (Single)
21	Bottom Rail 44-5/8" - Steel (Single)
*	6" slotted tube connector (Single)

View Parts List

Diagram #	Part Title
*Liner	12' Round 48"-52" Depth All Swirl Overlap Standard Gauge
1	Clip Pack (Single)
3	Clip Pack for Foot Cover (Single)
4	Top Rail Round Section Steel (Single)
5	Upright 51-1/2" J5000 - Steel (single)
8	Bottom Plate - Steel
10	Top Plate J5000 (Single)
11	12' Slotted Tube (Single) For Atlantic Pools
13	Hardware Pack for Top Ledge (Single)
14	Ledge Cover - Upper (Single)
15	Atlantic Lower Cap- (Single)
16	Hardware Pack for Ledge Cover (Single)
18	Foot Cover (Single)
19	Logo Insert (Single)
21	Bottom Rail 44-5/8" - Steel (Single)
*	6" slotted tube connector (Single)
