Jacuzzi Sand Trap Filter - 24" Parts

SAND FILTER MODEL RMST-24, ST-24

Jacuzzi Sand Trap Filter - 24" Diagram

Click to zoom in

Diagram #	Part Title
*	Jacuzzi Sand Trap O-Ring Kit
1A	Valve, 6-way 15vk-24 Eqfv (39258405)
2A	UNION ADAPTER 1 1/2" ()
5	SCREW, CAP 5/16-18 X 1IN (98219800)
7	O-Ring, 5-1/4x5-5/8x3/16 NTRL (O-411) (47035548R000)
8	DIVERTER, FLOW (43071505R000)
9	FILL SPOUT (22552202R000)
10	OBSOLETE PIPE, UPPER STAND
11	BASKET ASSY., UPPER STANDPIPE (88158001R000)
12	No Longer Available MANIFOLD/STANDPIPE ASSY THREADED Replace With 4627-24
13	No Longer Available LATERALS Replace With 4627-24
15	PLUG ASSY., INSPECTION ST27/ST33 (42290403R000)
16	O-RING
17	PLUG ASSY., DRAIN ST27/ST33 (42287401R000)
18	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
19	PLUG, 3/4 NPT With O-RING (31164908R000)
20	STANDPIPE W SNAP FIT LATERALS SAND TRAP ()
21	L250 LATERAL KIT - SNAP FIT (set of 8 EA) (85531304K)
22	UNION, S15UNS HALF, 1-1/2" SLIP (31175607)

View Parts List

Diagram #	Part Title
*	Jacuzzi Sand Trap O-Ring Kit
1A	Valve, 6-way 15vk-24 Eqfv (39258405)
2A	UNION ADAPTER 1 1/2" ()
5	SCREW, CAP 5/16-18 X 1IN (98219800)
7	O-Ring, 5-1/4x5-5/8x3/16 NTRL (O-411) (47035548R000)
8	DIVERTER, FLOW (43071505R000)
9	FILL SPOUT (22552202R000)
10	OBSOLETE PIPE, UPPER STAND
11	BASKET ASSY., UPPER STANDPIPE (88158001R000)
12	No Longer Available MANIFOLD/STANDPIPE ASSY THREADED Replace With 4627-24
13	No Longer Available LATERALS Replace With 4627-24
15	PLUG ASSY., INSPECTION ST27/ST33 (42290403R000)
16	O-RING
17	PLUG ASSY., DRAIN ST27/ST33 (42287401R000)
18	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
19	PLUG, 3/4 NPT With O-RING (31164908R000)
20	STANDPIPE W SNAP FIT LATERALS SAND TRAP ()
21	L250 LATERAL KIT - SNAP FIT (set of 8 EA) (85531304K)
22	UNION, S15UNS HALF, 1-1/2" SLIP (31175607)

Available Parts:

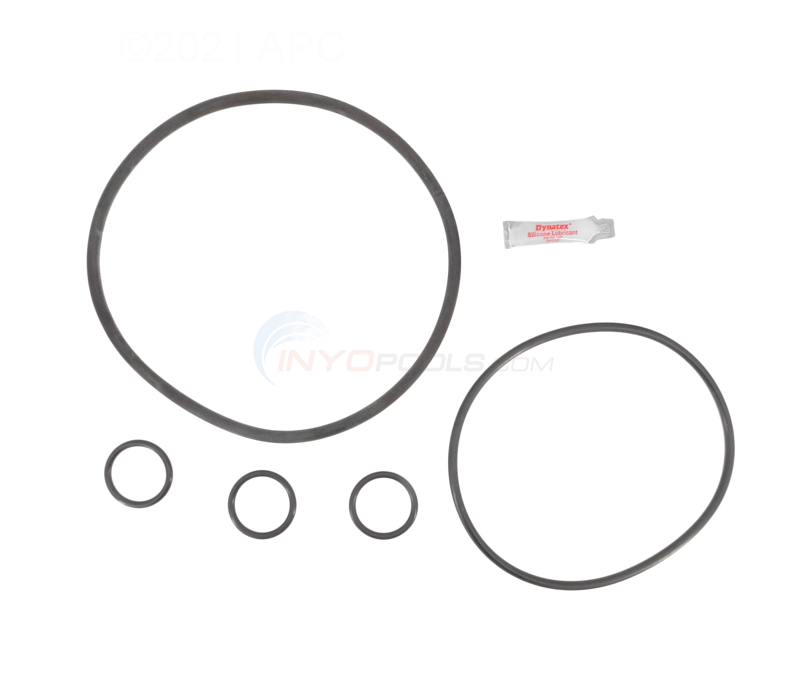

Jacuzzi Sand Trap O-Ring Kit

Part # APCK1148

Jacuzzi Sand Trap O-Ring Kit

$51.99

Valve, 6-way 15vk-24 Eqfv (39258405)

Part # 4627-16 Mfg # 39258405R

Valve, 6-way 15vk-24 Eqfv (39258405)

$218.35 IN STOCK

Qty:

DVK-7 Valve, Bolt Type

Part # 39262803R Mfg # 39262803R

DVK-7 Valve, Bolt Type

$147.96 IN STOCK

Qty:

1C

OBSOLETE DVK-6 VALVE

Mfg # 39-2588-00-R

OBSOLETE DVK-6 VALVE

NOT AVAILABLE

Top Mount Valve, Jacuzzi Dv-6 / 7 Bolt On Replacement

Part # 4625-80 Mfg # TM-12-JL7

Top Mount Valve, Jacuzzi Dv-6 / 7 Bolt On Replacement

$159.22 IN STOCK

Qty:

UNION ADAPTER 1 1/2" ()

Part # 4627-25 Mfg # 31158603R2

UNION ADAPTER 1 1/2" ()

$42.79 IN STOCK

Qty:

UNION, S15UNS HALF, 1-1/2" SLIP (31175607)

Part # 9173F Mfg # B0602-15

UNION, S15UNS HALF, 1-1/2" SLIP (31175607)

$14.99 IN STOCK

Qty:

SCREW, CAP 5/16-18 X 1IN (98219800)

Part # 6915-0 Mfg # U30-62ZP

SCREW, CAP 5/16-18 X 1IN (98219800)

$10.22 IN STOCK

Qty:

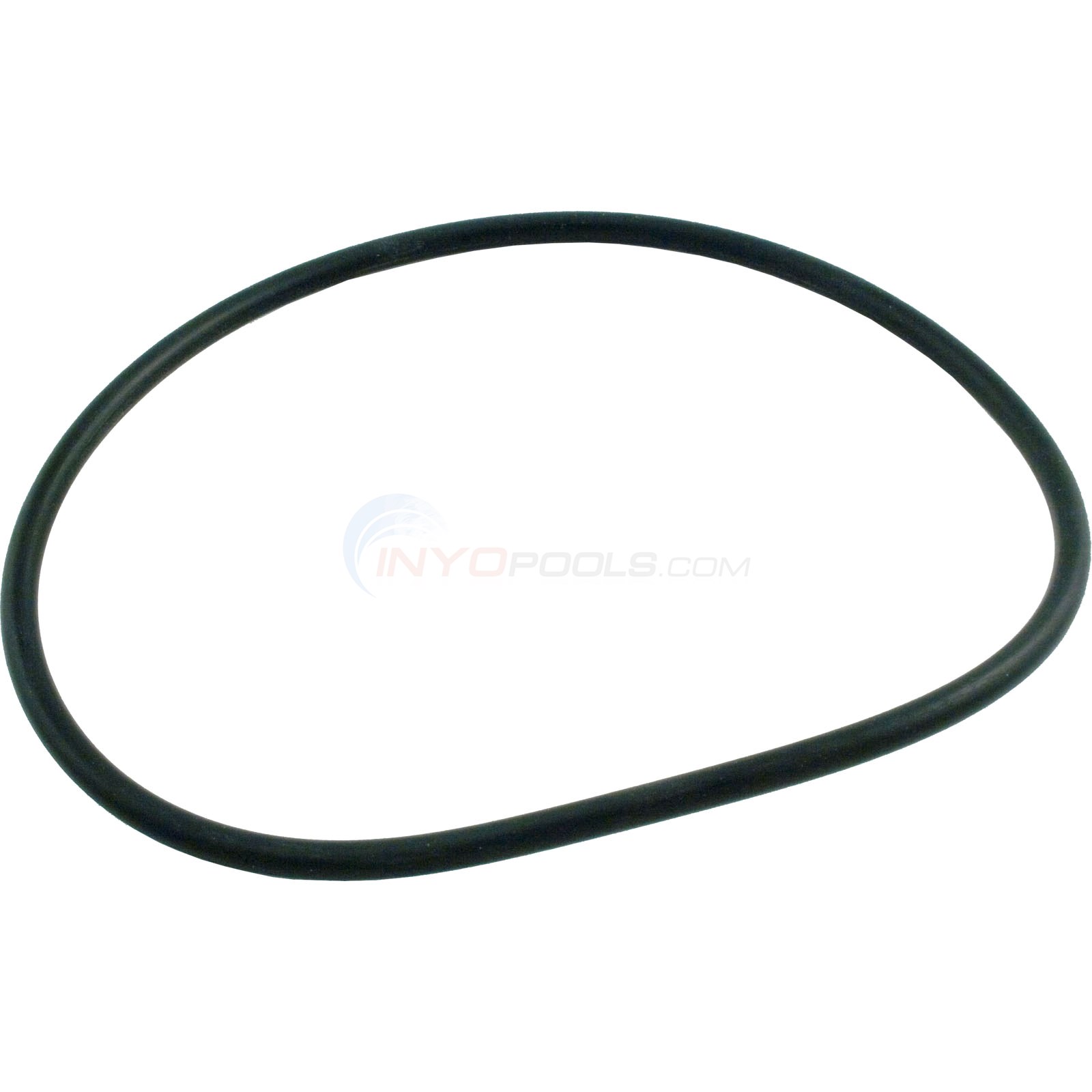

O-Ring, 5-1/4x5-5/8x3/16 NTRL (O-411) (47035548R000)

Part # 35-105-1388 Mfg # O-411

O-Ring, 5-1/4x5-5/8x3/16 NTRL (O-411) (47035548R000)

$12.73 IN STOCK

Qty:

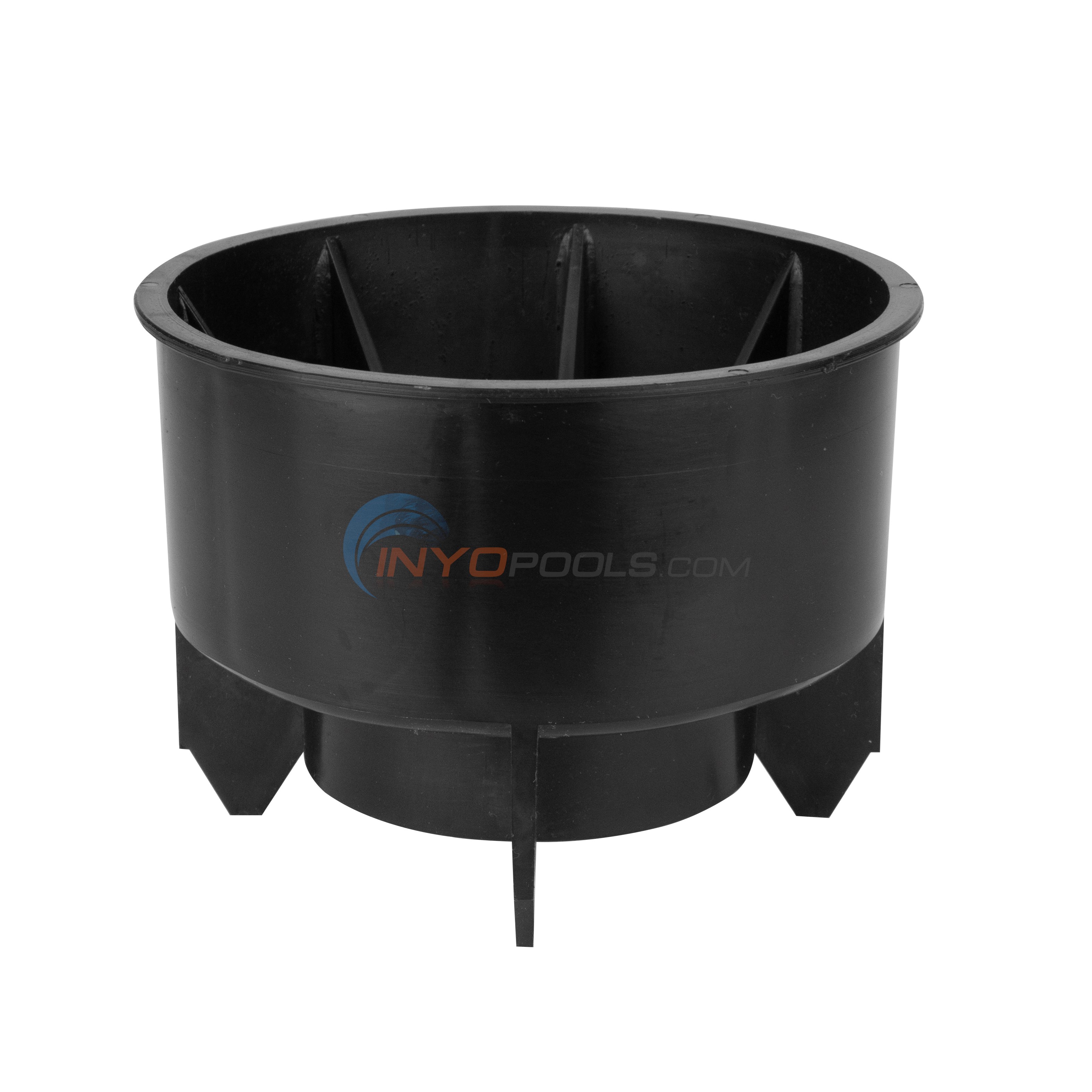

DIVERTER, FLOW (43071505R000)

Part # 4625-02 Mfg # 43071505R

DIVERTER, FLOW (43071505R000)

$24.99

FILL SPOUT (22552202R000)

Part # 4626-06 Mfg # 22363907R

FILL SPOUT (22552202R000)

$26.14 IN STOCK

Qty:

10

OBSOLETE PIPE, UPPER STAND

Mfg # 31-0113-64-R

OBSOLETE PIPE, UPPER STAND

NOT AVAILABLE

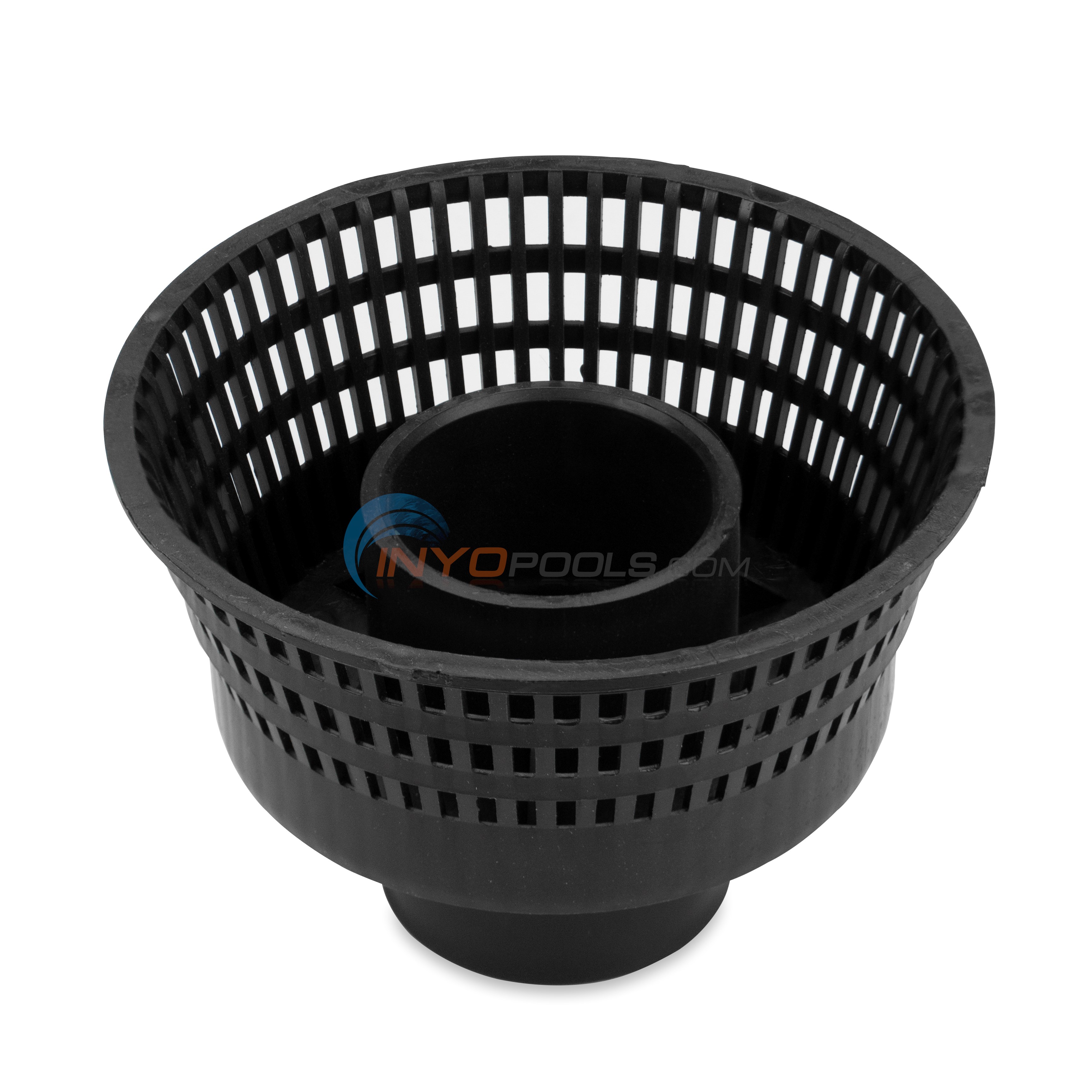

BASKET ASSY., UPPER STANDPIPE (88158001R000)

Part # 4625-03 Mfg # 88158001R

BASKET ASSY., UPPER STANDPIPE (88158001R000)

$22.99 IN STOCK

Qty:

12

No Longer Available MANIFOLD/STANDPIPE ASSY THREADED Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352026295.htm">4627-24</a>

Mfg # 42-2926-07R

No Longer Available MANIFOLD/STANDPIPE ASSY THREADED Replace With 4627-24

NOT AVAILABLE

13

No Longer Available LATERALS Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352026295.htm">4627-24</a>

Mfg # 85-5322-08-R

No Longer Available LATERALS Replace With 4627-24

NOT AVAILABLE

LATERAL KIT THREADED (SET OF 8) (42351700R000)

Part # 4626-11B Mfg # 42351700R8

LATERAL KIT THREADED (SET OF 8) (42351700R000)

$69.99

PLUG ASSY., INSPECTION ST27/ST33 (42290403R000)

Part # 4627-12 Mfg # 42290403R

PLUG ASSY., INSPECTION ST27/ST33 (42290403R000)

$18.99 IN STOCK

Qty:

O-RING

Part # 4620-525 Mfg # 326

O-RING

$15.64 IN STOCK

Qty:

PLUG ASSY., DRAIN ST27/ST33 (42287401R000)

Part # 4627-13 Mfg # 42287401R

PLUG ASSY., DRAIN ST27/ST33 (42287401R000)

$70.99

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$9.99 IN STOCK

Qty:

PLUG, 3/4 NPT With O-RING (31164908R000)

Part # 4627-15 Mfg # 31164908R

PLUG, 3/4 NPT With O-RING (31164908R000)

$28.99

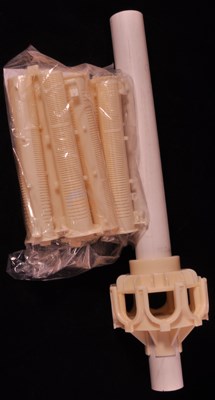

STANDPIPE W SNAP FIT LATERALS SAND TRAP ()

Part # 4627-24 Mfg # 42292640K

STANDPIPE W SNAP FIT LATERALS SAND TRAP ()

$142.99

L250 LATERAL KIT - SNAP FIT (set of 8 EA) (85531304K)

Part # 4626-113 Mfg # 85531304R8

L250 LATERAL KIT - SNAP FIT (set of 8 EA) (85531304K)

$80.69 IN STOCK

Qty:

UNION, S15UNS HALF, 1-1/2" SLIP (31175607)

Part # 9173F Mfg # B0602-15

UNION, S15UNS HALF, 1-1/2" SLIP (31175607)

$14.99 IN STOCK

Qty:

*O-RING/GASKET REPAIR KIT
