Muskin Sand FIlter System, FS568-6 and other Models Parts

FOR MODELS FS568-6, FS614-6, FS615-6, FS616-6, FS619-6, FS620-6,
FS634-8, FS650-6, FS651-6, FS719-8, FS720-8, FTA11, & 72902

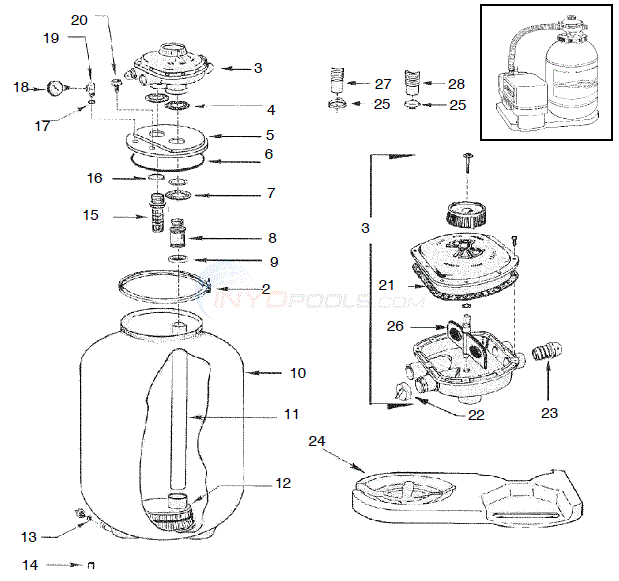

Muskin Sand FIlter System, FS568-6 and other Models Diagram

Click to zoom in

Diagram #	Part Title
2	CLAMP, FLANGE
3	OBSOLETE BACKWASH VALVE (COMPLETE)
4	GASKET TANK OUTLET
5	TANK COVER HMLI 3 POSITION
6	GASKET, 8" HMLI TANK, 3/32" (54056)
7	No Longer Available GASKET Replace With 9406-08
8	THREADED SLEEVE, 1-1/4" HMLI 96
9	SEAL THREADED SLEEVE PLAS SAND
10	OBSOLETE 15” TANK
11	OBSOLETE LOWER DISTRIBUTOR TUBE
12	OBSOLETE LOWER DISTRIBUTOR
13	DRAIN CAP & WASHER
14	GASKET-FOAM 1.50 SQ X 2.50" LG
15	LTD QTY UPPER DISTRIBUTOR
16	GASKET
17	GASKET
18	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
19	GAUGE ADAPTER ASSEMBLY HMLI TANK
20	AIR RELIEF VALVE
21	VALVE GASKET
22	POLY BG 1" THRD CAP. With GASKET
23	PLUG BACKWASH 3 & 5 POS VALVE
24	LTD QTY FILTER BASE
25	CLAMP
26	3 POS VALVE VANE ASSEMBLY
27	OBSOLETE INTAKE/DISCHARGE HOSE 6’ (2 REQ’D)
28	OBSOLETE INTAKE/DISCHARGE HOSE, 1-1/4” X 1’-6” (1 REQ’D)
28	OBSOLETE INTAKE/DISCHARGE HOSE, 1-1/4” X 1’-6” (1 REQ’D)

View Parts List

Diagram #	Part Title
2	CLAMP, FLANGE
3	OBSOLETE BACKWASH VALVE (COMPLETE)
4	GASKET TANK OUTLET
5	TANK COVER HMLI 3 POSITION
6	GASKET, 8" HMLI TANK, 3/32" (54056)
7	No Longer Available GASKET Replace With 9406-08
8	THREADED SLEEVE, 1-1/4" HMLI 96
9	SEAL THREADED SLEEVE PLAS SAND
10	OBSOLETE 15” TANK
11	OBSOLETE LOWER DISTRIBUTOR TUBE
12	OBSOLETE LOWER DISTRIBUTOR
13	DRAIN CAP & WASHER
14	GASKET-FOAM 1.50 SQ X 2.50" LG
15	LTD QTY UPPER DISTRIBUTOR
16	GASKET
17	GASKET
18	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
19	GAUGE ADAPTER ASSEMBLY HMLI TANK
20	AIR RELIEF VALVE
21	VALVE GASKET
22	POLY BG 1" THRD CAP. With GASKET
23	PLUG BACKWASH 3 & 5 POS VALVE
24	LTD QTY FILTER BASE
25	CLAMP
26	3 POS VALVE VANE ASSEMBLY
27	OBSOLETE INTAKE/DISCHARGE HOSE 6’ (2 REQ’D)
28	OBSOLETE INTAKE/DISCHARGE HOSE, 1-1/4” X 1’-6” (1 REQ’D)
28	OBSOLETE INTAKE/DISCHARGE HOSE, 1-1/4” X 1’-6” (1 REQ’D)

Available Parts:

CLAMP, FLANGE

Part # 4802-03C Mfg # SX310N

CLAMP, FLANGE

$69.99 IN STOCK

Qty:

2

No Longer Available ORIGINAL CLAMP Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352014488.htm">4802-03C</a>

Mfg # 48030

No Longer Available ORIGINAL CLAMP Replace With 4802-03C

NOT AVAILABLE

2

No Longer Available V-BAND, 2 PIECE, With NUTS & BOLTS Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352014488.htm">4802-03C</a>

Mfg # 72113

No Longer Available V-BAND, 2 PIECE, With NUTS & BOLTS Replace With 4802-03C

NOT AVAILABLE

3

OBSOLETE BACKWASH VALVE (COMPLETE)

Mfg # 47007

OBSOLETE BACKWASH VALVE (COMPLETE)

NOT AVAILABLE

GASKET TANK OUTLET

Part # 4880-29 Mfg # 54007

GASKET TANK OUTLET

$22.99

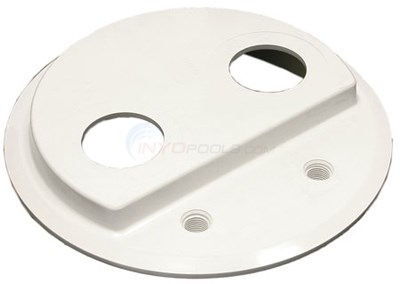

TANK COVER HMLI 3 POSITION

Part # 4880-28 Mfg # 43015

TANK COVER HMLI 3 POSITION

$38.99

GASKET, 8" HMLI TANK, 3/32" (54056)

Part # 4880-132

GASKET, 8" HMLI TANK, 3/32" (54056)

$73.99

7

No Longer Available GASKET Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352022025.htm">9406-08</a>

Mfg # NOT AVAILABLE

No Longer Available GASKET Replace With 9406-08

NOT AVAILABLE

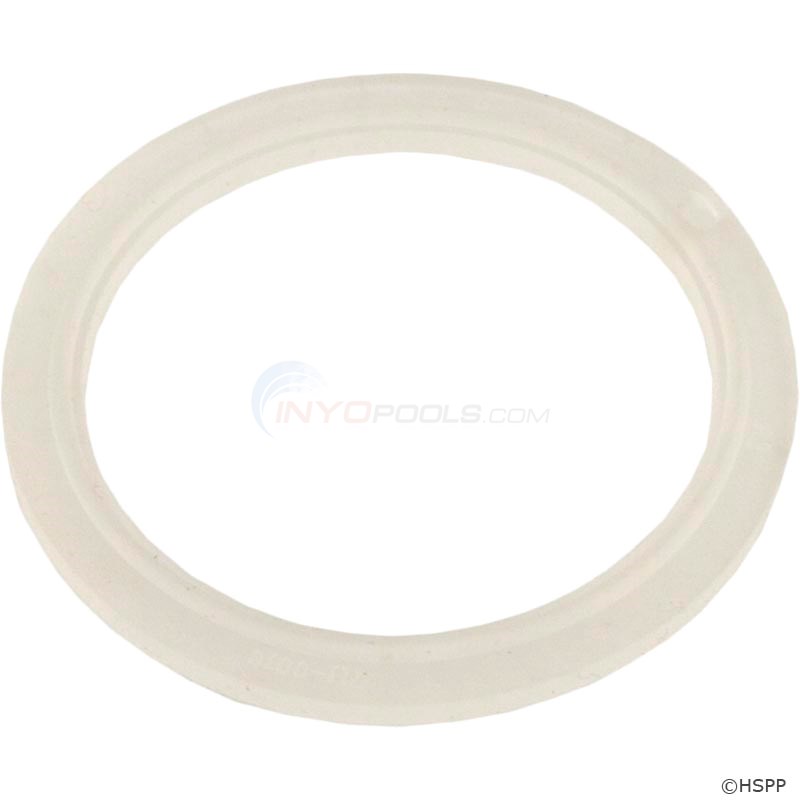

MINI-JET WALL FITTING GASKET

Part # 9406-08 Mfg # 711-0010

MINI-JET WALL FITTING GASKET

$4.99 IN STOCK

Qty:

THREADED SLEEVE, 1-1/4" HMLI 96

Part # 4880-069 Mfg # 45048

THREADED SLEEVE, 1-1/4" HMLI 96

$22.99

SEAL THREADED SLEEVE PLAS SAND

Part # 4880-076 Mfg # 54045

SEAL THREADED SLEEVE PLAS SAND

$94.99

10

OBSOLETE 15” TANK

Mfg # 43024

OBSOLETE 15” TANK

NOT AVAILABLE

11

OBSOLETE LOWER DISTRIBUTOR TUBE

Mfg # 45067

OBSOLETE LOWER DISTRIBUTOR TUBE

NOT AVAILABLE

12

OBSOLETE LOWER DISTRIBUTOR

Mfg # 46035

OBSOLETE LOWER DISTRIBUTOR

NOT AVAILABLE

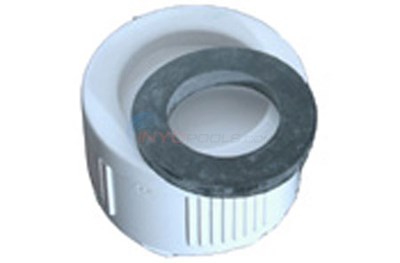

DRAIN CAP & WASHER

Part # 4880-42

DRAIN CAP & WASHER

$21.99

GASKET-FOAM 1.50 SQ X 2.50" LG

Part # 4015-62 Mfg # 54042

GASKET-FOAM 1.50 SQ X 2.50" LG

$19.99

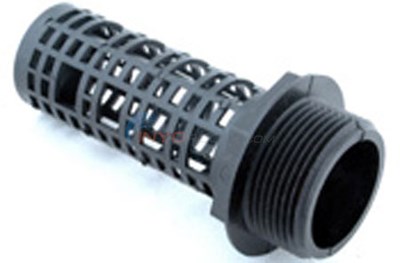

LTD QTY UPPER DISTRIBUTOR

Part # 4880-14A Mfg # 45043

LTD QTY UPPER DISTRIBUTOR

$35.99

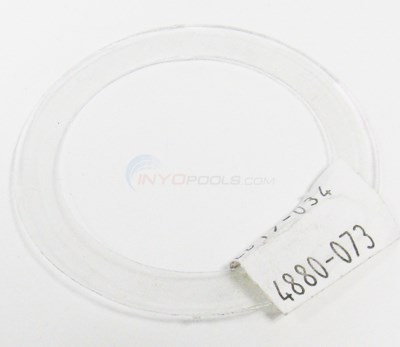

GASKET

Part # 4880-073 Mfg # 54021

GASKET

$32.99

GASKET

Part # 4880-072 Mfg # 54006

GASKET

$18.99

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$9.99 IN STOCK

Qty:

GAUGE ADAPTER ASSEMBLY HMLI TANK

Part # 4880-27 Mfg # 48016

GAUGE ADAPTER ASSEMBLY HMLI TANK

$13.99

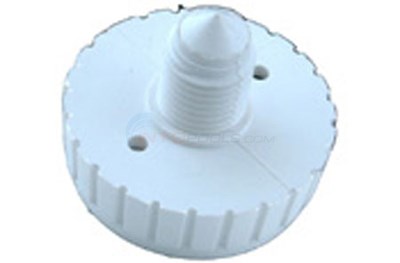

AIR RELIEF VALVE

Part # 4880-31 Mfg # 55086

AIR RELIEF VALVE

$18.99

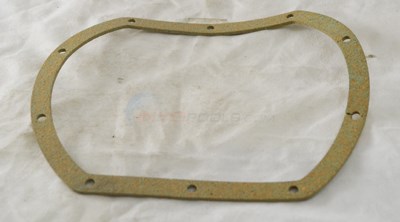

VALVE GASKET

Part # 4880-007 Mfg # 54017

VALVE GASKET

$60.99

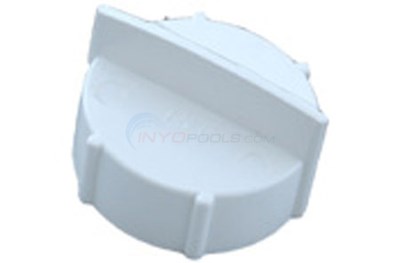

POLY BG 1" THRD CAP. With GASKET

Part # 4880-10 Mfg # 72042

POLY BG 1" THRD CAP. With GASKET

$56.99

PLUG BACKWASH 3 & 5 POS VALVE

Part # 4880-57 Mfg # 55003

PLUG BACKWASH 3 & 5 POS VALVE

$44.99

LTD QTY FILTER BASE

Part # 4880-034

LTD QTY FILTER BASE

$124.99

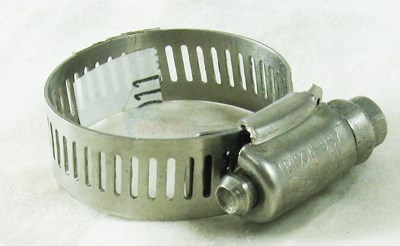

CLAMP

Part # 4880-011 Mfg # 56009

CLAMP

$20.99

3 POS VALVE VANE ASSEMBLY

Part # 4880-15 Mfg # 47009

3 POS VALVE VANE ASSEMBLY

$67.99

27

OBSOLETE INTAKE/DISCHARGE HOSE 6’ (2 REQ’D)

Mfg # 49014

OBSOLETE INTAKE/DISCHARGE HOSE 6’ (2 REQ’D)

NOT AVAILABLE

28

OBSOLETE INTAKE/DISCHARGE HOSE, 1-1/4” X 1’-6” (1 REQ’D)

Mfg # 49015

OBSOLETE INTAKE/DISCHARGE HOSE, 1-1/4” X 1’-6” (1 REQ’D)

NOT AVAILABLE

28

OBSOLETE INTAKE/DISCHARGE HOSE, 1-1/4” X 1’-6” (1 REQ’D)

Mfg # 49015

OBSOLETE INTAKE/DISCHARGE HOSE, 1-1/4” X 1’-6” (1 REQ’D)

NOT AVAILABLE
