American Products Commander Parts

Click to zoom in

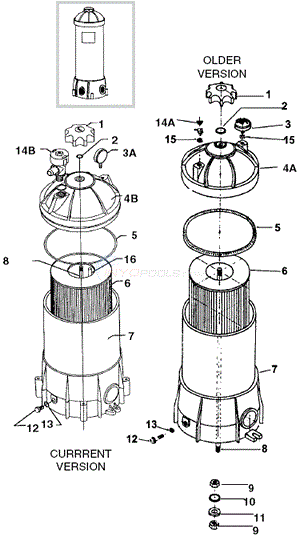

Diagram #	Part Title
*	COMMANDER O-RING KIT
1	Commander Filter Knob
2	O-RING
3	GAUGE PRESS With INDICATOR REAR MOUNT (OEM)
3A	Pressure Gauge (53003201)

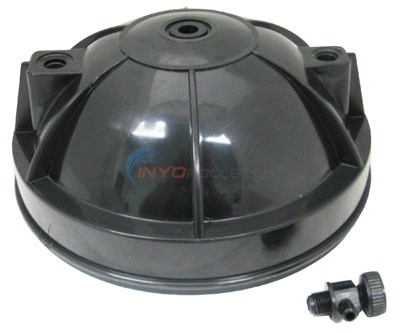

4A	Commander Lid with Air Relief (57005600)

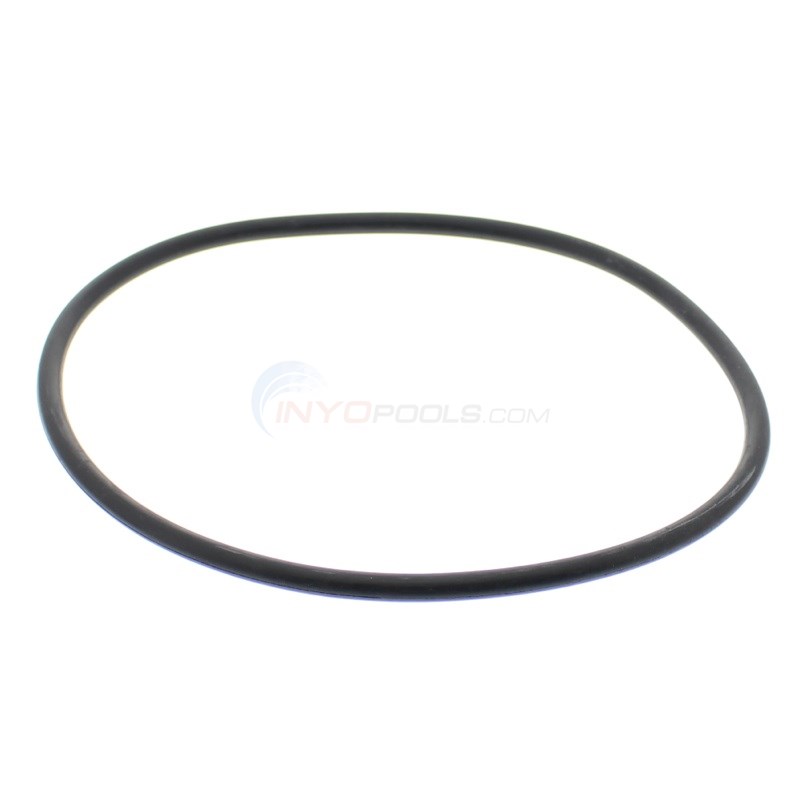

5	O-RING, TOP (57007300)
6	Amer. Commander 25 Generic Cartridge
7	OBSOLETE, BOTTOM, ALL SIZES
8	OBSOLETE ROD, 25 & 35 sq.ft.
9	OBSOLETE NUT
10	O-RING, ROD
11	OBSOLETE WASHER
12	No Longer Available DRAIN KNOB Replace With 4662-03B
13	Star Clear O-ring (110)
14A	AIR BLEEDER, 1/4 INCH

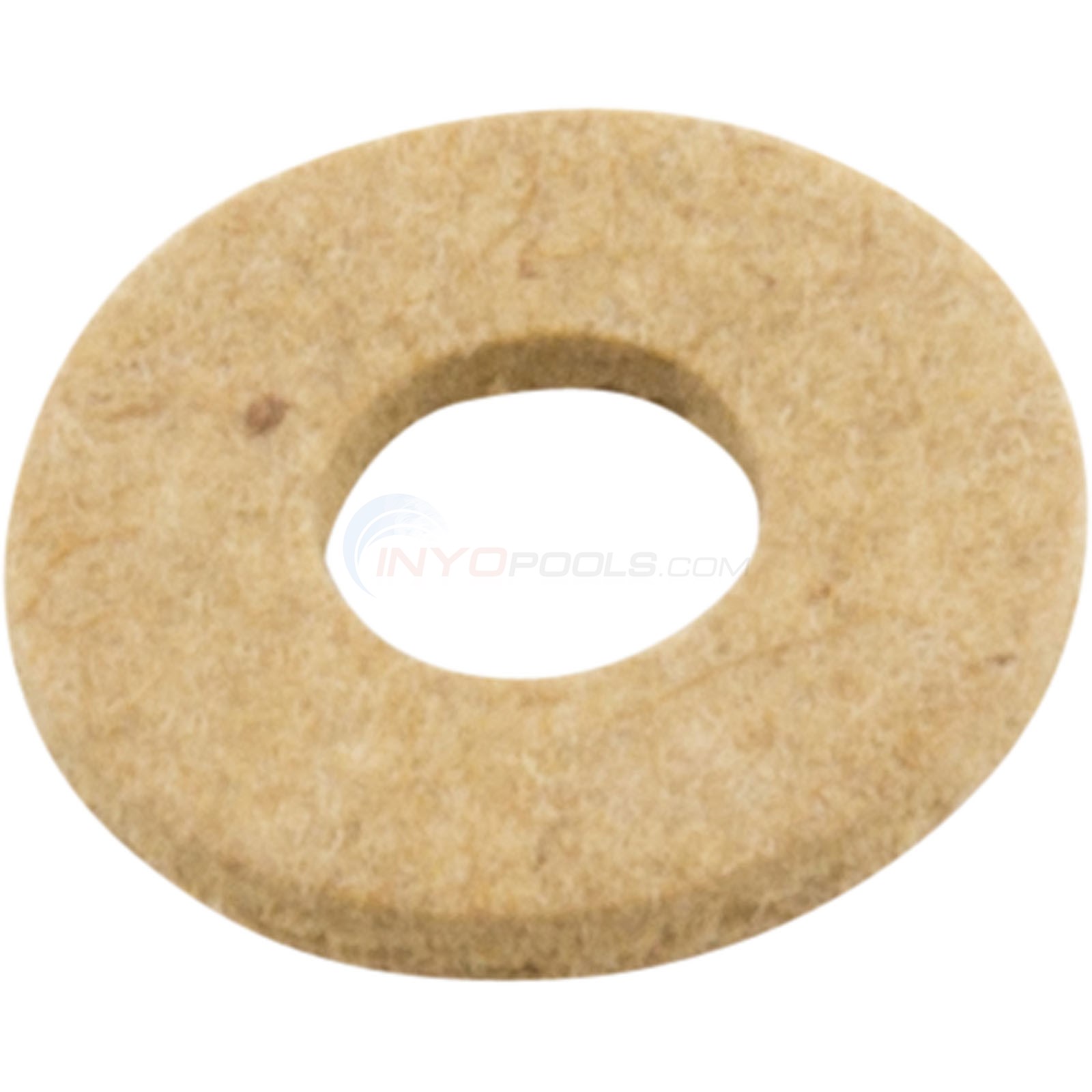

15	WASHER, FIBER
16	OBSOLETE AIR BLEED ASSY 25 & 35 SQ FT
*	OBSOLETE ADAPTER, FOR 150 sq.ft. CART. (100 sq.ft. before 2/89)

View Parts List

Diagram #	Part Title
*	COMMANDER O-RING KIT
1	Commander Filter Knob
2	O-RING
3	GAUGE PRESS With INDICATOR REAR MOUNT (OEM)
3A	Pressure Gauge (53003201)
4A	Commander Lid with Air Relief (57005600)
5	O-RING, TOP (57007300)
6	Amer. Commander 25 Generic Cartridge
7	OBSOLETE, BOTTOM, ALL SIZES
8	OBSOLETE ROD, 25 & 35 sq.ft.
9	OBSOLETE NUT
10	O-RING, ROD
11	OBSOLETE WASHER
12	No Longer Available DRAIN KNOB Replace With 4662-03B
13	Star Clear O-ring (110)
14A	AIR BLEEDER, 1/4 INCH
15	WASHER, FIBER
16	OBSOLETE AIR BLEED ASSY 25 & 35 SQ FT
*	OBSOLETE ADAPTER, FOR 150 sq.ft. CART. (100 sq.ft. before 2/89)

Available Parts:

Part # APCK1101 Mfg # APCK1101

COMMANDER O-RING KIT

$34.12 IN STOCK

Qty:

American Products Commander Parts

View Parts List

Available Parts:

No Longer Available LID Replace With 4654-04

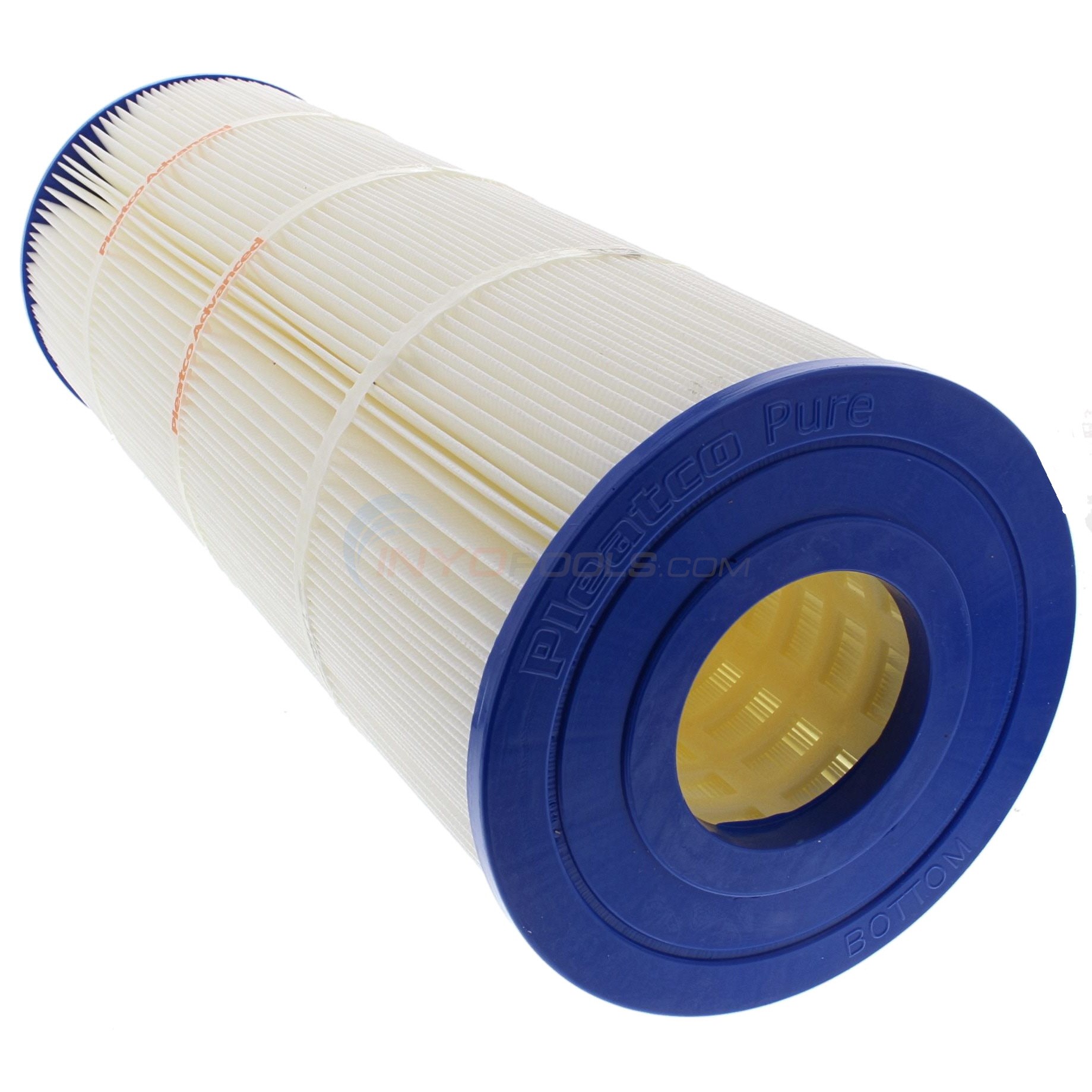

Amer. Commander 100 Generic Cartridge

OBSOLETE, BOTTOM, ALL SIZES

OBSOLETE ROD, 25 & 35 sq.ft.

OBSOLETE ROD, 50 & 75 sq.ft.

OBSOLETE ROD, 100 sq.ft.

OBSOLETE ROD, 150 sq.ft.

OBSOLETE NUT

OBSOLETE WASHER

No Longer Available DRAIN KNOB Replace With 4662-03B

No Longer Available VALVE Replace With 4655-03D & 2100-08

OBSOLETE AIR BLEED ASSY 25 & 35 SQ FT

OBSOLETE AIR BLEED ASSY 50 & 75 SQ FT

OBSOLETE AIR BLEED ASSY 100 SQ FT

OBSOLETE AIR BLEED ASSY 150 SQ FT

OBSOLETE ADAPTER, FOR 150 sq.ft. CART. (100 sq.ft. before 2/89)
