PoolCo Ultra Clear Sand, 176, 196, 216, 246 Parts

MODELS 176 - 17”, 196 - 19”, 216 - 21”, 246 - 24”

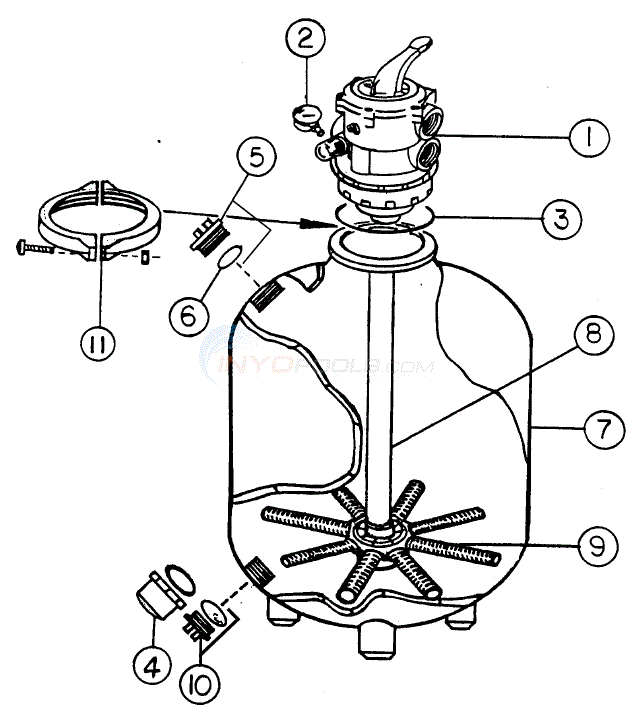

PoolCo Ultra Clear Sand, 176, 196, 216, 246 Diagram

Click to zoom in

Diagram #	Part Title
1	TOP MOUNT VALVE, 6 POSITION (V7)
2	Bottom Mount Pressure Gauge 0-60 1/4" NPT

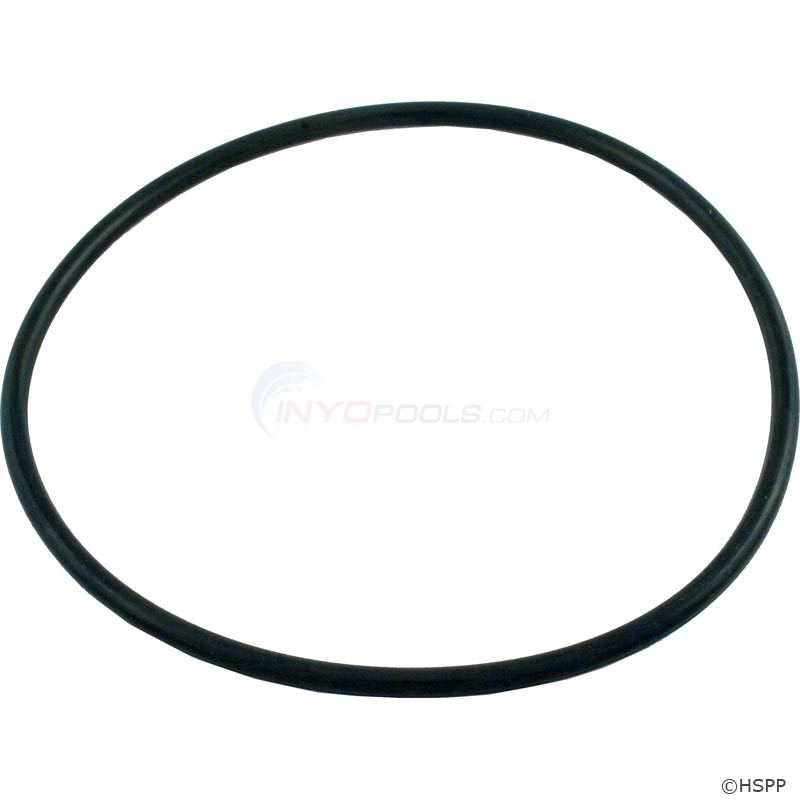

3	O-RING NLA - Replace with 31-102-1100
4	END CAP WITH O-RING (CP-711-01)
5	PLUG With O-RING 1 1/2IN WG (SP1022C)
6	O-RING, 1 3/4IN X 2IN X 1/8IN (4656-09)
7	OBSOLETE 17” ROTO-MOLD TANK, MODEL 176
8	oBSOLETE STANDPIPE With LATERAL ASSY, MODEL 176
9	LATERAL FINGER
10	PLUG With O-RING 1 1/2IN WG (SP1022C)
11	NORYL CLAMP WITH HARDWARE (CP-2061)
11	NORYL CLAMP WITH HARDWARE (CP-2061)

View Parts List

Diagram #	Part Title
1	TOP MOUNT VALVE, 6 POSITION (V7)
2	Bottom Mount Pressure Gauge 0-60 1/4" NPT
3	O-RING NLA - Replace with 31-102-1100
4	END CAP WITH O-RING (CP-711-01)
5	PLUG With O-RING 1 1/2IN WG (SP1022C)
6	O-RING, 1 3/4IN X 2IN X 1/8IN (4656-09)
7	OBSOLETE 17” ROTO-MOLD TANK, MODEL 176
8	oBSOLETE STANDPIPE With LATERAL ASSY, MODEL 176
9	LATERAL FINGER
10	PLUG With O-RING 1 1/2IN WG (SP1022C)
11	NORYL CLAMP WITH HARDWARE (CP-2061)
11	NORYL CLAMP WITH HARDWARE (CP-2061)
