Urbania 12'x18' Oval (Steel Top Rail, Steel Upright) Parts

PURB-CH52SSSTSSFC0

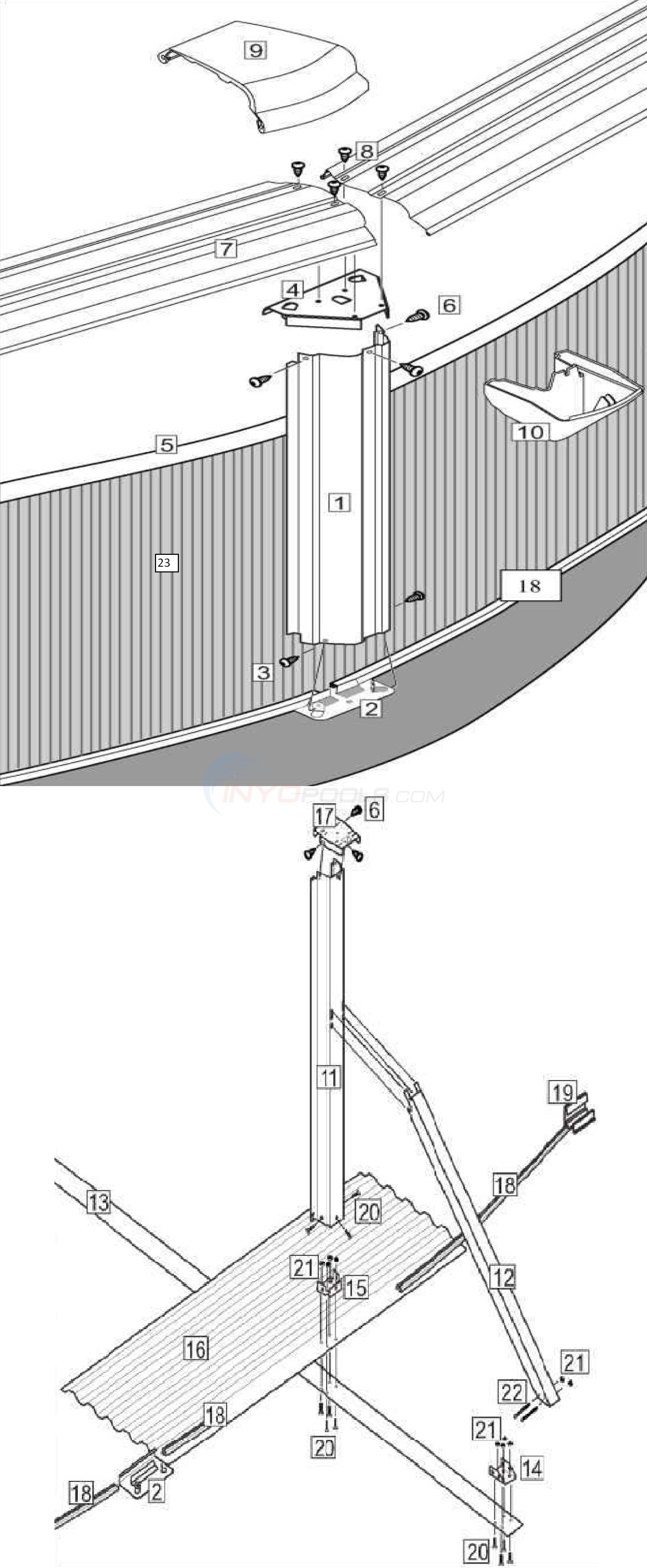

Urbania 12'x18' Oval (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
1	Upright 51-1/2" - Steel (Single)
2	Atlantis Base Plate (Single) For Atlantis, Esprit, Esprit GLX, Urbania, Caribbean, Classic, Evolutio
4	top plate Atlantis, Esprit, Espirt GLX, Urbania, Caribbean, Classic, Evolution, (Single)
5	Slotted Tube (Single)
7	Top Ledge 45-15/32" Urbania (single)
9	Upper Top Cap Urbania (Single)
10	Lower Top Cap Urbania (Single)
11	Upright 51-1/2" Urbania (single)
12	Diagonal Urbania (single)
13	12' Strap X 215.55" For The Atlantis 1510132
14	Diagonal Bracket (SINGLE) For The Aegean And Atlantis
15	Oval Base Plate (SINGLE) For Atlantis Oval Pool
16	Hold Down Plate (SINGLE) For The Atlantis
17	Side Top Plate (SINGLE) For The Atlantis
18	12' Bottom Rail 44-5/8" (Single) For The Atlantis
*	6" slotted tube connector (Single)
*	Resin Slotted Tube (SINGLE) Conn For Atlantic Pools
*	47" Round Coping For Atlantic Pools

View Parts List

Diagram #	Part Title
1	Upright 51-1/2" - Steel (Single)
2	Atlantis Base Plate (Single) For Atlantis, Esprit, Esprit GLX, Urbania, Caribbean, Classic, Evolutio
4	top plate Atlantis, Esprit, Espirt GLX, Urbania, Caribbean, Classic, Evolution, (Single)
5	Slotted Tube (Single)
7	Top Ledge 45-15/32" Urbania (single)
9	Upper Top Cap Urbania (Single)
10	Lower Top Cap Urbania (Single)
11	Upright 51-1/2" Urbania (single)
12	Diagonal Urbania (single)
13	12' Strap X 215.55" For The Atlantis 1510132
14	Diagonal Bracket (SINGLE) For The Aegean And Atlantis
15	Oval Base Plate (SINGLE) For Atlantis Oval Pool
16	Hold Down Plate (SINGLE) For The Atlantis
17	Side Top Plate (SINGLE) For The Atlantis
18	12' Bottom Rail 44-5/8" (Single) For The Atlantis
*	6" slotted tube connector (Single)
*	Resin Slotted Tube (SINGLE) Conn For Atlantic Pools
*	47" Round Coping For Atlantic Pools

Available Parts:

Upright 51-1/2" - Steel (Single)

Part # UR10005

Upright 51-1/2" - Steel (Single)

$129.99 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Atlantis Base Plate (Single) For Atlantis, Esprit, Esprit GLX, Urbania, Caribbean, Classic, Evolutio

Part # 1320101

Atlantis Base Plate (Single) For Atlantis, Esprit, Esprit GLX, Urbania, Caribbean, Classic, Evolutio

$12.99 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

top plate Atlantis, Esprit, Espirt GLX, Urbania, Caribbean, Classic, Evolution, (Single)

Part # 1320102

top plate Atlantis, Esprit, Espirt GLX, Urbania, Caribbean, Classic, Evolution, (Single)

$10.99 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Slotted Tube (Single)

Part # NBP2003 Mfg # 1470096

Slotted Tube (Single)

$15.13 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Slotted Tube (Single)

Part # NBP2005 Mfg # 1470098

Slotted Tube (Single)

$29.99 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Slotted Tube 55-1/4" (4-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

Part # NBP2005-PACK4

Slotted Tube 55-1/4" (4-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

$95.67 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

Slotted Tube 55-1/4" (8-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

Part # NBP2005-PACK8

Slotted Tube 55-1/4" (8-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

$184.74

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Top Ledge 45-15/32" Urbania (single)

Part # TL10002

Top Ledge 45-15/32" Urbania (single)

$66.14

Quantity Per Pool 8

Quantity Per Pool 8

Transition Top Rail 58-1/4"

Part # TL10006

Transition Top Rail 58-1/4"

$99.12

Quantity Per Pool 4

Quantity Per Pool 4

Upper Top Cap Urbania (Single)

Part # LC10004

Upper Top Cap Urbania (Single)

$20.80 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Lower Top Cap Urbania (Single)

Part # LC10005

Lower Top Cap Urbania (Single)

$5.76

Quantity Per Pool 10

Quantity Per Pool 10

Lower Top Cap Urbania - for Buttress Only (Single)

Part # LC10006

Lower Top Cap Urbania - for Buttress Only (Single)

$15.21

Quantity Per Pool 2

Quantity Per Pool 2

Upright 51-1/2" Urbania (single)

Part # CL10000

Upright 51-1/2" Urbania (single)

$145.94

Quantity Per Pool 2

Quantity Per Pool 2

Diagonal Urbania (single)

Part # CL10001

Diagonal Urbania (single)

$120.74

Quantity Per Pool 2

Quantity Per Pool 2

12' Strap X 215.55" For The Atlantis 1510132

Part # NBP2140 Mfg # 1510132

12' Strap X 215.55" For The Atlantis 1510132

$41.99 IN STOCK

Quantity Per Pool 1

Quantity Per Pool 1

Qty:

Diagonal Bracket (SINGLE) For The Aegean And Atlantis

Part # NBP2062 Mfg # 1320152

Diagonal Bracket (SINGLE) For The Aegean And Atlantis

$44.09

Quantity Per Pool 2

Quantity Per Pool 2

Oval Base Plate (SINGLE) For Atlantis Oval Pool

Part # NBP2020 Mfg # 1320154

Oval Base Plate (SINGLE) For Atlantis Oval Pool

$5.24 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

Hold Down Plate (SINGLE) For The Atlantis

Part # NBP2117 Mfg # 1320162

Hold Down Plate (SINGLE) For The Atlantis

$123.89

Quantity Per Pool 2

Quantity Per Pool 2

Side Top Plate (SINGLE) For The Atlantis

Part # NBP2116 Mfg # 1320160

Side Top Plate (SINGLE) For The Atlantis

$6.29 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

12' Bottom Rail 44-5/8" (Single) For The Atlantis

Part # NBP2128 Mfg # 1460048

12' Bottom Rail 44-5/8" (Single) For The Atlantis

$40.03 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

18' Bottom Rail 56-1/4" (Single) For The Atlantis 1460050

Part # NBP2130 Mfg # 1460050

18' Bottom Rail 56-1/4" (Single) For The Atlantis 1460050

$31.49 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

18' Bottom Rail 56-1/4" (4-PACK) For The Atlantis 1460050

Part # NBP2130-PACK4

18' Bottom Rail 56-1/4" (4-PACK) For The Atlantis 1460050

$92.36 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

18' Bottom Rail 56-1/4" (8-PACK) For The Atlantis 1460050

Part # NBP2130-PACK8

18' Bottom Rail 56-1/4" (8-PACK) For The Atlantis 1460050

$149.04

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

12' Bottom Rail 44-5/8" (4-PACK) 1460048 For The Atlantis LIMITED QUANTITY AVAILABLE -THEN NLA!

Part # NBP2128-PACK4

12' Bottom Rail 44-5/8" (4-PACK) 1460048 For The Atlantis LIMITED QUANTITY AVAILABLE -THEN NLA!

$129.24 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

12' Bottom Rail 44-5/8" (8-PACK) 1460048 For The Atlantis LIMITED QUANTITY AVAILABLE -THEN NLA!

Part # NBP2128-PACK8

12' Bottom Rail 44-5/8" (8-PACK) 1460048 For The Atlantis LIMITED QUANTITY AVAILABLE -THEN NLA!

$233.02

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

6" slotted tube connector (Single)

Part # 1470108

6" slotted tube connector (Single)

$14.99 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Resin Slotted Tube (SINGLE) Conn For Atlantic Pools

Part # NBP2002 Mfg # 1470087

Resin Slotted Tube (SINGLE) Conn For Atlantic Pools

$4.69 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

47" Round Coping For Atlantic Pools

Part # NBP2001

47" Round Coping For Atlantic Pools

$20.36 IN STOCK

Quantity Per Pool 13

Quantity Per Pool 13

Qty:
