Waterway Carefree Sand Filter Parts

Also sold as under the Proline name by NAMCO, Watson's, Millennium (Ultimate Granular Filtration) and Premium Blue.

Waterway Carefree Sand Filter Diagram

Click to zoom in

Diagram #	Part Title
3	REPLACEMENT VALVE, NEW STYLE, AFTER 2001
4	Bottom Mount Pressure Gauge 0-60 1/4" NPT
5	O-RING, MULTIPORT (SPLIT-NUT STYLE)
6	THREADED SLEEVE ASSEMBLY
7	SAND FILL GUIDE
8	LATERALS & MANIFOLD FOR 16
9	LATERAL, WATERWAY
10	DRAIN ASSY. (505-2020)
11	DRAIN CAP ASSY. 1 1/2" BODY
14	O-RING, FITS WATERWAY MPV
15	ADAPTER, 1 1/2" BUTRESS x 1 1/2" MPT (417-4161)
16	GASKET, 1-1/2" UNION (711-4000)
17	RETURN SWEEP ASSY
20	UNION HOSE ASSY FITS 16" SAND FILTER TO PUMP (30")
21	GASKET, 2" UNION (711-4010)
22	WASTE ADAPTER
24	COLLAR WRENCH
26	DRAIN SCREEN
27	O-RING, FITS WATERWAY MPV
28	Drain Screen Cap
*	Hose, Corrugated Black (872-9002)

View Parts List

Diagram #	Part Title
3	REPLACEMENT VALVE, NEW STYLE, AFTER 2001
4	Bottom Mount Pressure Gauge 0-60 1/4" NPT
5	O-RING, MULTIPORT (SPLIT-NUT STYLE)
6	THREADED SLEEVE ASSEMBLY
7	SAND FILL GUIDE
8	LATERALS & MANIFOLD FOR 16
9	LATERAL, WATERWAY
10	DRAIN ASSY. (505-2020)
11	DRAIN CAP ASSY. 1 1/2" BODY
14	O-RING, FITS WATERWAY MPV
15	ADAPTER, 1 1/2" BUTRESS x 1 1/2" MPT (417-4161)
16	GASKET, 1-1/2" UNION (711-4000)
17	RETURN SWEEP ASSY
20	UNION HOSE ASSY FITS 16" SAND FILTER TO PUMP (30")
21	GASKET, 2" UNION (711-4010)
22	WASTE ADAPTER
24	COLLAR WRENCH
26	DRAIN SCREEN
27	O-RING, FITS WATERWAY MPV
28	Drain Screen Cap
*	Hose, Corrugated Black (872-9002)

Available Parts:

REPLACEMENT VALVE, NEW STYLE, AFTER 2001

Part # 4742-010 Mfg # WVS003

REPLACEMENT VALVE, NEW STYLE, AFTER 2001

$147.99 IN STOCK

Qty:

Valve, Clamp Style, 2001 And Previous (wvs2002)

Part # 4742-01 Mfg # WVS002

Valve, Clamp Style, 2001 And Previous (wvs2002)

$109.99 IN STOCK

Qty:

Bottom Mount Pressure Gauge 0-60 1/4" NPT

Part # 4726-0 Mfg # 101D-204D

Bottom Mount Pressure Gauge 0-60 1/4" NPT

$14.85 IN STOCK

Qty:

O-RING, MULTIPORT (SPLIT-NUT STYLE)

Part # 4742-22 Mfg # 805-0435

O-RING, MULTIPORT (SPLIT-NUT STYLE)

$24.04 IN STOCK

Qty:

THREADED SLEEVE ASSEMBLY

Part # 4742-24 Mfg # 505-3000

THREADED SLEEVE ASSEMBLY

$39.79 IN STOCK

Qty:

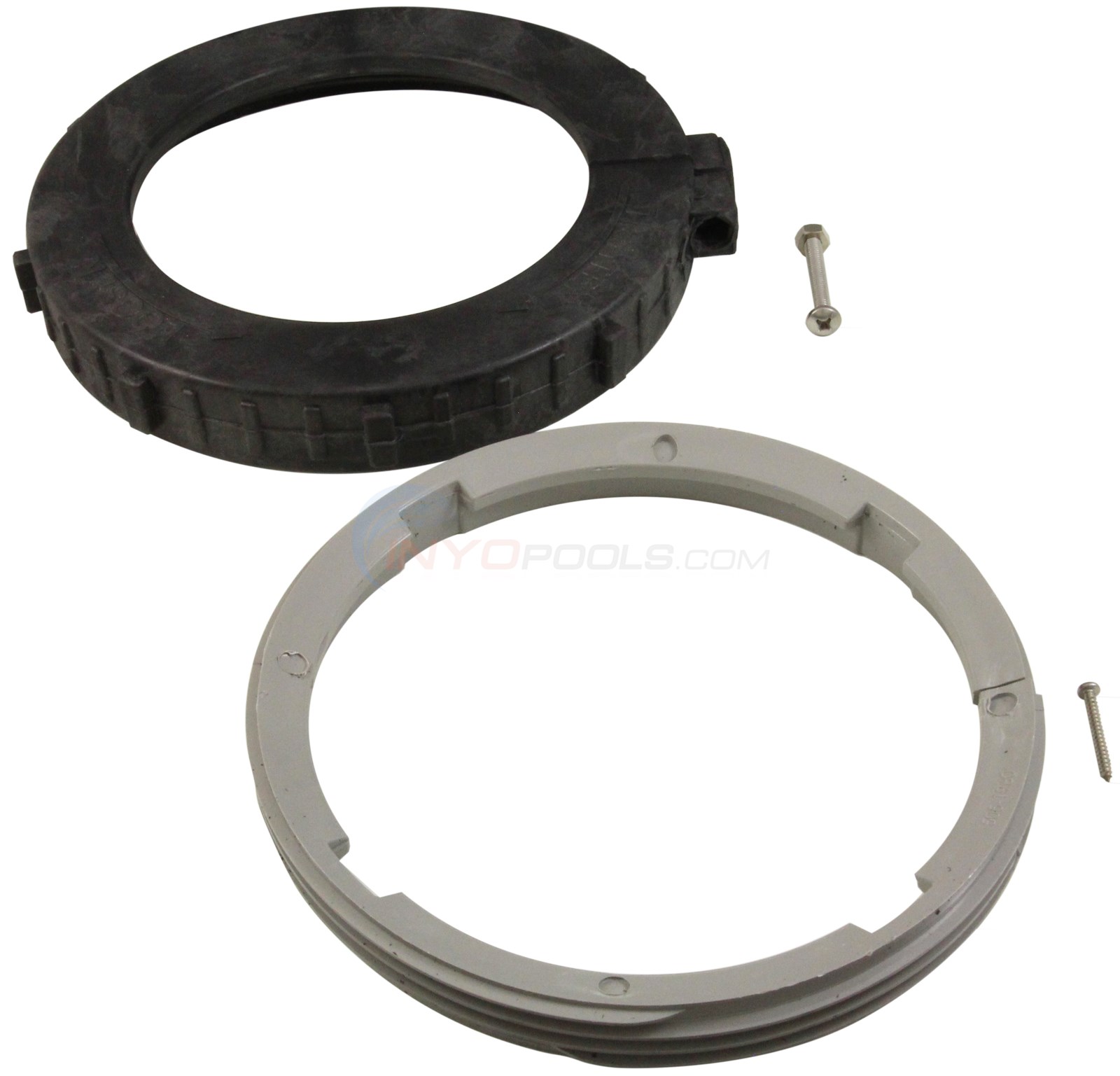

SPLIT NUT, CLEARWATER SAND FILTER

Part # 4742-31 Mfg # 505-3010

SPLIT NUT, CLEARWATER SAND FILTER

$21.99 IN STOCK

Qty:

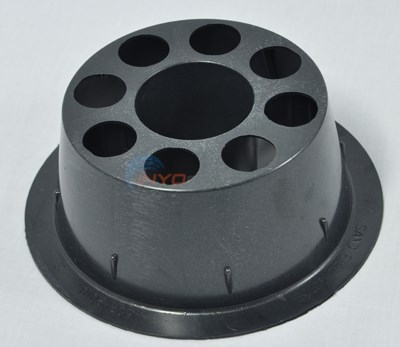

SAND FILL GUIDE

Part # 4742-141 Mfg # 502-2111

SAND FILL GUIDE

$17.99 IN STOCK

Qty:

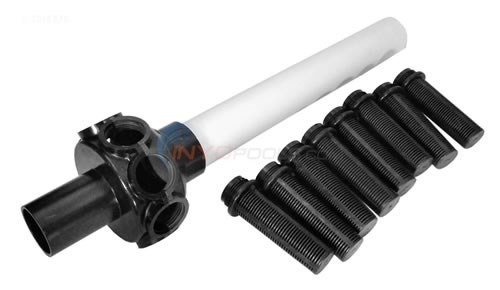

LATERALS & MANIFOLD FOR 16

Part # 4742-142 Mfg # 505-2140

LATERALS & MANIFOLD FOR 16

$98.99

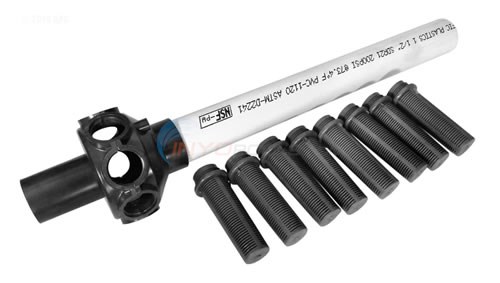

LATERALS & MANIFOLD FOR 19

Part # 4742-143 Mfg # 505-2150B

LATERALS & MANIFOLD FOR 19

$84.11 IN STOCK

Qty:

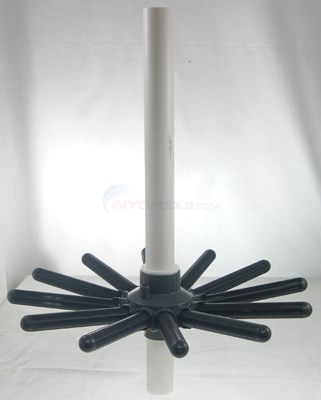

LATERALS & MANIFOLD FOR 22

Part # 4742-144 Mfg # 505-2160

LATERALS & MANIFOLD FOR 22

$89.99 IN STOCK

Qty:

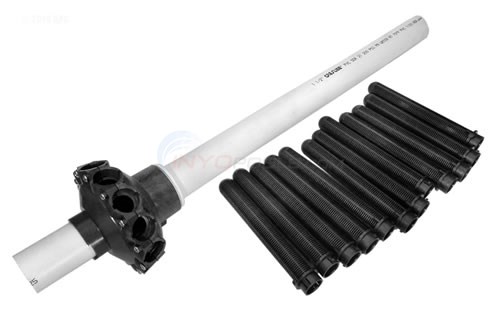

LATERALS & MANIFOLD FOR 26

Part # 4742-145 Mfg # 505-2180

LATERALS & MANIFOLD FOR 26

$105.01 IN STOCK

Qty:

LATERAL, WATERWAY

Part # 4742-07 Mfg # 505-1930

LATERAL, WATERWAY

$22.99 IN STOCK

Qty:

DRAIN ASSY. (505-2020)

Part # 4742-09 Mfg # 505-2020B

DRAIN ASSY. (505-2020)

$15.99 IN STOCK

Qty:

DRAIN CAP ASSY. 1 1/2" BODY

Part # 4742-10 Mfg # 505-2030

DRAIN CAP ASSY. 1 1/2" BODY

$17.74 IN STOCK

Qty:

O-RING, FITS WATERWAY MPV

Part # 4742-38 Mfg # 805-0224

O-RING, FITS WATERWAY MPV

$10.73 IN STOCK

Qty:

ADAPTER, 1 1/2" BUTRESS x 1 1/2" MPT (417-4161)

Part # 4742-39 Mfg # 417-4161B

ADAPTER, 1 1/2" BUTRESS x 1 1/2" MPT (417-4161)

$11.44 IN STOCK

Qty:

GASKET, 1-1/2" UNION (711-4000)

Part # 9175-16 Mfg # 711-4000B

GASKET, 1-1/2" UNION (711-4000)

$5.99 IN STOCK

Qty:

RETURN SWEEP ASSY

Part # 4742-138 Mfg # 550-1841

RETURN SWEEP ASSY

$32.27 IN STOCK

Qty:

UNION HOSE ASSY FITS 16" SAND FILTER TO PUMP (30")

Part # 4742-41 Mfg # 550-1801

UNION HOSE ASSY FITS 16" SAND FILTER TO PUMP (30")

$62.11

UNION HOSE ASS'Y, 19" SAND FILTER (32" LONG)

Part # 4742-42 Mfg # 550-1811

UNION HOSE ASS'Y, 19" SAND FILTER (32" LONG)

$71.35 IN STOCK

Qty:

UNION HOSE ASS'Y 22" SAND FILTER (35" LONG)

Part # 4742-43 Mfg # 550-1821

UNION HOSE ASS'Y 22" SAND FILTER (35" LONG)

$59.99 IN STOCK

Qty:

UNION HOSE ASS'Y 26" SAND FILTER

Part # 4742-44 Mfg # 550-1831

UNION HOSE ASS'Y 26" SAND FILTER

$96.89 IN STOCK

Qty:

GASKET, 2" UNION (711-4010)

Part # 9175-17 Mfg # 711-4010B

GASKET, 2" UNION (711-4010)

$4.99 IN STOCK

Qty:

WASTE ADAPTER

Part # 4742-20 Mfg # 425-1928

WASTE ADAPTER

$34.49 IN STOCK

Qty:

COLLAR WRENCH

Part # 4742-46 Mfg # 505-1970

COLLAR WRENCH

$44.83 IN STOCK

Qty:

DRAIN SCREEN

Part # 4742-146 Mfg # 602-5310

DRAIN SCREEN

$14.99 IN STOCK

Qty:

O-RING, FITS WATERWAY MPV

Part # 4742-38 Mfg # 805-0224

O-RING, FITS WATERWAY MPV

$10.73 IN STOCK

Qty:

Drain Screen Cap

Part # 4742-147 Mfg # 602-5301

Drain Screen Cap

$17.99 IN STOCK

Qty:

Hose, Corrugated Black (872-9002)

Part # 4742-40 Mfg # 872-9002B

Hose, Corrugated Black (872-9002)

$21.99 IN STOCK

Qty:

*Not Shown
