$305.00

Qty:

By Century Motors


Details

Top

Part # BN34V1

Warranty 1 Year

Dimensions 10-1/4" x 8-1/2"

Alternate Part #'s 165180, 17523, 176379, 177783, 177865, 181328, 181328PJ, 181495, 182715, 182859, 184168, 186267, 1D164, 41001, 5U149, 7-186267-01, 90100448, agh15fl2cs, AOSBN34V1, B034, BN34, C1280, C1326, F48AD44A01, S48B59A01, S48M2A10A1, SP1515Z2EBK3, SPH15FL2, CRMBN34V1

Product Description

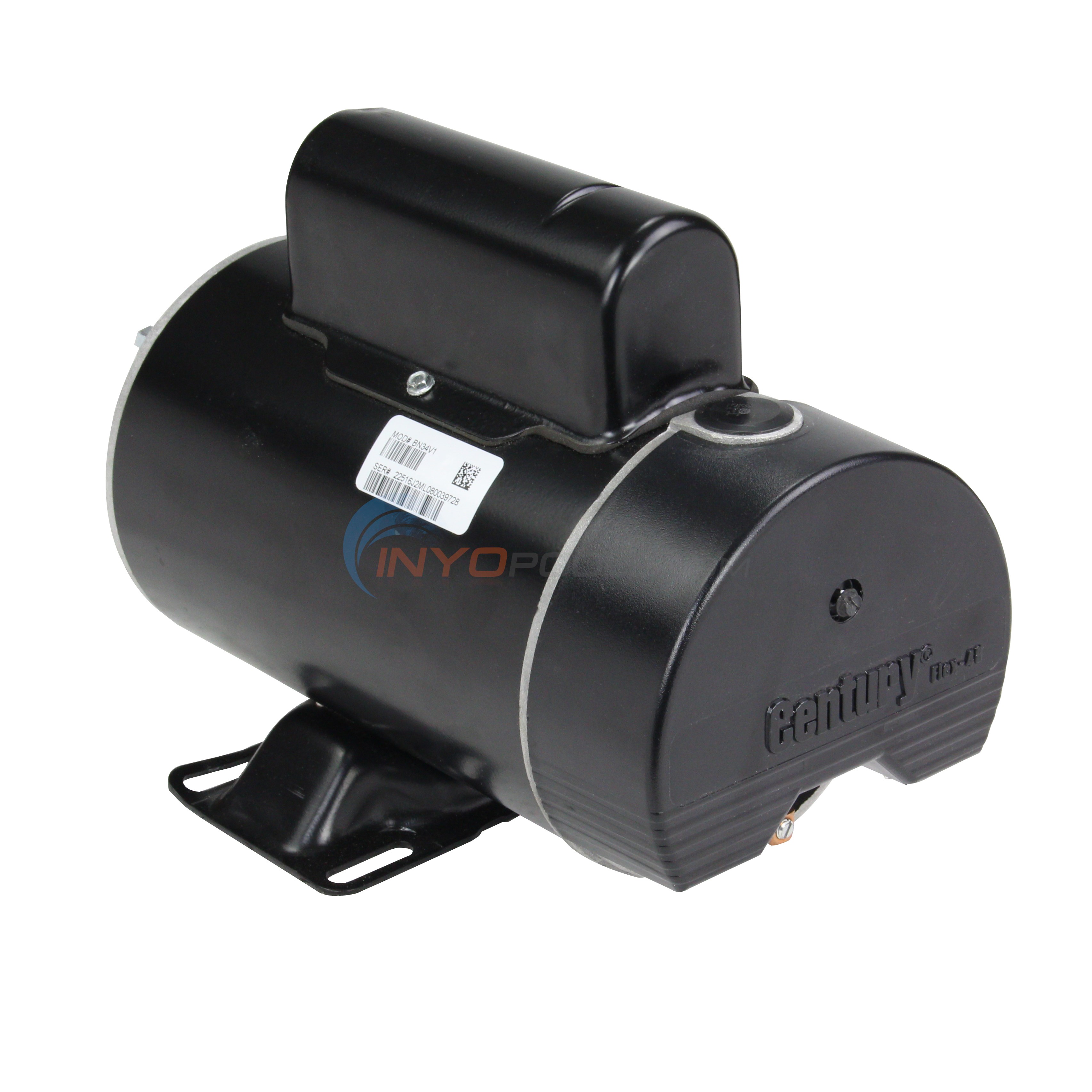

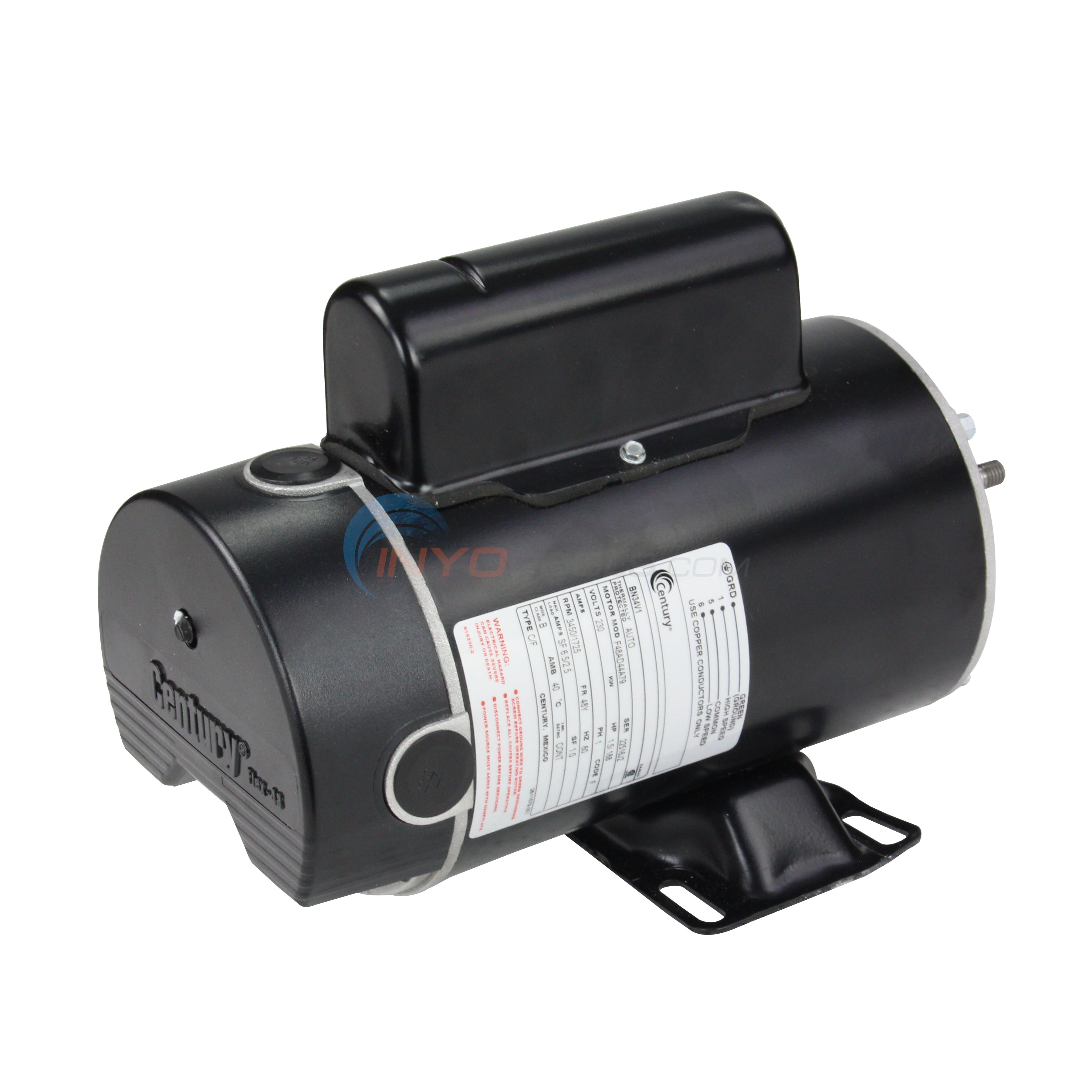

Century 1.5 HP Thru-Bolt 48Y Dual Speed 230V Motor - BN34V1

Application: Above Ground Pools & Spas Replaces: Sta-Rite, Hayward, American Products, Hydra Bath, Pac Fab, Jacuzzi, Doughboy, Etc... Features: All copper windins, Auto protector, Open drip proof, Stainless steel threaded shaft, Thrubolt pump mount, "1081" design, 60 HZ , 230V, HP = 1.5 High Speed / .188 Low Speed, Full load Amps = 6.5 High speed / 2.5 Low Speed, Frame 48Y, Threaded Shaft

**NOTE THIS MOTOR IS SHIPPED LESS HI-LO SWITCH. YOU MAY PURCHASE THE HI-LO SWITCH SEPARATELY BY ORDERING PART # 18313301.**

Note: NOT California Title 20 Compliant.

Product Specifications

HP:
1.5 HP
Frame:
48Y
Volts:
230 V
Speed:
Dual
Amps:
6.5/2.5 amp
Service Factor:
1.0
Total HP:
1.5 HP
Manufacturer:
Century (A.O. Smith)
Shaft:
Threaded
Flange:
Thru Bolt
RPM:
3450/1750 RPM
Phase:
Single
Top

?     Asked on 1/18/2012by Guest

Can you direct me to the proper hi low switch for this motor?
 Reply

A  Answered on 1/18/2012 by InyoPools Product Specialist Patrick P.

Unfortunately the manufacturer does not offer the switch for the 2 speed 220v motors any longer. If you already have a 220 volt timer (on/off) you would need an Intermatic T106R to switch from high to low speed. If you do not have a timer currently you would need the T10604R which is a 220v on/off timer and a high/low timer.
 Reply
