$11.11

Qty:

By Pureline


Details

Top

Part # PL1643

Product Description

PL1643 PureLine Pump Union

This pump union is used on the PureLine Pure Flow Pumps (PL16 Series) and PureLine Pure Pro XL Pumps (PL15 Series). The 1-1/2" male union threads screw into the female threads of the pump ports, or you can remove the male portion of the union and screw the union nut onto the male threads of the pump ports.

Unions will really make your life easier if you need to do any maintenance on your pump as you simply unscrew the union to remove your pump from your plumbing. The alternative without unions is to cut your plumbing to remove the pump and then when the pump needs to go back into place you have to re-plumb and glue. Unions are a necessity if you will be removing your pump from your plumbing during the winter.

Union Benefits

  • Easy servicing of pump
  • No cutting or replumbing of pipe for servicing
  • Great for removing pump in winter
  • Quick disconnect

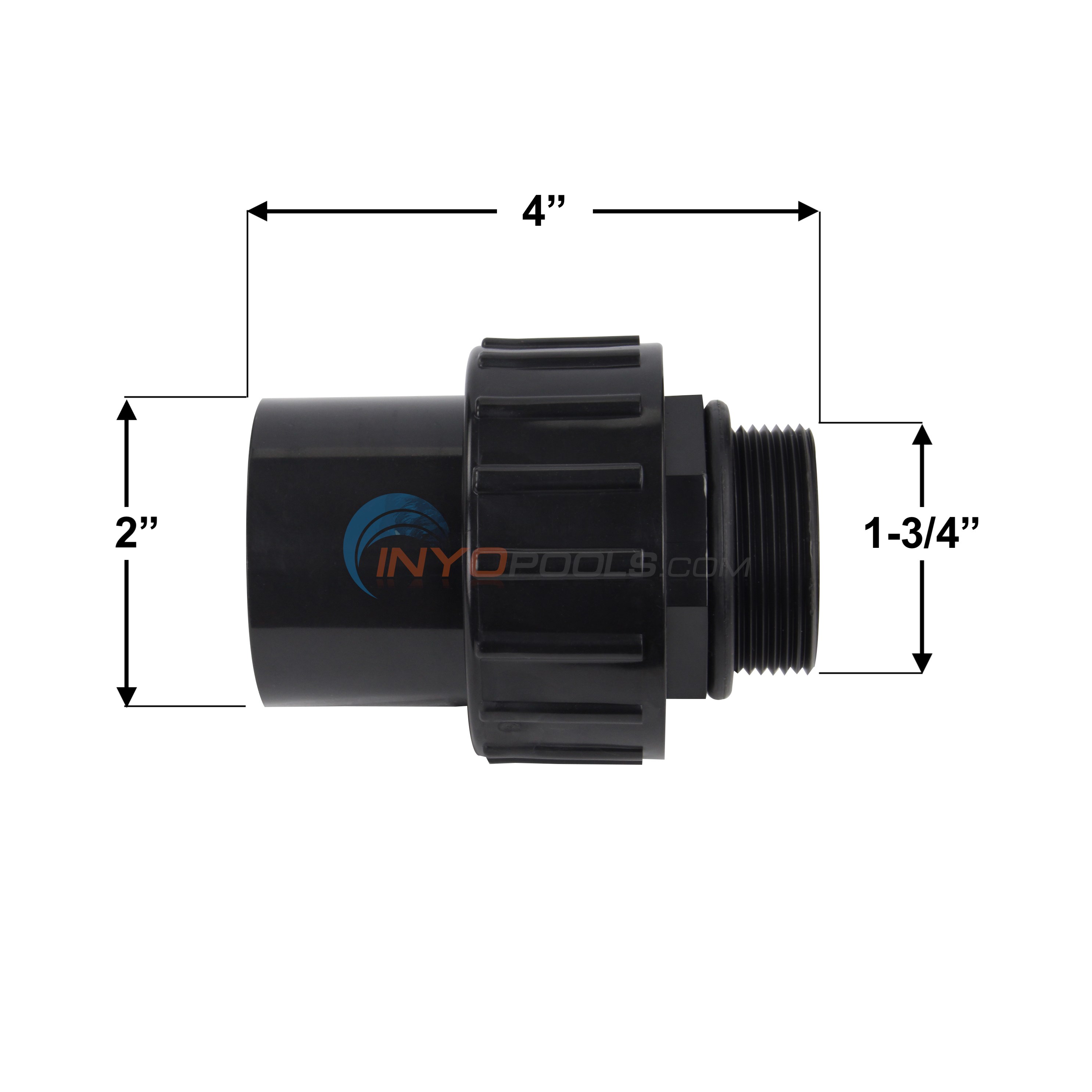

Union Specifications

  • 1.5" Male Threads
  • 1.5" Female Threads on Nut
  • Used on PureLine Pure Pro XL Pump (PL15 Series)
  • Used on PureLine Pure Flow Pump (PL16 Series)

Disclaimer:

All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.

Product Specifications

Manufacturer:
Pureline
Top

?     Asked on 5/23/2015by Bruce

Is this Union threaded?
 Reply

A  Answered on 5/23/2015 by InyoPools Product Specialist Patrick P.

Hi Bruce, Yes this union is threaded.
 Reply


?     Asked on 6/27/2015by Inyo Visitor

What is the union for?
 Reply

A  Answered on 6/28/2015 by InyoPools Product Specialist Lennox H.

Hi, The Pump Union is to easily remove and install the pump for repairs and or maintenance work. That way you do not have to cut any pipe, you will unscrew the union.
 Reply


?     Asked on 3/17/2016by Patty

Will this union work on a Hayward SP1750 pump?
 Reply

A  Answered on 3/17/2016 by InyoPools Product Specialist Hector F.

No that union would not work for that model pump. You can use this union 9392D.
 Reply


?     Asked on 8/4/2020by Dave Hopkins

Will This work on a Flow Xtreme NE4515 pump. or is there a female thread / 1-1/2" slip fitting that threads directly onto pump threads
 Reply

A  Answered on 8/5/2020 by InyoPools Product Specialist Patrick P.

Hi Dave, Yes, it is compatible with Flow Xtreme NE4515 pump. It is both compatible with the internal inlet & outlet thread and the external inlet & outlet thread by taking some parts off from the union.
 Reply


?     Asked on 4/26/2021by Jim

Will this work with the Hayward super pump for Hayward Multiflow Valve?
 Reply

A  Answered on 4/28/2021 by InyoPools Product Specialist Robert M.

The PL1643 union will work with the Super Pump and multiport valve as long as they have 1.5" ports. The Hayward Super pumps that are less than 2HP should have 1.5" ports. Hayward multiport valves with numbers like SP710 and SP714 would have 1.5" ports.
 Reply
