PER THE MANUFACTURER: THIS ITEM IS NOT AVAILABLE FOR SALE ONLINE

By Hayward Pool Products


Details

Top

Model # SP0581S50

Warranty 1 Year on Parts

Alternate Part #'s HAY-30-725, HAYSP0581S50

Product Description

Hayward AstroLite

Available in a choice of attractive face rim models, from an injection-molded patterned design, made of rugged, non-corrosive glass-filled polypropylene; to a smooth, machine-polished stainless steel design, AstroLite Series light fixtures come standard in a wide range of voltages, wattages, and cord lengths to satisfy virtually any installation. Combined with Hayward`s niches, no other pool lighting system provides such value.

SP058015 AstroLite (thermoplastic)
SP0583SL30 AstroLite (stainless steel)

Features

  • Patterned, thermoplastic or smooth, stainless steel face rim designs for corrosion-free performance
  • E-Z Lock™ clamp and reflector assembly for simple relamping
  • Blue lens available on SP0584 and SP0583 with stainless faceplace only. 30', 50', and 100' cord lengths.
  • 12 Volt, 100 and 300 Watt, 120 Volt, 300, 400, and 500 Watt models for any installation requirement
    100% tested for safety and quality assurance
  • U.L. Listed for fresh water (Guide No. WBDT. File No E39338)

Product Notes

Note: AstroLite Series light fixtures mount in the following fixture housings (niches) only:
SP0600U/SP0600 DuraNiche Concrete
SP0607U/SP0607 DuraNiche Vinyl/Fiberglass

Dimensions: 10 3/4" Wide and 7 15/16" Deep

1 Year Warranty on Parts
Note: SP0600 and SP0607 Niches are no longer manufactured.

Click here for more Hayward Astrolite

Product Specifications

Watts:
300 W
Volts:
12 V
Cord Length:
50 ft.
Top

?     Asked on 6/1/2006by Guest

Is it possible to replace the light housing while using the existing electric cable?
 Reply

A  Answered on 6/1/2006 by InyoPools Product Specialist Patrick P.

You cannot use your existing light cable.  You will need to pull the new cord through the conduit on the new light.
 Reply


?     Asked on 6/8/2006by Guest

Can I buy just the stainless steel face ring for this pool light?
 Reply

A  Answered on 6/8/2006 by InyoPools Product Specialist Patrick P.

Yes you can. Here is a parts breakdown for the Astrolite: Hayward Astrolite Parts BreakdownFind the part that you are looking for and our item #. Then go back to our home page Inyo Pool Products and enter our item # into the search box located on the upper left hand side of the page. This will bring up the part including the price. You can then add it to your shopping cart.
 Reply


?     Asked on 3/12/2015by mahmoud badih

Is the face rim stainless steel 314 or 308?
 Reply

A  Answered on 3/17/2015 by InyoPools Product Specialist Robert M.

Hell Mahmoud - Hayward uses 304 stainless steel on the face rims.
 Reply


?     Asked on 6/7/2019by Richard Perry

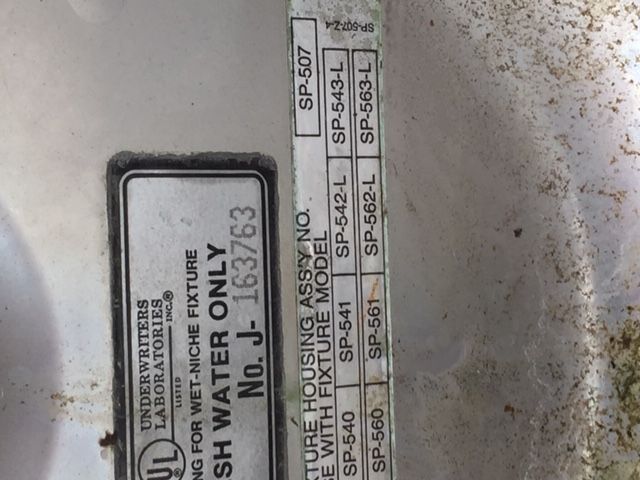

will the Hayward Pool Astrolite 300 Watt 12 Volt 30' Cord (Model #: SP0581S30) fit a SP-507 housing - photo of housing attached

 Reply

A  Answered on 6/7/2019 by InyoPools Product Specialist Lennox H.

Hi, Richard. Unfortunately, it will not. The Hayward DuraLite Fixture is compatible with that niche.
 Reply
