$362.79

Qty:

By Intermatic


Details

Top

Model # RC2343PT

Alternate Part #'s 58-155-3040, INT-30-693, INTRC2343PT, ITMRC2343PT

Product Description

This Air Switch provides wireless control for loads requiring only one circuit. A push button connected to the control box, with a flexible air hose, enables the user to operate a pump, light, heater or blower up to 100 feet away. This air switch can also turn a single speed pump ON and OFF or operate between high speed and low speed of a two-speed pump. An external timer can be added for automatic filter pump operation. The air button and air hose are not included and must be ordered separately

*Intermatic Air Controls are a 3 Part System which require the following 3 items:

  • Air control - The Air control is the heart of the system and is usually placed near the pool equipment. The Air Control can be purchased in several models, a single circuit air control (RC2133P) will control a pump, light, heater or blower up to 100 feet away. This air switch can also turn a single speed pump ON and OFF or operate between high speed and low speed of a two-speed pump. The two circuit air control (RC2233P) allows for two push buttons to be connected to the control box, with two flexible air hoses, enables the user to operate two pieces of equipment up to 100 feet away. The two circuit air control (RC2343PT) is also available with a 24 hour multiple program timer that turns a filter pump ON/OFF several times per day.
  • Air Button - The air button is placed at the side of the pool, spa or hot tub. Each time pressure is applied to the remote air button the connected equipment will operate. The operation, however, can be stopped any time during the cycle by simply pressing the air button.

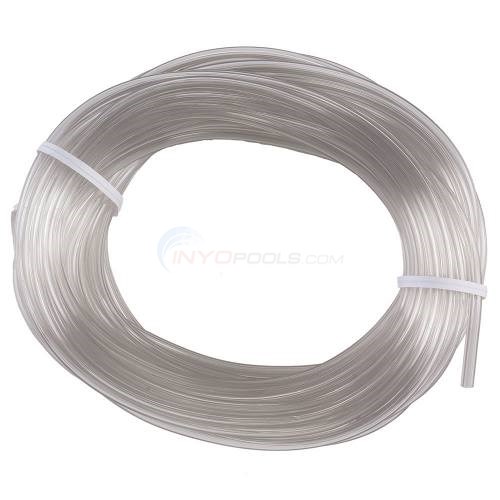

  • Tubing - Tubing is run from the air button to the air control. When the air button is pushed a blast of air travels through the tubing and engages the air control.

The air button and air hose are not included and must be ordered separately

Product Specs
120/240 Volt
DPST Switch
NEMA 3R Case - 9-3/8" (23.8 cm) high x 5-1/2" (14.0 cm) wide x 3-3/4" (9.5 cm) deep
Switch Rating - 20 Amp resistive per pole
Shipping Weight – 4.4 lbs. (2.0 kg)
Agency Approval - CSA/C-US

Applications:
• Filter Pumps
• Jet Pumps
• Lights
• Booster Pumps
• Blowers
• Heaters

Accessories:

  • 156PB10398A      Plastic Tripper, F/p1000 Series(pk Of 2)
  • RC510                    Intermatic Air Tubing Coupler 10 PK
  • RC150                    Intermatic Air Tubing
  • RC6F                      Intermatic Universal Air Button
  • RC4G                     Intermatic Air Button for Gunite Spas
  • RC122B                 Intermatic Air Tubing and RC4G 25 Ft

Click here for more Intermatic Timers

Top

?     Asked on 5/21/2007by Guest

I am replacing an Intermatic RC2301PT, which I can't find. Assuming the 2301 is discontinued, is the RC2343PT the right replacement timer?
 Reply

A  Answered on 5/21/2007 by InyoPools Product Specialist Patrick P.

Yes the RC2343PT would be the direct replacement for the RC2301PT.
 Reply


?     Asked on 4/6/2009by Guest

The timer of my RC2343PT stops working. May I replace just the timer. Do you sell just the replacement timer?
 Reply

A  Answered on 4/6/2009 by InyoPools Product Specialist Patrick P.

Yes we do sell timer replacement for the RC2343PT the timer is available in a digital version (PB313EK) or a mechanical version (PB913N66) You may view or purchase the digital model here http://www.inyopools.com/Products/02400004034198.htm and the mechanical model here http://www.inyopools.com/Products/02400001004523.htm We also carry the complete internal mechanism of the RC2343PT which is the entire unit minus the box, so you would unsnap your current mechanism and replace with the new internal mechanism, this part only comes with a digital timer and can viewed or purchased here http://www.inyopools.com/Products/02400004038360.htm
 Reply


?     Asked on 5/8/2010by Guest

I have a model RC2301PT, It appears that the timer mechanism is faulty. It stopped keeping time and won't trip the on/off circuit. Is this component available?
 Reply

A  Answered on 5/8/2010 by InyoPools Product Specialist Patrick P.

We spoke with our Intermatic rep. and he stated the replacement timer mechanism for the  RC2301PT is the PB913N66 ($44.99) here >http://www.inyopools.com/Products/02400001004523.htm our rep. stated that the original timer mechanism came with wire leads and the new replacement does not so you would have to add your own wire leads to this part. Due to how old the RC2301PT is Intermatic suggested replacing the entire unit with the RC2343PT
 Reply


?     Asked on 11/19/2014by Al Repp

I have a Intermatic model RC2403RT which is not working properly. Is the RC2403RT model still available?
 Reply

A  Answered on 11/19/2014 by InyoPools Product Specialist Robert M.

Hello Al - The Intermatic RC2403RT is no longer available. The RC2403RT was a four function and a single function in one box. The replacement would require two separate pieces. The first is model number RC2343PT and the second is RC2103S.
 Reply


?     Asked on 4/16/2016by Peter Trott

I am replacing a RC2491RT air timer What would be the replacement ???? possibly the RC2343PT ??????
 Reply

A  Answered on 4/20/2016 by InyoPools Product Specialist Lennox H.

Hi Peter, I was unable to locate any info on model no. RC2491RT, I would recommend comparing the spec that we have listed on the RC2343PT to see if it will work as a replacement.
 Reply


Top
Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Adjustable Wrench

0     1

Old Cal Spa 1986 Control Timer Stopped Working

Written on 1/28/2019 by Guest

Removed the old Cal Spa 1986 Control Timer and replaced with the new Intermatic RC2000 Series Air Actuated SPA Controls. Four Function Air Switch with Timer Model RC2343PT - Plastic Outdoor Enclosure Suitable For Pool/SPA Equipment Control. Ratings: 20 AMP (R), 1 HP, 120 Volt, 60 HZ, 20 AMP (R), 2 HP, 240 Volt, 60 HZ. The Wiring Diagrams for 120V or 240V were very easy to follow. Green (Ground), White (Neutral or Common), Black (Hot) and so on.
