Part # 4724

Alternate Part #'s JND4724

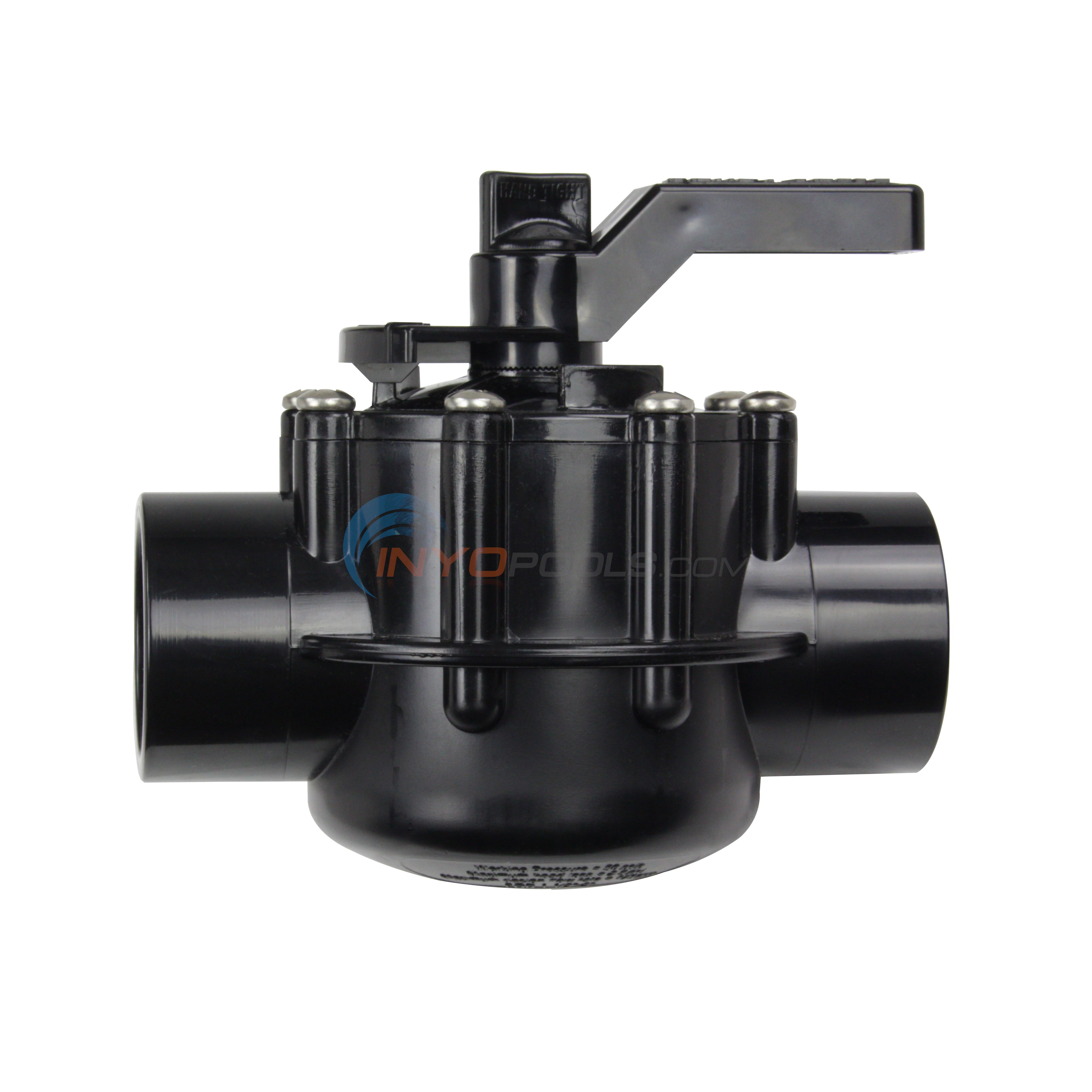

Product Description

Valves are designed for durability and backed by a lifetime guarantee.  Rigorous quality control checks are used to ensure these valves will not leak, break, melt, lose pressure or slip.

Features:

  • Maintenance free
  • Never requires lubrication
  • Designed for easy automation
  • Can be used with a number of valve actuators
  • Innovative 2-port design
  • Ports accept 1-1/2" pipe inside and 2” pipe outside
  • Constructed of temperature and chemical resistant CPVC material



Product Specifications

Inside Diameter:
1 1/2 in.
Valve:
2 Way
Outside Diameter:
2 in.
Top

?     Asked on 4/9/2007by Guest

What is the overall length of this valve, from inlet to outlet?
 Reply

A  Answered on 4/9/2007 by InyoPools Product Specialist Patrick P.

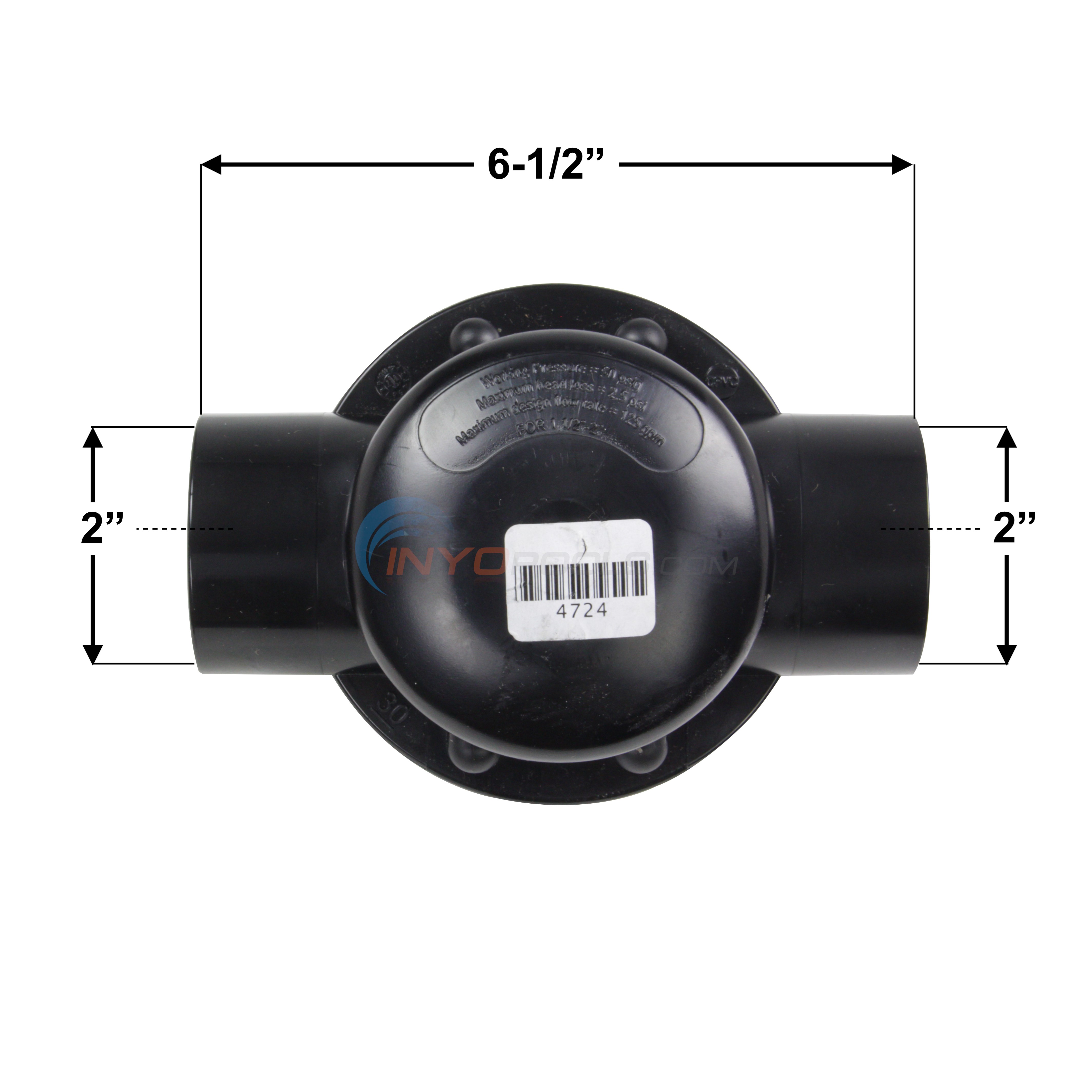

The length is 6.5" from end to end.
 Reply


?     Asked on 1/23/2012by Guest

Why do the Jandy valves list ID and OD for each valve?
 Reply

A  Answered on 1/23/2012 by InyoPools Product Specialist Patrick P.

Each Jandy valve is designed to connect to two different size pipes. For example on a valve shown with ID 1 1/2" and OD 2", a 1 1/2" pipe can be glued inside the port or a 2" pipe can be glued on the outside of the port.
 Reply


?     Asked on 9/23/2014by Guest

I have this valve installed at my pump. I have a lot of air coming out of the pool jets and it doesn't stop. If I rotate the valve to vacuum and back to skimmer, it clears the air immediately. Do you have any suggestions?
 Reply

A  Answered on 9/23/2014 by InyoPools Product Specialist Patrick P.

I would recommend checking the gaskets/o-rings on the valve and pump housing. They may be letting air into the system.
 Reply


?     Asked on 10/24/2015by neil

how to switch off actuator
 Reply

A  Answered on 10/26/2015 by InyoPools Product Specialist Lennox H.

Hi Neil, If you have the Jandy Actuator, you'll have to move toggle switch located on the bottom of actuator to the OFF (center) position.
 Reply


?     Asked on 7/26/2021by jay

can a Jandy+valve leak air into pool ???
 Reply

A  Answered on 7/27/2021 by InyoPools Product Specialist Stephen B.

Thank you for contacting Inyo Pools, Yes a Jandy valve can leak air into a pool if it's on the suction side of the equipment. Jandy Never Lube 2/3 Port Valve O-ring Kit - APCK1166 can solve this problem
 Reply
