$473.34

Qty:

By Pentair Pool Products


Details

Top

Part # 250220203S

Manufacturer Code 25022-0203S

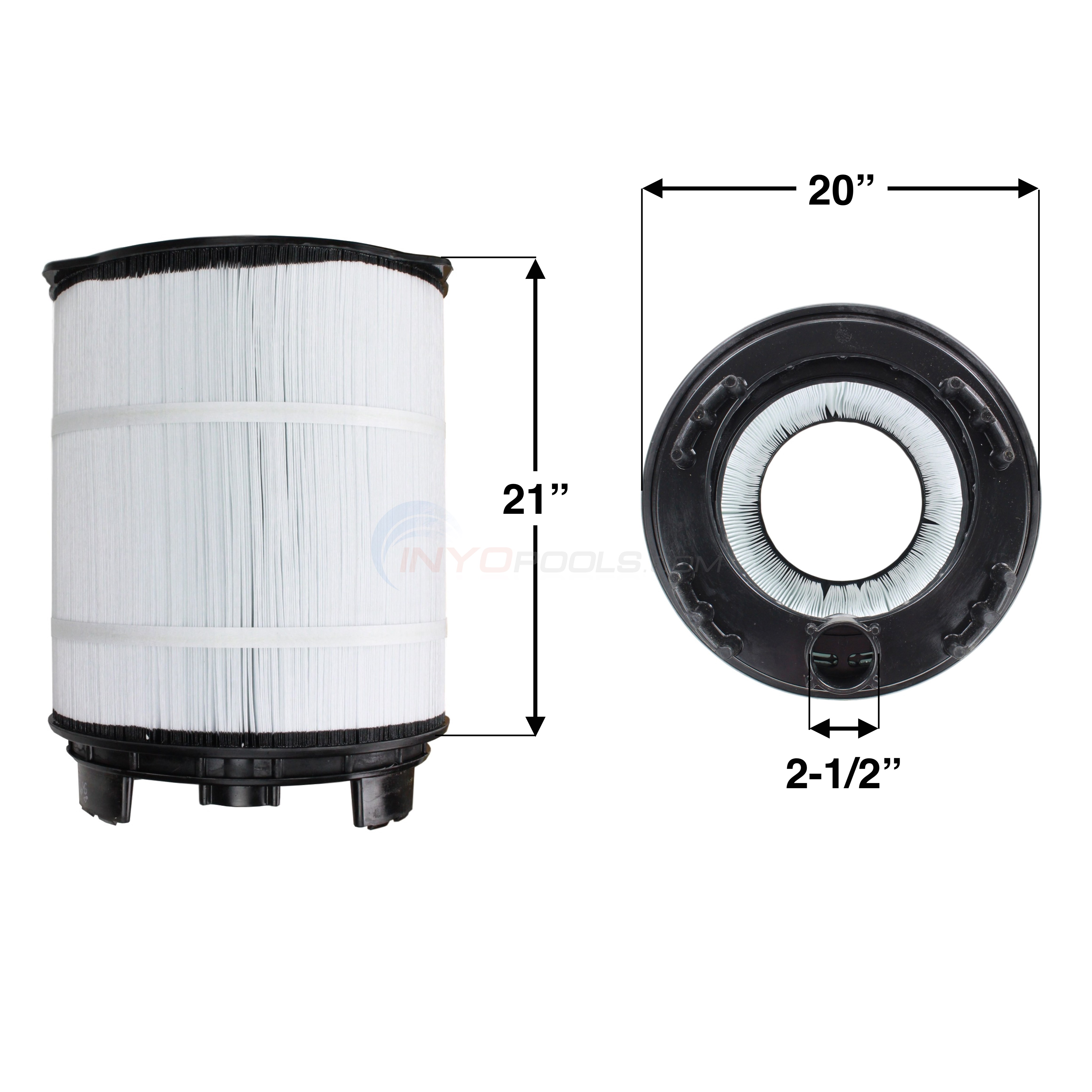

Dimensions 21" L x 20" W x 20" D

Alternate Part #'s 25022-0203S, 25022-0223, PEN250220203S, STA-05-228

Product Description

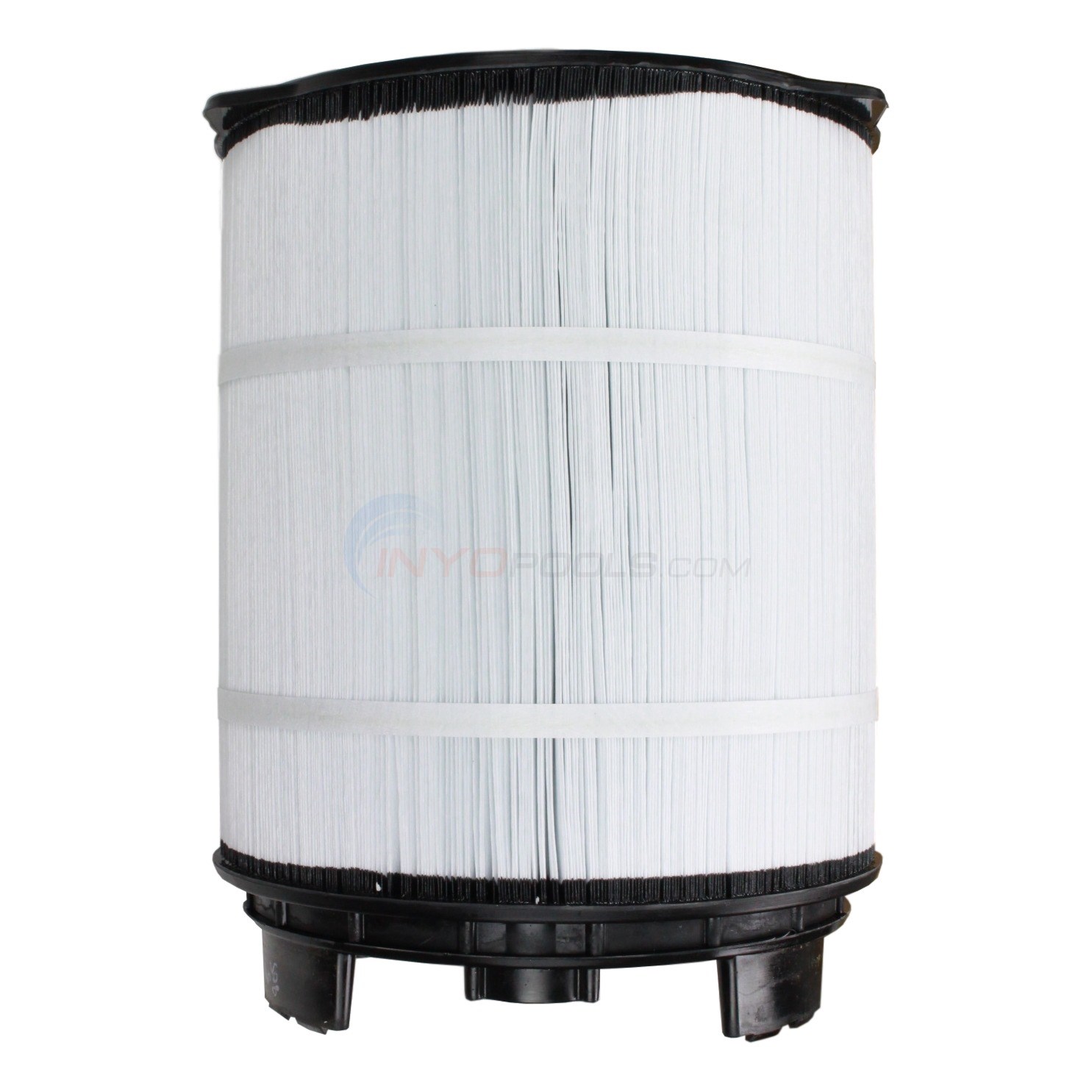

Sta Rite® Pool Filter Cartridges - Purchase a Replacement Cartridge for your Swimming Pool Filter or purchase a spare Cartridge.

Click here for more Sta Rite® Pool Filter Cartridge

Product Specifications

Filter Model:
S8M150 Outer System:3
Filtration Area:
259 sq. ft.
Length:
19-9/16 in.
Diameter:
20-1/8 in.
Top Inside Diameter:
13-9/16 in.
Bottom Inside Diameter:
14-3/8 in.
Top Style:
Open

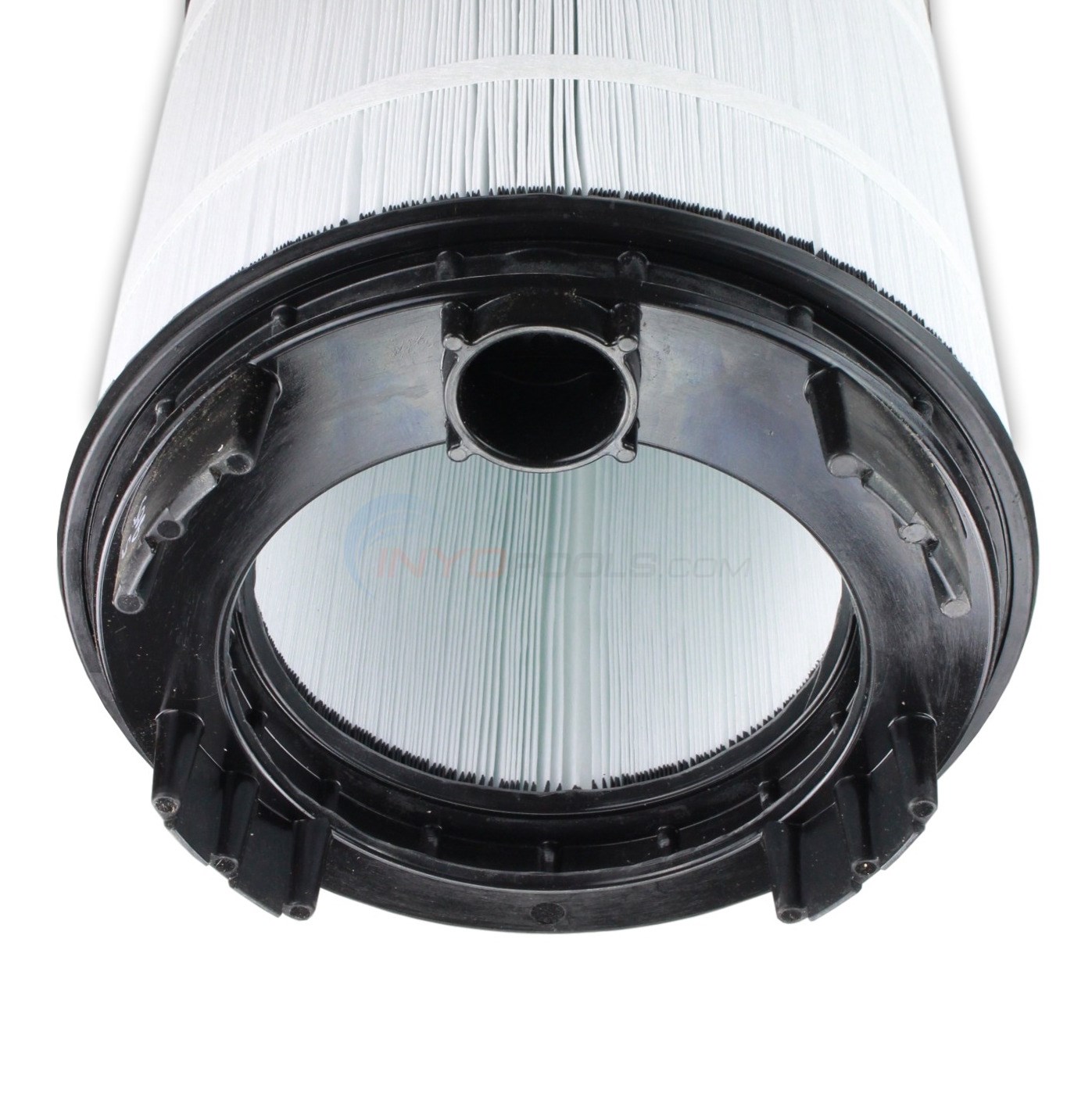

Bottom Style:
Open, Castle
Media Weight:
4 oz.
OEM #:
25022-0203S
OEM:
Yes
Top

?     Asked on 11/25/2016by Em

Is there rule of thumb as to how long set of filters should last? What should I be looking for other than the obvious wear and tear to determine if replacement is necessary? Is it best to replace both filters of a S8M150 at the same time? Current filters are original install, approaching 10 years of year round service.
 Reply

A  Answered on 11/28/2016 by InyoPools Product Specialist Adam Y.

Good morning Em, There is no really set time for an element. The best way to tell if you need one is. You can look at it .If the bands around it are broken that is one sign. If  it looks collapsed or soggy there's another. You can also pressure test it. by running the filter with the element out to see what your operating  pressure should be. Then putting the element back in and seeing how much it has raised. If it raises 5psi or more it can be replaced.
 Reply


?     Asked on 11/3/2017by Andy

Will the S8m600 cartridges interchange with the S8M150?
 Reply

A  Answered on 11/3/2017 by InyoPools Product Specialist Megan C.

Yes, the S8M600 Large Cartridge 25022-0228S will identify/interchange with the Sta-Rite System3 Modular Media S8M150 259 Sq Ft. Outer Replacement Cartridge - 250220203S and the S8M600 Small Cartridge 1 25021-0225S will identify/interchange with the Sta-Rite System3 Modular Media S8M150 191 Sq Ft. Inner Replacement Cartridge - 250210202S
 Reply


?     Asked on 5/20/2018by Greg Hill

My current sta-rite filters are catalog numbers 25201-0222 and 25022-0222. What is the new part number for direct replacements for these two cartridge filters.
 Reply

A  Answered on 5/22/2018 by InyoPools Product Specialist Lennox H.

Hi, Greg. I was unable to cross reference those number to a replacement. If you can provide the filter model, I can use that to locate the replacement cartridges.
 Reply


?     Asked on 11/21/2018by Jeremy

What size of particle will this filter allow to pass? 1 micron? 2 micron? 5 micron? Thank you!
 Reply

A  Answered on 11/27/2018 by InyoPools Product Specialist Steve M.

This filter doesn't have a specific micron rating. However, a normal cartridge filter will filter out between 5 and 20 microns.
 Reply


?     Asked on 4/28/2019by Eric

My OEM filter PNs are 25022-0228S and 25022-0225S and the filter model is S8M600 Will this fit?
 Reply

A  Answered on 4/28/2019 by InyoPools Product Specialist Lennox H.

Hi, Eric. It appears that the parts for your original model are no longer available. You can use the S8M150 cartridges, however, you may have to replace the Elbow and Bulkhead Assembly - 25021-0100
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

None

Old filter

Written on 6/12/2020 by Guest

Easy. Just replace old filter
