By Pentair Pool Products


Details

Top

Part # 6272-55

Manufacturer Code 471750

Dimensions 9.25" L x 3" W x 3" D

Alternate Part #'s 471750, 47-110-1640, PEN471750

Product Description

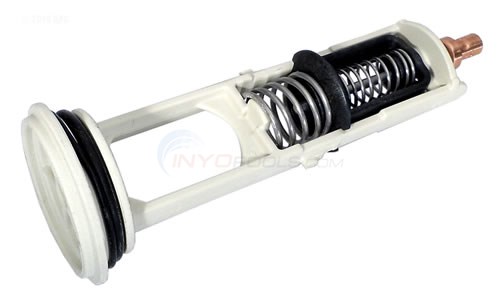

INYO # 6272-55 PENTAIR # 471750 GENERAL DESCRIPTION: THIS IS THE COMPLETE FLOW VALVE ASSEMBLY USED IN THE MINI MAX CH & NT HEATERS THE BASIC FRAME IS MADE OF IVORY PLASTIC THIS IS MADE FROM IVORY COLORED PLASTIC LENGTH: 9-1/8" END DIAMETER: 3" ASSEMBLY INCLUDES: COMPLETE FLOW VALVE WITH SPRING POWER ELEMENT (2) O-RINGS (ONE LARGE DIAMETER AND ONE SMALLER DIAMETER MARKINGS: NO MARKINGS

Top

?     Asked on 4/4/2016by Ernie

how do you install part #471750 flow valve assy
 Reply

A  Answered on 4/5/2016 by InyoPools Product Specialist Megan C.

Hi Ernie, We do not have specific instructions for installing this part. However to install this part you will have to unscrew the Manifold Cap, then insert the Flow Valve Assy into the Manifold with the brass tip away from the cap.
 Reply

  • Commented on 5/29/2020 by Product Owner

    Any specific orientation required? Sideways, parallel, from manifold, etc Also whats is this part for? It was inside the flow valve manifold opening

     Reply
