$74.02

Qty:

By Jandy


Details

Top

Part # 4580-003

Manufacturer Code R0357200

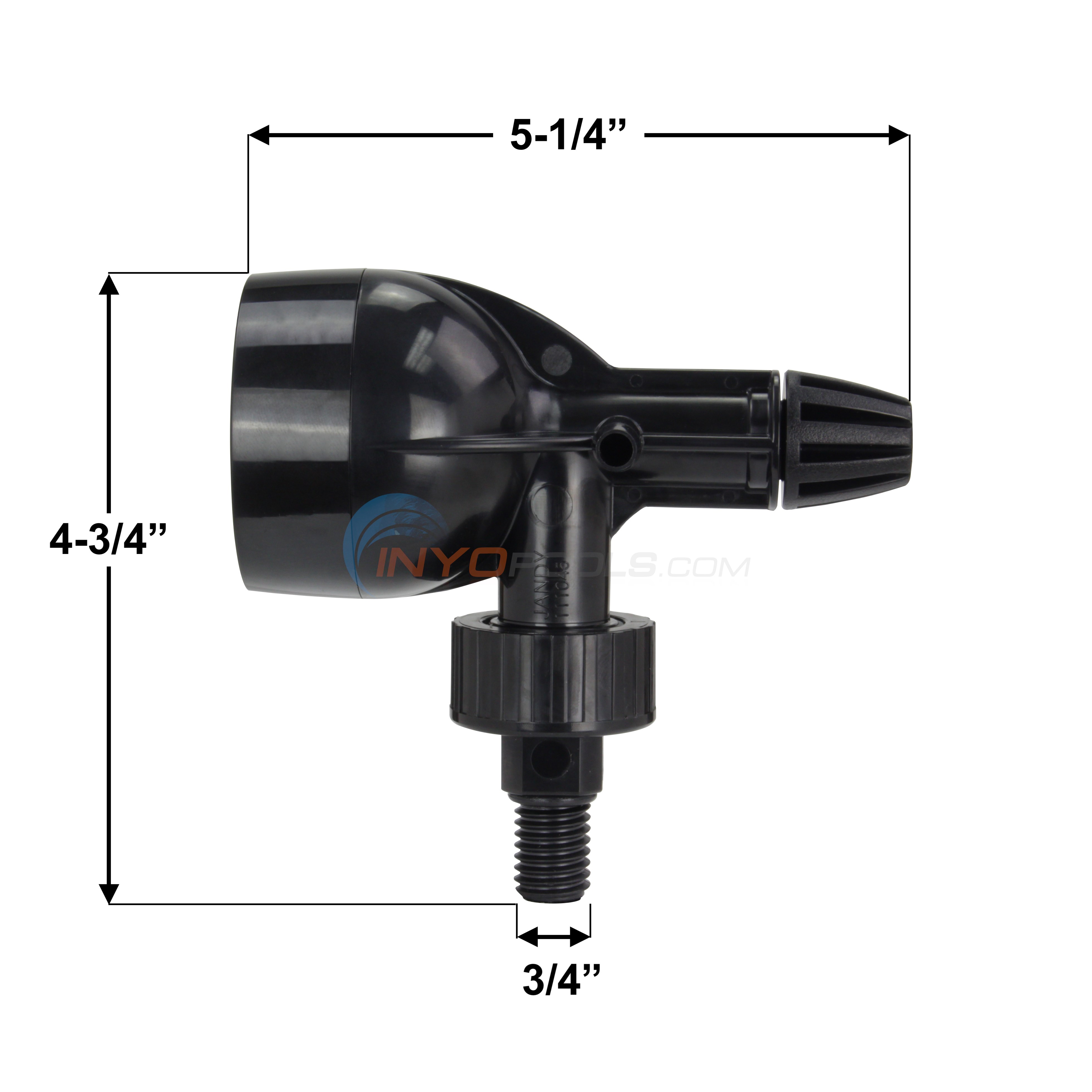

Dimensions 5-1/4" x 4-3/4"

Alternate Part #'s 17-295-1062, JDYR0357200, R-03572, R0357200, TLD-101-6000, JNDR0357200

Product Description

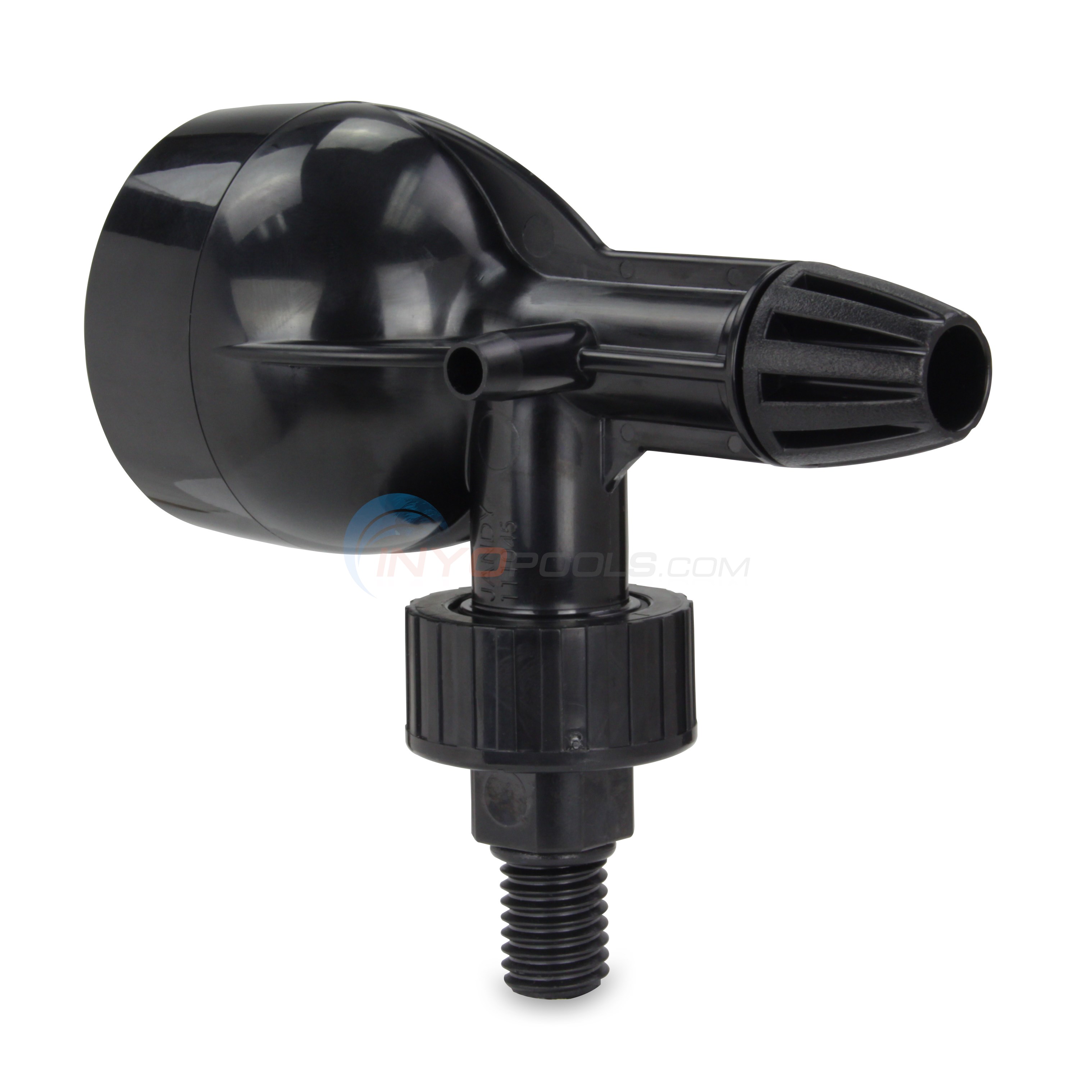

Jandy OEM, Air Relief Assembly -  R0357200

Generic Air Relief Valve & Gauge Compare to R0357200 - 25357-357-000 is available, click to view https://www.inyopools.com/Products/14803185088925.htm

Top

?     Asked on 5/21/2018by wayne johnson

I'm looking for the O ring on the R0357200. The small one that is in the relief valve that unscrews to release air pressure at the back.
 Reply

A  Answered on 5/22/2018 by InyoPools Product Specialist Lennox H.

Hi. Wayne. Unfortunately, that o-ring only is not available. You will have to replace the Air Relief Assy. - R0357200
 Reply


?     Asked on 4/29/2019by Inyo Visitor

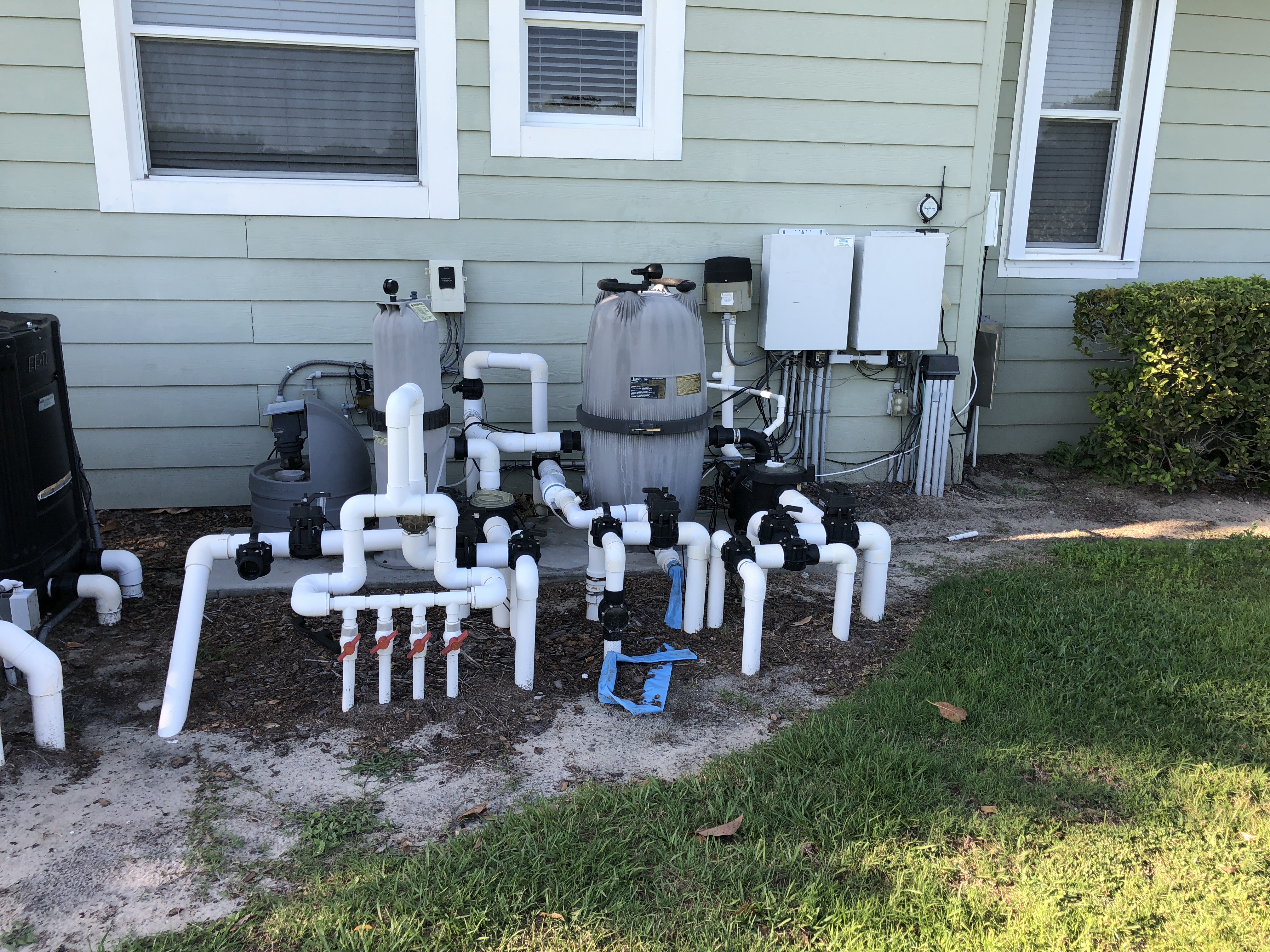

Is this the proper handle for my Jandy filter shown in the attached photo?

 Reply

A  Answered on 4/29/2019 by InyoPools Product Specialist Patrick P.

Thank you for the question and photo, could you send another photo showing a close up of the filter?
 Reply

  • Commented on 4/29/2019 by Product Owner

    Here is a little better photo.

     Reply

    • Commented on 4/29/2019 by InyoPools Product Specialist Patrick P.

      Yes this is the proper Air Relief for the Jandy Filter in the photo.
       Reply


?     Asked on 6/9/2019by Steve

Gauge stuck at 10 psi. Fixable or replace? Only couple yrs old

 Reply

A  Answered on 6/9/2019 by InyoPools Product Specialist Michelle B.

Hello, You would need to replace.
 Reply


?     Asked on 10/18/2019by john

Can this replace a Jandy Pressure gauge RD 359600 on my Jandy CL Versa- Plumb. Have looked over the internet and cant find the pressure gauge with that model number
 Reply

A  Answered on 10/21/2019 by Industry Professional

Yes, it will work on your Jandy CL unit.
 Reply


?     Asked on 4/8/2020by Tricia Gillis

Do you have to remove the filter top (Jandy DEL60) to replace the gauge/Air Relief Assembly? Or does it just screw into the top without removal?
 Reply

A  Answered on 4/9/2020 by InyoPools Product Specialist Lennox H.

Hi, Tricia. Yes, the cover will have to be removed in order to install this Air Relief Assembly.
 Reply

  • Commented on 4/9/2020 by Product Owner

    Does it come with instructions as well?
     Reply

    • Commented on 4/14/2020 by InyoPools Product Specialist Patrick P.

      Hi Tricia, I believe instructions are included.
       Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Adjustable Wrench

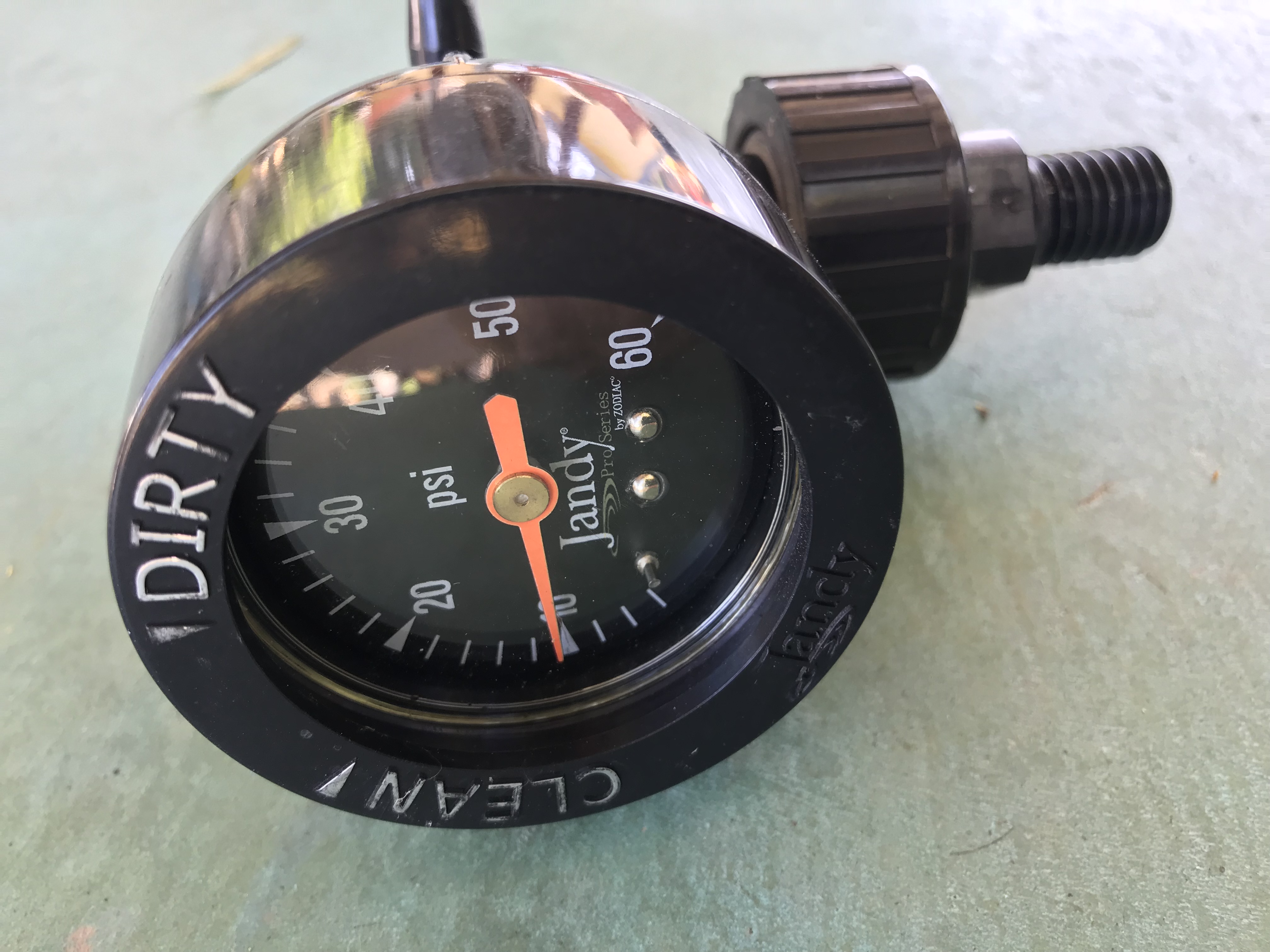

Guage was unreadable due to fogging

Written on 5/5/2017 by Guest

1. Unscrew assembly from the filter housing
2. Screw in new assembly.

I was just going to replace the gauge but when I tried to unscrew the assembly the thread stem snapped, so it forced me to replace the whole unit.
