$43.47

Qty:

By Gecko Alliance


Details

Top

Part # 5121-06C

Manufacturer Code 91693651

Dimensions 3-5/8" X 1-1/2"

Alternate Part #'s 100033K, 1018568, 354021010, 354021016, 91693651, AF91693651, FPF0415, 35-402-1016, AQF-101-8568

Product Description

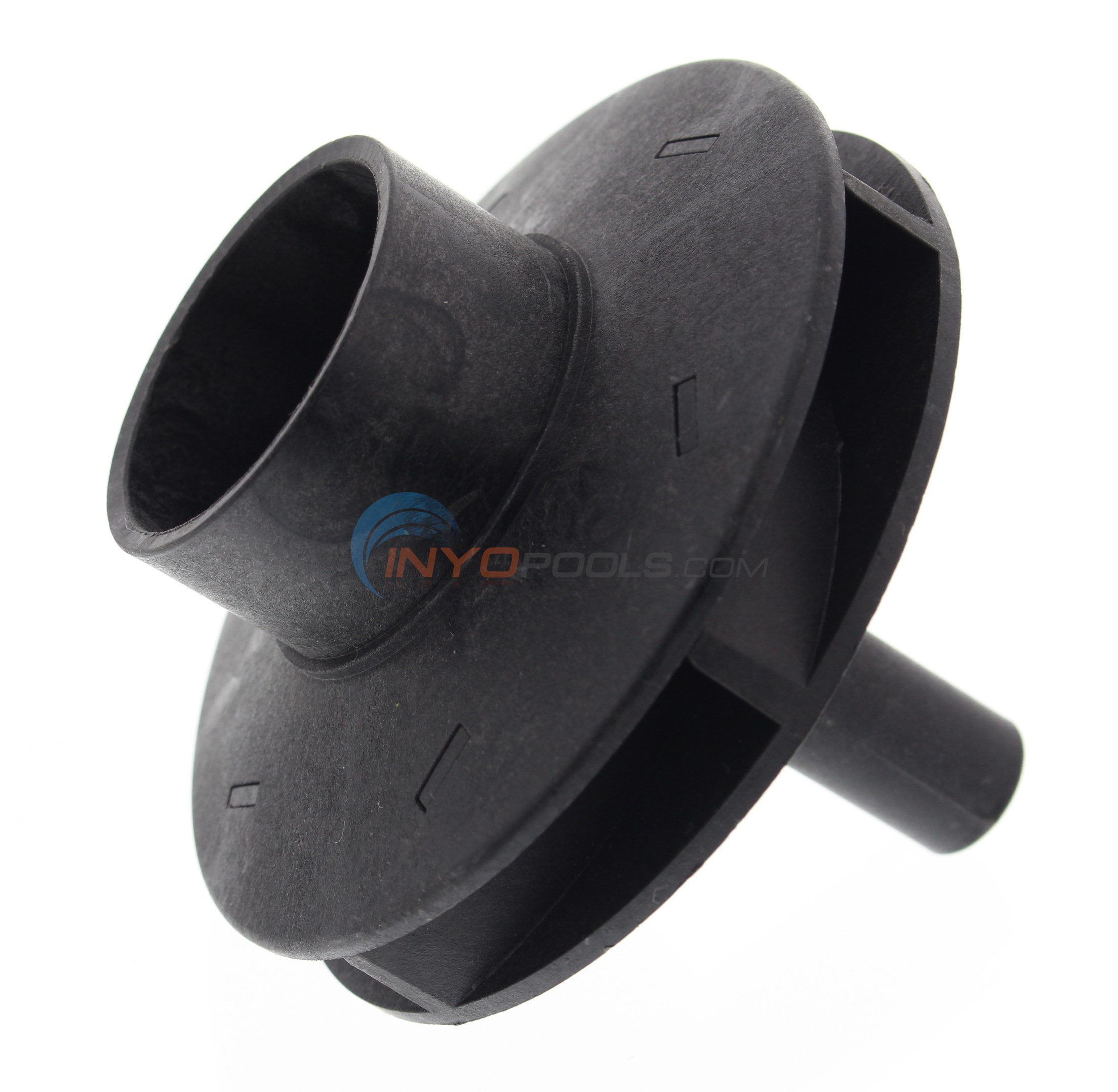

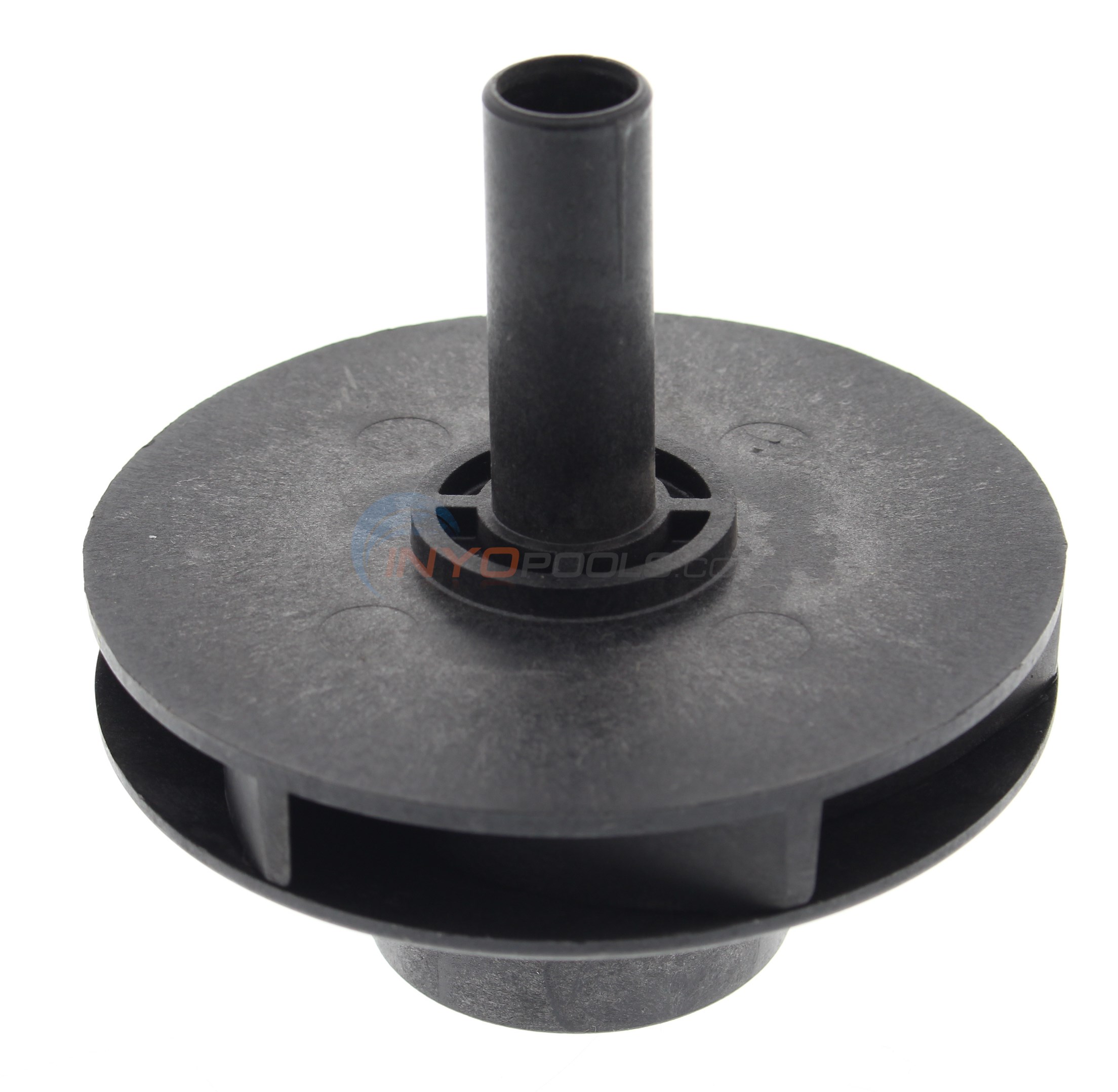

INYO # 5121-06C AQUA FLO # 91693651 THIS IS A 1-1/2 HP IMPELLER USED ON THESE AQUA FLO PUMPS CMCP, CMHP, FMCP, FMHP, TMCP BLACK PLASTIC IMPELLER INCLUDES: IMPELLER ONLY CLOSED FACE NUMBER OF VANES: 6 OUTSIDE DIAMETER: 3-3/4" THICKNESS: 5/8" (OUTSIDE THICKNESS AT OUTSIDE EDGE) THICKNESS: 7/16" (B) (INSIDE THICKNESS AT OUTSIDE EDGE) FRONT TO BACK: 3-5/8" (FROM END OF SHAFT TO FRONT ON INTAKE) INLET OUTSIDE DIAMETER: 1-3/4" INLET INSIDE DIAMETER: 1-1/2" SHAFT COVER LENGTH: 1-3/4" SHAFT COVER OD 5/8" (THIS IS WHERE THE IMPELLER SCREWS ONTO THE MOTOR SHAFT) MARKINGS: THERE IS A YELLOW DOT ON THE SHAFT NEAR THE END SHAFT SEAL USED WITH THIS IMPELLER OPT # 5250-104 MFG# 92500150 GENERIC # PS-200 OR AS-200
