$44.77

Qty:

By Waterway


Details

Top

Part # 5032-09A

Manufacturer Code 310-4010

Dimensions 3.65" X 0.8"

Alternate Part #'s 310-4010, 3104010, 35-270-1503, WW3104010B, WWP-85-8034

Product Description

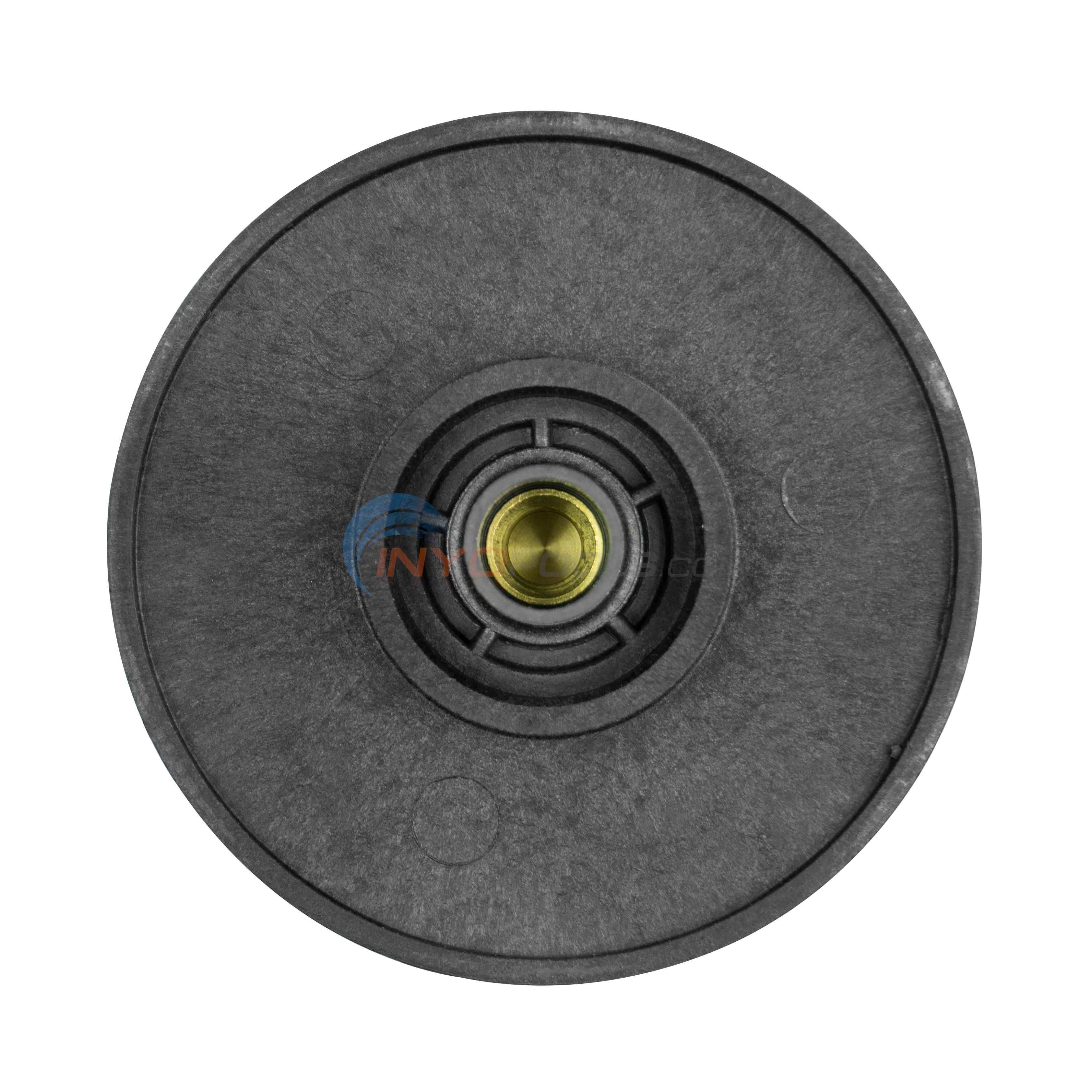

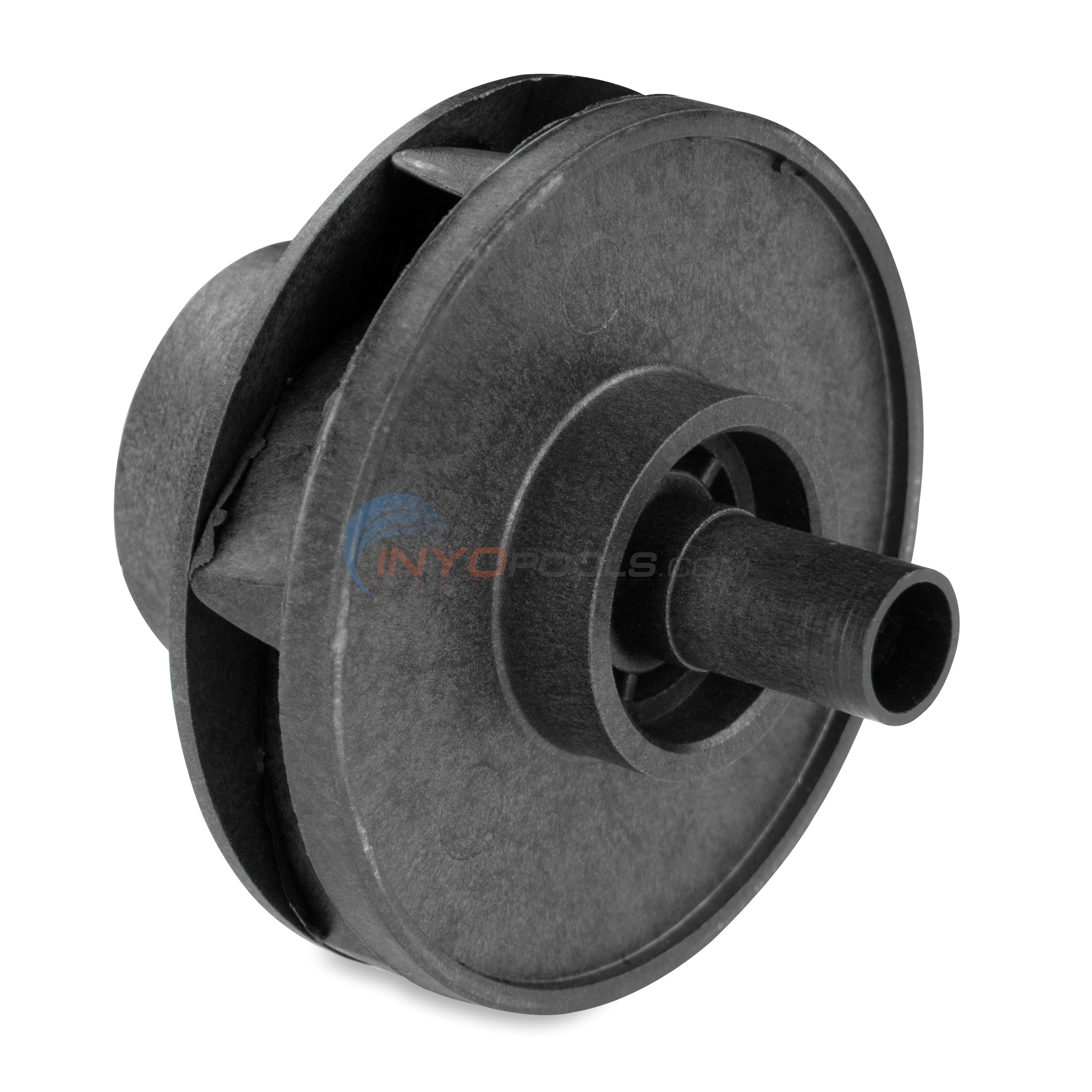

INYO # 5032-09A WATERWAY # 310-4010 GENERAL DESCRIPTION: THIS IS A 1-1/2 HP IMPELLER USED ON THE WATERWAY HI FLO PUMP GRAY PLASTIC IMPELLER THIS HAS AN EXTENDED INLET OPENING AND AT THE SHAFT SIDE THERE IS SMALL RAISED RING AROUND THE SHAFT THE RING IS 5/16" TALL AND HAS AN OUTSIDE DIAMETER OF 1-9/16" THIS ALSO HAS A SMALL RIDGE AROUND THE OUTSIDE DIAMETER OF THE IMPELLER ON THE SHAFT SIDE

***************************************************************************

CLOSED FACE OR OPEN IMPELLER: CLOSED FACE NUMBER OF VANES 6 OUTSIDE DIAMETER: 3-5/8" THICKNESS: 7/16" (INSIDE VANE THICKNESS AT OUTSIDE EDGE OF IMPELLER) THICKNESS: 13/16" (OUTSIDE VANE THICKNESS AT OUTSIDE EDGE OF IMPELLER) FRONT TO BACK: 3-3/16" (FROM END OF SHAFT TO FRONT ON INTAKE) INLET INSIDE DIAMETER: 1-1/2" INLET OUTSIDE DIAMETER: 1-7/8" INLET LENGTH: 1" THIS IS THE APPROXIMATE LENGTH OF THE EXTENDED INLET PORTION OF THE IMPELLER

****************************************************************************

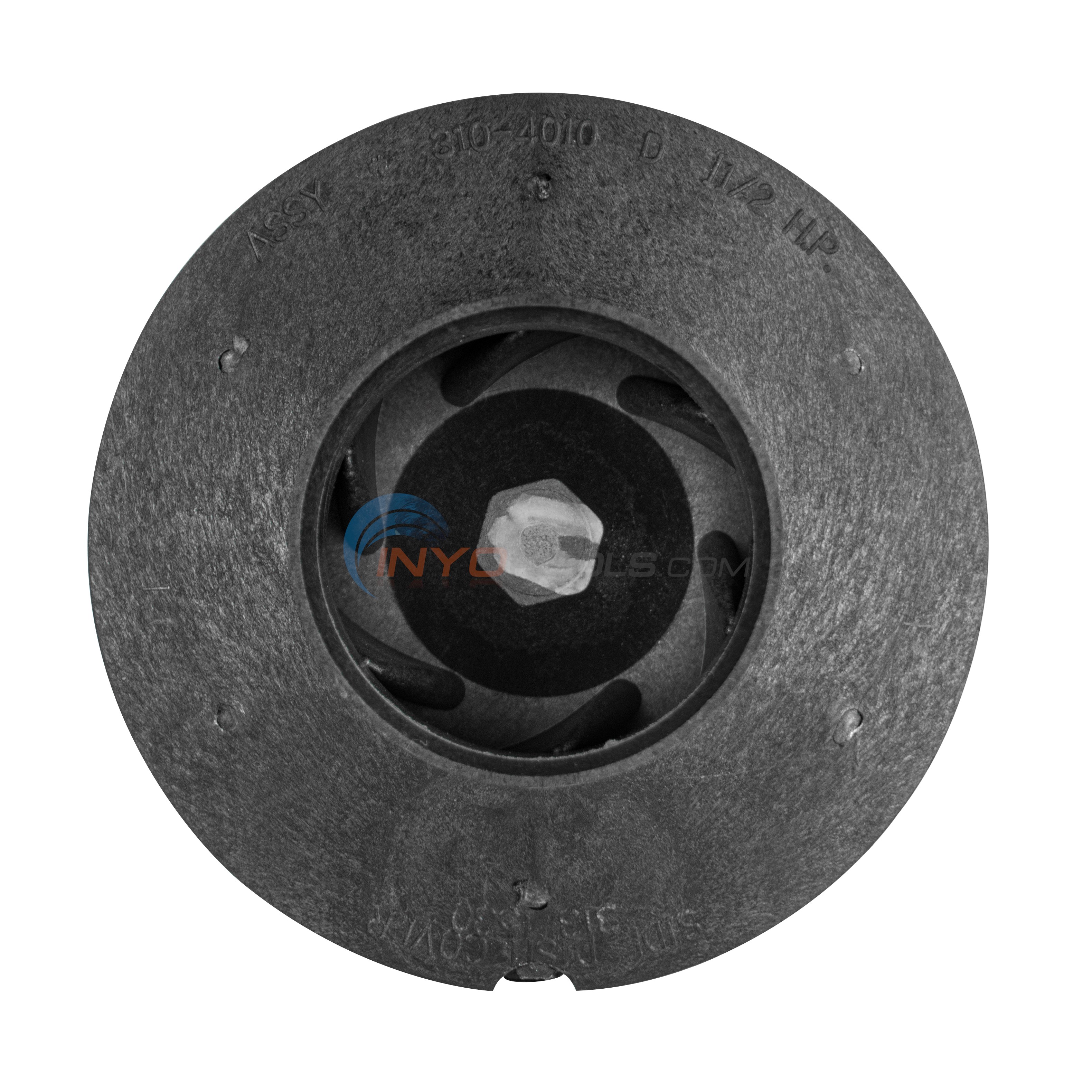

MARKINGS: "SIDE DISH COVER 313-1530" IS MOLDED ON THE INLET SIDE "ASSY 310-4010-D - 1 1/2 HP" IS ALSO MOLDED ON THE INLET SIDE SHAFT SEAL USED WITH THIS IMPELLER OPT # 5250-106 GENERIC # PS-1000

Top

?     Asked on 6/21/2015by Inyo Visitor

will this impeller work a 2hp
 Reply

A  Answered on 6/21/2015 by InyoPools Product Specialist Hector F.

Yes this impeller will work with a 2 horse power uprate motor but it needs to be for a Waterway Hi Flo and or an AG side discharge spa pump.
 Reply


?     Asked on 5/26/2016by ed

is this impeller left hand or right hand threads
 Reply

A  Answered on 5/26/2016 by InyoPools Product Specialist Dennis R.

Hi Ed. To remove the impeller you will twist the impeller off in a counter clockwise motion has you are looking from the wet end of the pump.
 Reply
