$46.57

Qty:

By Gecko Alliance


Details

Top

Part # 5121-06

Manufacturer Code 91693501

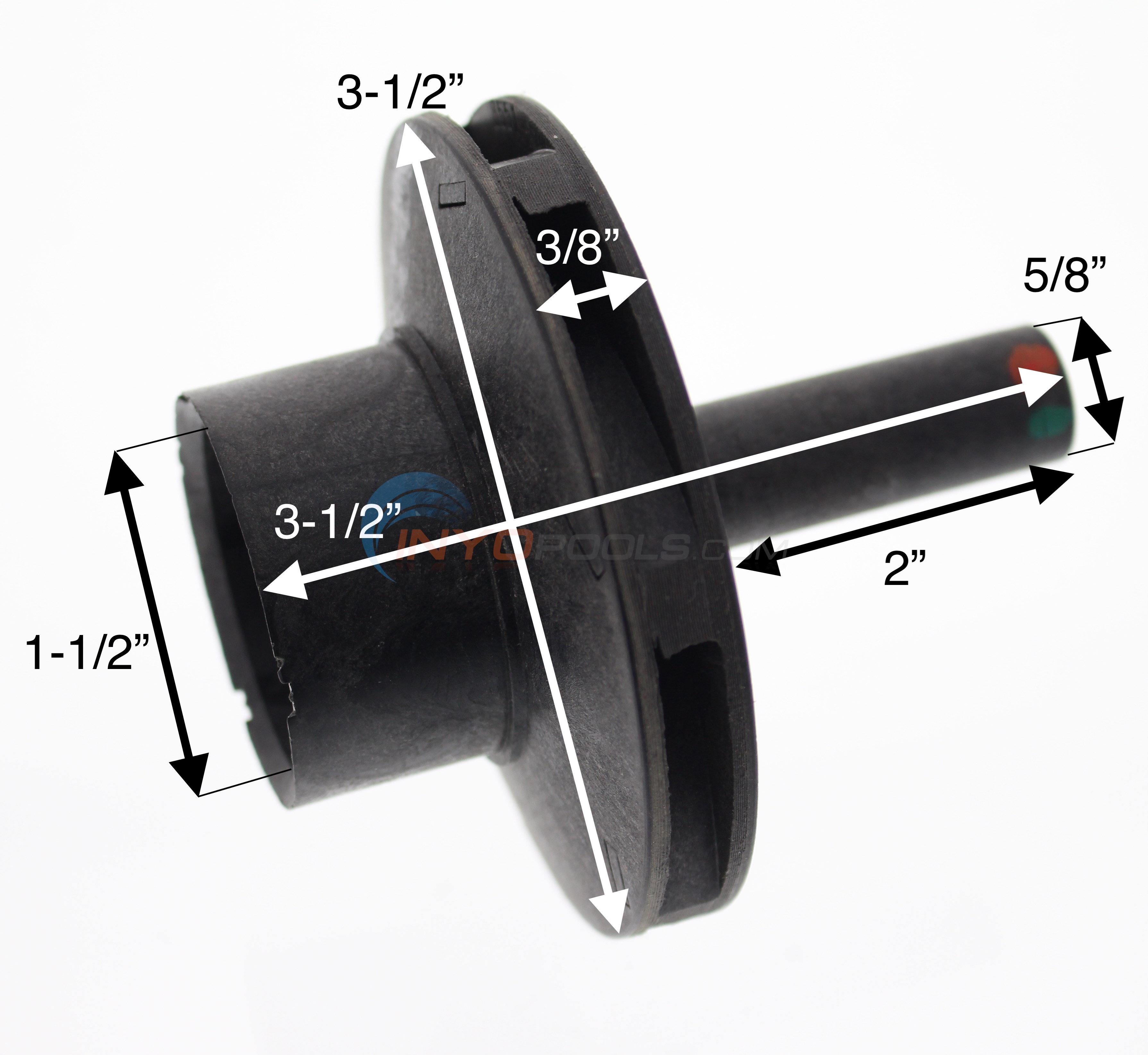

Dimensions 3-1/2" X 3-1/2"

Alternate Part #'s 354021010, 91140300, 91693501, AQF1018566, FPF0405, 35-402-1010, AF91693501

Product Description

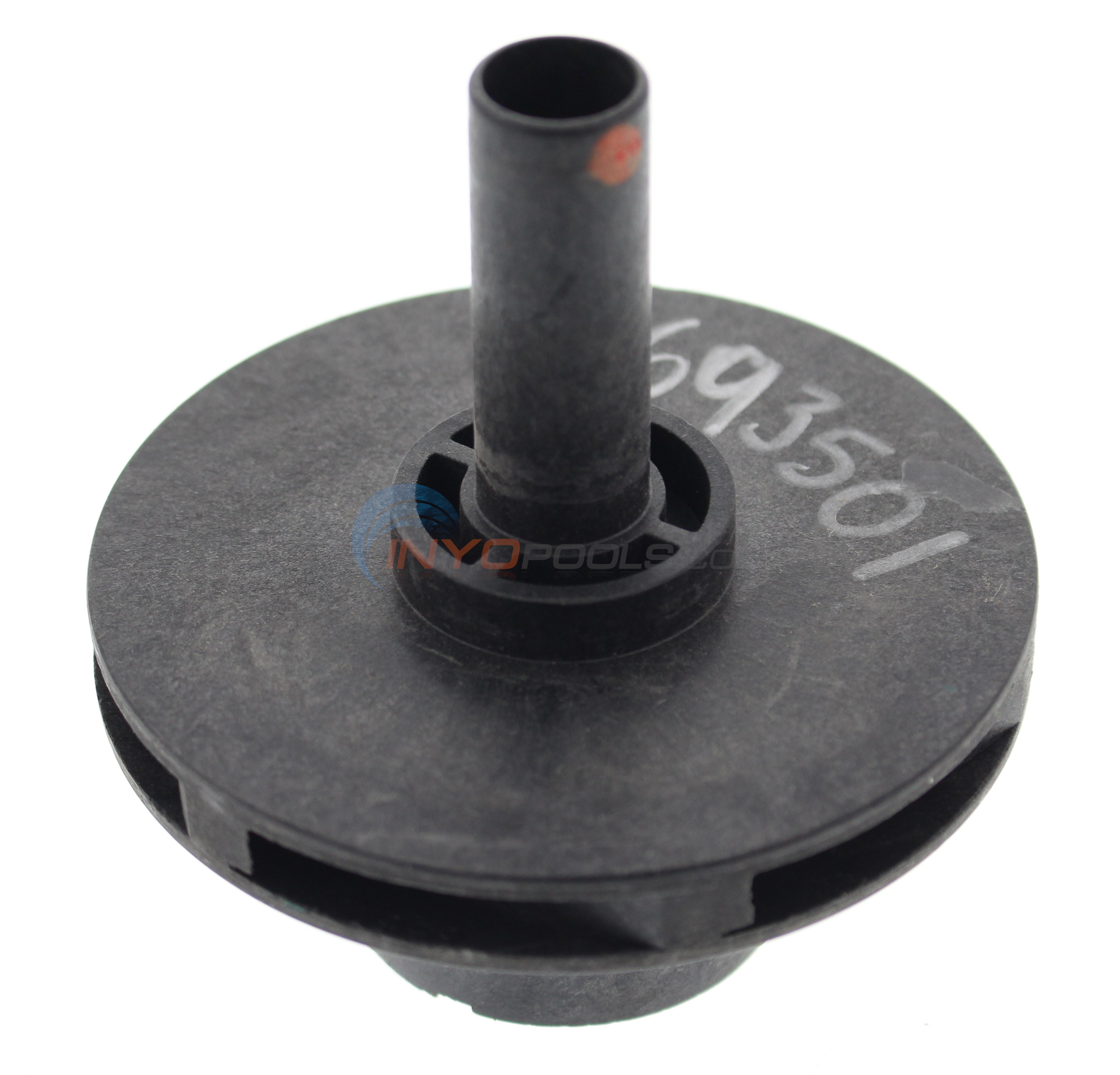

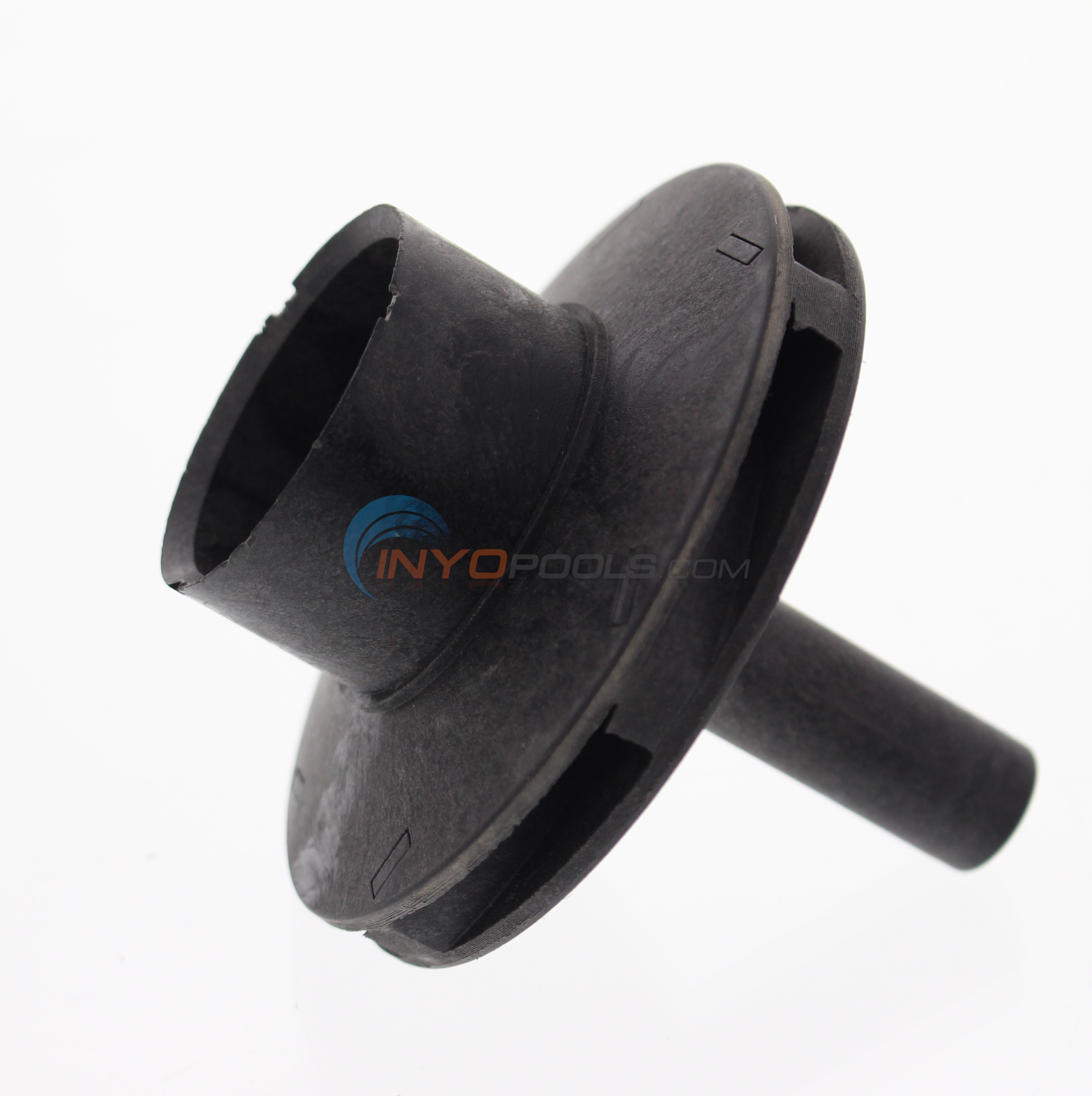

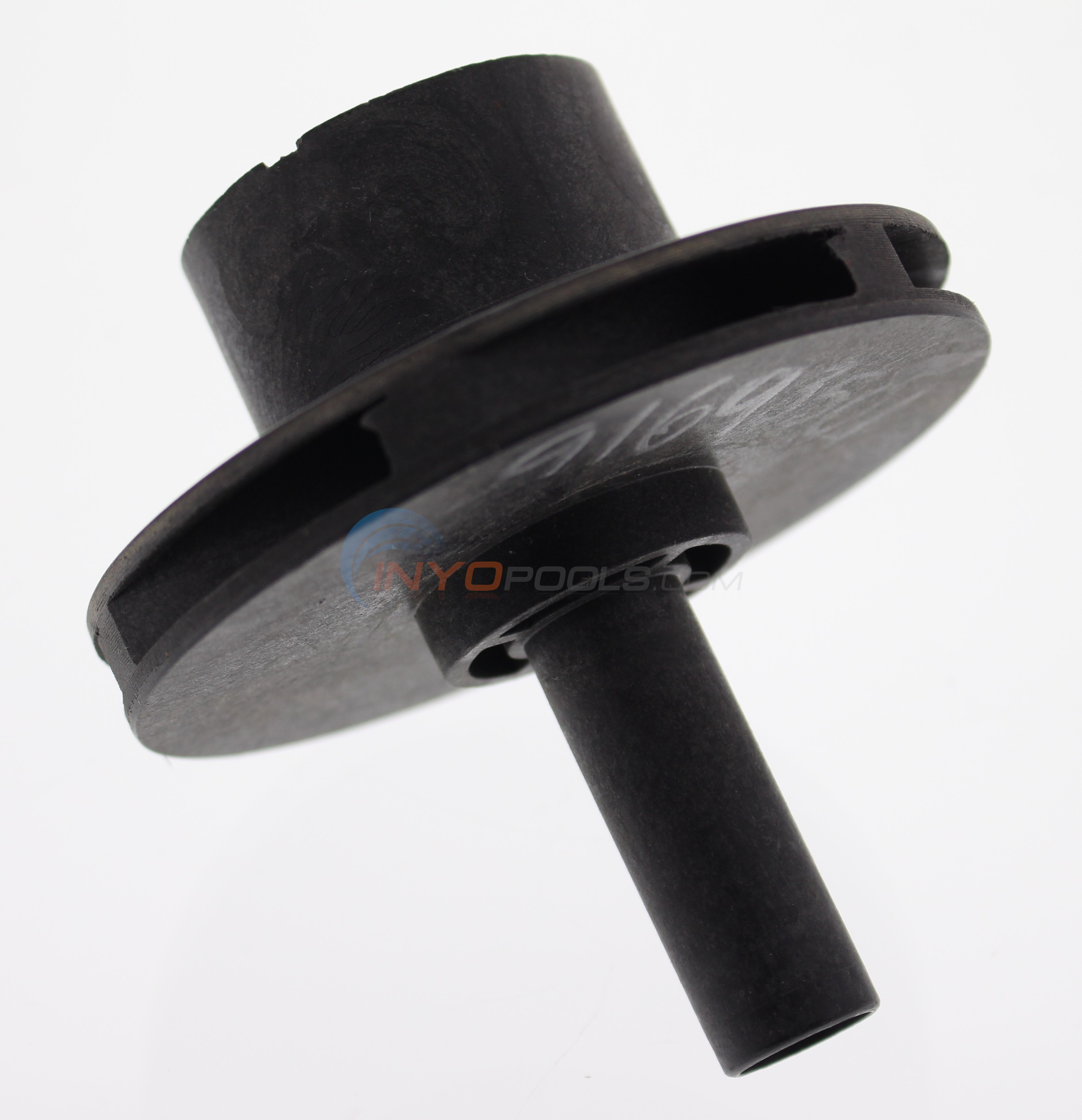

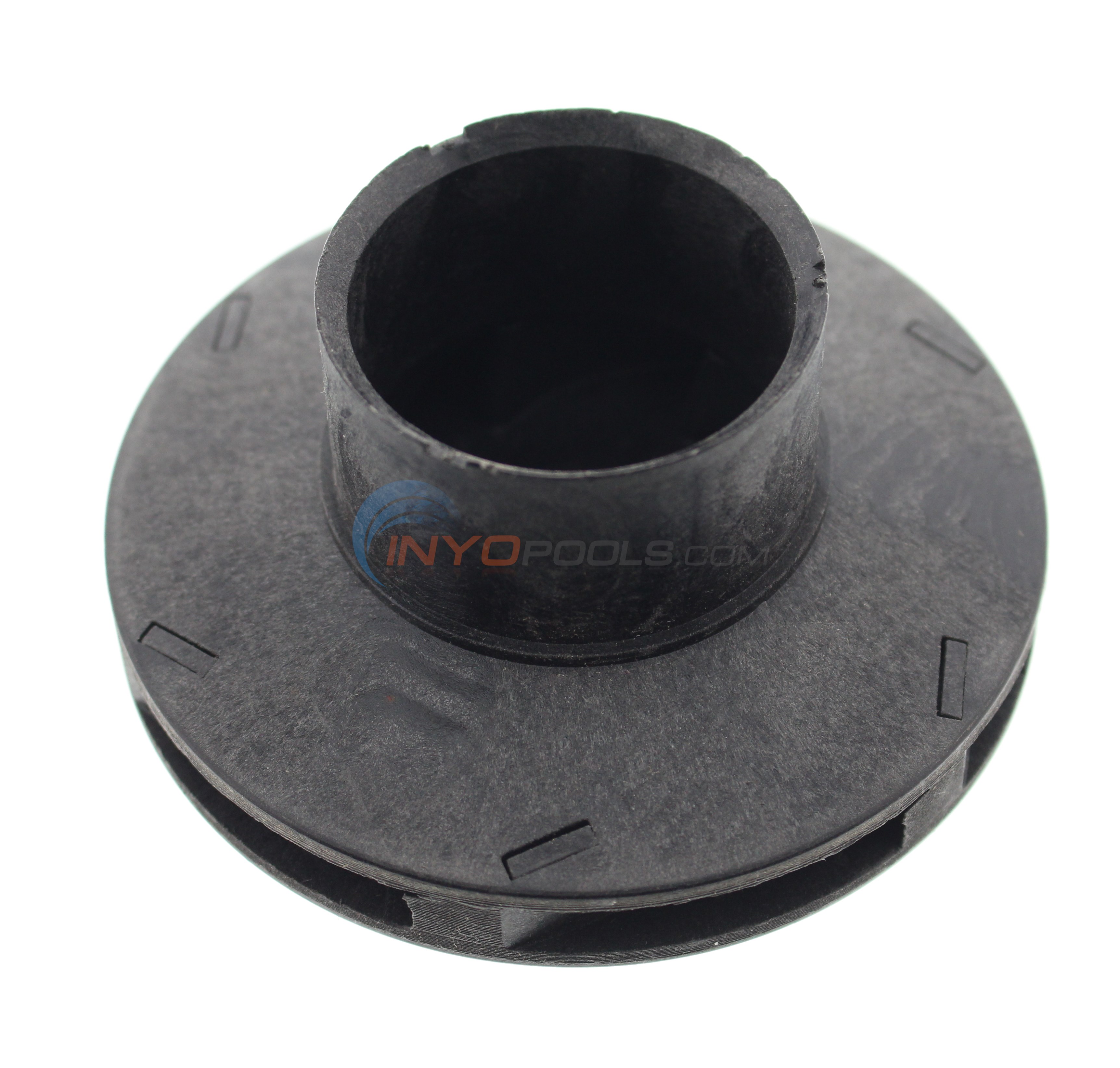

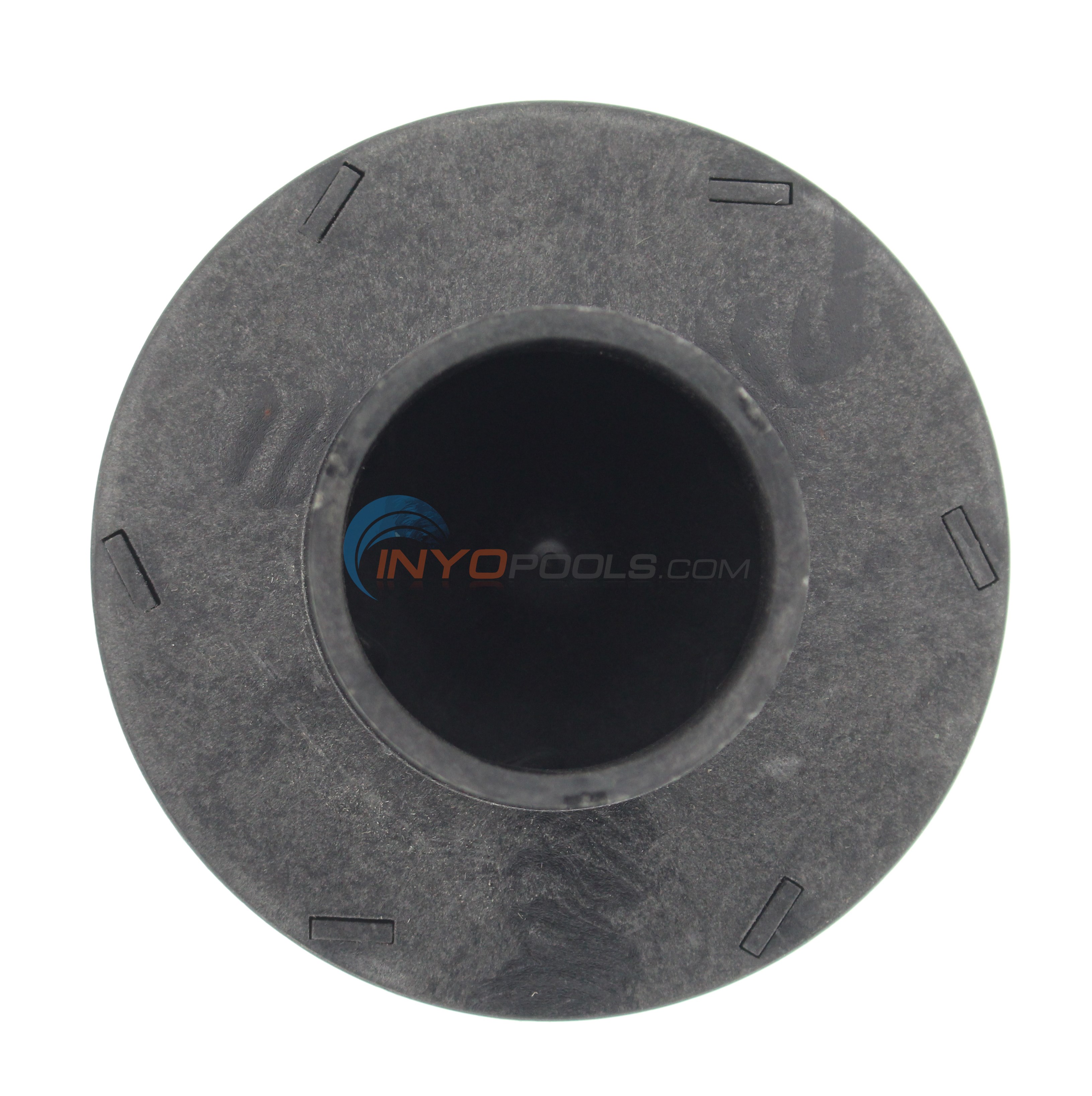

INYO # 5121-06 CUSTOM MOLDED PRODUCTS # 91693501 THIS IS A 1-/2 HP IMPELLER USED ON THESE PUMPS FMCP, FMHP, TMCP GRAY PLASTIC IMPELLER INCLUDES: IMPELLER ONLY CLOSED FACE NUMBER OF VANES: 6 OUTSIDE DIAMETER: 3-7/16" THICKNESS: 7/16" (OUTSIDE THICKNESS AT OUTSIDE EDGE) THICKNESS: 1/4" (B) (INSIDE THICKNESS AT OUTSIDE EDGE) FRONT TO BACK: 3-3-32" (FROM END OF SHAFT TO FRONT ON INTAKE) INLET OUTSIDE DIAMETER: 1-3/4" INLET INSIDE DIAMETER: 1-1/2" SHAFT COVER LENGTH: 1-3/4" SHAFT COVER OD 5/8" (THIS IS WHERE THE IMPELLER SCREWS ONTO THE MOTOR SHAFT) MARKINGS: THIS HAS 1 RED AND 1 GREEN DOT ON THE SHAFT SHAFT SEAL USED WITH THIS IMPELLER OPT # 5250-104 GENERIC # PS-200 OR AS-200
