$43.47

Qty:

By Gecko Alliance


Details

Top

Part # 5121-06D

Manufacturer Code 91693701

Dimensions 3-5/8" X 1-1/2"

Alternate Part #'s 354021017, 91693700, 91693701, FPF0420, 35-402-1017, AF91693700

Product Description

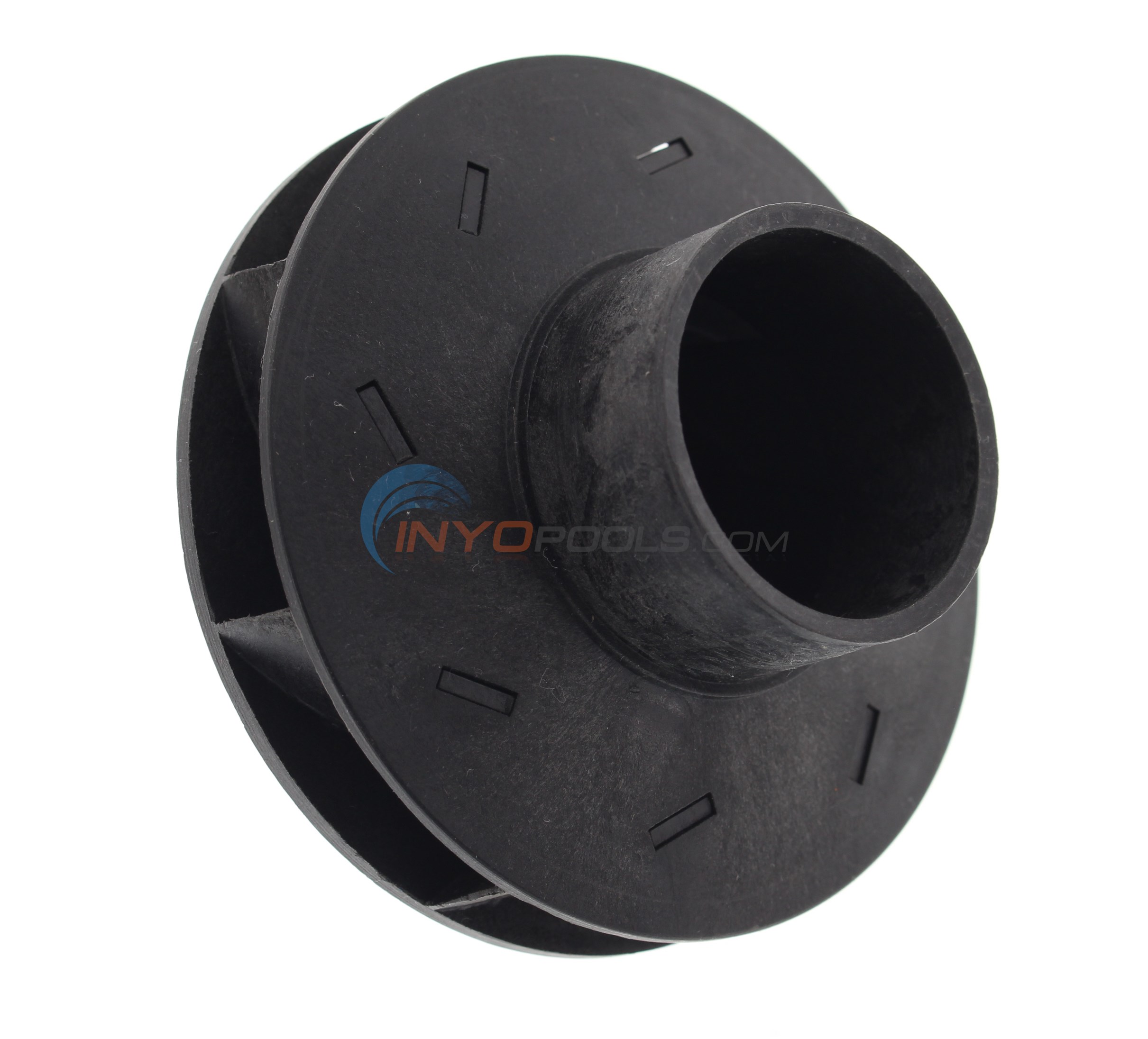

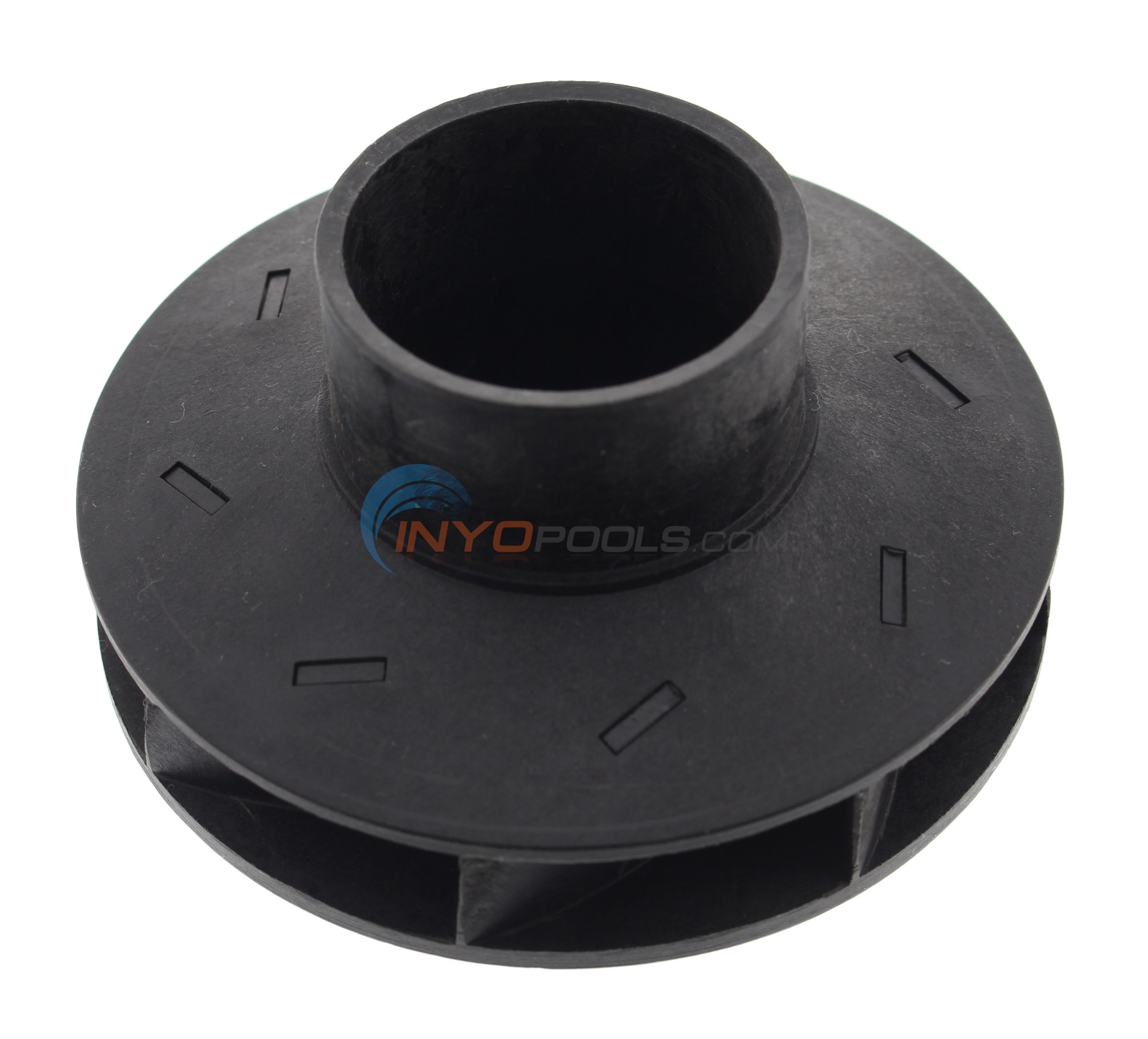

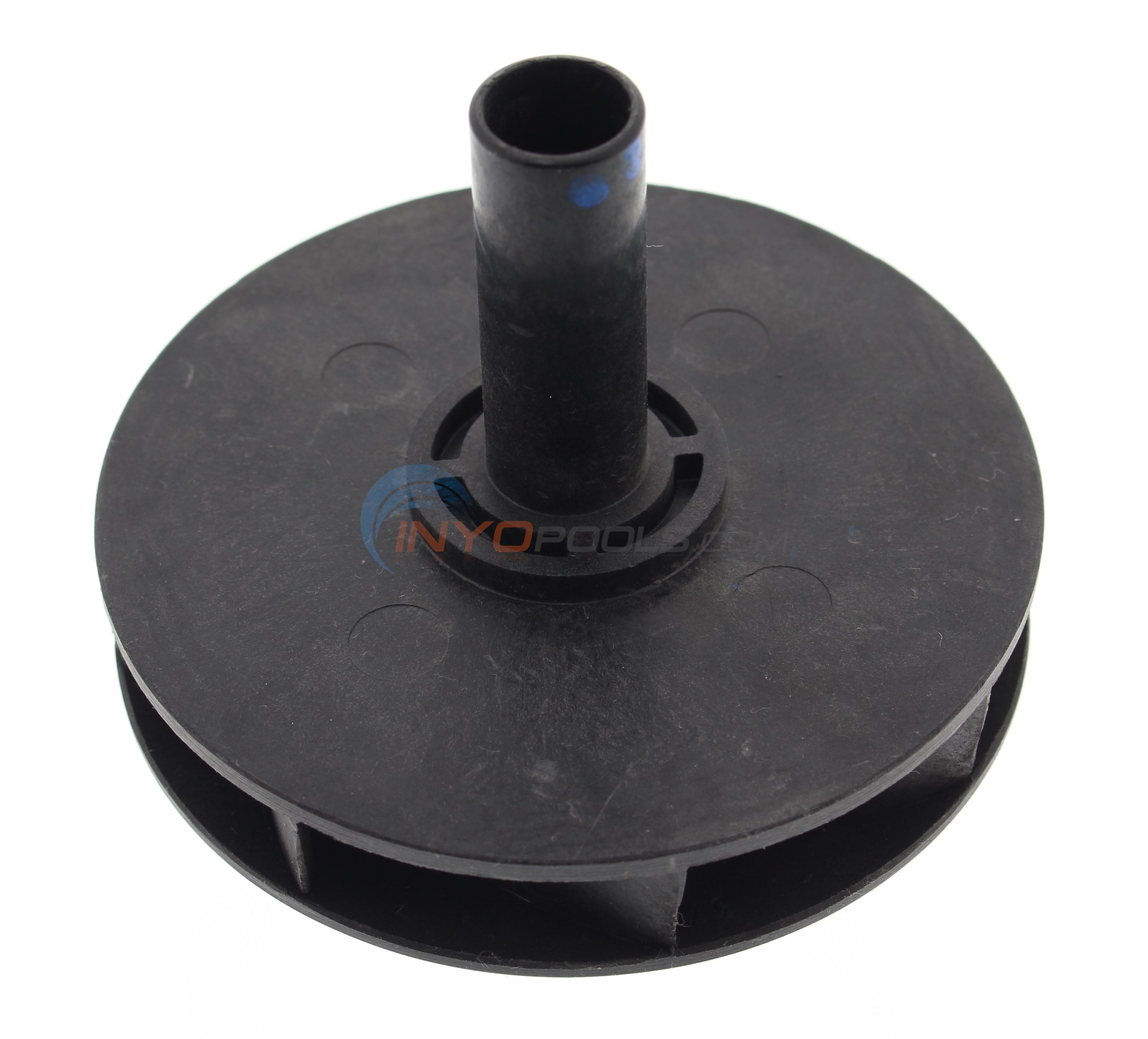

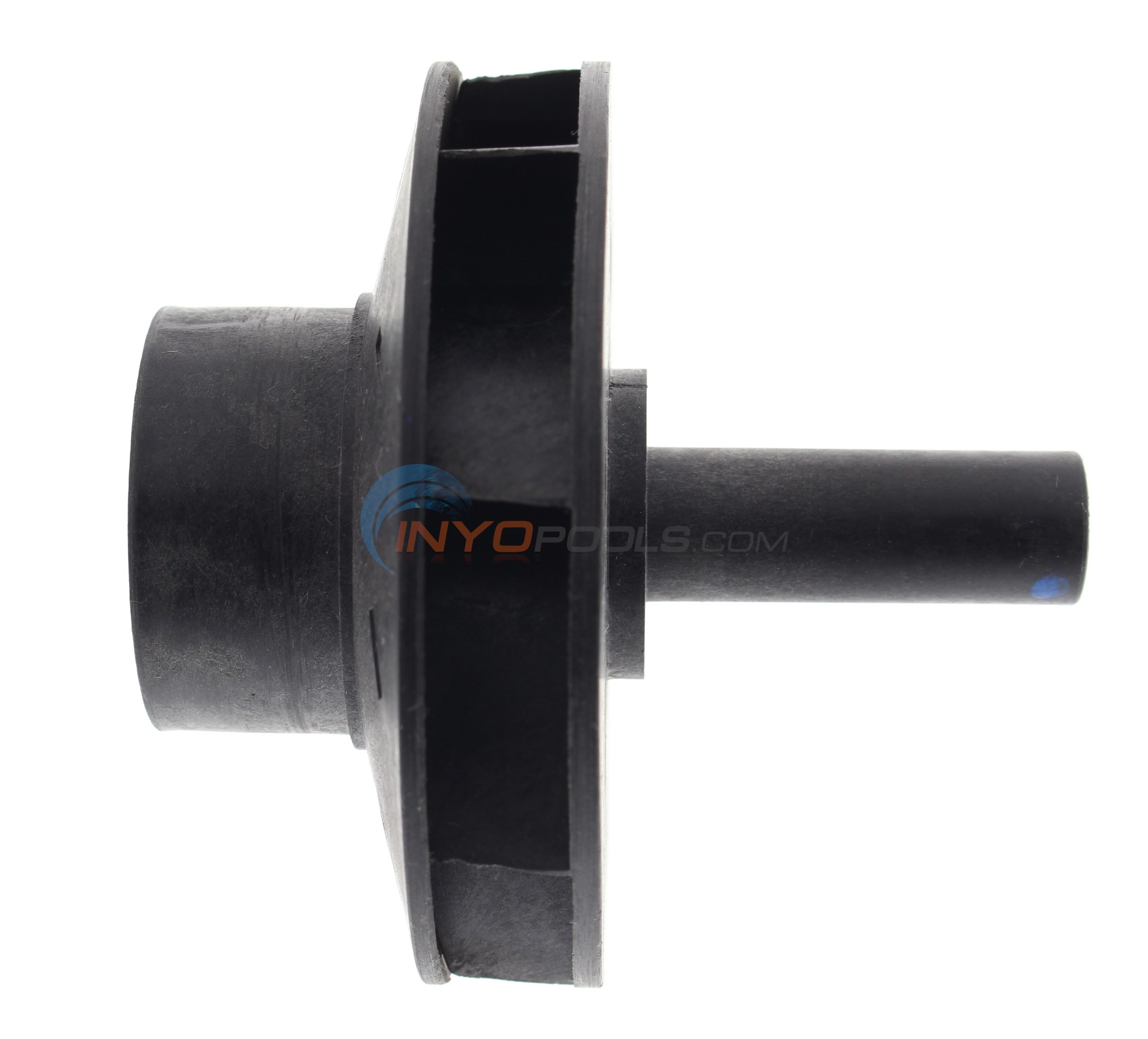

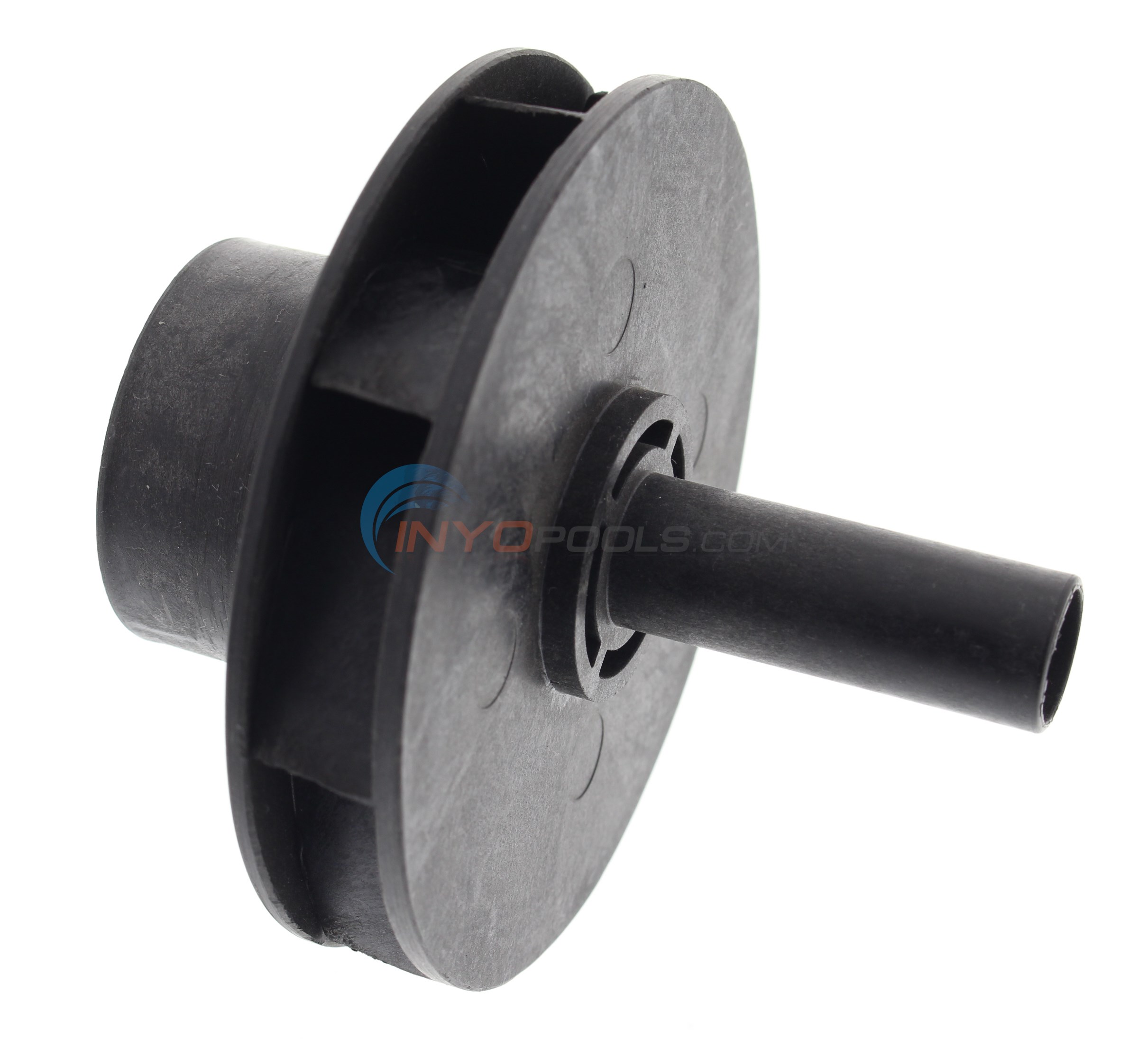

INYO # 5121-06D AQUA FLO # 91693701 THIS IS A 2 HP IMPELLER USED ON THESE AQUA FLO PUMPS FMCP, FMHP, TMCP BLACK PLASTIC IMPELLER INCLUDES: IMPELLER ONLY CLOSED FACE NUMBER OF VANES: 8 OUTSIDE DIAMETER: 3-3/4" THICKNESS: 23/32" (OUTSIDE THICKNESS AT OUTSIDE EDGE) THICKNESS: 1/2" (B) (INSIDE THICKNESS AT OUTSIDE EDGE) FRONT TO BACK: 3-5/8" (FROM END OF SHAFT TO FRONT ON INTAKE) INLET OUTSIDE DIAMETER: 1-3/4" INLET INSIDE DIAMETER: 1-1/2" SHAFT COVER LENGTH: 1-3/4" SHAFT COVER OD 5/8" (THIS IS WHERE THE IMPELLER SCREWS ONTO THE MOTOR SHAFT) MARKINGS: THERE IS A BLUE DOT ON THE SHAFT NEAR THE END SHAFT SEAL USED WITH THIS IMPELLER OPT # 5250-104 MFG# 92500150 GENERIC # PS-200 OR AS-200
