Part # 5032-09B

Manufacturer Code 310-4030

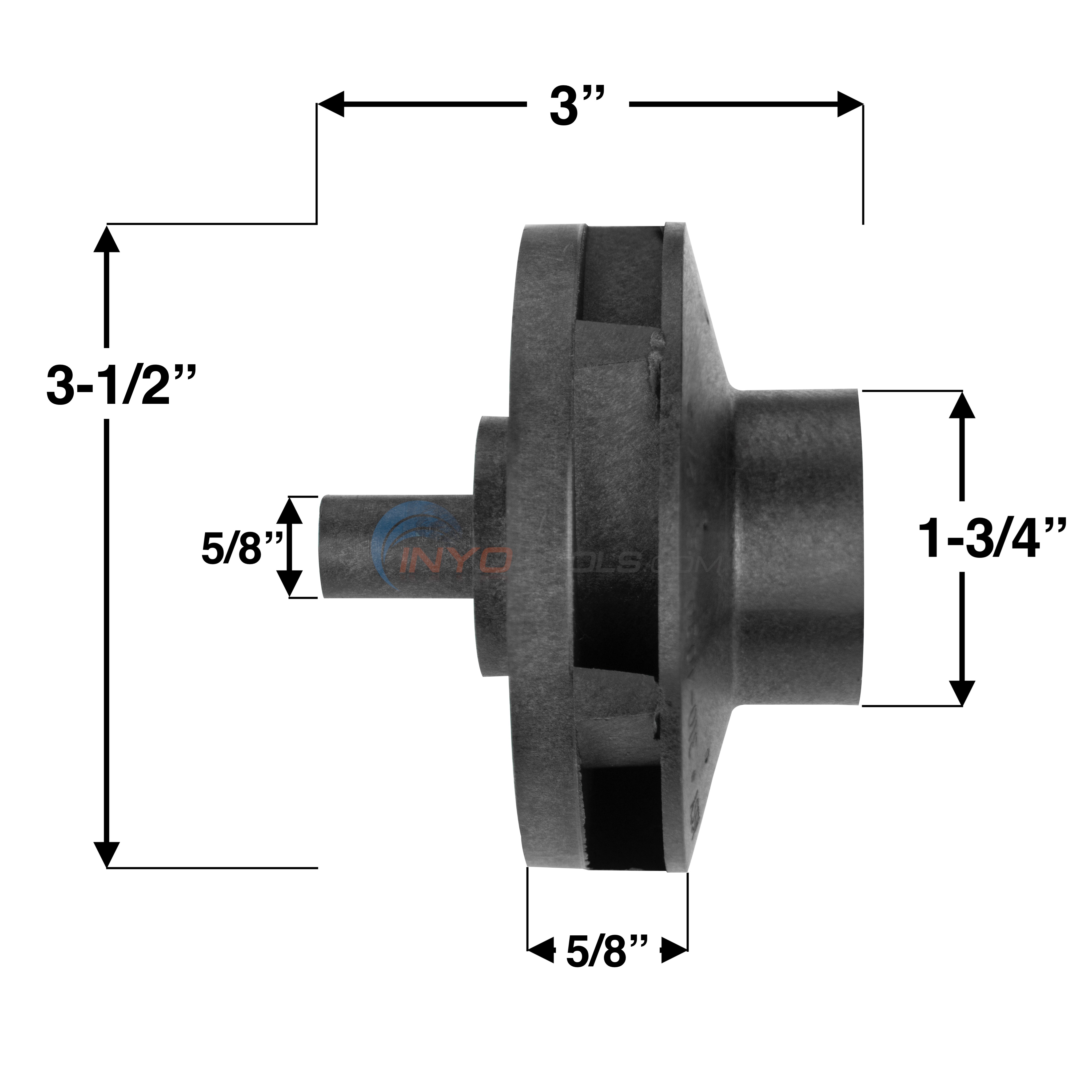

Dimensions 3.83" X 0.95"

Alternate Part #'s 310-4030, 3104030, 352701503, 352701504, 35-270-1504, WW3104030B

Product Description

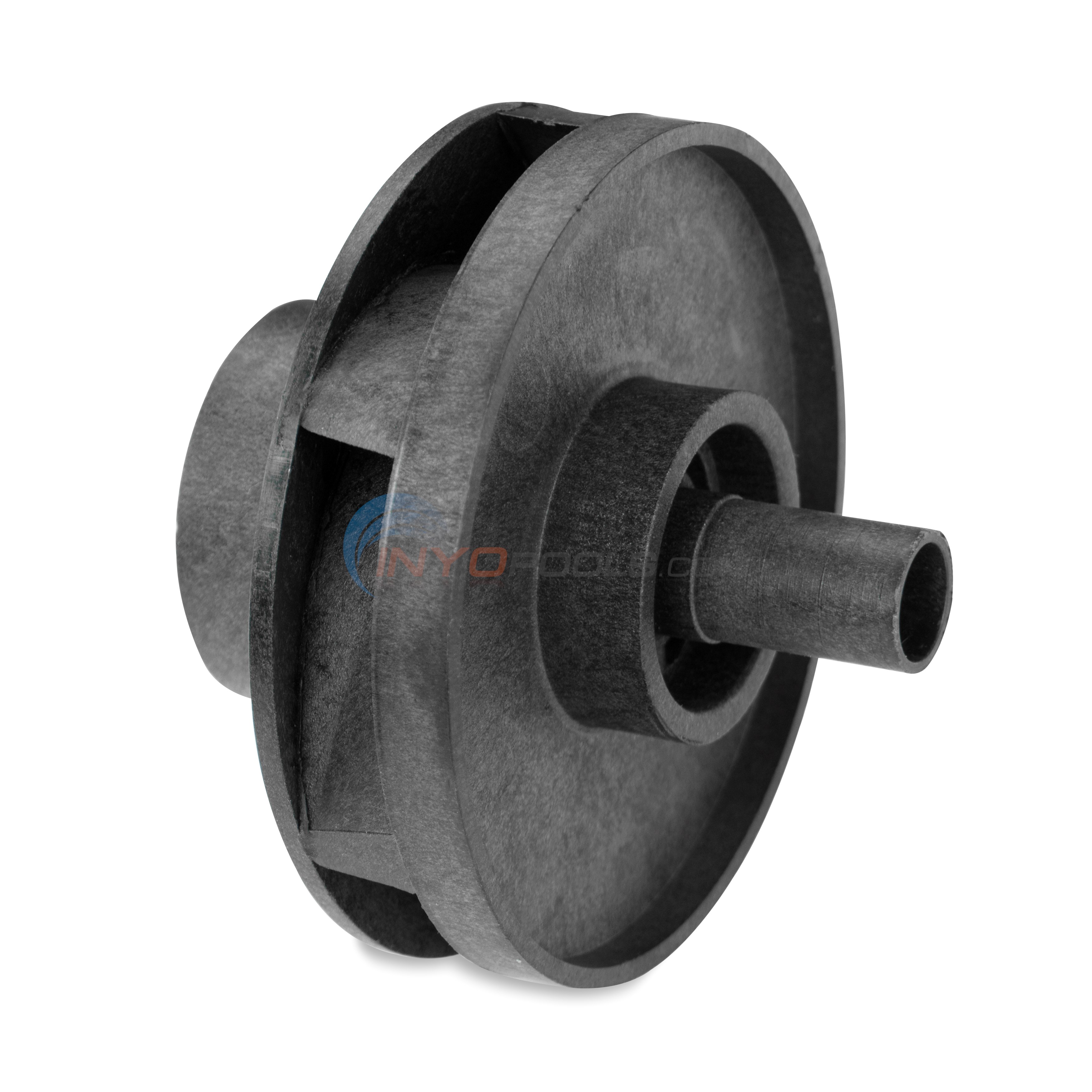

INYO # 5032-09B WATERWAY # 310-4030 GENERAL DESCRIPTION: THIS IS A 2 HP IMPELLER USED ON THE WATERWAY HI FLO PUMP GRAY PLASTIC IMPELLER THIS HAS AN EXTENDED INLET OPENING AND AT THE SHAFT SIDE THERE IS SMALL RAISED RING AROUND THE SHAFT THE RING IS 5/16" TALL AND HAS AN OUTSIDE DIAMETER OF 1-9/16" THIS ALSO HAS A SMALL RIDGE AROUND THE OUTSIDE DIAMETER OF THE IMPELLER ON THE SHAFT SIDE

***************************************************************************

CLOSED FACE OR OPEN IMPELLER: CLOSED FACE NUMBER OF VANES 6 OUTSIDE DIAMETER: 3-11/16" THICKNESS: 7/16" (INSIDE VANE THICKNESS AT OUTSIDE EDGE OF IMPELLER) THICKNESS: 15/16" (OUTSIDE VANE THICKNESS AT OUTSIDE EDGE OF IMPELLER) FRONT TO BACK: 3-3/16" (FROM END OF SHAFT TO FRONT ON INTAKE) INLET INSIDE DIAMETER: 1-1/2" INLET OUTSIDE DIAMETER: 1-7/8" INLET LENGTH: 3/4" THIS IS THE APPROXIMATE LENGTH OF THE EXTENDED INLET PORTION OF THE IMPELLER

****************************************************************************

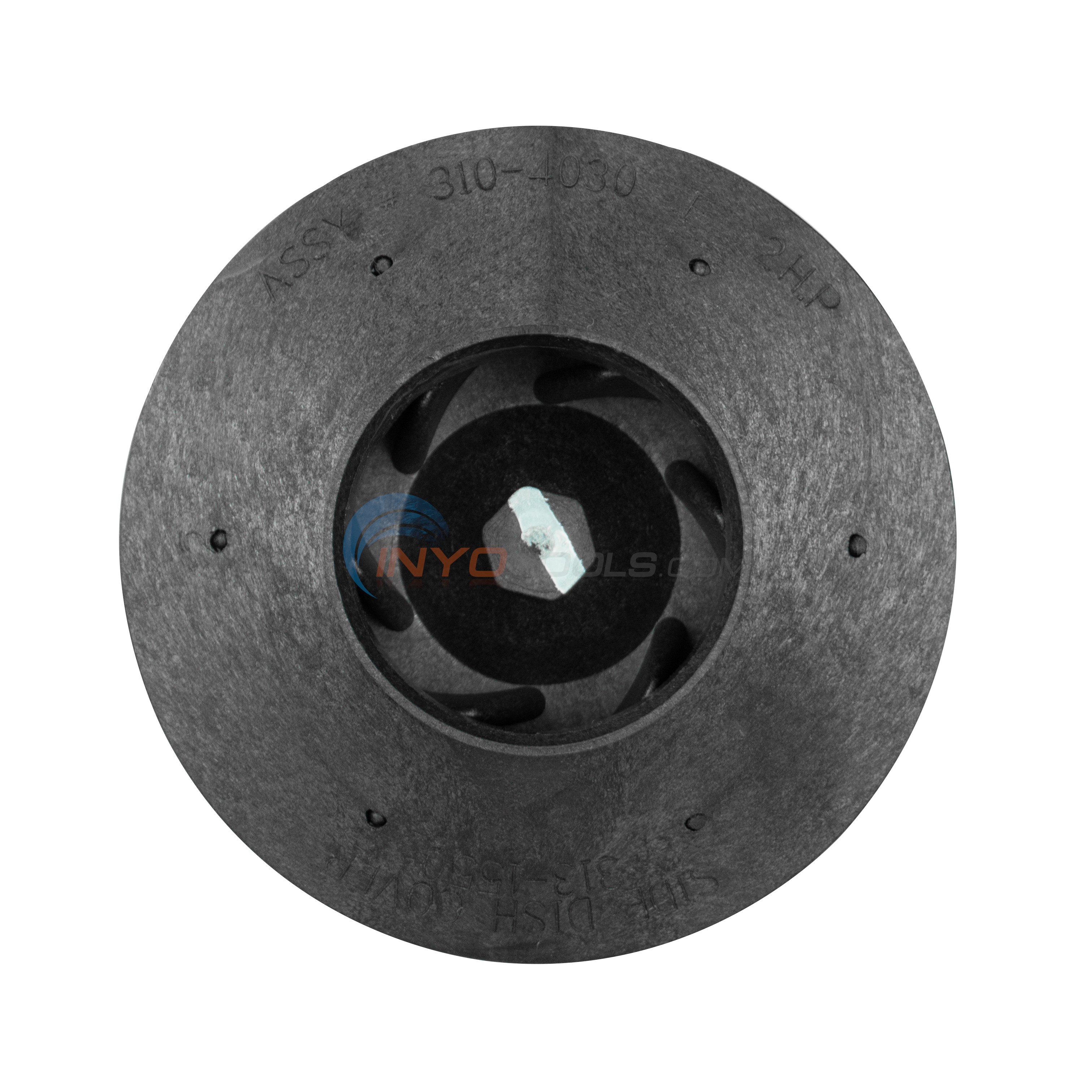

MARKINGS: "313-1470" MOLDED ON THE SHAFT SIDE "SIDE DISH COVER 313-1550" IS MOLDED ON THE INLET SIDE "ASSY 310-4030-E - 2 HP" IS ALSO MOLDED ON THE INLET SIDE SHAFT SEAL USED WITH THIS IMPELLER OPT # 5250-106 GENERIC # PS-1000
