Part # 5111-07D
Manufacturer Code SPX1500F
Dimensions 3.45" X 0.6"

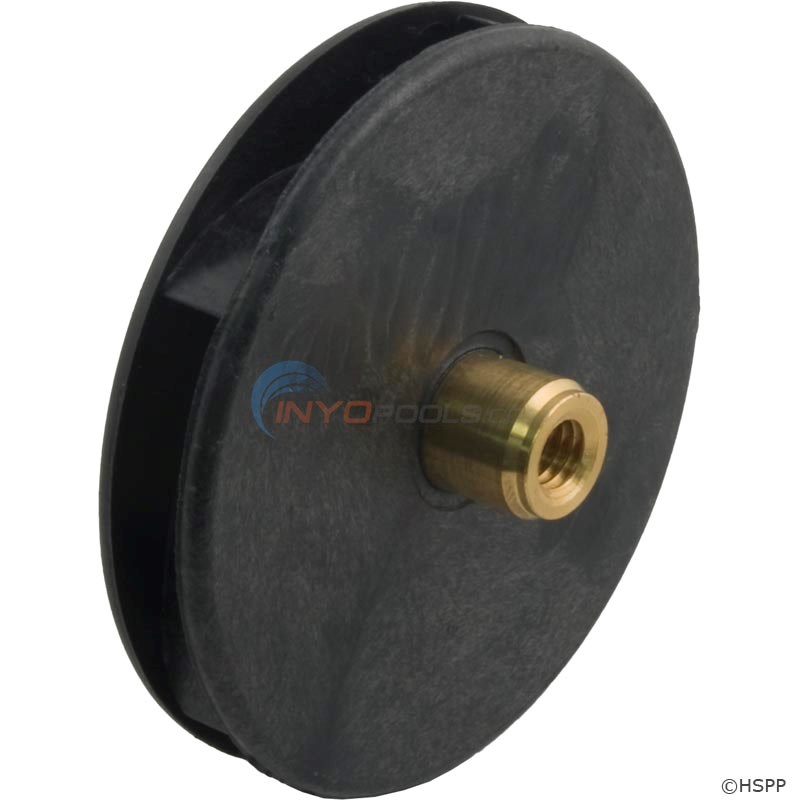

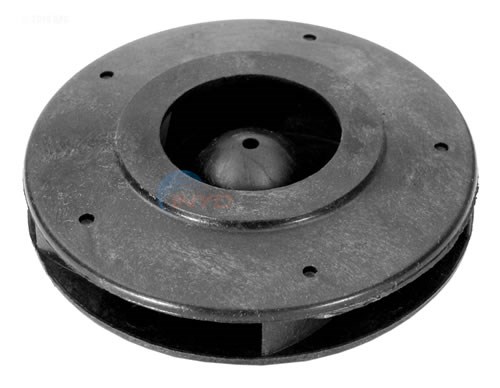

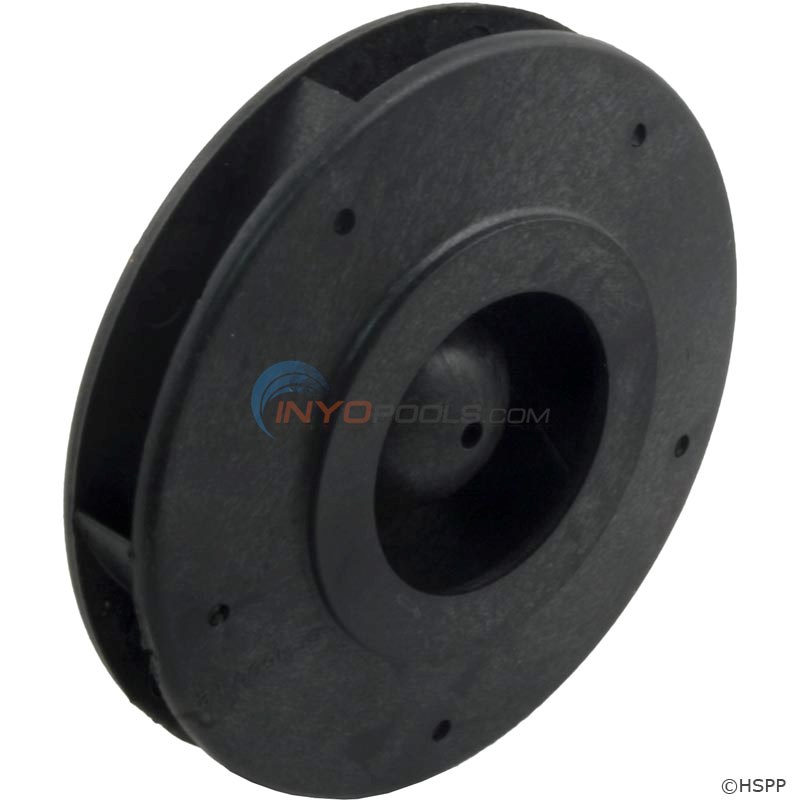

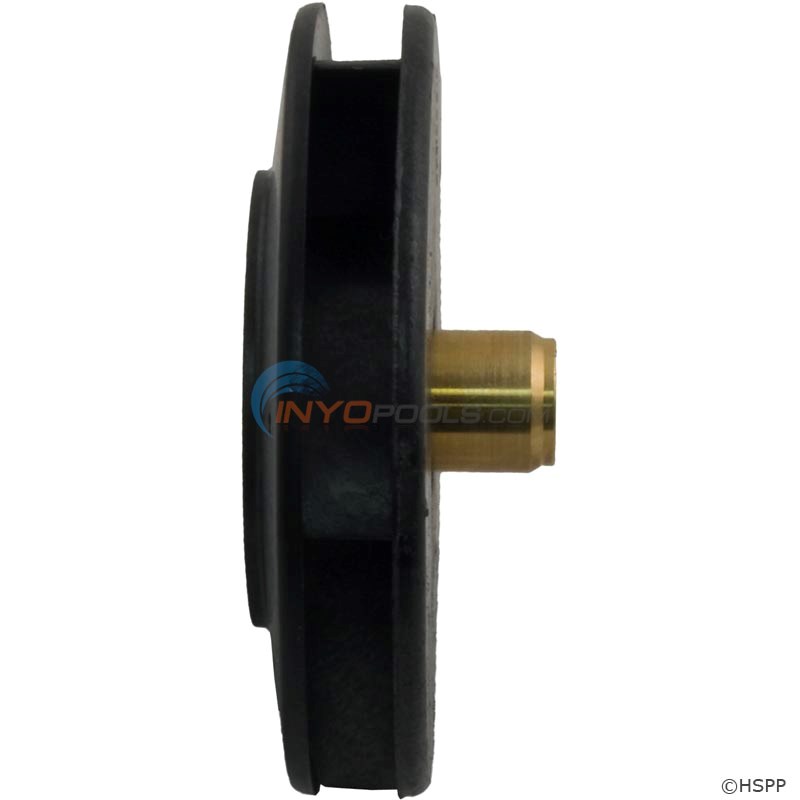

INYO # 5111-07D HAYWARD # SPX1500F GENERAL DESCRIPTION: THIS IS A 3/4 HP IMPELLER USED IN THE POWER FLOW PUMP BLACK PLASTIC IMPELLER CLOSED FACE OR OPEN IMPELLER: CLOSED FACE NUMBER OF VANES 5 OUTSIDE DIAMETER: 3-7/16" THICKNESS: 11/32" (INSIDE THICKNESS AT OUTSIDE EDGE) THICKNESS: 9/16" (OUTSIDE THICKNESS AT OUTSIDE EDGE) FRONT TO BACK: 1-3/8" (APPROXIMATELY) (FROM END OF SHAFT TO FRONT ON INTAKE) INLET INSIDE DIAMETER: 1-3/8" THE OLDER IMPELLERS WILL HAVE A PLASTIC SHAFT MORE CURRENT IMPELLERS WILL HAVE A BRASS SHAFT MARKINGS: "SP-1500-F2" IS MOLDED ONTO THE IMPELLER NEAR THE OUTSIDE EDGE THIS IS VERY SMALL AND HARD TO SEE THIS IS ON THE INLET SIDE "SP-1500-F1" IS MOLDED ONTO THE IMPELLER ON THE SHAFT SIDE
Is there a GPM rating for the impeller? Will a 3/4 hp impeller send half the flow of say a 1.5hp impeller?
Reply
Hi Frederick, so there are a few variables to consider when calculating GPM. Here is a guide that we put together called "How To Read a Pool Pump Curve" that should assist.
Reply
The Most Recent Reviews
(5 out of 5 stars)
Reviewed By: poolman from Tucson Arizona ()
the new product installed perfectly and worked better than the original, awesome
