By Carvin

Details

Top

Part # 94022410

Alternate Part #'s 9402-2410, 94022410, S1LR-6-S1, S1LR6S1

Product Description

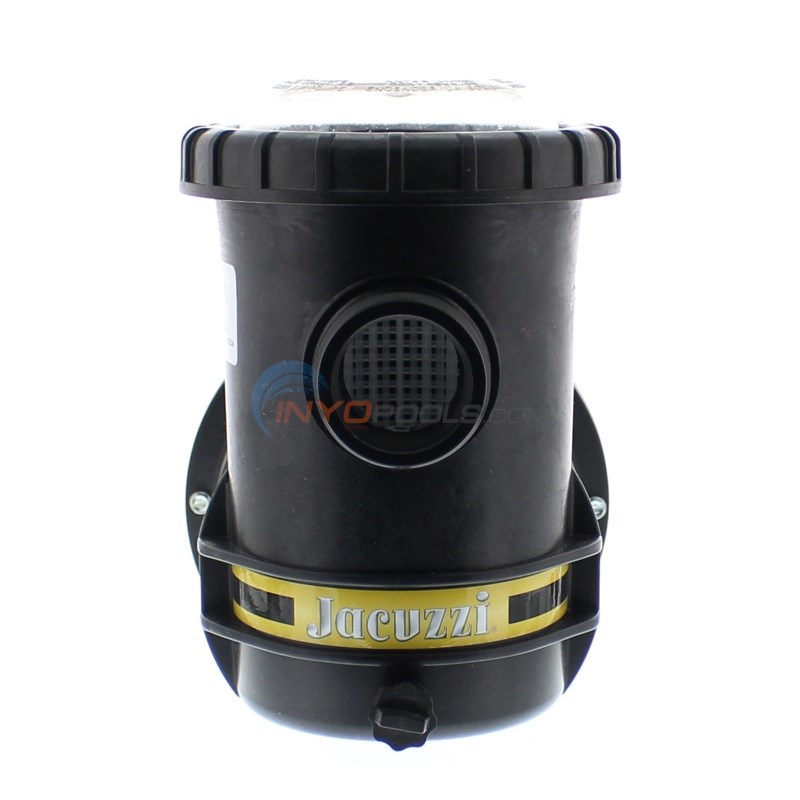

Jacuzzi® Slr Pump, 1 Hp, 115v, 6' Cord, 12 O'clock  Vertical Discharge (94022410)  Above Ground Pool Pump. Patented air-cooled heat sink allows pump to run dry without damage to shaft seal. Exclusive Ring-Lok strainer allows "tool-free" access to strainer basket. Internal ribs in large strainer basket assure flow even when filled with leaves and debris.

  • 60HZ
  • 115 Volt
  • 1.0 HP
  • 1.5" Ports
  • 9.8 Full Amp Load
  • Weight: 23lbs

Product Specifications

HP:
1 HP
Speed:
Single
Volts:
115 V
Amps:
9.8
Port Size:
1.5 in.
Cord Type:
6 foot/3 prong
Top
Ask A Question

?     Asked on 5/15/2015by ryan ohare

What width size are the hoses from pump to pool?
 Reply

A  Answered on 5/15/2015 by InyoPools Product Specialist Robert M.

Hello Ryan - The ports are 1-1/2" so 1-1/2" diameter hoses are typically used.
 Reply


?     Asked on 5/15/2015by lori

I have a 60L S1LR3 sand filter will this model fit?
 Reply

A  Answered on 5/15/2015 by InyoPools Product Specialist Patrick P.

Hi Lori, Yes this would be the correct replacement pump for your 60L S1LR3 sand filter system.
 Reply


?     Asked on 5/28/2015by stephen

Will this fit the model number I have from 2/05 - 94028420NBOX?
 Reply

A  Answered on 5/28/2015 by InyoPools Product Specialist Patrick P.

Hi Stephen, I am showing that the part # of your pump 94028420NBOX is a 1 HP two speed pump. The pump on this page would be a single speed and not a dual speed, it will work on your system but it would not have the low speed. This pump has the discharge port coming out of the top of the pump. If your discharge port comes out the side of the pump then you would need the SLR 1 HP Pump Horizontal Discharge.
 Reply


?     Asked on 6/14/2015by Ric

label on pump is faded but appears to be 94027620NBOX (STLR6). It appears to have a 3/4 HP motor. I was thinking of upgrading to a 1 HP motor but looks like i would need to also replace the impeller. Cost s the same as a new pump. So, will this pump be a suitable replacement? Mine is hardwired. Does that matter? Also, wanted to get a 2 speed motor if possible. I see a 3/4 HP part# BN36. Will that work in my pump? Shaft is 1/16" longer than stock motor 7-177954-20.
 Reply

A  Answered on 6/14/2015 by InyoPools Product Specialist Patrick P.

Hi Ric, If you want to stay with a single speed pump then going with this pump would be a good option, you can remove the pump cord and hard wire the pump. The complete SLR pump is not available in a dual speed model so if you wanted to go dual speed you would need replace your motor and use your current housing. To go this route you will need the BN36 Motor, he Jacuzzi SLR Tune Up Kit and a Dual Speed Switch.
 Reply


?     Asked on 6/21/2015by vern

what is the dementions on the incoming and out going outside threads
 Reply

A  Answered on 6/22/2015 by InyoPools Product Specialist Lennox H.

Vern, On the SLR 1 HP Above Ground Pump Vertical Discharge (94022410) has 2-1/2" threads, which uses the S15UNS Half, 1-1/2" Slip Union (31175607).
 Reply
