$148.73

Qty:

By Custom Molded Products


Details

Top

Model # 25280-150-000

Alternate Part #'s CMP25280150000

Product Description

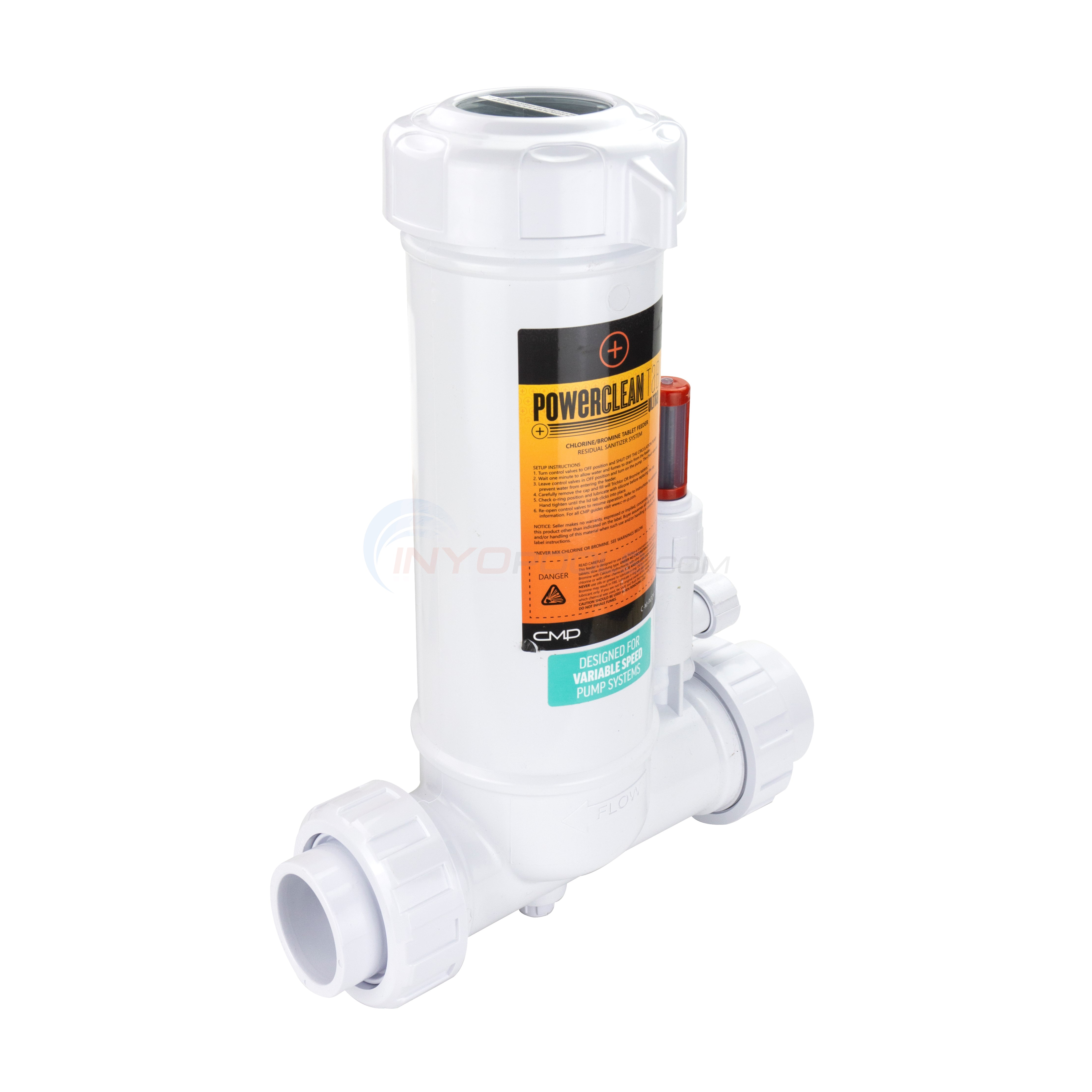

Powerclean Ultra VS In-Line Chlorinator, Clear Glass Lid

VARIABLE SPEED ENGINEERING

  • High performance at low GPM
  • Increases flow rate over the chlorine tablets in a low flow variable speed system
  • Quick installation or removal of VS option with no tools required
  • Available in Powerclean Ultra and Econ models
  • VS Kit also available for CMP retrofit upgrades - 25280-107-100
  • High chlorine flow between 20 and 50 GPM system flow rate
  • Creates high chlorine flow without elevated

POWERCLEAN ULTRA FEATURES

  • IMPROVED Rapid-Dissolve Tube Design
  • Treat Pools from 5,000-50,000 Gallons
  • All Piping is Inside the Unit to Eliminate Leaks
  • Holds Twelve 3" Tablets or 5lbs of 1" Tablets
  • Glass Lid Option for Easy Service
  • Superior 100% Shut-Off Dial
  • Built-In Flow Indicator for Easy Adjustment
  • Bottom Drain Plug

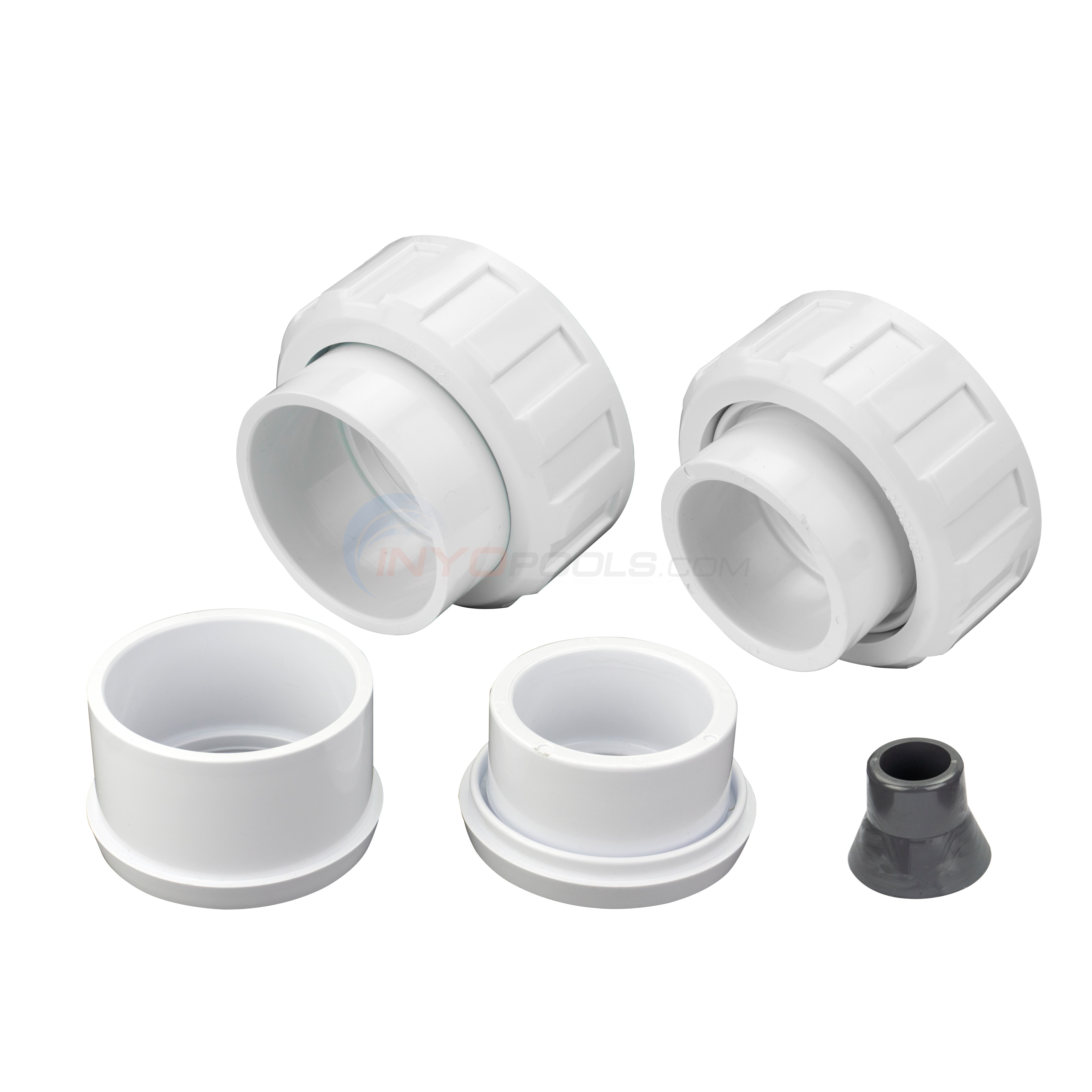

  • 1.5" & 2" Unions Included for Quick Disconnect

Product Dimensions:

Product Specifications

Manufacturer:
CMP
Application:
Inline
Large Tab Capacity:
12 Tablets
Small Tablet Capacity:
5 Lbs.
Treatment Capacity:
5,000-50,000 gal.
Top

?     Asked on 1/30/2012by Guest

What is the difference between an inline and offline chlorinator?
 Reply

A  Answered on 1/30/2012 by InyoPools Product Specialist Patrick P.

An inline chlorinator would be plumbed directly inline with the plumbing.  For an existing pool, this would mean a section of pipe would need to be cut out to install the chlorinator.  An offline chlorinator attaches to existing plumbing by chlorinator tubing (holes would be drilled into existing pipe to attach the tubing.)
 Reply


?     Asked on 2/28/2013by Guest

Can the Powerclean Ultra chlorinator be used on a home water purification system?
 Reply

A  Answered on 2/28/2013 by InyoPools Product Specialist Patrick P.

I wouldn't recommend using the Powerclean Ultra chlorinator on any system that has pressure above 35 psi.
 Reply


?     Asked on 5/9/2018by Inyo Visitor

does this product have 2 inch inlets
 Reply

A  Answered on 5/9/2018 by InyoPools Product Specialist Hector F.

These include 1.5" & 2" unions for quick Disconnect.
 Reply


?     Asked on 5/2/2019by Jim

I recently bought this chlorinator. Instructions say to install it above level of pool. Will be easiest to install approx. 3 ft above average pool water level. Is 3 ft too high? Thanks.
 Reply

A  Answered on 5/2/2019 by InyoPools Product Specialist Robert M.

Hello Jim - 3' would not be too high for the chlorinator. Make sure you put a check valve between the chlorinator and the heater or pump. You wouldn't want the concentrated chlorine to run back into that equipment.
 Reply

  • Commented on 5/2/2019 by Product Owner

    Thank you. I had not thought of the backflow potential.
     Reply


?     Asked on 3/31/2020by James Harrod

Can I use 1" bromine tabs with the Clear glass version of this feeder?
 Reply

A  Answered on 4/1/2020 by InyoPools Product Specialist Lennox H.

Hi, James. Yes, you can use bromine tabs with these chlorinators. Once, you've used bromine, chlorine tabs cannot be used.
 Reply


Top
Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

None

4     0

Had a Pentair Rainbow chlorinator, worked great for the 1st year, then would provide less and less chlorine.

Written on 4/12/2021 by Guest

I live in Texas and had to rebuild all of the valves and some PVC due to the freeze, added this new unit while rebuilding the PVC and valves. It was very easy to cut in as it comes with inline unions that makes it extremely easy to install. All I had to do is cut a long horizontal PVC pipe leaving enough room to glue in the unions, then install the chlorinator.
