$180.89

Qty:

By AquaStar Pool Products


Details

Top

Model # 32CDFLFR105

Alternate Part #'s API-25-1331, AQS32CDFLFR105

Product Description

Meets or Exceeds ASME/ANSI A112.19.8-2007 National Standards and ASTM G154 UV Testing

For Single or Multiple Drain Use (See Installation Instructions for Plumbing, Hydrostatic Valve/ Drain Pipe & Single or Multi-Pump Connections). A112.19.8-2007 Standard. Orange disposable plastic pre-gunite/plaster insert keeps debris out and retains sump shape during construction. Must use transitional glue when attaching to PVC pipe. Manufactured from Super Strong UV Resistant Polymers.

Features:

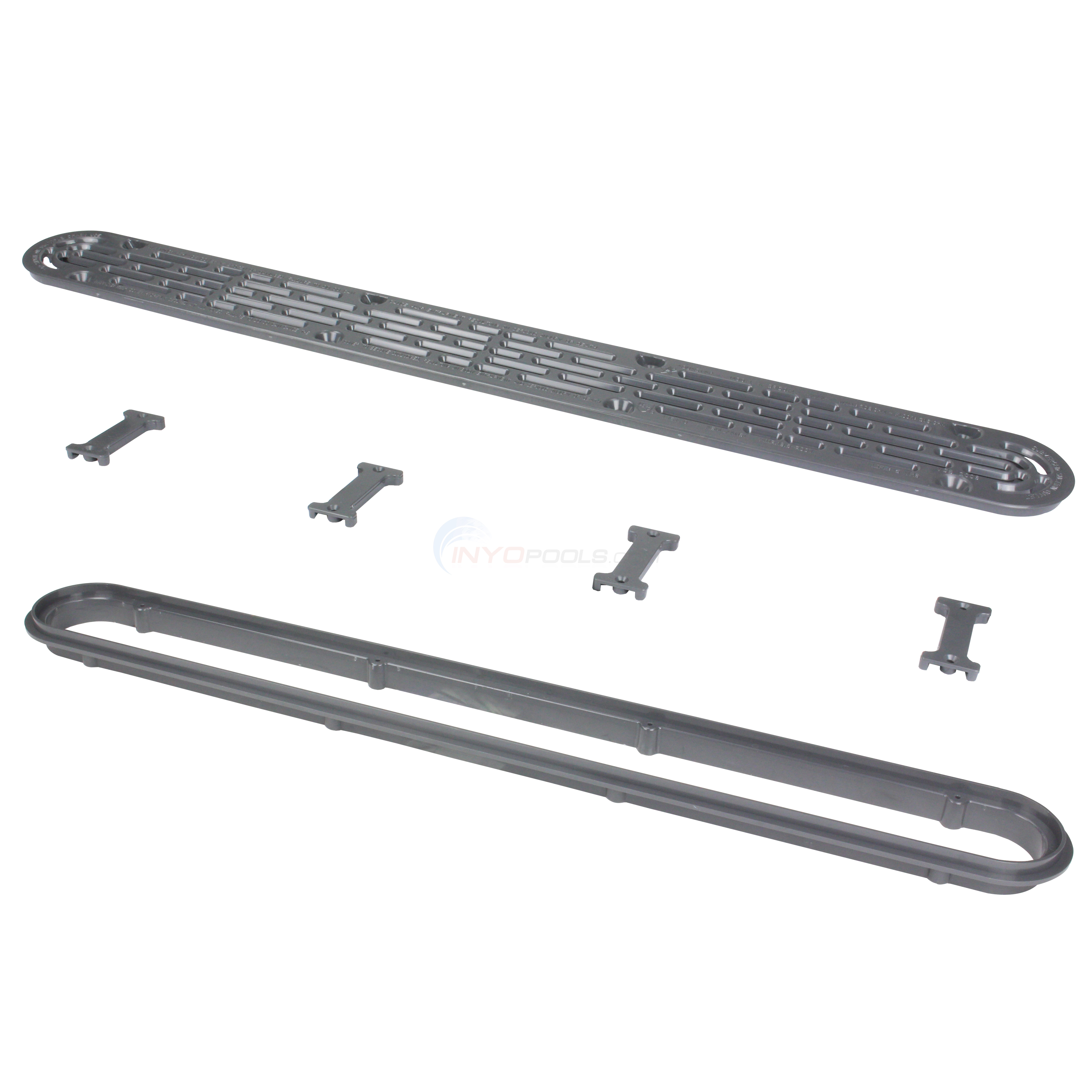

  • 32" channel drain, no sump, frame
  • 32" channel drain, cover, flat
  • 32" channel drain, frame support “dog bones”
  • #10 x 3/4" flat head phillips type-a screw, 316 ss
  • Three Ports: bottom 2-1/2" OD, 2" ID S/S; Inside 2" threaded FPT; two 2" threaded plugs included.
  • Includes disposable “dogbone” supports to retain shape during all phases of construction.

Product Specifications

Floor GPM:
316 GPM at 3.9 fps
Wall GPM:
208 GPM at 2.6 fps
Floor/Wall:
122 GPM at 1.5 fps
Opening Size:
25.9 sq. in.
Color:
Gray
Length:
32 in.
Cover Shape:
Elongated Oval
Manufacturer:
Aquastar
Size:
4 x 32-13/16 in.
