Part # PL1103
Warranty 1 Year

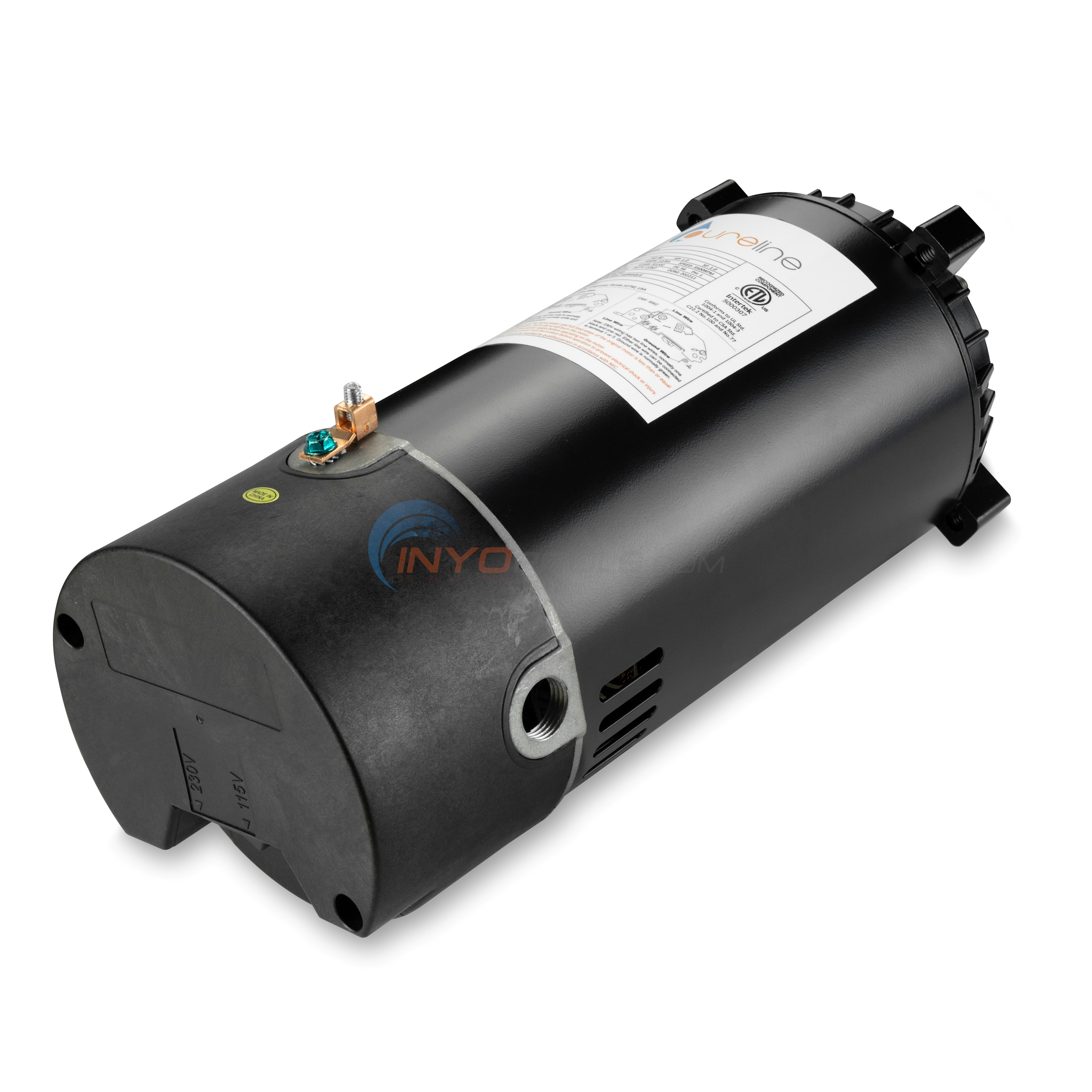

Pureline 1 HP Replacement Pool Motor for Hayward® & Jacuzzi® Pumps
Is your pool pump motor running loud, leaking or humming? These are all signs that it’s time to be replaced. The PL1103 PureLine Replacement motor is designed as a drop-in replacement motor for some of the most popular 1 HP pool pumps like the Hayward® Super Pump, Hayward® Super II, Hayward® Max-Flo, Jacuzzi® Magnum and many more.
The PureLine replacement motor is made of the highest quality components like sealed ball bearings which means it is an ultra quiet motor. Because of its high-quality construction the PureLine replacement motor is backed by a full 1-year warranty.
When it comes to replacing your motor Inyo has you covered we have created a ton of resources to make this project a snap, like our Video on How to Replace a Pool Motor this video walks you through all the steps to replace your motor. Most of our customers decide to tackle this project on their own and by following our video they complete this project in about an hour.
When replacing your motor we highly recommend a tune up kit which includes all the seals and gaskets for your pump. Many times when you use your old seals you may have leaking and seal leakage is one item which will void the motors warranty so make sure to protect your investment with a tune up kit. Below we have listed the tune up kits for some of the most popular pool pumps.
Don't Forget Your Tune Up Kit
Hayward® Super Pump Tune Up Kit
Hayward® Super II Tune Up Kit
Hayward® Max-Flo Tune Up Kit
Jacuzz®i Magnum Tune Up Kit
Note: NOT California or New York Title 20 Compliant.
California and New York Title 20 Compliant Option:
Disclaimer:
All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.
What is Service Factor?
Reply

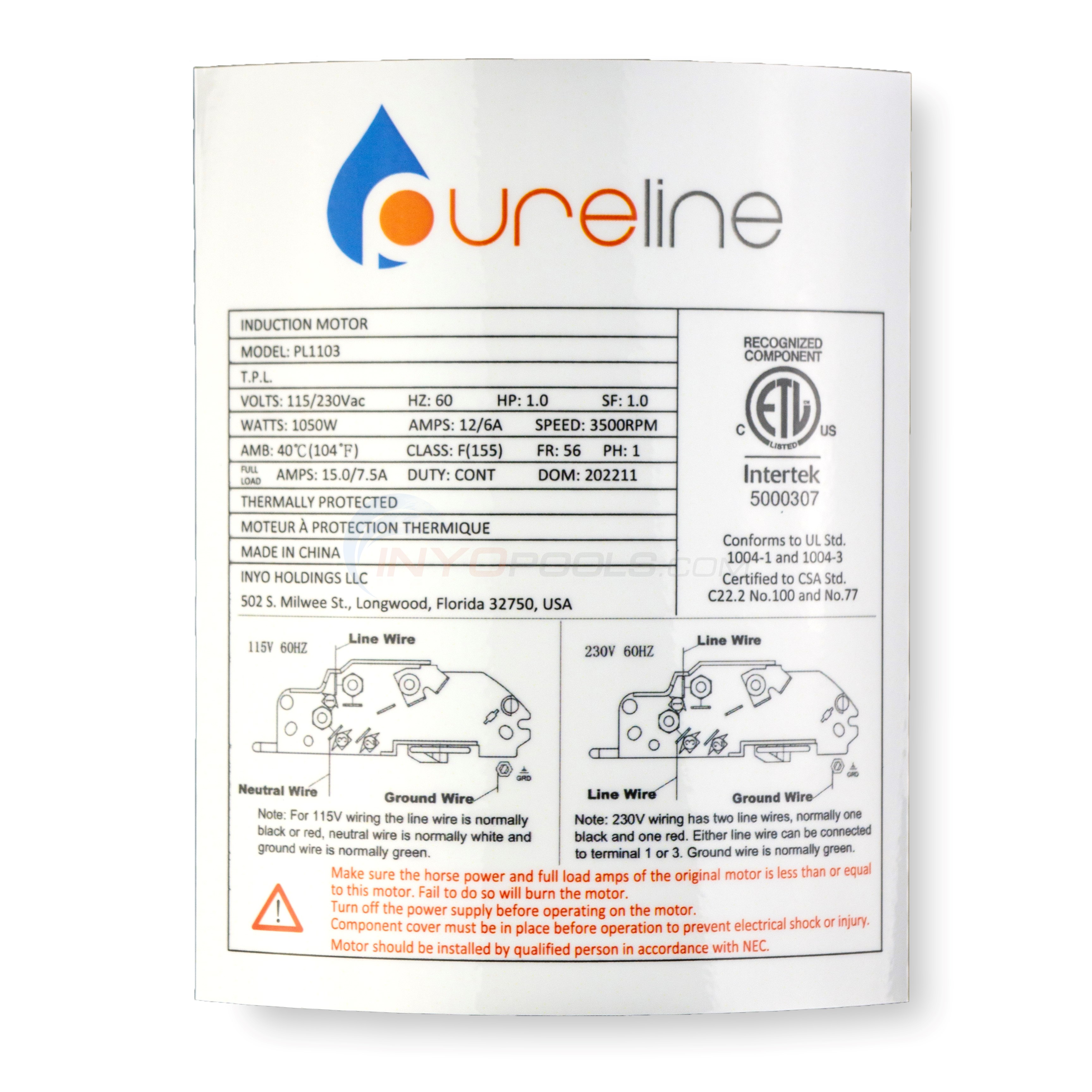

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
Reply
Why do I need to purchase a new shaft seal?
Reply
We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
Reply
Why should I purchase a Tune Up Kit?
Reply
A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
Reply
I'm trying to find a replacement motor for my pool pump but my model number doesn't match what you have listed as the model number. My model number begins with a C48 and yours begins with an SP. Please help.
Reply
What we have listed on our chart pages is the pump model number. The model number you have will just identify the motor. If you look on the plastic housing on the pump there should be a sticker which will have the pump model number. You can usually find this by the discharge port on the pump. Once you locate it you can choose the correct replacement motor. Be certain to change the shaft seal and gaskets as needed. You can use our >How to guide if you need help.
Reply
I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?
Reply
Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.
Reply
The Most Recent Reviews
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Came in 5 days
Was this review helpful to you?
(5 out of 5 stars) So far so good
Reviewed By: Inyo Customer ()
Easy to install. Very quiet operation.
Was this review helpful to you?
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Worked as expected
Was this review helpful to you?
0 3
(4 out of 5 stars)
Reviewed By: Inyo Customer ()
Have a lot of plastic rather than metal on cover
Was this review helpful to you?
