Jandy HHP & HHPU Series Pump Parts

HHP FULL RATED & HHPU UP RATED SERIES

Jandy HHP & HHPU Series Pump Diagram

Click to zoom in

Diagram #	Part Title
**	Tune Up Kit Jandy HHP + HHPU Pump Series
1	OBSOLETE MOUNTING BRACKET
2	IMPELLER 3/4 HP FULL, 1 HP UPRATE
3	DIFFUSER, 3/4 THRU 2 HP
4	JANDY SHAFT SEAL OEM
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
5	OBSOLETE PUMP POT
6	OBSOLETE MOUNTING FOOT ASSY
7	LID, JANDY MHP & MHPU PUMP With O-RING
8	PUMP BASKET (R0338600)
9	NLA O-RING, BODY REPLACED WITH WATERCO O-RING #
10	DIFFUSER O-RING, 3/4 THRU 2 HP
11	POT LID O-RING
12	DIFFUSER MOUNTING HARDWARE
13	DRAIN PLUG (R0339100) Replaced by 634023
14	OBSOLETE HARDWARE FOOT
15	OBSOLETE HARDWARE, BRACKET
16	OBSOLETE HARDWARE MOTOR
17	Blk Half Union & O-ring (634024)
18	Union O-ring
19	Pureline 3/4 HP Round Flange 56J Up Rate Motor
19	V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU
***	V-Green Automation Adapter Kit - 2517501-001 (Require With ECM16CU for Systems Controlled via Automation)
***	Protective Pool Motor Cover

View Parts List

Diagram #	Part Title
**	Tune Up Kit Jandy HHP + HHPU Pump Series
1	OBSOLETE MOUNTING BRACKET
2	IMPELLER 3/4 HP FULL, 1 HP UPRATE
3	DIFFUSER, 3/4 THRU 2 HP
4	JANDY SHAFT SEAL OEM
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
5	OBSOLETE PUMP POT
6	OBSOLETE MOUNTING FOOT ASSY
7	LID, JANDY MHP & MHPU PUMP With O-RING
8	PUMP BASKET (R0338600)
9	NLA O-RING, BODY REPLACED WITH WATERCO O-RING #
10	DIFFUSER O-RING, 3/4 THRU 2 HP
11	POT LID O-RING
12	DIFFUSER MOUNTING HARDWARE
13	DRAIN PLUG (R0339100) Replaced by 634023
14	OBSOLETE HARDWARE FOOT
15	OBSOLETE HARDWARE, BRACKET
16	OBSOLETE HARDWARE MOTOR
17	Blk Half Union & O-ring (634024)
18	Union O-ring
19	Pureline 3/4 HP Round Flange 56J Up Rate Motor
19	V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU
***	V-Green Automation Adapter Kit - 2517501-001 (Require With ECM16CU for Systems Controlled via Automation)
***	Protective Pool Motor Cover

Available Parts:

Tune Up Kit Jandy HHP + HHPU Pump Series

Part # GOKIT76

Tune Up Kit Jandy HHP + HHPU Pump Series

$42.13 IN STOCK

Qty:

1

OBSOLETE MOUNTING BRACKET

Mfg # R0337900

OBSOLETE MOUNTING BRACKET

NOT AVAILABLE

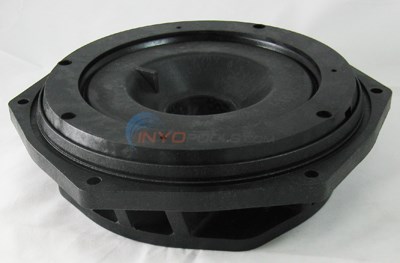

Mounting Bracket

Part # 4590-122 Mfg # 63402011

Mounting Bracket

$107.67

IMPELLER 3/4 HP FULL, 1 HP UPRATE

Part # 5020-002 Mfg # R0338001

IMPELLER 3/4 HP FULL, 1 HP UPRATE

$105.53 IN STOCK

Qty:

IMPELLER 1 HP FULL, 1 1/2 HP UPRATE

Part # 5020-003 Mfg # R0338002

IMPELLER 1 HP FULL, 1 1/2 HP UPRATE

$90.61

2

OBSOLETE IMPELLER 1 1/2 HP FULL,2 HP UPRATE

Mfg # R0338003

OBSOLETE IMPELLER 1 1/2 HP FULL,2 HP UPRATE

NOT AVAILABLE

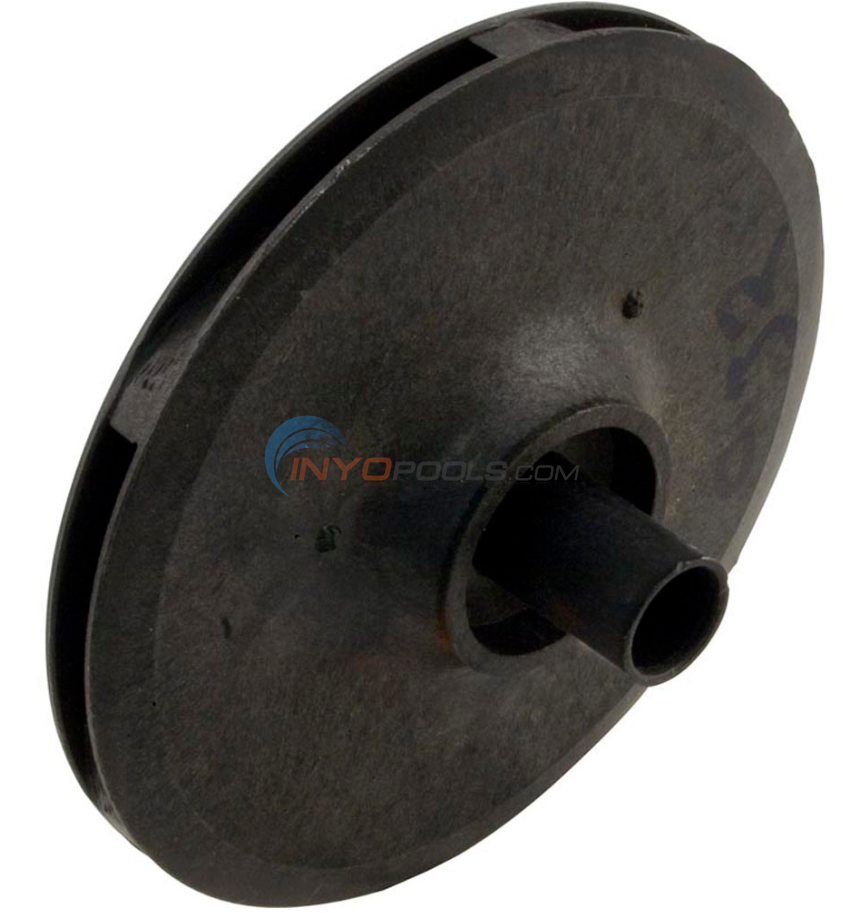

IMPELLER 2 HP FULL, 2 1/2 HP UPRATE

Part # 5020-005 Mfg # R0338004

IMPELLER 2 HP FULL, 2 1/2 HP UPRATE

$105.53 IN STOCK

Qty:

IMPELLER 3 HP FULL RATED

Part # 5020-006 Mfg # R0338005

IMPELLER 3 HP FULL RATED

$123.67

DIFFUSER, 3/4 THRU 2 HP

Part # 5020-007 Mfg # R0338101

DIFFUSER, 3/4 THRU 2 HP

$99.14

DIFFUSER, 3 HP

Part # 5020-008 Mfg # R0338105

DIFFUSER, 3 HP

$72.49

JANDY SHAFT SEAL OEM

Part # 5020-009 Mfg # R0338200

JANDY SHAFT SEAL OEM

$22.84 IN STOCK

Qty:

GENERIC SHAFT SEAL

Part # 35-423-1080 Mfg # PS-601

GENERIC SHAFT SEAL

$19.41 IN STOCK

Qty:

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

Part # 5250-240 Mfg # PS-3986

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

$25.40 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$5.31 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$31.97 IN STOCK

Qty:

5

OBSOLETE PUMP POT

Mfg # R0338301

OBSOLETE PUMP POT

NOT AVAILABLE

5

Jandy Strainer Pot, Body 3HP Only

Mfg # R0338305

Jandy Strainer Pot, Body 3HP Only

NOT AVAILABLE

5

Hydrostorm Pump Body .75-2 Hp (WC63400511)

Part # 35-252-1189 Mfg # WC63400511

Hydrostorm Pump Body .75-2 Hp (WC63400511)

NOT AVAILABLE

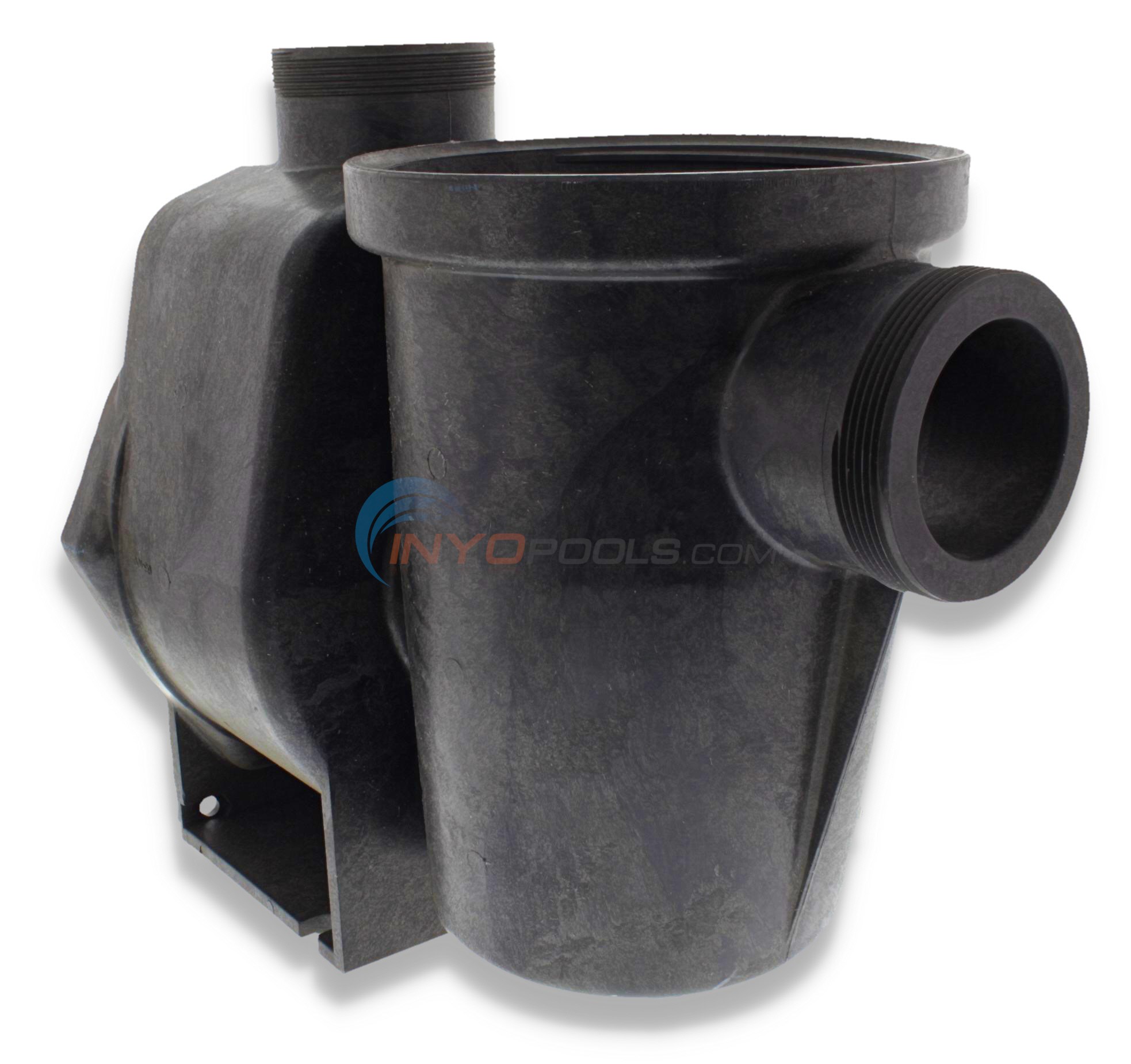

Hydrostorm Volute And Pot, 3 Hp

Part # 5005-14 Mfg # WC63400531

Hydrostorm Volute And Pot, 3 Hp

$210.03

6

OBSOLETE MOUNTING FOOT ASSY

Mfg # R0338400

OBSOLETE MOUNTING FOOT ASSY

NOT AVAILABLE

LID, JANDY MHP & MHPU PUMP With O-RING

Part # 5020-013 Mfg # R0338500

LID, JANDY MHP & MHPU PUMP With O-RING

$93.81

Lid, Waterco Supatuf Pump

Part # 4590-50 Mfg # 634000

Lid, Waterco Supatuf Pump

$76.27 IN STOCK

Qty:

PUMP BASKET (R0338600)

Part # 5020-014 Mfg # 634001

PUMP BASKET (R0338600)

$32.27 IN STOCK

Qty:

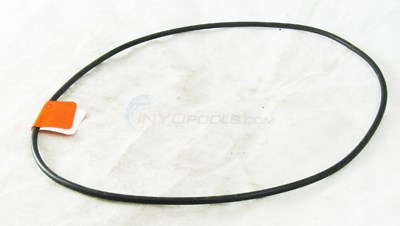

NLA O-RING, BODY REPLACED WITH WATERCO O-RING #

Part # 5005-10 Mfg # 634017

NLA O-RING, BODY REPLACED WITH WATERCO O-RING #

$26.02 IN STOCK

Qty:

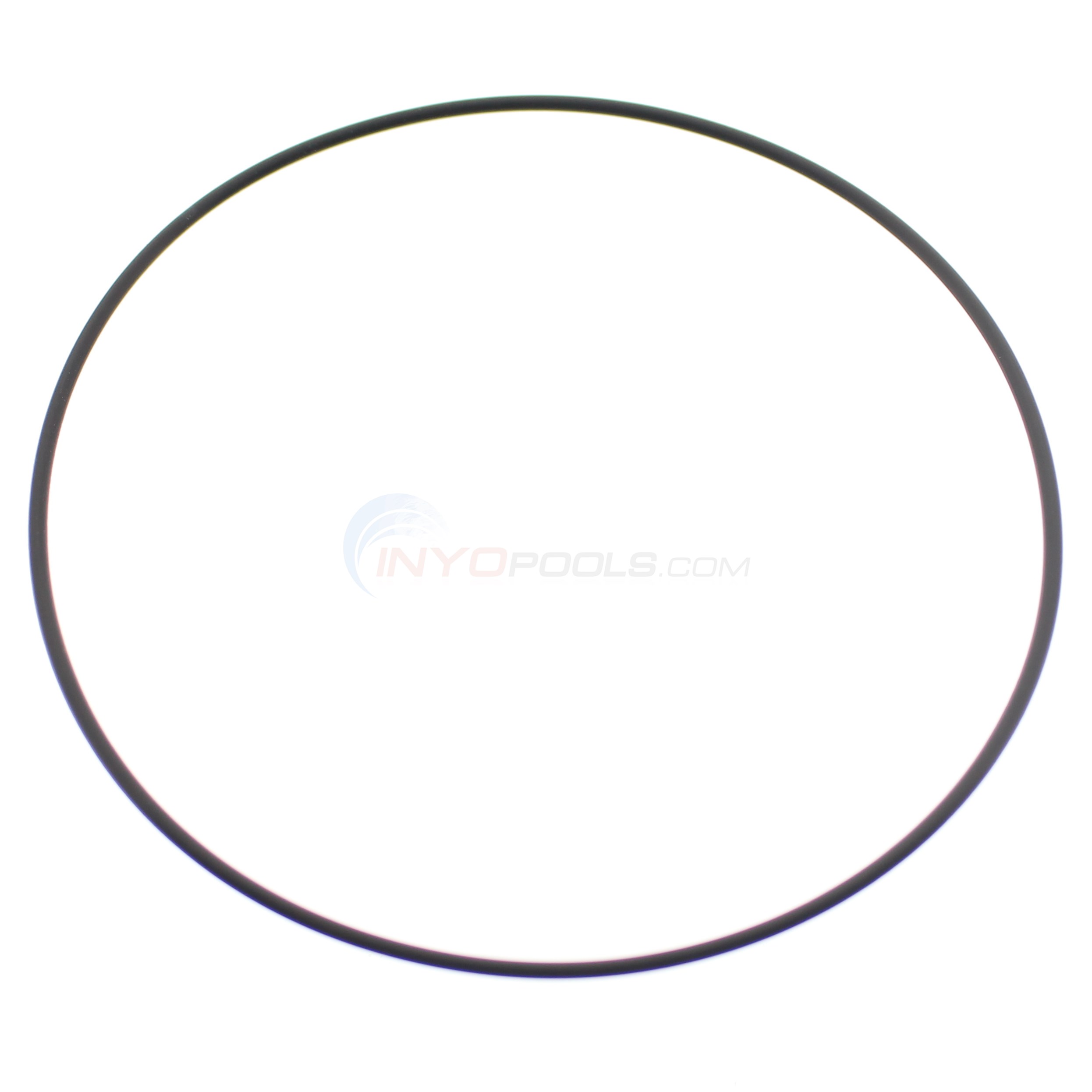

Body O-ring 8"

Part # 5020-015 Mfg # R0338700

Body O-ring 8"

$14.91 IN STOCK

Qty:

DIFFUSER O-RING, 3/4 THRU 2 HP

Part # 5020-016 Mfg # R0338801

DIFFUSER O-RING, 3/4 THRU 2 HP

$10.90 IN STOCK

Qty:

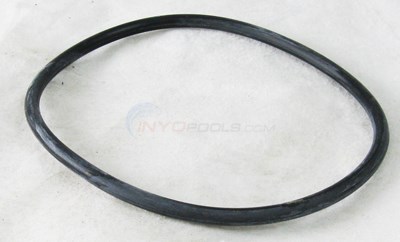

DIFFUSER O-RING, 3 HP

Part # 5020-017 Mfg # R0338805

DIFFUSER O-RING, 3 HP

$11.71 IN STOCK

Qty:

POT LID O-RING

Part # 5020-018 Mfg # R0338900

POT LID O-RING

$20.82 IN STOCK

Qty:

DIFFUSER MOUNTING HARDWARE

Part # 5020-019 Mfg # R0339000

DIFFUSER MOUNTING HARDWARE

$79.95

DRAIN PLUG (R0339100) Replaced by 634023

Part # 5020-020 Mfg # R0339100

DRAIN PLUG (R0339100) Replaced by 634023

$72.49

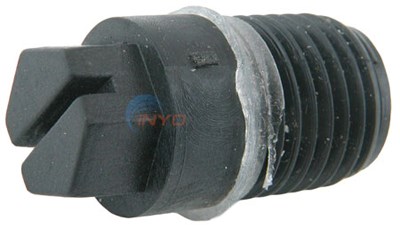

Drain Plug

Part # 4590-56 Mfg # 634023

Drain Plug

$11.71 IN STOCK

Qty:

14

OBSOLETE HARDWARE FOOT

Mfg # NOT AVAILABLE

OBSOLETE HARDWARE FOOT

NOT AVAILABLE

15

OBSOLETE HARDWARE, BRACKET

Mfg # NOT AVAILABLE

OBSOLETE HARDWARE, BRACKET

NOT AVAILABLE

16

OBSOLETE HARDWARE MOTOR

Mfg # NOT AVAILABLE

OBSOLETE HARDWARE MOTOR

NOT AVAILABLE

Blk Half Union & O-ring (634024)

Part # 4590-54 Mfg # 634024BLK

Blk Half Union & O-ring (634024)

$37.30 IN STOCK

Qty:

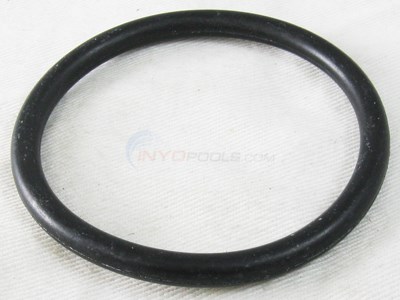

Union O-ring

Part # 4590-55 Mfg # 6340241

Union O-ring

$6.41 IN STOCK

Qty:

Pureline 3/4 HP Round Flange 56J Up Rate Motor

Part # PL1073

Pureline 3/4 HP Round Flange 56J Up Rate Motor

$169.99 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Service Factor 1.0 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Qty:

Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102

Part # UST1102 Mfg # UST1102

Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102

$230.00 IN STOCK

Service Factor 1.1 Voltage 115/230 Max Amps 10.0/5.0 Frame 56J

Service Factor 1.1 Voltage 115/230 Max Amps 10.0/5.0 Frame 56J

Qty:

Century (A.O. Smith) 1.5 HP Up Rate Motor, Round Flange 56J Frame, Single Speed - Model UST1152

Part # UST1152 Mfg # UST1152

Century (A.O. Smith) 1.5 HP Up Rate Motor, Round Flange 56J Frame, Single Speed - Model UST1152

$268.00 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 18.6/9.3 Frame 56J

Service Factor 1.0 Voltage 115/230 Max Amps 18.6/9.3 Frame 56J

Qty:

A.O Smith 2 H.P Round Flange Up Rate Replacement Motor

Part # UST1202 Mfg # UST1202

A.O Smith 2 H.P Round Flange Up Rate Replacement Motor

$338.00 IN STOCK

Service Factor 1.1 Voltage 115/208-230 Max Amps 19.6/10.4-9.8 Frame 56J

Service Factor 1.1 Voltage 115/208-230 Max Amps 19.6/10.4-9.8 Frame 56J

Qty:

A.O Smith 2.5 H.P Round Flange Up Rate Replacement Motor

Part # UST1252 Mfg # UST1252

A.O Smith 2.5 H.P Round Flange Up Rate Replacement Motor

$415.04 IN STOCK

Service Factor 1.1 Voltage 208-230 Max Amps 12.6/11.4 Frame 56J

Service Factor 1.1 Voltage 208-230 Max Amps 12.6/11.4 Frame 56J

Qty:

A.O. Smith Round Flange 3/4 HP Full Rate Motor

Part # ST1072 Mfg # ST1072

A.O. Smith Round Flange 3/4 HP Full Rate Motor

$250.00 IN STOCK

Service Factor 1.5 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Service Factor 1.5 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Qty:

AO Smith 1 HP Full Rate Round Flange Motor

Part # ST1102 Mfg # ST1102

AO Smith 1 HP Full Rate Round Flange Motor

$267.00 IN STOCK

Service Factor 1.5 Voltage 115/230 Max Amps 18.6/9.3 Frame 56J

Service Factor 1.5 Voltage 115/230 Max Amps 18.6/9.3 Frame 56J

Qty:

A.O. Smith Round Flange 1 1/2 HP Full Rate Motor

Part # ST1152 Mfg # ST1152

A.O. Smith Round Flange 1 1/2 HP Full Rate Motor

$350.00 IN STOCK

Service Factor 1.5 Voltage 115/208-230 Max Amps 19.6/10.4-9.8 Frame 56J

Service Factor 1.5 Voltage 115/208-230 Max Amps 19.6/10.4-9.8 Frame 56J

Qty:

A.O. Smith Round Flange 2 HP Full Rate Motor

Part # ST1202 Mfg # ST1202

A.O. Smith Round Flange 2 HP Full Rate Motor

$380.00 IN STOCK

Service Factor 1.3 Voltage 208-230 Max Amps 12.6-11.4 Frame 56J

Service Factor 1.3 Voltage 208-230 Max Amps 12.6-11.4 Frame 56J

Qty:

A.O Smith 3 H.P Round Flange Replacement Motor

Part # ST1302 Mfg # ST1302V1

A.O Smith 3 H.P Round Flange Replacement Motor

$555.00 IN STOCK

Service Factor 1.15 Voltage 208-230 Max Amps 14.5-13.8 Frame 56J

Service Factor 1.15 Voltage 208-230 Max Amps 14.5-13.8 Frame 56J

Qty:

A.O. Smith 1 H.P Round Flange Dual Speed Full Rate Motor

Part # STS1102 Mfg # STS1102RV1

A.O. Smith 1 H.P Round Flange Dual Speed Full Rate Motor

$419.00 IN STOCK

Service Factor 1.5 Voltage 230 Max Amps 8.5/2.5 Frame 56J

Service Factor 1.5 Voltage 230 Max Amps 8.5/2.5 Frame 56J

Qty:

A.O. Smith 1-1/2 HP Round Flange Dual Speed Full Rate Motor

Part # STS1152 Mfg # STS1152R

A.O. Smith 1-1/2 HP Round Flange Dual Speed Full Rate Motor

$477.30 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 9.0/3.3 Frame 56J

Service Factor 1.0 Voltage 230 Max Amps 9.0/3.3 Frame 56J

Qty:

A.O. Smith 2 H.P Round Flange Dual Speed Full Rate Motor

Part # STS1202 Mfg # B2979

A.O. Smith 2 H.P Round Flange Dual Speed Full Rate Motor

$555.00 IN STOCK

Service Factor 1.1 Voltage 230 Max Amps 11.4/4.1 Frame 56J

Service Factor 1.1 Voltage 230 Max Amps 11.4/4.1 Frame 56J

Qty:

Pureline 1 HP Round Flange 56J Up Rate Motor

Part # PL1103

Pureline 1 HP Round Flange 56J Up Rate Motor

$198.99 IN STOCK

Service Factor 1.1 Voltage 115/230 Max Amps 10.0/5.0 Frame 56J

Service Factor 1.1 Voltage 115/230 Max Amps 10.0/5.0 Frame 56J

Qty:

V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU

Part # ECM16CU Mfg # ECM16CU

V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU

$599.00 IN STOCK

Service Factor 1.0 Voltage 208/230 Max Amps 10.5/10.0 Frame 48Y

Service Factor 1.0 Voltage 208/230 Max Amps 10.5/10.0 Frame 48Y

Qty:

V-Green 2.7 HP Round Flange 56J Variable Speed Motor - ECM27CU

Part # ECM27CU Mfg # ECM27CU

V-Green 2.7 HP Round Flange 56J Variable Speed Motor - ECM27CU

$592.94

Service Factor 1.0 Voltage 208/230 Max Amps 10.5/10.0 Frame 48Y

Service Factor 1.0 Voltage 208/230 Max Amps 10.5/10.0 Frame 48Y

V-Green Automation Adapter Kit - 2517501-001 (Require With ECM16CU for Systems Controlled via Automation)

Part # 2517501-001 Mfg # 2517501-001

V-Green Automation Adapter Kit - 2517501-001 (Require With ECM16CU for Systems Controlled via Automation)

$290.36

Century Motor VLink

Part # VL100

Century Motor VLink

$384.62

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$38.08 IN STOCK

Qty:

*NOT SHOWN
** O-RING/GASKET REPAIR KIT
*** NOT SHOWN
